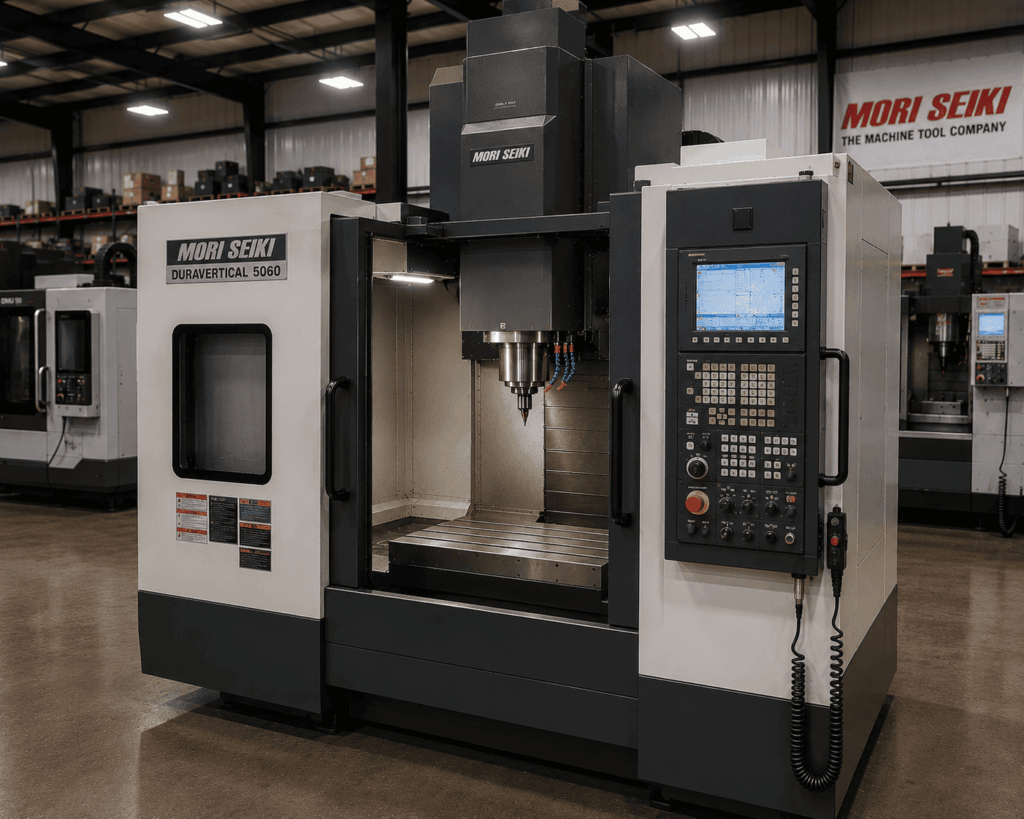

USED MORI SEIKI DURAVERTICAL 5060 – 2005

The 2005 Mori Seiki DuraVertical 5060 is a compact, high-performance 3-axis vertical machining center (VMC) designed for precision milling, drilling, tapping, and general machining applications. Manufactured by Mori Seiki (now DMG MORI), the DuraVertical Series was developed to provide manufacturers with exceptional reliability, rigid construction, and outstanding machining performance while maintaining an economical operating cost. The DuraVertical 5060 is ideal for both job shops and high-volume production environments, offering excellent accuracy, fast cycle times, and dependable long-term operation. Its combination of compact dimensions and robust construction makes it a popular choice for manufacturers seeking premium Japanese machining technology in a versatile vertical machining center.

Built with a heavily ribbed cast iron C-frame structure and precision roller linear guideways, the DuraVertical 5060 delivers superior rigidity, vibration damping, and thermal stability for consistent machining accuracy. The machine features 23.6 inches (600 mm) of X-axis travel, 20.9 inches (530 mm) of Y-axis travel, and 20.1 inches (510 mm) of Z-axis travel, making it suitable for machining a wide variety of medium-sized components. The 35.4 × 23.6-inch (900 × 600 mm) table supports workpieces weighing up to 1,100 lbs (500 kg). Equipped with a BT40 spindle operating at 10,000 RPM and powered by an 11 kW (15 HP peak) spindle motor, the machine efficiently machines aluminum, steel, stainless steel, cast iron, brass, and engineering plastics while delivering excellent surface finishes and dimensional accuracy. Rapid traverse rates of 1,417 IPM (36 m/min) on the X and Y axes further improve productivity by minimizing non-cutting time.

The 2005 model is commonly equipped with either the Mori MSC-504 or Fanuc 0i-MD CNC Control, depending on the original machine configuration. A standard 30-tool automatic tool changer provides fast tool changes and supports a wide variety of milling operations including drilling, boring, tapping, contouring, and pocket machining. Standard equipment typically includes rigid tapping, spindle oil cooling, automatic lubrication, flood coolant, spindle air blast, and electronic handwheel. Optional features such as through-spindle coolant, Renishaw probing, chip conveyor, fourth-axis rotary tables, and expanded program memory further enhance machining flexibility and automation capabilities.

The Mori Seiki DuraVertical 5060 is widely used throughout the automotive, aerospace, medical, mold and die, electronics, energy, and general manufacturing industries. Typical applications include fixture plates, molds, tooling components, machine parts, brackets, housings, aluminum components, steel production parts, and prototype machining. Its dependable construction, efficient machining capabilities, and user-friendly controls have made it one of the most popular compact vertical machining centers in the used CNC market.

Purchasing a used 2005 Mori Seiki DuraVertical 5060 provides manufacturers with premium Japanese machining technology at a significantly lower investment than purchasing a new machine. Mori Seiki machines are recognized worldwide for their outstanding reliability, excellent build quality, long service life, and strong resale value. A properly maintained DuraVertical 5060 continues to deliver exceptional productivity, machining accuracy, and dependable performance for years of production.

MORI SEIKI DURAVERTICAL 5060 SPECIFICATIONS

Axis

Specification	Value
Machine Type	Vertical Machining Center
Controlled Axes	3 Axes (X, Y, Z)
X-Axis Travel	23.6 in (600 mm)
Y-Axis Travel	20.9 in (530 mm)
Z-Axis Travel	20.1 in (510 mm)

Travels / Work Envelope

Specification	Value
Spindle Nose to Table	5.9–26.0 in (150–660 mm)
Maximum Workpiece Weight	1,100 lbs (500 kg)

Table

Specification	Value
Table Size	35.4 × 23.6 in (900 × 600 mm)
Table Load Capacity	1,100 lbs (500 kg)
T-Slots	6 × 0.71 in (18 mm)

Spindle

Specification	Value
Spindle Taper	BT40
Maximum Spindle Speed	10,000 RPM
Spindle Motor	15 HP Peak (11 kW Continuous)
Drive Type	Belt Drive

Tool Changer

Specification	Value
Tool Changer Type	Automatic Tool Changer
Tool Capacity	30 Tools
Tool Change Time (Chip-to-Chip)	Approx. 1.3 sec
Maximum Tool Diameter	4.9 in (125 mm)
Maximum Tool Weight	17.6 lbs (8 kg)

CNC Control

Specification	Value
CNC Control	Mori MSC-504 or Fanuc 0i-MD
Programming	ISO G-Code
Rigid Tapping	Standard
Electronic Handwheel	Standard

Coolant / Chip Management

Specification	Value
Coolant System	Flood Coolant
Automatic Lubrication	Standard
Chip Conveyor	Optional
Through-Spindle Coolant	Optional

Power Requirements

Specification	Value
Electrical Supply	220V / 400V, 3-Phase
Connected Load	Approx. 25 kVA
Pneumatic Supply	80–100 PSI (5.5–6.9 bar)

Dimensions

Specification	Value
Machine Footprint	74.8 × 91.1 × 105.3 in (1,900 × 2,315 × 2,674 mm)
Machine Weight	Approx. 12,800 lbs (5,800 kg)

General Information

Specification	Value
Manufacturer	Mori Seiki
Model	DuraVertical 5060
Year	2005
Machine Category	Vertical Machining Center
Materials Machined	Aluminum, Steel, Stainless Steel, Cast Iron, Brass, Engineering Plastics
Typical Applications	Tooling, Fixtures, Mold Components, Aerospace Parts, Medical Components, Precision Production Parts

HOW MUCH DOES A USED MORI SEIKI DURAVERTICAL 5060 – 2005 COST?

A used 2005 Mori Seiki DuraVertical 5060 typically sells for $25,000 to $55,000 USD, depending on spindle hours, overall machine condition, maintenance history, CNC control configuration, tooling package, and installed options such as chip conveyor, probing systems, fourth-axis rotary tables, or through-spindle coolant. Machines with documented maintenance records, low operating hours, and production-ready tooling generally command higher resale values because they require minimal setup before entering production.

Before purchasing a used Mori Seiki DuraVertical 5060, buyers should inspect the spindle condition, guideway wear, ballscrew backlash, automatic tool changer operation, lubrication system, coolant system, and overall machine geometry. A properly maintained 2005 Mori Seiki DuraVertical 5060 offers excellent long-term value by combining reliable Japanese engineering, precision machining capability, and low operating costs, making it an outstanding investment for manufacturers seeking a dependable vertical machining center.

---

MORI SEIKI DURAVERTICAL 5060 VS MORI SEIKI DURACENTER 5 – WHICH ONE TO BUY?

The Mori Seiki DuraVertical 5060 and Mori Seiki DuraCenter 5 are precision CNC vertical machining centers designed to deliver exceptional accuracy, reliability, and productivity across a wide range of manufacturing applications. Both machines are widely used in the aerospace, automotive, medical, mold and die, electronics, and general engineering industries. While they share Mori Seiki’s reputation for rigid construction and dependable spindle performance, they are designed for different production requirements. The DuraVertical 5060 offers a larger machining envelope and greater table capacity, making it better suited for larger workpieces, whereas the DuraCenter 5 is optimized for compact, high-speed machining of smaller precision components.

The Mori Seiki DuraVertical 5060 is ideal for machining molds, fixtures, machine plates, housings, structural components, and medium-sized production parts. Its larger travels provide greater flexibility when handling a variety of workpiece sizes while maintaining excellent rigidity and precision.

The DuraCenter 5 features a smaller footprint, faster positioning speeds, and efficient production capabilities, making it an excellent solution for manufacturers focused on high-volume machining of smaller components where floor space and cycle time are critical.

Both machines offer excellent spindle performance, machining accuracy, and long-term reliability. The DuraCenter 5 is well suited for compact production environments, while the DuraVertical 5060 is the better choice for shops that regularly machine larger components requiring additional travel and worktable capacity.

For manufacturers seeking maximum versatility in a vertical machining center, the Mori Seiki DuraVertical 5060 provides an excellent balance of capacity, precision, and production efficiency.

---

MORI SEIKI DURAVERTICAL 5060 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Mori Seiki DuraVertical 5060 does not rotate, the problem may be caused by spindle drive faults, electrical failures, CNC control alarms, lubrication issues, spindle cooling problems, automatic tool changer faults, or machine safety interlocks. A systematic troubleshooting approach helps identify the cause quickly and minimizes production downtime.

Begin by checking the CNC control for active alarms. Emergency stop activation, door interlock faults, spindle drive alarms, servo errors, lubrication warnings, spindle cooling alarms, automatic tool changer faults, or thermal overload conditions can prevent spindle operation. Resolve all alarms before restarting the spindle.

Inspect the spindle drive system for electrical problems. Loose electrical connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, spindle motor overload conditions, or overheating may prevent spindle rotation. Verify spindle lubrication systems, spindle cooling units, compressed air supply, coolant circulation, and machine power because these systems are essential for reliable spindle performance.

Review the CNC machining program to confirm proper spindle commands. Missing M03 or M04 commands, incorrect spindle speed settings, spindle orientation commands, incomplete tool changes, or drawbar clamp faults may prevent spindle startup.

If the spindle starts but stops unexpectedly, inspect spindle bearings, tool holders, spindle taper cleanliness, drawbar clamping force, tooling condition, and cutting loads. Excessive vibration, unusual spindle noise, overheating, or poor tool retention may indicate bearing wear or mechanical damage requiring service.

Routine spindle inspections, lubrication maintenance, spindle cooling service, and preventive maintenance significantly reduce unexpected spindle failures and maximize machine reliability.

---

MORI SEIKI DURAVERTICAL 5060 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Mori Seiki DuraVertical 5060 is designed for continuous precision machining in demanding industrial environments. Regular preventive maintenance is essential for maintaining machining accuracy, spindle reliability, and long-term production performance.

Daily maintenance should include removing chips from the machining enclosure, spindle taper, worktable, guideway covers, automatic tool changer, and chip conveyor. Operators should inspect coolant levels, coolant concentration, lubrication systems, spindle cooling equipment, compressed air supply, spindle condition, tool holders, and cutting tools before production begins.

Weekly maintenance should include inspecting coolant pumps, chip conveyors, centralized lubrication systems, spindle cooling units, electrical cabinet filters, automatic tool changer operation, pneumatic systems, and guideway protection covers. Chips should be removed from the spindle area and guideways to prevent contamination and premature wear.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, spindle bearings, encoder cables, lubrication lines, electrical connections, coolant filtration systems, machine leveling, and axis calibration. Machine geometry should also be verified periodically to maintain long-term machining precision.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, replacing worn filters, servicing lubrication systems, inspecting coolant pumps, and maintaining complete maintenance records. Early detection of wear reduces repair costs and minimizes unexpected production interruptions.

A structured maintenance program extends spindle life, improves machining accuracy, enhances production efficiency, and ensures the Mori Seiki DuraVertical 5060 continues delivering dependable machining performance for years.

---

FAQ

What is the Mori Seiki DuraVertical 5060?

The Mori Seiki DuraVertical 5060 is a vertical CNC machining center designed for precision milling, drilling, tapping, boring, and general machining operations. It combines a rigid machine structure, precision spindle, automatic tool changer, advanced CNC control, and high-speed axis movement to provide excellent accuracy and repeatability for a wide range of manufacturing applications.

The machine is widely used in aerospace, automotive, medical, mold making, electronics, toolmaking, and precision engineering industries. It is capable of machining molds, fixtures, brackets, machine plates, housings, structural components, aluminum parts, steel components, and numerous other precision-machined products.

Its larger work envelope, reliable spindle performance, and flexible machining capabilities make the DuraVertical 5060 an excellent choice for both job shops and high-volume manufacturing facilities.

---

What are the most common problems with the Mori Seiki DuraVertical 5060?

The most common problems with the Mori Seiki DuraVertical 5060 include spindle alarms, automatic tool changer faults, lubrication system warnings, spindle cooling issues, servo drive errors, encoder failures, coolant contamination, drawbar problems, spindle orientation faults, electrical communication errors, and axis positioning issues.

Machines operating continuously may also experience spindle bearing wear, guideway wear, ball screw backlash, thermal expansion, automatic tool changer wear, coolant pump failures, and normal mechanical fatigue over time. Inadequate lubrication, contaminated coolant, worn tooling, excessive cutting loads, and delayed preventive maintenance can accelerate machine wear and reduce machining accuracy.

Routine spindle inspections, lubrication servicing, spindle cooling maintenance, coolant management, machine calibration, electrical inspections, and scheduled preventive maintenance help minimize downtime and ensure the Mori Seiki DuraVertical 5060 continues to deliver accurate, reliable, and productive machining performance.
