Used MAZAK VCN COMPACT 5X CNC Machine For Sale - Illinois - USA
MAZAK VCN COMPACT 5X

MAZAK VCN COMPACT 5X

MAKE: MAZAK
MODEL: VCN COMPACT 5X
TYPE: Vertical Machines
SKU: 104014
DEALER: Accurate Machine Repair
COUNTRY: USA
STATE: New Jersey

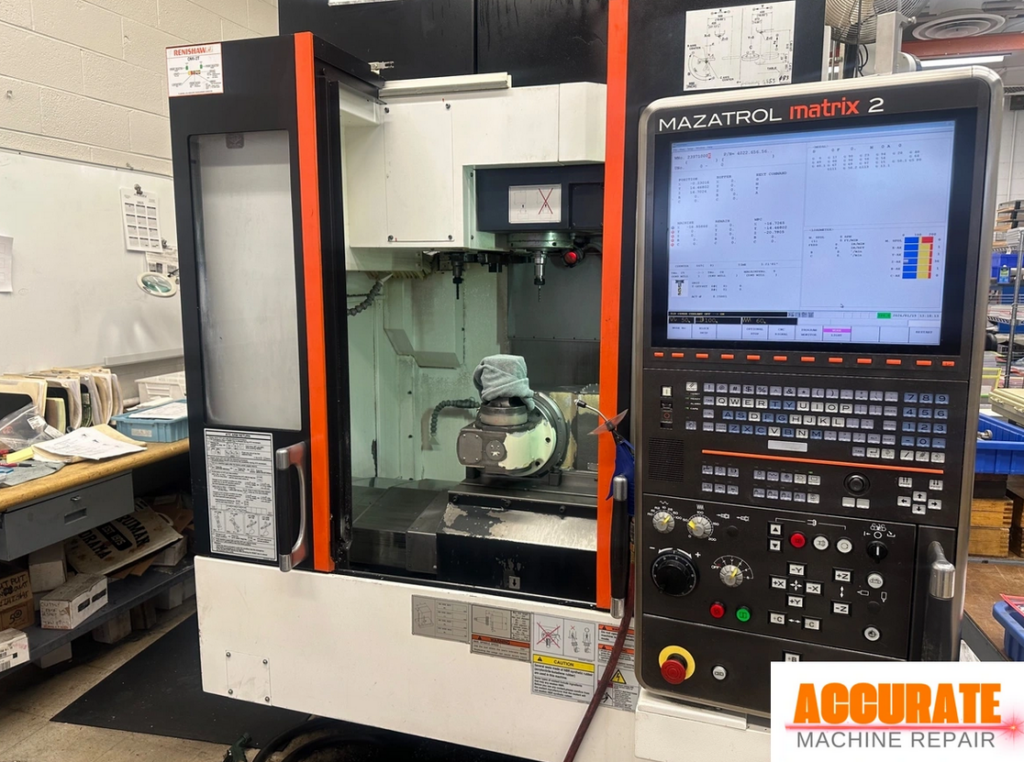

USED MAZAK VCN COMPACT 5X

The Mazak VCN Compact 5X is a full 5-axis vertical machining center designed to provide advanced simultaneous machining capability in a compact footprint. Manufactured by Yamazaki Mazak, this machine combines the versatility of a trunnion-style rotary table with the reliability of Mazak’s proven spindle and control technology. The VCN Compact 5X is ideal for manufacturers producing complex parts that require machining on multiple sides and intricate contours in a single setup.

The machine features a working envelope of approximately 29.9″ in X, 20.1″ in Y, and 20.1″ in Z, along with a trunnion table offering B-axis tilt and C-axis rotary motion. The integrated rotary system allows true simultaneous 5-axis interpolation, reducing setup time and improving part accuracy by minimizing repositioning. A 12,000 RPM CAT 40 spindle and 30-tool automatic tool changer are standard on many configurations, while optional higher-speed spindles and larger tool magazines are available.

Most VCN Compact 5X machines are equipped with the Mazatrol SmoothX or SmoothG CNC control, providing intuitive programming, advanced toolpath processing, and excellent surface finish control. Standard and optional features often include through-spindle coolant, Renishaw probing, chip conveyor, and automation interfaces.

Industries using the MAZAK VCN Compact 5X include aerospace, medical device manufacturing, mold and die, motorsports, defense, and precision contract machining. Typical parts include impellers, orthopedic components, aerospace brackets, mold inserts, and complex aluminum or titanium components.

The MAZAK VCN Compact 5X is highly desirable in the used CNC market because it delivers modern simultaneous 5-axis capability, compact floor space, and premium Mazak reliability.

MAZAK VCN COMPACT 5X – AXIS

ParameterSpecification
Number of Controlled Axes5 Axis (X, Y, Z, B, C)
X Axis Travel29.9″ (760 mm)
Y Axis Travel20.1″ (510 mm)
Z Axis Travel20.1″ (510 mm)
B Axis Tilt-120° to +30°
C Axis Rotation360° Continuous

MAZAK VCN COMPACT 5X – AXIS TRAVELS / WORK ENVELOPE

ParameterSpecification
Maximum Workpiece Diameter27.6″ (700 mm)
Maximum Workpiece Height17.7″ (450 mm)
Rapid Traverse RateUp to 1,417 IPM (36 m/min)
Simultaneous 5-Axis MachiningStandard

MAZAK VCN COMPACT 5X – CAPACITY / TABLE

ParameterSpecification
Table Diameter19.7″ (500 mm)
Maximum Table Load440 lbs (200 kg)
Trunnion Style TableStandard
Rotary Resolution0.0001°

MAZAK VCN COMPACT 5X – SPINDLE

ParameterSpecification
Maximum Spindle Speed12,000 RPM
Spindle Motor25 – 30 HP
Spindle TaperCAT 40 / BT 40
Optional Spindle Speed18,000 RPM

MAZAK VCN COMPACT 5X – TOOL CHANGER

ParameterSpecification
Standard Tool Capacity30 Tools
Optional Tool Capacity48 Tools
Tool Change TypeAutomatic Tool Changer
Maximum Tool LengthApprox. 11.8″ (300 mm)

MAZAK VCN COMPACT 5X – CONTROL SYSTEM

ParameterSpecification
CNC ControlMazatrol SmoothX / SmoothG
ProgrammingConversational and G-Code
Look-Ahead ProcessingAdvanced High-Speed Control
NetworkingEthernet / USB

MAZAK VCN COMPACT 5X – COOLANT / CHIP MANAGEMENT

ParameterSpecification
Flood Coolant SystemStandard
Through-Spindle CoolantOptional
Chip ConveyorOptional
Wireless ProbingOptional

MAZAK VCN COMPACT 5X – POWER REQUIREMENTS

ParameterSpecification
Electrical Requirement220V or 480V / 3 Phase
Connected Load40 – 60 kVA
Air Requirement90 PSI

MAZAK VCN COMPACT 5X – DIMENSIONS

ParameterSpecification
Machine Length114″ (2,896 mm)
Machine Width123″ (3,124 mm)
Machine Height112″ (2,845 mm)
Machine Weight17,000 – 19,000 lbs (7,711 – 8,618 kg)

MAZAK VCN COMPACT 5X – GENERAL INFORMATION

ParameterSpecification
ManufacturerYamazaki Mazak
ModelVCN Compact 5X
Machine TypeSimultaneous 5-Axis Vertical Machining Center
Country of ManufactureJapan / United Kingdom
Typical ConditionProduction Ready

INDUSTRIES THAT USE MAZAK VCN COMPACT 5X

  • Aerospace
  • Medical Device Manufacturing
  • Mold and Die
  • Defense
  • Motorsports
  • Energy
  • Semiconductor Equipment
  • Precision Contract Machining
  • Research and Development
  • General Manufacturing

TYPICAL PARTS MAZAK VCN COMPACT 5X CAN PRODUCE

  • Aerospace Brackets
  • Impellers
  • Orthopedic Implants
  • Mold Inserts
  • Turbine Components
  • Complex Aluminum Housings
  • Titanium Medical Parts
  • Precision Fixtures
  • Semiconductor Components
  • Prototype Parts

WHY CHOOSE MAZAK VCN COMPACT 5X

The MAZAK VCN Compact 5X provides true simultaneous 5-axis machining in a footprint small enough for many job shops and production facilities. By machining five sides and complex contours in a single setup, the machine improves accuracy and dramatically reduces setup time.

Mazak’s Smooth control offers advanced processing and excellent user experience, while the trunnion design provides reliable rotary motion and strong positioning accuracy.

For manufacturers entering or expanding 5-axis machining, the VCN Compact 5X offers an ideal balance of performance, flexibility, and long-term value.

WHY BUY USED MAZAK VCN COMPACT 5X

Purchasing a used MAZAK VCN Compact 5X is an excellent way to gain advanced 5-axis capability while reducing capital investment. Many used machines are relatively recent and include premium options such as through-spindle coolant, probing, and additional tool capacity.

The machine is highly versatile and capable of producing complex parts in a single operation, helping reduce fixtures, labor, and secondary processing. Mazak’s strong support network and proven reliability further enhance ownership value.

For shops seeking modern 5-axis machining technology at a lower cost, the used MAZAK VCN Compact 5X offers exceptional productivity and return on investment.

HOW MUCH DOES A USED MAZAK VCN COMPACT 5X COST?

The price of a used MAZAK VCN Compact 5X depends on year, spindle hours, control generation, and installed options.

USED MAZAK VCN COMPACT 5X PRICE GUIDE

ConditionEstimated Price Range (USD)
Excellent, Fully Equipped$180,000 – $375,000
Very Good Condition$140,000 – $260,000
Standard Production Condition$100,000 – $180,000
Higher Hours or Needs Repair$75,000 – $125,000

NEW VS USED COST COMPARISON

Purchase TypeEstimated Cost (USD)
New Comparable 5-Axis Machining Center$300,000 – $650,000+
Used MAZAK VCN Compact 5X$75,000 – $375,000

Machines with SmoothX control, through-spindle coolant, probing, and larger tool magazines typically command higher prices. Buyers should inspect rotary axis accuracy, spindle condition, and software options before purchase.

For manufacturers seeking a compact, full-featured simultaneous 5-axis machining center, the used MAZAK VCN Compact 5X remains one of the strongest values in the market.
