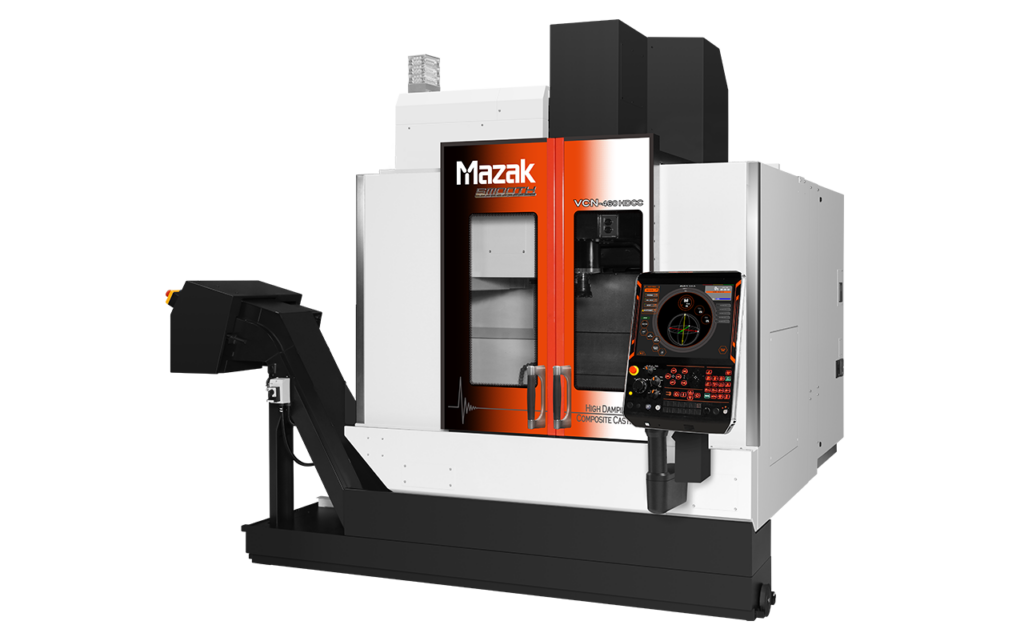

The Mazak VCN-460 HDCC is an advanced vertical machining center designed for high-precision machining with enhanced vibration damping and thermal stability. It is part of Mazak’s latest VCN series, incorporating HDCC (High Damping Composite Casting) technology, which uses mineral casting material in the machine structure to significantly reduce vibration and improve machining accuracy.
The machine is equipped with a BT40 spindle capable of speeds up to 12,000 RPM, with high torque output allowing efficient machining of a wide range of materials, including aluminum and steel. It features a table size of approximately 900 × 460 mm and a Y-axis travel of 460 mm, making it suitable for precision components, molds, and complex parts.
A key advantage of the HDCC design is its superior thermal resistance and vibration absorption, which improves surface finish, tool life, and overall machining stability. The machine is typically equipped with MAZATROL SmoothEz or SmoothG CNC control, enabling intuitive programming and efficient workflow.
Overall, the VCN-460 HDCC is designed for high-accuracy, high-efficiency machining, particularly in industries requiring tight tolerances such as mold making, precision engineering, and aerospace components.
MAZAK VCN-460 HDCCSPECIFICATIONS
MAZAK VCN-460 HDCC – AXIS
Number of Axes: 3 Axes
Axis Configuration: Vertical Machining Center
Axis Movement Type: Linear X, Y, Z axes
Design: High-rigidity structure with enhanced chip control design
MAZAK VCN-460 HDCC – AXIS TRAVELS
X-Axis Travel: 762 mm
Y-Axis Travel: 460 mm
Z-Axis Travel: 510 mm
Feature: Optimized travel for precision machining and chip evacuation
MAZAK VCN-460 HDCC – CAPACITY
Table Size: 900 mm x 460 mm
Max Workpiece Size: Approx. 900 x 460 x 570 mm
Workpiece Capability: Medium-sized components
Load Capacity: Suitable for production machining
MAZAK VCN-460 HDCC – SPINDLE
Spindle Speed: 12,000 RPM standard (optional higher speeds)
Spindle Taper: BT40
Spindle Power: Approx. 18.5 kW
Feature: High-performance spindle for continuous cutting
Buying a used Mazak VCN-460 HDCC is an excellent option for manufacturers seeking advanced machining technology at a reduced cost. As a newer-generation machine, it incorporates modern features such as mineral casting construction, which significantly improves vibration damping and thermal stability compared to traditional cast iron machines.
One of the biggest advantages is precision and surface quality. The HDCC structure absorbs vibration quickly, leading to better finishes, improved tool life, and more consistent machining results. This makes the machine especially valuable for mold, die, and high-precision component manufacturing.
From a productivity standpoint, the machine offers high-speed machining capability combined with strong torque, allowing it to handle both aluminum and steel applications efficiently. Machines with moderate cutting hours (5,000–15,000 hours) typically provide the best balance between cost and remaining life, especially since this is a relatively newer model.
Cost savings are significant, with used machines generally priced 30–60% lower than new units due to their modern design. However, cutting time remains a critical factor—machines with higher hours (15,000–20,000+) may show wear in spindle and axis components. A well-maintained, low-hour machine can deliver near-new performance, making it a high-value investment.
HOW MUCH DOES A USED MAZAK VCN-460 HDCCCOST?
The cost of a used Mazak VCN-460 HDCC varies based on manufacturing year, condition, configuration, and most importantly, cutting hours. As a relatively new-generation machine introduced around 2024, older pre-2000 or early-2000 versions do not exist for this specific HDCC model, which impacts its pricing structure.
Early units from 2020–2025 or equivalent modern configurations typically range from $120,000 to $220,000. Machines with low cutting hours (under 8,000–10,000 hours) command premium pricing due to minimal wear and high remaining life.
Machines with moderate cutting hours (10,000–18,000 hours) generally fall in the $90,000 to $140,000 range. This segment offers the best value, especially for buyers seeking advanced technology at a reduced cost without significant performance compromise.
Heavily used machines (18,000–25,000+ hours), particularly those used in high-speed or continuous production environments, may be priced between $70,000 and $100,000 but could require maintenance in spindle assemblies or linear guide systems.
Unlike older VCN models, pricing is less dependent on age and more influenced by usage due to the machine’s recent introduction. Ultimately, cutting time, spindle condition, and maintenance history are the most important factors in determining the true market value of a used VCN-460 HDCC.
