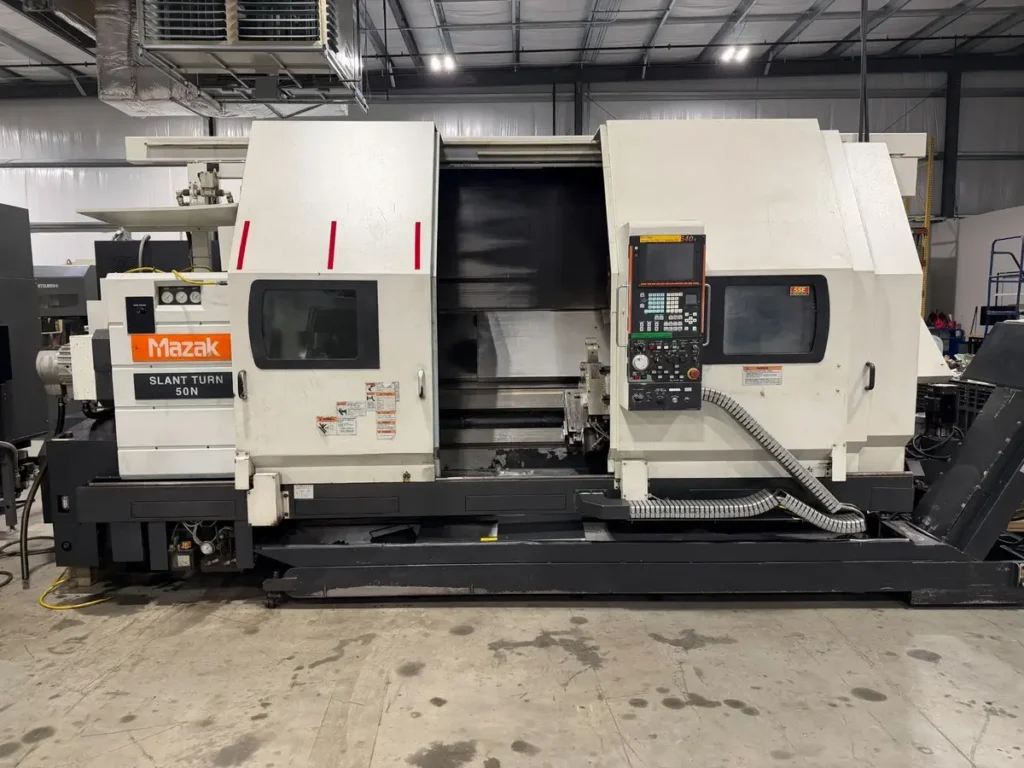

USED MAZAK SLANT TURN 50N-2000 – 2006

The MAZAK SLANT TURN 50N-2000 is a heavy-duty CNC turning center designed for machining large-diameter and long-length workpieces in demanding industrial environments. Built by Mazak, one of the most respected manufacturers in the global machine tool industry, the Slant Turn series has earned a reputation for exceptional durability, machining accuracy, and long-term reliability. The 2006 MAZAK SLANT TURN 50N-2000 continues to be a highly sought-after machine in the used CNC market due to its robust construction, powerful spindle system, and ability to handle oversized components efficiently.

Designed around a rigid slant-bed architecture, the Slant Turn 50N-2000 provides superior stability during heavy cutting operations while promoting efficient chip evacuation. The machine is engineered to withstand demanding production environments where large steel, stainless steel, cast iron, alloy, and specialty material components must be machined with consistency and precision. Its heavy-duty box-way construction contributes to excellent vibration dampening, allowing the machine to maintain tight tolerances even during aggressive roughing cycles.

One of the most notable advantages of the Slant Turn 50N-2000 is its large work envelope. The machine is capable of handling substantial shaft work, rollers, cylinders, turbine components, mining equipment parts, oilfield components, and large industrial machinery parts. Its powerful spindle system and large chuck capacity enable manufacturers to machine oversized workpieces that exceed the capabilities of conventional CNC lathes.

The machine is commonly found in oil and gas manufacturing, power generation, mining, heavy equipment production, marine manufacturing, transportation, aerospace support operations, and industrial machinery facilities. These industries rely on the machine’s ability to deliver consistent performance over extended production cycles while maintaining excellent dimensional accuracy.

Although newer turning centers are available today, the 2006 MAZAK SLANT TURN 50N-2000 remains an outstanding value in the used CNC equipment marketplace. Its proven design, heavy-duty construction, and strong reputation for reliability make it an attractive investment for manufacturers seeking large-part turning capability without the cost associated with purchasing a new machine.

---

MAZAK SLANT TURN 50N-2000 – AXIS

Specification	Details
Machine Type	CNC Slant Bed Turning Center
Axis Configuration	2-Axis
X-Axis Travel	Approx. 17.5″
Z-Axis Travel	Approx. 82″
Servo-Controlled Axes	Yes
Simultaneous Axis Interpolation	Yes

---

MAZAK SLANT TURN 50N-2000 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
Maximum Turning Diameter	Approx. 24″
Maximum Swing Over Bed	Approx. 33″
Maximum Swing Over Carriage	Approx. 24″
Maximum Turning Length	Approx. 80″
Distance Between Centers	Approx. 80″
Long Bed Configuration	Yes

---

MAZAK SLANT TURN 50N-2000 – CAPACITY / TABLE

Specification	Details
Chuck Size	15″
Maximum Turning Diameter	Approx. 24″
Maximum Turning Length	Approx. 80″
Bar Capacity	Approx. 4.5″
Maximum Workpiece Weight	Approx. 3,500 lbs
Tailstock	Standard

---

MAZAK SLANT TURN 50N-2000 – SPINDLE

Specification	Details
Maximum Spindle Speed	2,000 RPM
Spindle Motor Power	40 HP
Peak Spindle Power	50 HP
Spindle Nose	A2-11
Spindle Bore	Approx. 5.0″
Drive Type	Gear Head

---

MAZAK SLANT TURN 50N-2000 – TOOL CHANGER

Specification	Details
Turret Type	Hydraulic Servo Turret
Tool Stations	12
Automatic Indexing	Standard
Boring Bar Capability	Yes
OD Tool Capability	Yes
Heavy-Duty Tooling Support	Standard

---

MAZAK SLANT TURN 50N-2000 – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol Fusion 640T
Programming Format	Mazatrol & G-Code
Conversational Programming	Standard
Ethernet Capability	Available
Program Storage	Expanded Memory
Advanced Diagnostics	Yes

---

MAZAK SLANT TURN 50N-2000 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Tank	Large Capacity
Chip Conveyor	Standard
Coolant Filtration	Standard
High Pressure Coolant	Optional
Mist Collection Compatibility	Yes

---

MAZAK SLANT TURN 50N-2000 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V
Electrical Requirement	3 Phase
Connected Load	Approx. 55 kVA
Air Requirement	Shop Air Required

---

MAZAK SLANT TURN 50N-2000 – DIMENSIONS

Specification	Details
Length	Approx. 230″
Width	Approx. 95″
Height	Approx. 90″
Machine Weight	Approx. 26,000 lbs

---

MAZAK SLANT TURN 50N-2000 – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak
Model	Slant Turn 50N-2000
Year	2006
Machine Category	CNC Turning Center
Country of Origin	Japan
Primary Application	Heavy-Duty Turning
Production Environment	Industrial Manufacturing

---

INDUSTRIES THAT USE MAZAK SLANT TURN 50N-2000

The MAZAK SLANT TURN 50N-2000 serves industries that require machining of large and heavy rotational components. Oil and gas manufacturers frequently use the machine for producing valve bodies, drilling components, pump shafts, couplings, pressure-control hardware, and large threaded connectors. The machine’s large spindle bore and powerful spindle motor make it particularly effective for energy-sector manufacturing.

Power generation companies rely on the machine for machining turbine shafts, bearing housings, generator components, rotor assemblies, steam system hardware, and large flanges. Its rigid construction helps maintain the tight tolerances required for critical power-generation equipment.

Mining and heavy equipment manufacturers commonly machine hydraulic cylinders, rollers, wheel hubs, axle shafts, bushings, and structural machine components. The machine’s robust design allows it to withstand aggressive material removal rates while maintaining excellent dimensional accuracy.

Additional industries include marine manufacturing, transportation equipment production, steel processing, industrial machinery manufacturing, defense production, aerospace support operations, and contract machining facilities. The versatility of the Slant Turn 50N-2000 enables manufacturers to support a wide variety of production requirements.

---

TYPICAL PARTS MAZAK SLANT TURN 50N-2000 CAN PRODUCE

The MAZAK SLANT TURN 50N-2000 is capable of producing a broad range of large precision-machined components. Oil and gas applications include valve bodies, couplings, drilling hardware, pump shafts, pressure-control equipment, and threaded connectors. Its large work envelope allows efficient machining of oversized energy-sector parts.

Power generation manufacturers commonly produce turbine shafts, bearing carriers, generator components, steam system hardware, rotor assemblies, and large flanges. The machine’s long turning length supports oversized workpieces often found in energy production facilities.

Heavy equipment manufacturers use the machine to produce hydraulic cylinder rods, axle shafts, industrial rollers, hubs, bushings, and mining equipment components. The machine’s spindle power enables aggressive roughing while maintaining excellent surface finishes.

Other applications include marine propulsion shafts, industrial rollers, steel mill equipment, transportation hardware, aerospace support components, custom-engineered industrial products, and large machinery parts requiring precision turning operations.

---

WHY CHOOSE MAZAK SLANT TURN 50N-2000

The MAZAK SLANT TURN 50N-2000 offers manufacturers a powerful combination of capacity, durability, and reliability. One of its greatest strengths is its heavy-duty slant-bed construction, which provides exceptional rigidity and vibration control during demanding machining operations.

The machine’s gear-head spindle design delivers substantial torque, making it highly effective for roughing large steel and alloy workpieces. This capability allows manufacturers to achieve high material removal rates while maintaining excellent part quality.

Another significant advantage is the Mazatrol control system. The conversational programming interface simplifies programming tasks while maintaining full G-code compatibility. This flexibility helps improve operator productivity and reduce setup times.

The machine’s large turning capacity also enables manufacturers to machine oversized components without investing in specialized turning equipment. This flexibility expands shop capabilities and supports a broader range of customer requirements.

For manufacturers seeking proven large-part machining performance and long-term reliability, the MAZAK SLANT TURN 50N-2000 remains an outstanding choice.

---

WHY BUY USED MAZAK SLANT TURN 50N-2000

Purchasing a used MAZAK SLANT TURN 50N-2000 provides manufacturers with access to premium heavy-duty turning technology at a significantly lower cost than purchasing a new large-frame CNC lathe. This creates an opportunity to expand production capacity while preserving capital for other investments.

Mazak machines are known for their durability and long service life. Many Slant Turn machines continue operating successfully for decades when properly maintained, making them attractive investments in the used machinery market.

Many used machines include valuable accessories such as chip conveyors, hydraulic chucks, steady rests, tailstocks, tooling packages, coolant systems, and workholding equipment. These additions can significantly improve productivity while reducing future equipment expenses.

Availability is another major advantage. New large-capacity turning centers often involve lengthy lead times, while used machines can frequently be delivered and installed much faster. This allows manufacturers to respond quickly to production demands and customer requirements.

For businesses seeking dependable large-part machining capability and strong return on investment, a used MAZAK SLANT TURN 50N-2000 offers excellent value.

---

HOW MUCH DOES A USED MAZAK SLANT TURN 50N-2000 COST?

The market value of a used MAZAK SLANT TURN 50N-2000 depends on several factors including machine condition, maintenance history, spindle hours, included tooling, accessories, and overall market demand. Machines with documented service records and lower operating hours typically command higher resale values because they present less operational risk.

Optional equipment such as steady rests, chip conveyors, high-pressure coolant systems, hydraulic workholding, tooling packages, and upgraded control features can significantly affect pricing. Buyers generally place greater value on machines that are fully equipped and production-ready.

Demand for heavy-duty CNC turning centers remains strong across industries such as oil and gas, mining, power generation, marine, transportation, industrial machinery, and heavy equipment manufacturing. This continued demand helps support stable resale values for machines in the Slant Turn series.

Beyond the purchase price, buyers should consider transportation, rigging, installation, electrical requirements, tooling, and operator training costs. These expenses should be evaluated alongside the machine’s productivity potential and expected service life.

Compared to purchasing a new large-frame turning center, a used 2006 MAZAK SLANT TURN 50N-2000 can provide substantial savings while still delivering exceptional machining capacity, spindle power, and long-term reliability. For manufacturers seeking a proven heavy-duty CNC turning platform, the Slant Turn 50N-2000 remains one of the strongest values available in the used CNC machinery market.
