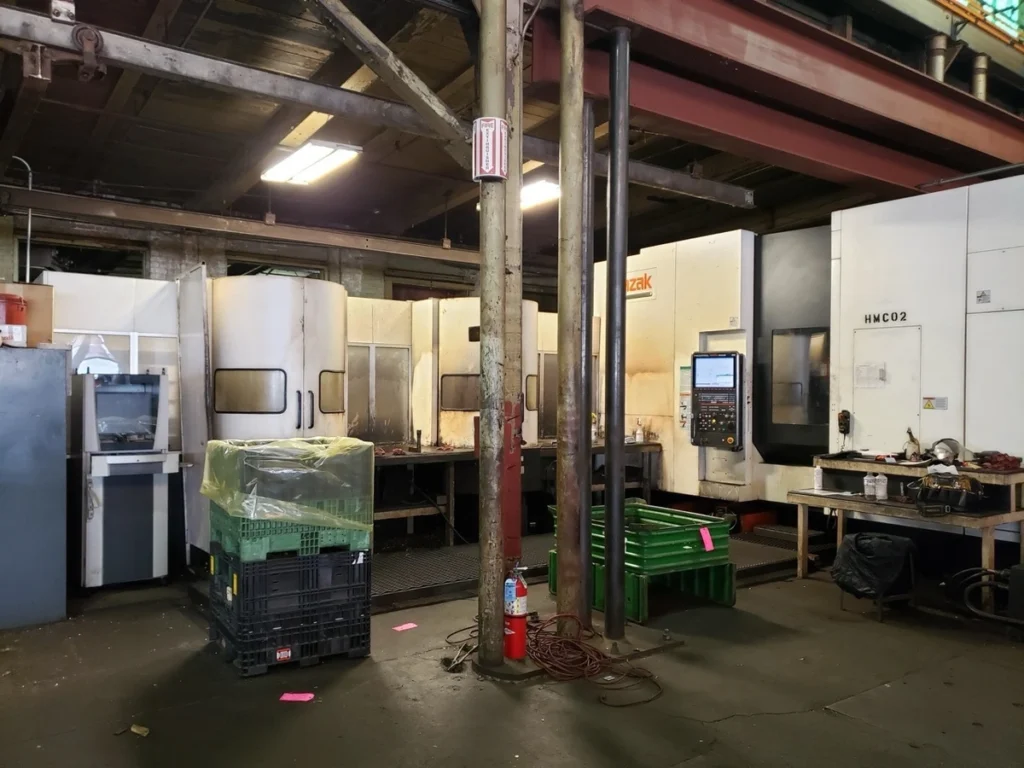

USED MAZAK NEXUS 6800-II – 2012

The MAZAK NEXUS 6800-II is a heavy-duty horizontal machining center designed for high-volume production, large-part machining, and demanding metal-cutting applications. The 2012 NEXUS 6800-II combines a rigid cast-iron structure, powerful CAT 50 spindle, advanced pallet automation, and the MAZATROL Matrix Nexus CNC control to deliver exceptional productivity, accuracy, and reliability in modern manufacturing environments. The machine is engineered to maximize spindle utilization while minimizing setup times and non-cutting operations.

Built around Mazak’s proven horizontal machining platform, the NEXUS 6800-II utilizes a horizontal spindle orientation that naturally improves chip evacuation. Chips fall away from the cutting zone, reducing recutting, improving surface finishes, extending tool life, and supporting longer unattended machining cycles. The machine’s robust construction and thermal stability make it particularly effective for machining large steel, cast iron, stainless steel, and alloy components.

The machine features a dual-pallet changer system that allows workpiece loading and unloading while machining continues on the active pallet. Many installations are integrated into Mazak Palletech manufacturing systems for lights-out production and highly automated manufacturing environments.

The 2012 MAZAK NEXUS 6800-II is widely used across aerospace, defense, energy, mining, oil and gas, heavy equipment, transportation, and precision contract manufacturing industries where high material removal rates and exceptional reliability are critical.

---

MAZAK NEXUS 6800-II – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	41.34″
Y-Axis Travel	35.43″
Z-Axis Travel	38.58″
B-Axis Rotary Table	Full NC Rotary
Table Indexing	0.001°
Rotary Travel	360,000 Positioning Capability

---

MAZAK NEXUS 6800-II – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	41.34″
Y-Axis Travel	35.43″
Z-Axis Travel	38.58″
Pallet Size	24.8″ x 24.8″
Maximum Pallet Load	3,307 lbs
Workpiece Access	Multi-Sided Machining
Rapid Production Capability	Yes

---

MAZAK NEXUS 6800-II – CAPACITY / TABLE

Specification	Details
Number of Pallets	2 Standard
Pallet Changer	Automatic
Pallet Dimensions	24.8″ x 24.8″
Maximum Pallet Load	3,307 lbs
Table Type	Precision Rotary Pallet
Multi-Sided Machining Capability	Yes
Automation Integration	Palletech Compatible

---

MAZAK NEXUS 6800-II – SPINDLE

Specification	Details
Maximum Spindle Speed	8,000 – 10,000 RPM
Spindle Motor Power	50 HP
Spindle Taper	CAT 50
Spindle Type	High-Torque Production Spindle
Heavy Cutting Capability	Excellent
Material Removal Performance	High

Spindle configuration may vary depending on installed package and options.

---

MAZAK NEXUS 6800-II – TOOL CHANGER

Specification	Details
Standard Tool Capacity	60–80 Tools
Optional Tool Capacity	120 Tools
Tool Changer Type	Automatic Tool Changer
Tool Management System	Standard
Random Tool Selection	Standard
Large Tool Storage Capability	Available

---

MAZAK NEXUS 6800-II – CONTROL SYSTEM

Specification	Details
CNC Control	MAZATROL Matrix Nexus
Programming Format	Mazatrol Conversational & G-Code
EIA/ISO Compatibility	Yes
Tool Life Management	Standard
Dynamic Compensation	Available
Network Connectivity	Available
Advanced Diagnostics	Standard

---

MAZAK NEXUS 6800-II – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Up to 1,000 PSI
Chip Conveyor	Standard
Dual Chip Conveyor Options	Available
Automatic Chip Removal	Yes

---

MAZAK NEXUS 6800-II – PROBING & AUTOMATION OPTIONS

Specification	Details
Renishaw Probe System	Available
Automatic Tool Length Measurement	Available
Workpiece Air Blast	Available
Palletech Manufacturing Cell	Available
Multi-Pallet Automation	Available
Lights-Out Production Capability	Yes

---

MAZAK NEXUS 6800-II – POWER REQUIREMENTS

Specification	Details
Voltage	480V
Electrical Requirement	3 Phase
Rated Capacity	Approx. 95.5 kVA
Air Requirement	Shop Air Required

---

MAZAK NEXUS 6800-II – DIMENSIONS

Specification	Details
Machine Weight	Approx. 47,300 lbs
Construction	Heavy-Duty Cast Iron Structure
Production Class	Large-Frame Horizontal Machining Center

---

MAZAK NEXUS 6800-II – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak Corporation
Model	NEXUS 6800-II
Year	2012
Machine Category	Horizontal Machining Center
Country of Origin	Japan
Primary Application	Heavy-Duty Production Machining
Production Environment	Medium to High Volume Manufacturing

---

INDUSTRIES THAT USE MAZAK NEXUS 6800-II

The MAZAK NEXUS 6800-II is extensively used by aerospace, defense, energy, heavy equipment, mining, transportation, and industrial machinery manufacturers. Aerospace companies utilize the machine for structural components, landing gear assemblies, engine supports, and large machined housings that require exceptional rigidity and precision.

Energy and oilfield manufacturers commonly machine valve bodies, pump housings, compressor casings, turbine components, and power generation equipment. The machine’s CAT 50 spindle and large work envelope make it ideal for machining large castings and forgings.

Heavy equipment manufacturers use the machine to produce gearbox housings, transmission cases, hydraulic manifolds, axle carriers, mining equipment parts, and construction machinery components. The rotary pallet system enables multiple surfaces to be machined in a single setup, improving productivity and reducing overall cycle times.

---

TYPICAL PARTS MAZAK NEXUS 6800-II CAN PRODUCE

The NEXUS 6800-II is capable of machining a broad range of large and complex components. Aerospace applications include engine mounts, structural brackets, landing gear supports, actuator housings, and airframe assemblies.

Energy and industrial manufacturers frequently machine turbine housings, compressor casings, valve systems, pump bodies, and heavy-duty transmission components. The machine’s powerful spindle and large pallet capacity support aggressive roughing and precision finishing operations.

Other common applications include robotic bases, machine frames, hydraulic manifolds, transportation equipment components, mining machinery parts, tooling structures, and custom-engineered industrial products.

---

WHY CHOOSE MAZAK NEXUS 6800-II

The MAZAK NEXUS 6800-II offers manufacturers an exceptional combination of power, rigidity, automation capability, and machining performance. Its heavy-duty construction and CAT 50 spindle make it particularly effective for machining large steel, cast iron, and alloy workpieces.

The horizontal spindle design improves chip evacuation and helps maintain clean cutting conditions during extended machining cycles. This contributes to longer tool life, improved surface finishes, and greater machining consistency.

The dual-pallet automation system increases spindle utilization by allowing operators to load and unload parts while machining continues. For manufacturers seeking high-volume production efficiency, this capability provides substantial productivity advantages.

Industry users frequently describe the HCN/NEXUS 6800 platform as a highly capable and durable machining center capable of holding tight tolerances when properly maintained and installed in stable production environments.

---

WHY BUY USED MAZAK NEXUS 6800-II

Purchasing a used 2012 MAZAK NEXUS 6800-II allows manufacturers to acquire a premium horizontal machining center at a significantly lower investment than purchasing a comparable new machine.

Many used machines are equipped with highly valuable options such as 120-tool magazines, Renishaw probing systems, 1,000 PSI through-spindle coolant, pallet automation systems, tool measurement packages, and advanced compensation software. These options can add considerable value while reducing future upgrade costs.

Mazak horizontal machining centers have built a strong reputation for durability, long service life, and dependable production performance. Well-maintained NEXUS machines continue to operate successfully in demanding manufacturing environments worldwide.

Used equipment also offers faster deployment compared to new machine purchases, allowing manufacturers to increase production capacity without lengthy lead times.

---

HOW MUCH DOES A USED MAZAK NEXUS 6800-II COST?

The value of a used 2012 MAZAK NEXUS 6800-II depends on machine condition, spindle hours, maintenance history, tooling inventory, pallet system configuration, installed options, and market demand.

Machines equipped with 120-tool magazines, high-pressure through-spindle coolant, Renishaw probing systems, Palletech automation, advanced software packages, and documented maintenance records generally command higher resale values.

In addition to the purchase price, buyers should evaluate transportation, rigging, installation, electrical requirements, tooling, operator training, programming support, and facility preparation costs. These factors contribute to the total cost of ownership and should be carefully reviewed during the purchasing process.

Compared to purchasing a new large-frame horizontal machining center, a used 2012 MAZAK NEXUS 6800-II can provide substantial savings while still delivering excellent machining capacity, automation capability, heavy-duty cutting performance, and long-term reliability. For manufacturers seeking a proven horizontal machining platform for demanding production applications, the NEXUS 6800-II remains one of the strongest values available in the used CNC equipment market.
