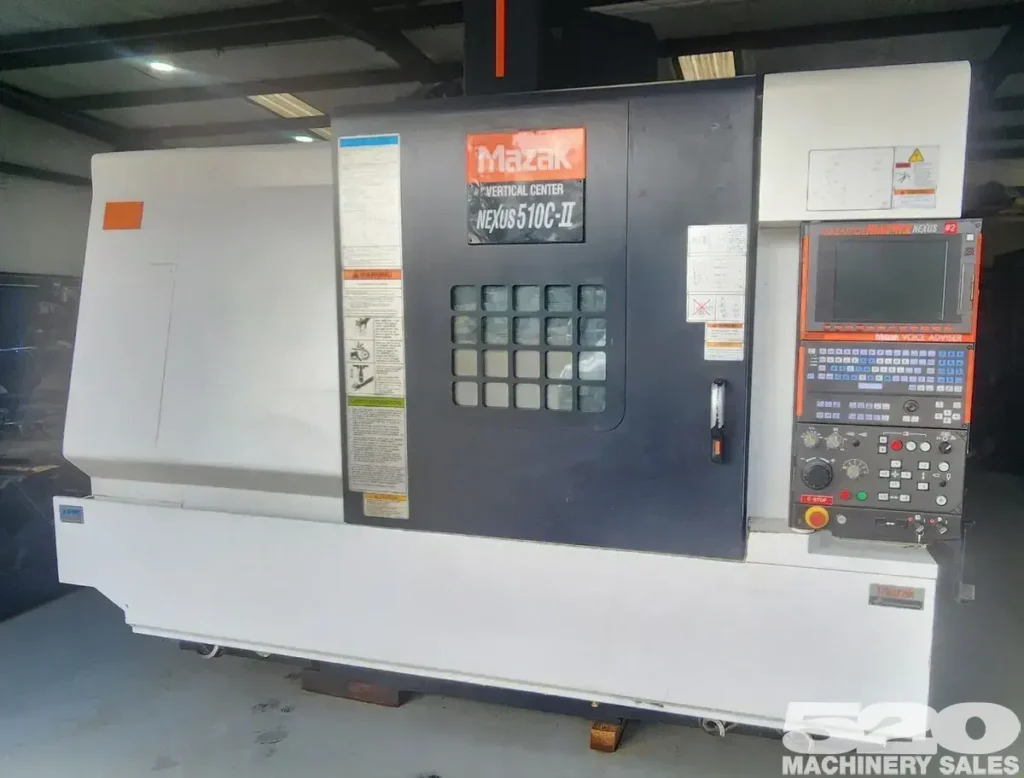

The MAZAK NEXUS 510C-II is a premium CNC vertical machining center designed for high-speed precision milling and production machining. Manufactured by Yamazaki Mazak Corporation, the NEXUS 510C-II combines advanced Mazatrol conversational controls, rigid construction, and exceptional reliability. The 2013 model remains highly desirable in the used CNC market because it offers modern features, strong resale value, and outstanding machining performance.
The 2013 MAZAK NEXUS 510C-II features 41.3 inches of X-axis travel, 20.1 inches of Y-axis travel, and 20.1 inches of Z-axis travel. It is equipped with a CAT 40 direct-drive spindle capable of up to 12,000 RPM and a 25 hp spindle motor. The machine includes a 30-tool side-mount automatic tool changer and the Mazatrol Matrix Nexus 2 control. Common options include Renishaw probing, through-spindle coolant, chip conveyor, and 4th-axis drive capability.
The NEXUS 510C-II is widely used in aerospace, automotive, medical, mold making, and high-precision job shops. Typical parts include fixture plates, housings, brackets, mold inserts, and complex production components requiring tight tolerances.
The 2013 MAZAK NEXUS 510C-II remains an excellent investment because it offers premium Japanese engineering, advanced control technology, and long-term dependability.
MAZAK NEXUS 510C-II SPECIFICATIONS
MAZAK NEXUS 510C-II – AXIS
Number of Axes
3-Axis CNC Vertical Machining Center
Axis Configuration
X, Y, Z
Optional 4th Axis
Yes
Positioning Accuracy
Ultra-High Precision
Repeatability
Excellent
Machine Type
High-Speed Vertical Machining Center
MAZAK NEXUS 510C-II – AXIS TRAVELS
X-Axis Travel
41.3 in (1,050 mm)
Y-Axis Travel
20.1 in (510 mm)
Z-Axis Travel
20.1 in (510 mm)
Rapid Traverse Rate
Up to 1,417 ipm (36 m/min)
Spindle Nose to Table
5.9 – 26.0 in
Guideway Type
Linear Roller Guides
MAZAK NEXUS 510C-II – CAPACITY
Table Size
51.1 x 21.6 in (1,300 x 550 mm)
Maximum Table Load
2,640 lb (1,200 kg)
Maximum Workpiece Size
Medium to Large Precision Components
Maximum Tool Weight
17 lb (7.7 kg)
Industrial Usage
High-Speed Production Machining
Workpiece Materials
Aluminum, Steel, Titanium
MAZAK NEXUS 510C-II – SPINDLE
Spindle Taper
CAT 40
Maximum Spindle Speed
12,000 RPM
Spindle Motor Power
25 hp (18.5 kW)
Drive System
Direct Drive
Cooling System
Spindle Chiller
Rigid Tapping
Standard
MAZAK NEXUS 510C-II – TABLE
Table Length
51.1 in (1,300 mm)
Table Width
21.6 in (550 mm)
Number of T-Slots
5
Workholding Compatibility
Vises, Fixtures, Rotary Tables
Table Construction
Precision Ground Cast Iron
Maximum Load
2,640 lb (1,200 kg)
MAZAK NEXUS 510C-II – TOOL TURRET
Tool Changer Capacity
30 Tools
Tool Changer Type
Side-Mount Twin-Arm ATC
Tool Taper
CAT 40
Tool Selection
Random Access
Maximum Tool Length
13.8 in (350 mm)
Tool Change Time
Approx. 1.3 Seconds
MAZAK NEXUS 510C-II – FEEDRATES
Maximum Cutting Feed Rate
Up to 787 ipm
Rapid Traverse Rate
Up to 1,417 ipm
Servo System
Digital AC Servo
Contouring Performance
Outstanding
Surface Finish Capability
Excellent
High-Speed Machining
Excellent
MAZAK NEXUS 510C-II – COOLANT & CHIP MANAGEMENT
Flood Coolant System
Standard
Through-Spindle Coolant
Common Option
Chip Conveyor
Common Option
Coolant Filtration
Standard
Washdown Hose
Standard
Mist Collector
Optional
MAZAK NEXUS 510C-II – CONTROL SYSTEM
CNC Control Brand
Mazatrol
Control Model
Mazatrol Matrix Nexus 2
Programming Method
Conversational and G-Code
Memory Capacity
Advanced CNC Storage
USB Connectivity
Standard
Probing Integration
Renishaw Compatible
MAZAK NEXUS 510C-II – POWER & AIR REQUIREMENTS
Power Requirement
3-Phase
Voltage
220V / 480V
Air Pressure Requirement
80 psi
Air Consumption
Approx. 4 SCFM
Frequency
50 / 60 Hz
Connected Load
Approx. 35 kVA
MAZAK NEXUS 510C-II – DIMENSIONS
Machine Weight
Approx. 15,200 lb (6,895 kg)
Machine Length
120 in (3,048 mm)
Machine Width
112 in (2,845 mm)
Machine Height
114 in (2,896 mm)
Floor Space Requirement
Medium Footprint
Installation Type
Standard Shop Floor
MAZAK NEXUS 510C-II – GENERAL INFORMATION
Machine Type
CNC Vertical Machining Center
Manufacturer
Yamazaki Mazak Corporation
Country of Origin
Japan
Model Year
2013
Primary Application
High-Speed Precision Milling
Automation Ready
Yes
INDUSTRIES THAT USE MAZAK NEXUS 510C-II
Aerospace
Structural and Precision Components
Automotive
Production Parts and Fixtures
Medical
Surgical and Implant Components
Mold Making
Mold Inserts and Bases
Energy
Precision Industrial Parts
General Manufacturing
Custom and Production Components
TYPICAL PARTS MAZAK NEXUS 510C-II CAN PRODUCE
Fixture Plates
Yes
Aerospace Brackets
Yes
Housings
Yes
Mold Components
Yes
Medical Components
Yes
Prototype Parts
Yes
WHY CHOOSE MAZAK NEXUS 510C-II
Mazatrol Conversational Control
Outstanding
High-Speed 12,000 RPM Spindle
Excellent
Premium Japanese Build Quality
Outstanding
Strong Resale Value
Excellent
Advanced Automation Options
Excellent
Long-Term Reliability
Excellent
WHY BUY USED MAZAK NEXUS 510C-II
Purchasing a used 2013 MAZAK NEXUS 510C-II is an excellent way to acquire a premium machining center with modern Mazatrol technology at a significantly lower cost than a comparable new machine. The Matrix Nexus 2 control offers both conversational programming and standard G-code, allowing shops to handle everything from quick prototypes to complex production runs.
Many used machines include valuable options such as Renishaw probing, through-spindle coolant, chip conveyors, and 4th-axis drive capability. These features can significantly improve setup efficiency and productivity.
Buyers should inspect spindle condition, tool changer performance, guideway wear, and touchscreen responsiveness. Machines with low cutting hours and documented maintenance records typically command higher prices but provide better long-term value.
For shops seeking premium Japanese machining performance and exceptional reliability, the MAZAK NEXUS 510C-II remains one of the most desirable used vertical machining centers available.
HOW MUCH DOES A USED MAZAK NEXUS 510C-II COST?
MACHINE AGE / CONDITION
ESTIMATED PRICE RANGE (USD)
2011 – 2014 Models
$45,000 – $85,000
Low Cutting Hours (Under 8,000 Hours)
Premium Pricing
Machines with Through-Spindle Coolant
Added Value
Machines with Renishaw Probing
Added Value
Machines with 4th Axis or Rotary Table
Significant Premium
Refurbished Machines
15% – 30% Higher
Excellent Mechanical Condition
Premium Pricing
Included Tooling and Fixtures
Added Value
Fully Operational Under Power
Higher Buyer Confidence
Complete Maintenance Records
Higher Market Value
The cost of a used 2013 MAZAK NEXUS 510C-II depends on spindle hours, machine accuracy, maintenance history, and installed options. Most well-maintained machines sell between $45,000 and $85,000, while exceptionally clean machines with low hours, probing systems, and rotary tables can command premium prices.
Machines equipped with through-spindle coolant, chip conveyors, and advanced probing systems offer higher productivity and stronger resale values. Buyers should also budget for rigging, transportation, and installation costs.
For manufacturers seeking advanced CNC features, premium Japanese construction, and dependable long-term performance, the MAZAK NEXUS 510C-II offers excellent value and return on investment.
