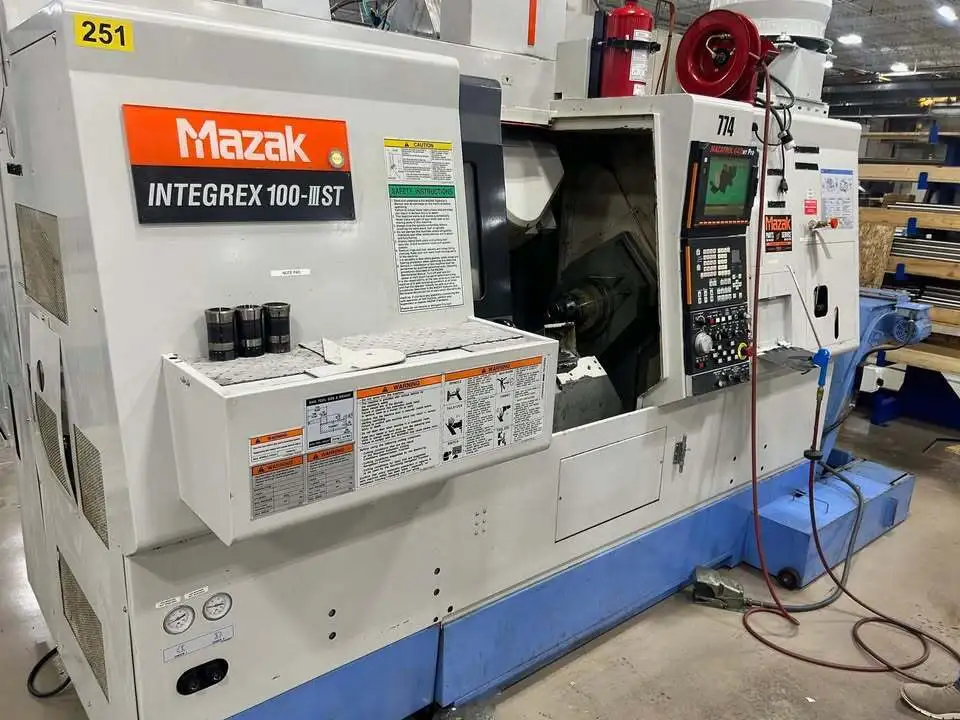

USED MAZAK INTEGREX 100-IIIST – 2007

The Mazak Corporation INTEGREX 100-IIIST – 2007 is a highly advanced multi-tasking CNC turn-mill center designed to perform complex machining operations in a single setup. Combining turning, milling, drilling, tapping, and 5-axis machining capability into one platform, the INTEGREX 100-IIIST is ideal for manufacturers seeking maximum flexibility, reduced setup times, and improved machining accuracy. Equipped with a main spindle, sub-spindle, B-axis milling head, lower turret, and automatic tool changer, this machine can complete highly complex parts with exceptional efficiency.

The 2007 MAZAK INTEGREX 100-IIIST typically features an 8″ main chuck, 2″ bar capacity, spindle speeds up to 6,000 RPM, and a milling spindle capable of 12,000 RPM. The machine includes full Y-axis functionality, B-axis head tilt up to 225 degrees, dual spindles with C-axis control, and a 40-tool automatic tool changer. Most machines are equipped with the Mazatrol 640 MT Pro control, chip conveyor, tool presetter, parts catcher, and coolant systems for unattended production.

The INTEGREX 100-IIIST is engineered to eliminate multiple setups by combining lathe and machining center operations into one machine. This improves part accuracy, reduces handling, and significantly shortens production lead times.

Industries commonly using the MAZAK INTEGREX 100-IIIST include aerospace, medical, automotive, defense, energy, and precision subcontract machining. Typical applications include turbine components, hydraulic manifolds, aerospace fittings, medical implants, shafts, and complex turned-and-milled parts.

The MAZAK INTEGREX series remains one of the most respected multitasking platforms in the CNC industry because of its advanced technology, machining flexibility, and strong long-term value.

MAZAK INTEGREX 100-IIIST – AXIS

MAZAK INTEGREX 100-IIIST – CAPACITY

MAZAK INTEGREX 100-IIIST – SPINDLES

MAZAK INTEGREX 100-IIIST – TOOL SYSTEM

MAZAK INTEGREX 100-IIIST – CONTROL SYSTEM

MAZAK INTEGREX 100-IIIST – AUTOMATION

MAZAK INTEGREX 100-IIIST – DIMENSIONS

MAZAK INTEGREX 100-IIIST – GENERAL INFORMATION

INDUSTRIES THAT USE MAZAK INTEGREX 100-IIIST

• Aerospace
• Medical Device Manufacturing
• Automotive
• Defense
• Oil & Gas
• Energy
• Precision Contract Machining

TYPICAL PARTS MAZAK INTEGREX 100-IIIST CAN PRODUCE

• Aerospace Fittings
• Turbine Components
• Hydraulic Manifolds
• Precision Shafts
• Medical Implants
• Valve Bodies
• Complex Turned and Milled Parts

WHY CHOOSE MAZAK INTEGREX 100-IIIST

The MAZAK INTEGREX 100-IIIST is designed for manufacturers that need complete machining capability in one machine. Its combination of turning, milling, B-axis machining, and sub-spindle functionality allows highly complex parts to be finished in a single setup.

The machine’s 5-axis capability enables machining of angled and contoured features without repositioning the workpiece. This improves accuracy, reduces labor costs, and minimizes setup time. The 40-tool ATC and lower turret further increase productivity by allowing multiple operations to be performed efficiently.

For shops producing high-value precision components, the INTEGREX 100-IIIST delivers exceptional flexibility and advanced manufacturing capability.

WHY BUY USED MAZAK INTEGREX 100-IIIST – 2007

Purchasing a used MAZAK INTEGREX 100-IIIST – 2007 is an excellent way to acquire one of the industry’s most respected multi-tasking machining platforms at a significantly lower cost than buying new. Even years after its original production, the INTEGREX series remains highly desirable because of its ability to combine turning, milling, drilling, tapping, and full 5-axis machining into one machine.

One of the biggest advantages of buying this machine used is the opportunity to obtain advanced features such as a B-axis milling spindle, sub-spindle, lower turret, 40-tool ATC, and Mazatrol multi-tasking control at a fraction of original pricing. Many used machines are also sold with chip conveyors, tool presetters, bar feeder compatibility, coolant systems, and tooling packages that add substantial value.

The INTEGREX 100-IIIST is especially beneficial for manufacturers producing aerospace, medical, energy, and high-precision industrial components. By completing complex parts in one setup, the machine reduces handling, improves positional accuracy, and shortens lead times. This capability is particularly valuable for shops machining difficult geometries or small-to-medium production runs.

Machinists and production users often praise the INTEGREX platform for its versatility and ability to perform simultaneous multi-axis machining, though some operators note that these advanced systems require experienced programming and maintenance practices.

Mazak machines are widely recognized for reliability, strong global support, and long-term resale value. For manufacturers looking to expand multi-tasking machining capability while controlling capital costs, purchasing a used 2007 MAZAK INTEGREX 100-IIIST offers excellent flexibility, productivity, and return on investment.

HOW MUCH DOES A USED MAZAK INTEGREX 100-IIIST – 2007 COST?

The cost of a used MAZAK INTEGREX 100-IIIST – 2007 depends on spindle hours, machine condition, maintenance history, and installed options. Machines with documented service records, low cutting hours, upgraded spindles, and extensive tooling packages generally command stronger resale values.

Options such as chip conveyors, tool presetters, fire suppression systems, bar feeders, coolant-through-spindle capability, and additional tooling can significantly increase machine value. Buyers should carefully inspect spindle condition, B-axis accuracy, lower turret alignment, ATC functionality, and sub-spindle synchronization before purchasing.

Recent used machine listings for 2007 INTEGREX 100-IIIST models have shown asking prices around the mid five-figure range depending on configuration and condition.

Purchasing a used MAZAK INTEGREX 100-IIIST generally provides substantial savings compared to buying a modern equivalent multi-tasking machine while still delivering advanced machining capability, excellent productivity, and strong long-term value.
