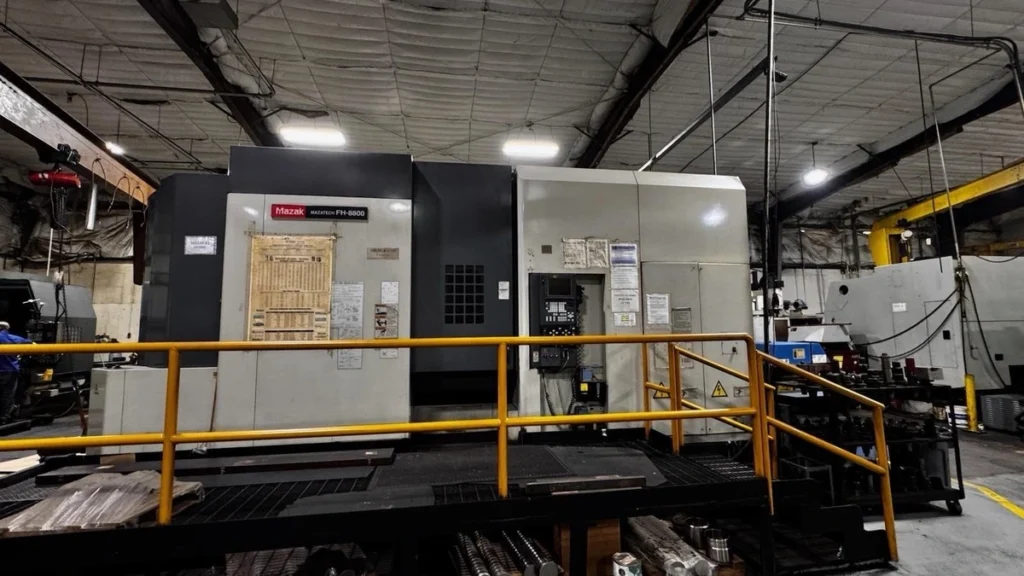

USED MAZAK FH-8800 – 2000

The MAZAK FH-8800 is a large-frame horizontal machining center engineered for heavy-duty production machining, high-volume manufacturing, and precision machining of large components. As part of Mazak’s renowned FH Series, the FH-8800 combines a powerful CAT 50 spindle, large pallet capacity, advanced pallet-changing technology, and a rigid machine structure to deliver exceptional productivity in demanding industrial environments. The 2000 MAZAK FH-8800 remains a highly respected machine in the used CNC marketplace because of its durability, machining performance, and ability to handle large workpieces efficiently.

The machine was designed to maximize spindle utilization while minimizing setup time. Its horizontal spindle configuration allows chips to fall away naturally from the cutting area, improving chip evacuation, reducing recutting, and extending tool life. This design helps maintain superior surface finishes and consistent machining performance during extended production cycles. The FH-8800 is particularly effective when machining large castings, forgings, and complex multi-sided components.

A key productivity feature of the FH-8800 is its dual-pallet system. While machining is performed on one pallet, operators can load and unload parts on the second pallet. This significantly reduces non-cutting time and increases spindle utilization. The integrated NC rotary table further improves efficiency by allowing multiple sides of a component to be machined in a single setup.

Built around a heavily ribbed cast iron structure, the machine provides exceptional rigidity and stability during aggressive cutting operations. Combined with a high-torque CAT 50 spindle and large-capacity automatic tool changer, the FH-8800 is capable of both heavy material removal and precision finishing operations. Manufacturers in aerospace, energy, oil and gas, mining, transportation, heavy equipment, defense, and industrial machinery sectors continue to rely on this platform for demanding machining applications.

Today, the 2000 MAZAK FH-8800 remains one of the most capable large horizontal machining centers available on the used equipment market, offering excellent performance and long-term reliability at a fraction of the cost of a comparable new machine.

---

MAZAK FH-8800 – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	51.18″
Y-Axis Travel	43.31″
Z-Axis Travel	39.37″
B-Axis Rotary Table	Full NC Rotary
Rotary Positioning	0.001° Indexing

---

MAZAK FH-8800 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	51.18″
Y-Axis Travel	43.31″
Z-Axis Travel	39.37″
Pallet Size	31.5″ x 31.5″
Maximum Workpiece Diameter	49.21″
Maximum Workpiece Height	49.21″
Maximum Workpiece Weight	4,850 lbs

---

MAZAK FH-8800 – CAPACITY / TABLE

Specification	Details
Number of Pallets	2
Pallet Changer	Automatic
Pallet Dimensions	31.5″ x 31.5″
Maximum Pallet Load Capacity	4,850 lbs
Table Indexing	Full NC Rotary
Multi-Sided Machining Capability	Yes

---

MAZAK FH-8800 – SPINDLE

Specification	Details
Maximum Spindle Speed	7,000 RPM
Spindle Motor Power	40 HP
Maximum Torque	867 ft-lbs
Spindle Taper	CAT 50
Drive Type	Multi-Range Gearbox
Heavy-Duty Cutting Capability	Excellent

---

MAZAK FH-8800 – TOOL CHANGER

Specification	Details
Standard Tool Capacity	80 Tools
Optional Tool Capacity	Up to 120 Tools
Tool Changer Type	Automatic Tool Changer
Maximum Tool Diameter	10.2″
Maximum Tool Length	24.8″
Maximum Tool Weight	66 lbs
Random Tool Selection	Standard

---

MAZAK FH-8800 – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol Fusion 640M
Programming Format	Mazatrol Conversational & G-Code
EIA/ISO Compatibility	Yes
Ethernet Capability	Available
Advanced Diagnostics	Standard
Tool Life Management	Included

---

MAZAK FH-8800 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant Capability	Yes
Chip Conveyor	Standard
Coolant Filtration System	Standard
Automatic Chip Removal	Yes

---

MAZAK FH-8800 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V / 480V
Electrical Requirement	3 Phase
Connected Load	Approx. 70 kVA
Air Requirement	Shop Air Required

---

MAZAK FH-8800 – DIMENSIONS

Specification	Details
Length	Approx. 272″
Width	Approx. 158″
Height	Approx. 139″
Machine Weight	Approx. 55,000 – 66,000 lbs

---

MAZAK FH-8800 – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak Corporation
Model	FH-8800
Year	2000
Machine Category	Horizontal Machining Center
Country of Origin	Japan
Primary Application	Heavy-Duty Production Machining
Production Environment	Medium to High Volume Manufacturing

---

INDUSTRIES THAT USE MAZAK FH-8800

The MAZAK FH-8800 is widely utilized across industries requiring the machining of large, heavy, and complex components. Aerospace manufacturers use the machine for structural assemblies, engine supports, landing gear components, and large aircraft structures. The machine’s large work envelope and powerful CAT 50 spindle make it highly effective for demanding aerospace applications.

Energy and power generation companies frequently machine turbine housings, compressor bodies, pump casings, generator frames, and power transmission components on the FH-8800. Its heavy-duty construction and high torque output allow efficient machining of large castings and forgings.

Heavy equipment and mining manufacturers utilize the machine for gearbox housings, transmission cases, axle supports, hydraulic systems, structural weldments, and machine frames. The pallet-changing system and rotary table capability help improve throughput while maintaining precision.

Additional industries include oil and gas, transportation equipment, marine engineering, defense manufacturing, industrial machinery production, and large-scale contract machining operations.

---

TYPICAL PARTS MAZAK FH-8800 CAN PRODUCE

The MAZAK FH-8800 is capable of producing a wide variety of large precision-machined components. Aerospace applications include structural supports, landing gear assemblies, engine mounting systems, wing fittings, and large aluminum or titanium parts.

Power generation manufacturers commonly machine turbine casings, compressor housings, valve bodies, generator structures, pump components, and energy infrastructure equipment. The machine’s CAT 50 spindle provides the torque necessary for machining difficult materials efficiently.

Heavy equipment manufacturers frequently produce transmission housings, gearbox casings, hydraulic manifolds, machine frames, axle carriers, and structural components. The integrated rotary table allows multiple surfaces to be machined within a single setup.

Other applications include marine propulsion components, transportation equipment structures, mining equipment parts, robotic automation bases, industrial machinery assemblies, and custom-engineered industrial products.

---

WHY CHOOSE MAZAK FH-8800

The MAZAK FH-8800 offers manufacturers a powerful combination of machining capacity, productivity, and reliability. One of the machine’s primary advantages is its ability to machine large workpieces while maintaining excellent accuracy and repeatability.

The horizontal spindle configuration improves chip evacuation and reduces downtime associated with chip accumulation. This allows longer machining cycles and helps maintain consistent cutting performance throughout production runs.

The dual-pallet system significantly increases spindle utilization by allowing setup operations to occur while machining continues on the opposite pallet. This reduces non-cutting time and improves manufacturing efficiency.

The CAT 50 spindle, high-torque gearbox, and rigid machine structure provide the power necessary for aggressive material removal in steel, cast iron, stainless steel, and other demanding materials. These characteristics make the FH-8800 particularly effective in heavy-duty production environments.

For manufacturers seeking a proven large-format horizontal machining center with exceptional durability and production capability, the FH-8800 remains an outstanding choice.

---

WHY BUY USED MAZAK FH-8800

Purchasing a used MAZAK FH-8800 allows manufacturers to obtain large-capacity horizontal machining capabilities at a significantly lower investment than purchasing a comparable new machine. This helps businesses expand production while preserving capital for tooling, automation, staffing, and facility improvements.

The 2000 model incorporates many features that remain valuable in modern manufacturing, including dual pallets, full NC rotary table capability, automatic tool changing, CAT 50 spindle power, and advanced Mazatrol programming functionality. These features continue to support demanding production applications.

Many used FH-8800 machines are equipped with desirable options such as through-spindle coolant, probing systems, chip conveyors, expanded tool storage, tool breakage detection, and software enhancements. These options can significantly increase machine productivity and reduce future upgrade costs.

Another advantage is availability. Large new horizontal machining centers often involve lengthy lead times, while used machines can frequently be delivered, installed, and placed into production much more quickly.

For manufacturers seeking heavy-duty machining capability and strong return on investment, a used MAZAK FH-8800 remains one of the best values available in the CNC machinery market.

---

HOW MUCH DOES A USED MAZAK FH-8800 COST?

The value of a used MAZAK FH-8800 depends on machine condition, spindle hours, maintenance history, tooling inventory, installed options, and current market demand. Machines with documented maintenance records and lower operating hours typically command higher prices because they are viewed as lower-risk investments.

Options such as through-spindle coolant, probing systems, expanded tool magazines, chip conveyors, pallet system enhancements, tool monitoring systems, and software upgrades can significantly affect machine value. Buyers generally place greater value on machines that are fully equipped and ready for production.

Demand for large horizontal machining centers remains strong across aerospace, energy, mining, transportation, defense, heavy equipment, and industrial manufacturing sectors. This sustained demand helps support healthy resale values for machines like the FH-8800 because of their ability to machine large and complex workpieces efficiently.

In addition to the purchase price, buyers should evaluate transportation, rigging, installation, electrical infrastructure, tooling, programming support, and operator training expenses. These factors contribute to the total ownership investment and should be considered during the purchasing process.

Compared to purchasing a new large-format horizontal machining center, a used 2000 MAZAK FH-8800 can provide substantial cost savings while still delivering exceptional machining capacity, powerful spindle performance, and proven long-term reliability. For manufacturers requiring a robust and versatile heavy-duty machining platform, the FH-8800 remains one of the strongest values available in the used CNC equipment market.
