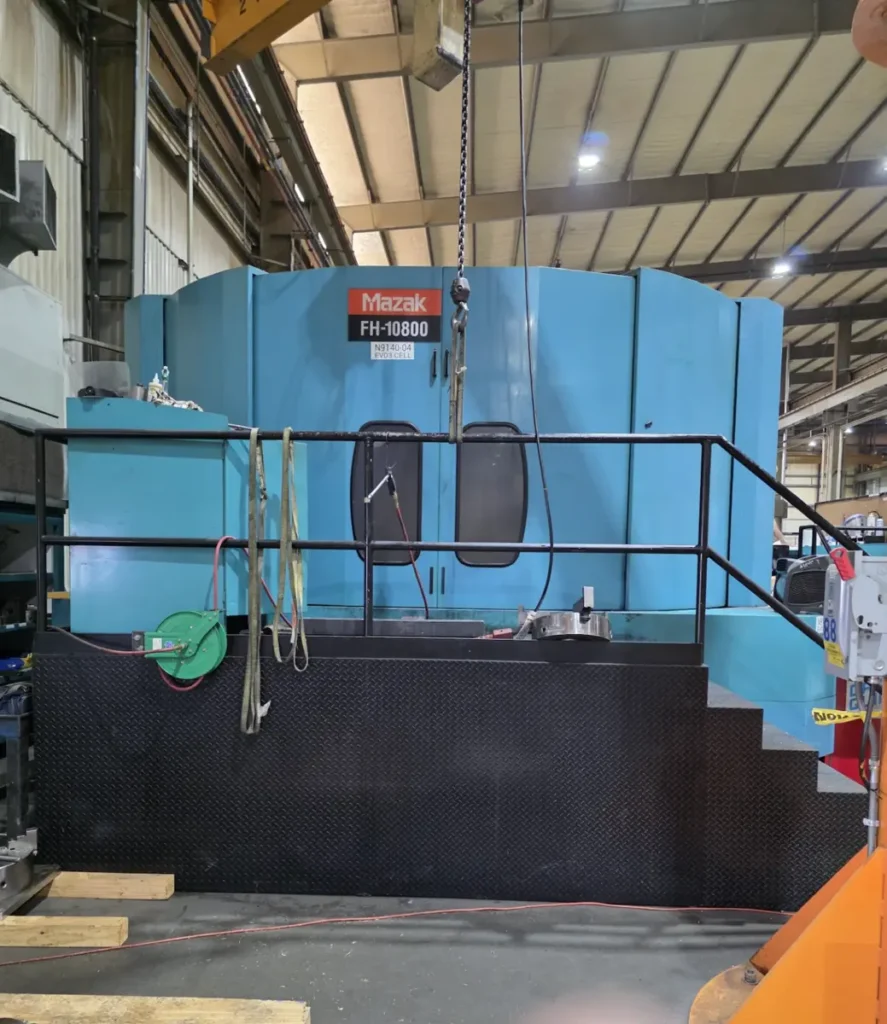

USED MAZAK FH-10800 – 2009

The MAZAK FH-10800 is a large-capacity horizontal machining center engineered for manufacturers that require exceptional machining power, high-volume production capability, and precision machining of large and complex components. Built as part of Mazak’s highly respected FH Series, the FH-10800 combines a massive work envelope, heavy-duty CAT 50 spindle, advanced pallet-changing technology, and robust machine construction to deliver outstanding performance in demanding industrial environments. The 2009 MAZAK FH-10800 remains one of the most sought-after large horizontal machining centers in the used CNC machinery market because of its productivity, durability, and long-term reliability.

The machine was designed to maximize spindle utilization while minimizing setup times. Its horizontal spindle configuration allows chips to naturally fall away from the cutting area, improving chip evacuation and reducing recutting. This results in longer tool life, improved surface finishes, and more consistent machining performance during extended production runs. These advantages are particularly valuable when machining large castings, forgings, and complex multi-sided components.

A major productivity feature of the FH-10800 is its dual-pallet system. While machining is performed on one pallet, operators can simultaneously load and unload parts on the second pallet. This dramatically reduces non-cutting time and helps maintain high spindle utilization. The integrated B-axis rotary table further increases efficiency by allowing multiple sides of a workpiece to be machined within a single setup.

The machine incorporates a heavily ribbed cast iron structure designed to absorb vibration and maintain machining accuracy during aggressive cutting operations. Combined with a high-torque CAT 50 spindle, large-capacity tool magazine, and powerful Mazatrol control system, the FH-10800 is capable of handling both heavy roughing operations and precision finishing work with equal effectiveness.

The 2009 MAZAK FH-10800 is widely used throughout aerospace, power generation, mining, oil and gas, transportation, heavy equipment, defense, and industrial machinery manufacturing industries. Its combination of power, capacity, and flexibility makes it one of the most capable horizontal machining centers available on the used market today.

---

MAZAK FH-10800 – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	66.9″
Y-Axis Travel	55.1″
Z-Axis Travel	55.1″
B-Axis Rotary Table	Full NC Rotary
Rotary Positioning	360,000 Position Indexing

---

MAZAK FH-10800 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	66.9″
Y-Axis Travel	55.1″
Z-Axis Travel	55.1″
Pallet Size	39.4″ x 39.4″
Maximum Workpiece Diameter	Approx. 78″
Maximum Workpiece Height	Approx. 63″
Maximum Workpiece Weight	Approx. 6,600 lbs

---

MAZAK FH-10800 – CAPACITY / TABLE

Specification	Details
Number of Pallets	2
Pallet Changer	Automatic
Pallet Dimensions	39.4″ x 39.4″
Table Indexing	NC Rotary Table
Rotary Resolution	0.001°
Multi-Sided Machining Capability	Yes

---

MAZAK FH-10800 – SPINDLE

Specification	Details
Maximum Spindle Speed	7,000 RPM
Spindle Motor Power	50 HP
Continuous Power	40 HP
Maximum Torque	867.6 ft-lbs
Spindle Taper	CAT 50
Drive Type	2-Speed Gearbox
Heavy-Duty Cutting Capability	Excellent

---

MAZAK FH-10800 – TOOL CHANGER

Specification	Details
Standard Tool Capacity	40 Tools
Optional Tool Capacity	Up to 120 Tools
Tool Changer Type	Automatic Tool Changer
Maximum Tool Diameter	10.2″ (adjacent pockets empty)
Maximum Tool Length	25.6″
Maximum Tool Weight	66 lbs
Random Tool Selection	Standard

---

MAZAK FH-10800 – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol PC Fusion 640M
Programming Format	Mazatrol Conversational & G-Code
Windows-Based Interface	Yes
Ethernet Connectivity	Available
Advanced Diagnostics	Standard
Performance CNC Features	Included

---

MAZAK FH-10800 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Through-Spindle Coolant	213 PSI Standard / High-Pressure Preparation Available
Chip Conveyor	Standard
Coolant Filtration System	Standard
High-Capacity Coolant Tank	Yes
Automatic Chip Removal	Yes

---

MAZAK FH-10800 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V / 480V
Electrical Requirement	3 Phase
Connected Load	Approx. 70 kVA
Air Requirement	Shop Air Required

---

MAZAK FH-10800 – DIMENSIONS

Specification	Details
Length	Approx. 274″
Width	Approx. 111″
Height	Approx. 132″
Machine Weight	Approx. 66,138 lbs

---

MAZAK FH-10800 – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak Corporation
Model	FH-10800
Year	2009
Machine Category	Horizontal Machining Center
Country of Origin	Japan
Primary Application	Heavy-Duty Production Machining
Production Environment	Medium to High Volume Manufacturing

---

INDUSTRIES THAT USE MAZAK FH-10800

The MAZAK FH-10800 is widely utilized across industries requiring the machining of large, heavy, and complex components. Aerospace manufacturers use the machine for structural assemblies, engine support systems, landing gear structures, and large aircraft components. The machine’s large work envelope and powerful CAT 50 spindle make it well suited for demanding aerospace applications.

Power generation companies utilize the FH-10800 to machine turbine housings, generator frames, compressor bodies, pump casings, and energy infrastructure components. Its ability to perform heavy-duty roughing and precision finishing operations on large workpieces helps manufacturers improve efficiency and reduce production costs.

Mining and heavy equipment manufacturers commonly machine gearbox housings, axle supports, structural frames, transmission components, hydraulic systems, and large castings. The machine’s pallet-changing capability and rotary table significantly improve throughput and machining flexibility.

Additional industries include oil and gas, transportation equipment manufacturing, marine engineering, defense production, industrial machinery manufacturing, and large-scale contract machining operations.

---

TYPICAL PARTS MAZAK FH-10800 CAN PRODUCE

The MAZAK FH-10800 is capable of producing a broad range of large precision-machined components. Aerospace applications include aircraft structural members, landing gear assemblies, engine mounts, support structures, and large aluminum or titanium components.

Power generation manufacturers frequently machine turbine casings, compressor housings, generator structures, pump bodies, valve systems, and power transmission equipment. The machine’s high-torque spindle enables efficient machining of large and difficult materials.

Heavy equipment manufacturers commonly produce transmission housings, gearbox casings, axle carriers, hydraulic manifolds, structural weldments, and machine frames. The integrated rotary table allows multiple faces of these large components to be machined in a single setup.

Other applications include marine propulsion systems, industrial automation bases, mining equipment structures, transportation components, oil and gas equipment, and custom-engineered industrial products.

---

WHY CHOOSE MAZAK FH-10800

The MAZAK FH-10800 offers manufacturers an exceptional combination of machining capacity, productivity, and reliability. One of its primary advantages is its ability to efficiently process large workpieces while maintaining excellent accuracy and repeatability.

The horizontal spindle design improves chip evacuation and reduces downtime associated with chip buildup. This allows longer uninterrupted machining cycles and helps maintain consistent cutting performance.

The dual-pallet system significantly increases spindle utilization by allowing setup operations to occur while machining continues on the opposite pallet. This reduces non-cutting time and improves overall manufacturing efficiency.

The machine’s CAT 50 spindle, high-torque gearbox, and rigid construction provide the power necessary for aggressive material removal in steel, cast iron, stainless steel, and other difficult materials. These features make the FH-10800 particularly effective in heavy-duty machining applications.

For manufacturers requiring large-format machining capability and dependable production performance, the MAZAK FH-10800 remains an outstanding solution.

---

WHY BUY USED MAZAK FH-10800

Purchasing a used MAZAK FH-10800 provides access to large-capacity horizontal machining technology at a significantly lower cost than purchasing a comparable new machine. This allows manufacturers to expand production capability while preserving capital for tooling, automation, staffing, and facility improvements.

The 2009 model includes features that remain highly valuable in modern manufacturing environments, including dual pallets, full NC rotary table capability, high-torque spindle performance, advanced Mazatrol programming, and automatic tool changing. These capabilities continue to meet the needs of demanding production applications.

Many used FH-10800 machines are equipped with desirable options such as through-spindle coolant, high-pressure coolant preparation, probing systems, expanded tool storage, chip conveyors, and software enhancements. These features can significantly improve machine productivity while reducing future upgrade costs.

Another major advantage is availability. New large-capacity horizontal machining centers often require lengthy delivery schedules, while used machines can frequently be purchased, installed, and placed into production much more quickly.

For manufacturers seeking heavy-duty machining performance and strong return on investment, a used MAZAK FH-10800 remains one of the best values available in the CNC machinery market.

---

HOW MUCH DOES A USED MAZAK FH-10800 COST?

The cost of a used MAZAK FH-10800 depends on machine condition, maintenance history, spindle hours, tooling inventory, installed options, and current market demand. Machines with documented service records and lower operating hours generally command higher resale values due to their expected reliability and remaining service life.

Options such as through-spindle coolant, probing systems, expanded tool magazines, chip conveyors, pallet enhancements, and software upgrades can significantly influence machine value. Buyers often place greater value on machines that are fully equipped and ready for production.

Demand for large horizontal machining centers remains strong across aerospace, energy, mining, transportation, defense, heavy equipment, and industrial manufacturing sectors. This demand helps maintain healthy resale values for machines such as the FH-10800 because of their ability to efficiently machine large and complex components.

In addition to the purchase price, buyers should evaluate transportation, rigging, installation, electrical infrastructure, tooling, programming support, and operator training costs. These expenses contribute to the total ownership investment and should be considered carefully during the purchasing process.

Compared to purchasing a new large-format horizontal machining center, a used 2009 MAZAK FH-10800 can provide substantial cost savings while still delivering exceptional machining capacity, powerful spindle performance, and proven long-term reliability. For manufacturers seeking a robust and versatile heavy-duty machining platform, the FH-10800 remains one of the strongest values available in the used CNC equipment market.
