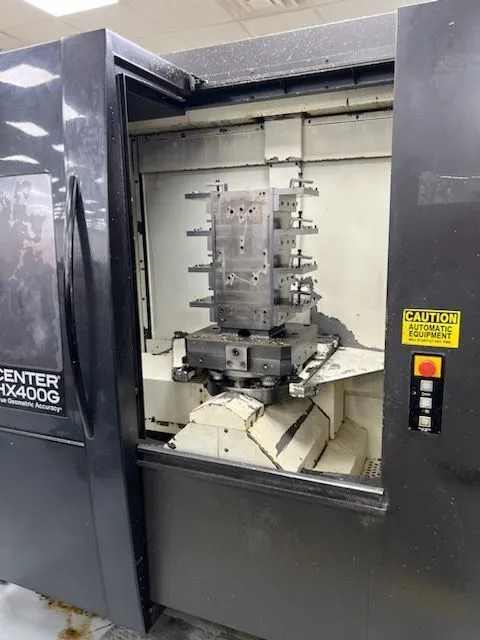

USED KITAMURA HX-400IG – 2016

The 2016 Kitamura HX-400iG is a high-precision horizontal machining center engineered for demanding production environments that require exceptional accuracy, rapid cycle times, and multi-face machining capability. Manufactured by Kitamura Machinery, the HX-400iG is part of the company’s advanced iG Series and is widely recognized for its rigid box-way construction, ultra-fast rapids, and outstanding thermal stability. The machine is particularly well suited for aerospace, medical, automotive, and precision component manufacturing where tight tolerances and unattended operation are critical.

The HX-400iG features a 400 mm × 400 mm pallet and standard full 4th-axis capability with a direct-drive B-axis rotary table. Typical travels are 610 mm (24″) in X, Y, and Z, providing a spacious work envelope within a compact footprint. The machine uses a two-pallet automatic pallet changer, allowing one pallet to be loaded while the other is being machined to maximize spindle utilization and reduce downtime.

A major advantage of the 2016 model is its high-speed 15,000 RPM direct-drive spindle with a CAT 40 dual-contact taper, with optional 20,000 RPM configurations available. Standard tool storage is 50 tools, with optional magazines up to 300 tools. The Arumatik-Mi CNC control provides advanced touch-screen functionality, thermal compensation, and high-speed contouring for complex parts. Kitamura also includes linear scale feedback and ballscrew cooling on all axes to maintain sub-micron precision.

Industries using the KITAMURA HX-400IG include aerospace, defense, medical, semiconductor, hydraulics, and high-precision contract machining. Typical parts include valve bodies, orthopedic implants, manifolds, turbine components, and complex aluminum and stainless steel components.

The 2016 KITAMURA HX-400IG remains one of the most advanced and accurate 400 mm horizontal machining centers available in the used market, delivering premium Japanese engineering and exceptional long-term productivity.

KITAMURA HX-400IG – AXIS

KITAMURA HX-400IG – AXIS TRAVELS / WORK ENVELOPE

KITAMURA HX-400IG – CAPACITY / TABLE

KITAMURA HX-400IG – SPINDLE

KITAMURA HX-400IG – TOOL CHANGER

KITAMURA HX-400IG – CONTROL SYSTEM

KITAMURA HX-400IG – COOLANT / DUST / WATER MANAGEMENT

KITAMURA HX-400IG – POWER REQUIREMENTS

KITAMURA HX-400IG – DIMENSIONS

KITAMURA HX-400IG – GENERAL INFORMATION

INDUSTRIES THAT USE KITAMURA HX-400IG

• Aerospace
• Defense
• Medical Device Manufacturing
• Semiconductor Equipment
• Automotive
• Hydraulics and Pneumatics
• Precision Contract Machining
• Electronics
• Energy
• General Manufacturing

TYPICAL PARTS KITAMURA HX-400IG CAN PRODUCE

• Hydraulic Manifolds
• Valve Bodies
• Orthopedic Components
• Turbine Parts
• Aerospace Brackets
• Pump Housings
• Medical Implants
• Sensor Housings
• Precision Aluminum Components
• Stainless Steel Production Parts
• Semiconductor Tooling
• Multi-Face Machined Components

WHY CHOOSE KITAMURA HX-400IG

The KITAMURA HX-400IG is designed for manufacturers that demand uncompromising accuracy and productivity. Its solid box-way construction, direct-drive rotary table, and linear scale feedback provide exceptional rigidity and positioning accuracy.

The two-pallet system keeps the spindle cutting while operators load parts, dramatically increasing utilization. Combined with ultra-fast rapids and extremely short tool changes, the machine delivers outstanding throughput for both small and medium batch production.

For shops producing high-value precision components, the HX-400IG offers world-class performance and long-term reliability.

WHY BUY USED KITAMURA HX-400IG

Purchasing a used KITAMURA HX-400IG – 2016 is an excellent way to acquire premium Japanese horizontal machining technology at a significant discount compared to a new machine. New HMCs with similar speed, accuracy, and automation can cost several hundred thousand dollars.

Many used machines include through-spindle coolant, probing systems, tombstones, large tool magazines, and extensive tooling packages. These accessories substantially reduce setup costs and accelerate production.

The Arumatik-Mi control provides advanced functionality, while Kitamura’s precision engineering ensures excellent long-term performance. Shops often value the machine for its thermal stability and ability to hold extremely tight tolerances.

For manufacturers requiring fast, accurate, and reliable multi-face machining, the used KITAMURA HX-400IG delivers exceptional productivity and return on investment.

HOW MUCH DOES A USED KITAMURA HX-400IG COST?

The price of a used KITAMURA HX-400IG – 2016 depends on spindle hours, tool capacity, installed options, and overall condition.

USED KITAMURA HX-400IG PRICE GUIDE

NEW VS USED COST COMPARISON

Pricing is affected by spindle condition, pallet system health, control software version, and included automation. Buyers should inspect spindle bearings, pallet clamp repeatability, axis accuracy, and coolant system performance before purchase.

For manufacturers seeking a premium horizontal machining center with outstanding precision and productivity, the used KITAMURA HX-400IG represents one of the strongest values available in the used CNC market.
