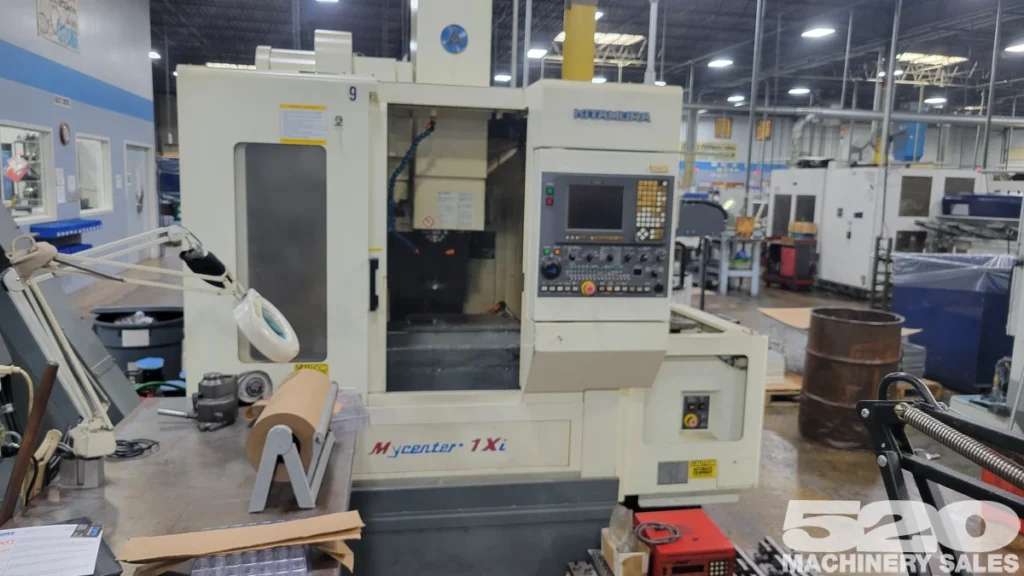

The KITAMURA MYCENTER 1Xi is a compact, high-precision CNC vertical machining center designed for small-part production, precision tooling, and high-speed machining. Manufactured by Kitamura Machinery Co., Ltd., the MYCENTER 1Xi is renowned for exceptional accuracy, thermal stability, and long-term reliability. The 2002 model remains highly desirable in the used CNC market because it combines Japanese engineering, fast spindle speeds, and a compact footprint ideal for shops with limited floor space.
The 2002 KITAMURA MYCENTER 1Xi typically features 20 inches of X-axis travel, 14 inches of Y-axis travel, and 16 inches of Z-axis travel. It is equipped with a BT-30 spindle capable of up to 15,000 RPM and a 10 hp spindle motor. Most machines include a 20- or 30-tool automatic tool changer and advanced CNC controls such as FANUC 16i-MB or YASNAC J300. The machine is especially well suited for aluminum, stainless steel, plastics, graphite, and small precision steel components.
The MYCENTER 1Xi is widely used in medical manufacturing, electronics, aerospace, mold making, and precision machining applications. Typical parts include connectors, fixtures, electrodes, mold inserts, and small complex components.
The 2002 KITAMURA MYCENTER 1Xi remains an excellent investment because it offers outstanding precision, compact design, and low operating costs.
KITAMURA MYCENTER 1XI SPECIFICATIONS
KITAMURA MYCENTER 1XI – AXIS
Number of Axes
3-Axis CNC Vertical Machining Center
Axis Configuration
X, Y, Z
Optional 4th Axis
Yes
Positioning Accuracy
Ultra-High Precision
Repeatability
Excellent
Machine Type
Compact Vertical Machining Center
KITAMURA MYCENTER 1XI – AXIS TRAVELS
X-Axis Travel
20 in (508 mm)
Y-Axis Travel
14 in (355 mm)
Z-Axis Travel
16 in (406 mm)
Rapid Traverse Rate
Up to 1,181 ipm (30 m/min)
Spindle Nose to Table
Approx. 4 – 20 in
Guideway Type
Precision Linear Guides
KITAMURA MYCENTER 1XI – CAPACITY
Table Size
30 x 14 in (762 x 355 mm)
Maximum Table Load
530 lb (240 kg)
Maximum Workpiece Size
Small Precision Components
Maximum Tool Weight
17.6 lb (8 kg)
Industrial Usage
High-Speed Precision Machining
Workpiece Materials
Aluminum, Steel, Plastics, Graphite
KITAMURA MYCENTER 1XI – SPINDLE
Spindle Taper
BT 30
Maximum Spindle Speed
15,000 RPM
Spindle Motor Power
10 hp (7.5 kW)
Drive System
Direct Drive
Cooling System
Spindle Chiller
Rigid Tapping
Standard
KITAMURA MYCENTER 1XI – TABLE
Table Length
30 in (762 mm)
Table Width
14 in (355 mm)
Number of T-Slots
3
Workholding Compatibility
Vises, Fixtures, Rotary Tables
Table Construction
Precision Ground Cast Iron
Maximum Load
530 lb (240 kg)
KITAMURA MYCENTER 1XI – TOOL TURRET
Tool Changer Capacity
20 – 30 Tools
Tool Changer Type
Automatic Carousel
Tool Taper
BT 30
Tool Selection
Random Access
Tool Change Time
High-Speed Automatic Change
Tool Management
CNC Controlled
KITAMURA MYCENTER 1XI – FEEDRATES
Maximum Cutting Feed Rate
Programmable
Rapid Traverse Rate
Up to 1,181 ipm
Servo System
Digital AC Servo
Contouring Performance
Excellent
Surface Finish Capability
Outstanding
High-Speed Machining
Excellent
KITAMURA MYCENTER 1XI – COOLANT & CHIP MANAGEMENT
Flood Coolant System
Standard
Through-Spindle Coolant
Optional
Chip Augers
Common Option
Coolant Filtration
Standard
Spindle Chiller
Standard
Washdown Hose
Standard
KITAMURA MYCENTER 1XI – CONTROL SYSTEM
CNC Control Brand
FANUC / YASNAC
Common Control Models
FANUC 16i-MB / YASNAC J300
Programming Method
Standard G-Code
Memory Capacity
Depends on Control
DNC Capability
Yes
User Interface
Advanced CNC Interface
KITAMURA MYCENTER 1XI – POWER & AIR REQUIREMENTS
Power Requirement
3-Phase
Voltage
200V / 220V
Air Pressure Requirement
80 – 100 psi
Air Consumption
Moderate
Frequency
50 / 60 Hz
Connected Load
Approx. 20 kVA
KITAMURA MYCENTER 1XI – DIMENSIONS
Machine Weight
Approx. 8,200 lb (3,720 kg)
Machine Length
Approx. 95 in (2,413 mm)
Machine Width
Approx. 83 in (2,108 mm)
Machine Height
Approx. 106 in (2,692 mm)
Floor Space Requirement
Compact Footprint
Installation Type
Standard Shop Floor
KITAMURA MYCENTER 1XI – GENERAL INFORMATION
Machine Type
CNC Vertical Machining Center
Manufacturer
Kitamura Machinery Co., Ltd.
Country of Origin
Japan
Model Year
2002
Primary Application
High-Speed Precision Milling
Automation Ready
Yes
INDUSTRIES THAT USE KITAMURA MYCENTER 1XI
Medical
Precision Components
Electronics
Connectors and Housings
Aerospace
Small Precision Parts
Mold Making
Electrodes and Inserts
Tooling
Fixtures and Plates
General Manufacturing
High-Accuracy Components
TYPICAL PARTS KITAMURA MYCENTER 1XI CAN PRODUCE
Mold Inserts
Yes
Electrodes
Yes
Connectors
Yes
Small Housings
Yes
Fixtures
Yes
Precision Aluminum Parts
Yes
WHY CHOOSE KITAMURA MYCENTER 1XI
Exceptional Precision
Outstanding
High-Speed BT-30 Spindle
Excellent
Compact Footprint
Excellent
Japanese Build Quality
Outstanding
Low Operating Cost
Excellent
Long-Term Reliability
Excellent
WHY BUY USED KITAMURA MYCENTER 1XI
Purchasing a used 2002 KITAMURA MYCENTER 1Xi is an excellent way to obtain a highly accurate Japanese machining center at a fraction of the cost of a new machine. Its compact design and 15,000 RPM spindle make it ideal for small-part machining, mold work, and high-speed applications.
Many used machines include valuable features such as through-spindle coolant, spindle chillers, chip augers, and probing systems. These options can significantly improve productivity and part quality. Because Kitamura machines are known for precision and durability, well-maintained units can continue to perform to tight tolerances for many years.
Buyers should inspect spindle bearings, axis backlash, lubrication systems, and control condition. Machines with low spindle hours and documented maintenance records generally command higher prices but offer better long-term value.
For manufacturers seeking a compact, precise, and reliable machining center, the KITAMURA MYCENTER 1Xi remains one of the best values in the used CNC market.
HOW MUCH DOES A USED KITAMURA MYCENTER 1XI COST?
MACHINE AGE / CONDITION
ESTIMATED PRICE RANGE (USD)
2000 – 2004 Models
$7,000 – $20,000
2005 – 2010 Models
$10,000 – $28,000
Low Spindle Hours
Premium Pricing
Machines with Through-Spindle Coolant
Added Value
Machines with 4th Axis
Significant Premium
Refurbished Machines
15% – 30% Higher
Included Tooling and Fixtures
Added Value
Excellent Mechanical Condition
Premium Pricing
Fully Operational Under Power
Higher Buyer Confidence
Complete Maintenance Records
Higher Market Value
The cost of a used 2002 KITAMURA MYCENTER 1Xi depends on spindle condition, machine accuracy, maintenance history, and installed options. Most machines sell between $7,000 and $20,000, while exceptionally clean machines with low hours, tooling, and a rotary table can command higher prices.
Machines equipped with through-spindle coolant, probing systems, and chip augers offer additional value and improved productivity. Buyers should also factor in rigging, transportation, and installation costs.
For shops requiring compact, high-precision machining capability, the KITAMURA MYCENTER 1Xi offers exceptional performance and long-term value.
