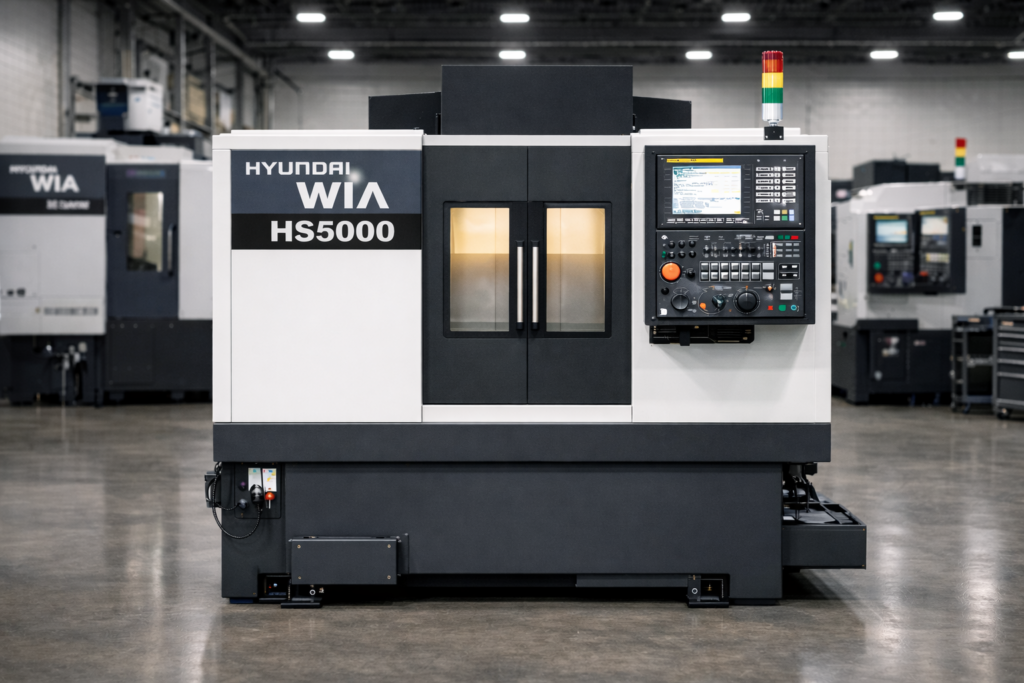

HYUNDAI WIA HS5000 is a heavy-duty horizontal machining center engineered for high-precision machining and large-volume production applications. Built with a rigid cast iron structure and box-type construction, the HS5000 offers excellent thermal stability and vibration damping, ensuring consistent machining accuracy even during long production runs. The machine is designed to handle a wide range of materials, including steel, cast iron, and high-strength alloys, making it suitable for demanding industrial environments such as automotive, aerospace, and heavy equipment manufacturing.
The HS5000 typically features a high-torque spindle and a pallet changer system that enables continuous machining with minimal downtime. Dual-pallet or multi-pallet configurations allow operators to load and unload parts while machining is in progress, significantly improving productivity. Advanced CNC control systems provide high-speed data processing, multi-axis interpolation, and intuitive programming capabilities, supporting complex machining operations with high repeatability. A large-capacity tool magazine and rapid tool change system further enhance flexibility and cycle time efficiency, allowing the HS5000 to perform multi-step machining processes in a single setup.
Hyundai WIA designed the HS5000 for durability and long-term industrial use, with precision linear guideways, high-performance servo drives, and robust mechanical components that support heavy cutting conditions. Its combination of rigidity, automation capability, and precision makes it a reliable choice for manufacturers seeking consistent performance in high-output production environments.
HYUNDAI WIA HS5000SPECIFICATIONS
TRAVEL & CAPACITY
Travel (X/Y/Z): ~850 / 700 / 750 mm
Pallet Table Size: 500 × 500 mm
Max Load Capacity on Table: 500–800 kg (varies by sub-model)
Slide Type: LM guideways
Number of Pallets: 2 (standard)
Suitable Part Size: Medium-to-large horizontal workpieces
SPINDLE
Driving Method: Built-in spindle
Spindle Taper: BBT40
Spindle Speed: ~12,000 rpm standard
Spindle Power: 25/22 kW (HS5000i) or 30/25 kW (HS5000/50)
Spindle Torque: ~167/95 Nm (HS5000i) or ~420/238 Nm (HS5000/50)
High-speed capability for efficient cutting
TOOL MAGAZINE
Type: Servo-driven ATC
Tool Capacity: ~40 tools (standard)
Tool Change Time (Chip-to-Chip): ~3.5–4.8 sec
Supports a range of milling tools for flexible part machining
FEEDRATES
Rapid Traverse (X/Y/Z): ~50–60 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC series (e.g., 31i, 32i)
Interface: Operator panel with jog, override, diagnostics
Features: Rigid tapping, macro support, data protection
COOLANT & CHIP HANDLING
Coolant System: Flood coolant standard
Through-spindle coolant: Optional (varies by configuration)
Chip Handling: Chip conveyor optional
Coolant filtration and delivery systems included
POWER & AIR REQUIREMENTS
Power Supply: 3-phase industrial
Approx. Power Draw: ~35–45 kVA (varies by configuration)
Air Pressure Required: ~0.5–0.7 MPa
Electrical and pneumatic specifications vary by installation
Machine Type: CNC Horizontal Machining Center (HMC)
Manufacturer: Hyundai-WIA
Designed for high-precision machining with excellent rigidity and high throughput
Built-in heavy-duty spindle and reverse “T” bed structure for stability
Linear roller or LM guideways for smooth motion and accuracy
Dual pallet capability with high-speed pallet changer to minimize non-cutting time
High-speed ATC with large tool capacity
Suitable for medium to large workpieces and batch production
HYUNDAI WIA HS5000 — KEY CAPABILITIES
High rigidity reversed “T” type bed design
Excellent dynamic performance with rapid traverse up to ~60 m/min
Built-in spindle with high speed and high power options
Large automatic tool changer with high tool capacity
High-speed pallet changer for reduced idle time
Servo-driven systems for ATC/APC for precision and speed
INDUSTRIES THAT USE HYUNDAI WIA HS5000
Automotive component machining
Aerospace component manufacturing
Precision engineering workshops
General and heavy engineering fabrication
High-volume production environments
Structural part machining and tooling
TYPICAL PARTS HYUNDAI WIA HS5000 CAN PRODUCE
Engine housings and gearbox cases
Structural brackets and plates
Precision milled components
High-volume palletized batches
Tooling fixtures and dies
Deep cavity machined parts
WHY CHOOSE THE HYUNDAI WIA HS5000
Strong and thermally stable machine structure
High rapid traverse rates reduce cycle time
Large work envelope for versatile part sizes
Built-in spindle with high RPM and power options
Efficient pallet and tool change mechanisms
Trusted global control platforms and aftermarket support
Summary Table
PARAMETER
VALUE
X-Axis Travel
~850 mm
Y-Axis Travel
~700 mm
Z-Axis Travel
~750 mm
Table Size
500 × 500 mm
Max Load Capacity
~500–800 kg
Spindle Speed
~12,000 rpm
Spindle Power
25–30 kW
Tool Capacity
~40 tools
Rapid Traverse
~50–60 m/min
Control
FANUC series
How much does used HYUNDAI WIA HS5000 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (HS5000i standard)
$70,000 – $95,000
Mid Spec (higher power/spindle options)
$95,000 – $125,000
High Spec (automation, expanded tools/pallets)
$125,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED HYUNDAI WIA HS5000
Buying a used Hyundai WIA HS5000 can provide substantial cost savings while still delivering industrial-grade horizontal machining capabilities. Pre-owned machines allow manufacturers to expand production capacity or upgrade equipment without the high upfront cost of new machinery. With proper inspection, refurbishment, and maintenance, a used HS5000 can offer reliable long-term performance, making it a practical investment for machining operations focused on maximizing productivity and return on capital.
