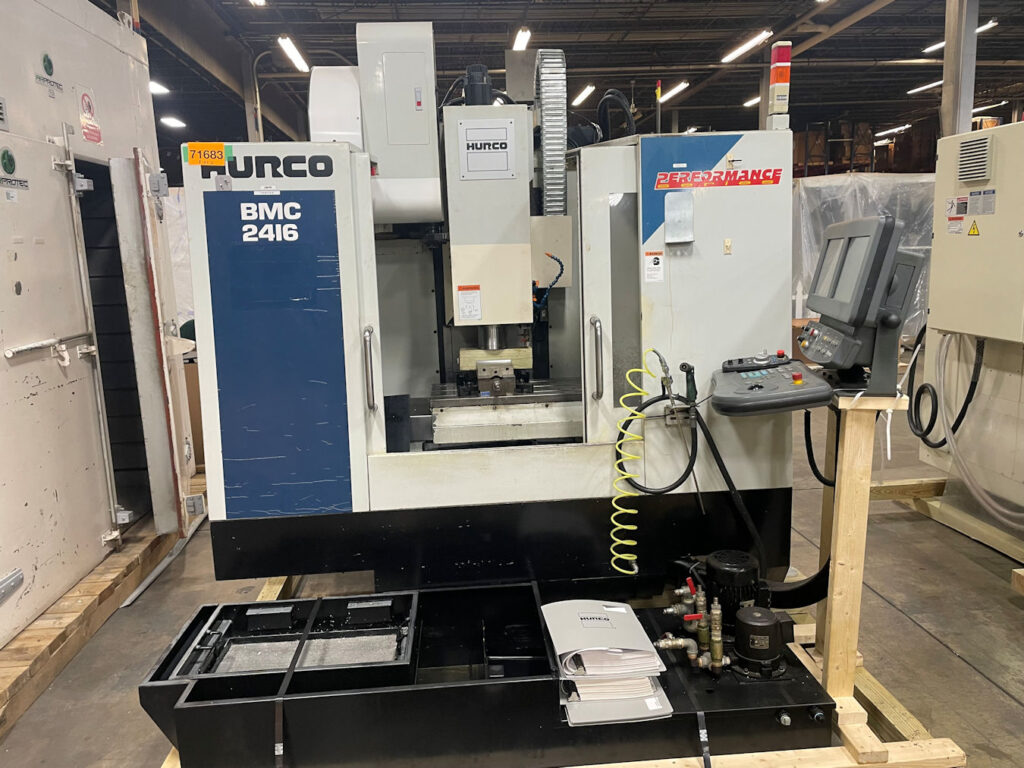

USED HURCO BMC 2416 – 2000
The HURCO BMC 2416 – 2000 is a CNC vertical machining center designed for precision milling, drilling, tapping, pocketing, contouring, and general production machining. The BMC 2416 belongs to Hurco’s BMC series of vertical machining centers and is well suited for job shops and manufacturers that require a compact machine with practical workholding capacity and flexible CNC programming.
The machine provides approximately 24 inches of X-axis travel, 16 inches of Y-axis travel, and 20 inches of Z-axis travel, giving it a useful work envelope for small- and medium-sized components. Its rigid vertical machining configuration allows manufacturers to perform multiple machining operations in a single setup.
One of the primary advantages of a Hurco machine is its conversational programming capability. The control is designed to allow operators to create and edit machining programs directly at the machine, making the BMC 2416 particularly useful for job shops, prototypes, short production runs, and frequently changing work.
The BMC 2416 can perform face milling, end milling, drilling, tapping, boring, pocketing, contouring, and precision hole machining. Depending on the individual 2000 machine, it may be equipped with a spindle speed of approximately 6,000–8,000 RPM, automatic tool changer, coolant system, chip management equipment, probing, and other accessories.
A used HURCO BMC 2416 – 2000 can be an economical option for manufacturers looking for a compact CNC vertical machining center with straightforward operation and proven production capabilities.
HURCO BMC 2416 – 2000 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Vertical Machining Center |
| Axis Configuration | 3-Axis |
| X-Axis Travel | Approx. 24″ / 610 mm |
| Y-Axis Travel | Approx. 16″ / 406 mm |
| Z-Axis Travel | Approx. 20″ / 508 mm |
| X-Axis Rapid Traverse | Approx. 600 IPM |
| Y-Axis Rapid Traverse | Approx. 600 IPM |
| Z-Axis Rapid Traverse | Approx. 600 IPM |
| 4th Axis | Optional |
| Servo Drives | AC Servo |
HURCO BMC 2416 – 2000 – TABLE & WORK ENVELOPE
| Specification | Details |
|---|---|
| Table Size | Approx. 30″ x 16″ |
| Maximum Table Load | Approx. 1,000 lbs |
| T-Slots | Standard |
| Spindle Nose to Table | Configuration Dependent |
| Spindle Center to Column | Configuration Dependent |
| Workholding | Vise / Fixture |
| 4th Axis | Optional |
| Production Milling | Supported |
| Heavy-Duty Machining | Supported |
HURCO BMC 2416 – 2000 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | Vertical Milling Spindle |
| Spindle Motor | Approx. 15 HP |
| Maximum Spindle Speed | Approx. 6,000–8,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Nose | Standard |
| Spindle Orientation | Standard |
| Rigid Tapping | Supported |
| Belt-Driven Spindle | Configuration Dependent |
| High-Speed Machining | Supported |
| 3D Contouring | Supported |
The exact spindle speed should be verified on the individual machine because BMC 2416 configurations varied by year and installed options.
HURCO BMC 2416 – 2000 – TOOL CHANGER
| Specification | Details |
|---|---|
| Tool Changer Type | Automatic |
| Tool Capacity | Approx. 16–24 Tools |
| Tool Holder | CAT 40 |
| Tool Selection | Automatic |
| Tool Indexing | Automatic |
| Tool-Life Management | Available |
| Tool Presetter | Optional |
| Tool Monitoring | Configuration Dependent |
| Automatic Tool Change | Standard |
| Long Tool Capability | Supported |
HURCO BMC 2416 – 2000 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Hurco Ultimax |
| Control Type | Conversational / G-Code |
| Programming | Conversational / NC |
| Display | CRT / LCD Configuration Dependent |
| Conversational Programming | Standard |
| Tool Offset Management | Standard |
| Work Offset Management | Standard |
| Rigid Tapping | Available |
| Graphics | Standard |
| Diagnostics | Standard |
| Data Transfer | Configuration Dependent |
The Hurco Ultimax control was a major feature of the BMC series, allowing operators to create conversational programs without relying entirely on conventional G-code programming.
HURCO BMC 2416 – 2000 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | Approx. 600 IPM |
| Y-Axis Rapid Traverse | Approx. 600 IPM |
| Z-Axis Rapid Traverse | Approx. 600 IPM |
| Cutting Feedrate | Programmable |
| Feedrate Override | Standard |
| Linear Interpolation | Yes |
| Circular Interpolation | Yes |
| Helical Interpolation | Supported |
| Rigid Tapping | Supported |
| Servo Positioning | Standard |
HURCO BMC 2416 – 2000 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Standard |
| Coolant Tank | Standard |
| Coolant Pump | Standard |
| High-Pressure Coolant | Optional |
| Chip Conveyor | Available |
| Chip Auger | Configuration Dependent |
| Coolant Filtration | Standard |
| Mist Collector | Optional |
| Oil Skimmer | Optional |
| Automatic Lubrication | Standard |
HURCO BMC 2416 – 2000 – PROBING & AUTOMATION
| Specification | Details |
|---|---|
| Workpiece Probe | Optional |
| Tool Probe | Optional |
| Tool Measurement | Available |
| Workpiece Measurement | Available |
| Parts Catcher | Configuration Dependent |
| 4th Axis | Optional |
| Automatic Tool Measurement | Available |
| Chip Conveyor | Available |
| Bar Feeder | Not Applicable |
| Lights-Out Production | Supported |
HURCO BMC 2416 – 2000 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Spindle Motor | Approx. 15 HP |
| Electrical Service | Three-Phase |
| Input Voltage | Configuration Dependent |
| Frequency | 50 / 60 Hz |
| Shop Air | Required |
| Hydraulic System | Configuration Dependent |
| Lubrication System | Automatic |
| Electrical Cabinet | Hurco |
| Installation | Industrial |
HURCO BMC 2416 – 2000 – DIMENSIONS
| Specification | Details |
|---|---|
| Machine Width | Approx. 95–105″ |
| Machine Depth | Approx. 90–100″ |
| Machine Height | Approx. 90″ |
| Machine Weight | Approx. 8,000–10,000 lbs |
| Floor Space | Medium |
| Chip Conveyor | Adds Overall Length |
| Rigging | Required |
| Installation | Industrial |
| Enclosure | Full Enclosure |
HURCO BMC 2416 – 2000 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Hurco |
| Model | BMC 2416 |
| Year | 2000 |
| Machine Category | CNC Vertical Machining Center |
| Axis Configuration | 3-Axis |
| X-Axis Travel | Approx. 24″ |
| Y-Axis Travel | Approx. 16″ |
| Z-Axis Travel | Approx. 20″ |
| Table Size | Approx. 30″ x 16″ |
| Spindle Taper | CAT 40 |
| Spindle Speed | Approx. 6,000–8,000 RPM |
| Spindle Power | Approx. 15 HP |
| Tool Capacity | Approx. 16–24 |
| CNC Control | Hurco Ultimax |
INDUSTRIES THAT USE HURCO BMC 2416
The HURCO BMC 2416 is well suited for:
- General Manufacturing
- Automotive
- Aerospace
- Medical
- Defense
- Industrial Machinery
- Tool & Die
- Job Shops
- Precision Engineering
- Prototype Manufacturing
- Contract Machining
TYPICAL PARTS HURCO BMC 2416 CAN PRODUCE
Typical components include:
- Machine brackets
- Housings
- Fixtures
- Plates
- Mounting components
- Automotive components
- Tooling components
- Prototype parts
- Industrial components
- Precision mechanical parts
Typical operations include face milling, end milling, pocketing, drilling, tapping, boring, contouring, slotting, chamfering, and 3D profiling.
WHY CHOOSE HURCO BMC 2416
The biggest advantage of the HURCO BMC 2416 is its combination of a practical machining envelope and user-friendly conversational programming.
The Hurco control allows operators to program machining operations directly at the machine, making it particularly useful for job shops and manufacturers handling short runs or frequently changing part designs. Operators can also combine conversational programming with conventional G-code when required.
Its CAT 40 spindle and 3-axis configuration provide sufficient capability for a wide range of general milling operations. The compact footprint also makes it easier to integrate into smaller manufacturing facilities than a large production machining center.
WHY BUY USED HURCO BMC 2416 – 2000
A used 2000 HURCO BMC 2416 can be an economical entry point into CNC vertical milling. The machine is particularly attractive for smaller job shops, prototype manufacturers, maintenance departments, and businesses that need additional milling capacity without a large capital investment.
When evaluating a used BMC 2416, inspect the spindle bearings, ballscrews, linear guideways, tool changer, CNC control, table condition, servo motors, coolant system, and machine geometry.
Buyers should verify spindle runout, axis backlash, positioning accuracy, tool-change operation, control functionality, spindle hours, and maintenance history.
A machine equipped with a chip conveyor, probing, 4th-axis capability, complete CAT 40 tooling, coolant system, and documented maintenance history can provide additional value.
HOW MUCH DOES A USED HURCO BMC 2416 – 2000 COST?
The market value of a used HURCO BMC 2416 – 2000 depends on machine condition, spindle hours, control condition, tooling, options, and maintenance history.
| USED HURCO BMC 2416 – 2000 PRICE RANGE | ESTIMATED COST |
|---|---|
| High Hours / Basic Configuration | $8,000 – $12,000 |
| Functional Production Machine | $12,000 – $16,000 |
| Good Condition / Production Ready | $16,000 – $21,000 |
| Excellent / Well Equipped | $21,000 – $27,000 |
| Low Hours / Fully Equipped | $27,000 – $32,000+ |
For a 2000 HURCO BMC 2416 in good working condition, a realistic market value is approximately $14,000–$22,000 USD.
For your inventory listing, a recommended asking-price range is $18,000–$25,000 USD for a clean machine equipped with Hurco Ultimax control, CAT 40 spindle, automatic tool changer, coolant system, chip conveyor, probing, and complete tooling.
Best estimated listing value: $18,000–$25,000 USD.
