USED HURCO TMM10 – 2006
The HURCO TMM10 is a multi-tasking CNC turning center designed to combine the capabilities of a traditional CNC lathe with advanced milling functionality in a single machine platform. Manufactured by Hurco, a company known for its innovative CNC machine tools and user-friendly control technology, the TMM10 was developed to help manufacturers reduce setups, improve productivity, and increase machining flexibility. The machine integrates turning, milling, drilling, tapping, and contouring operations into one efficient system, allowing complex parts to be completed in a single setup.
The 2006 HURCO TMM10 remains a desirable machine in the used CNC equipment market because it offers true multi-tasking capabilities at an affordable price point. Unlike conventional turning centers that focus primarily on rotational machining, the TMM10 incorporates a milling spindle and Y-axis functionality, enabling operators to perform off-center milling, drilling, pocketing, and contouring operations without moving the workpiece to another machine. This significantly reduces setup times, improves part accuracy, and lowers overall production costs.
Built on a rigid slant-bed platform, the TMM10 delivers excellent stability during both turning and milling operations. The machine’s robust construction minimizes vibration and helps maintain tight tolerances while machining a variety of materials, including stainless steel, aluminum, titanium, brass, bronze, cast iron, and engineering plastics. The integration of a milling spindle further enhances the machine’s versatility by allowing complex geometries to be produced in a single operation.
The TMM10 is commonly used in aerospace, automotive, medical, defense, energy, fluid power, and industrial manufacturing environments where shops need the flexibility to produce a wide variety of precision-machined components. Its combination of turning and milling capability makes it particularly attractive for job shops and contract manufacturers that handle diverse production requirements.
Although newer multi-tasking machines are available today, the 2006 HURCO TMM10 continues to offer substantial value due to its proven reliability, versatile machining capabilities, and lower acquisition cost. For manufacturers seeking an economical entry into multi-tasking machining technology, the TMM10 remains a highly practical solution in the used CNC machine marketplace.
HURCO TMM10 – AXIS
| Specification | Details |
|---|---|
| Machine Type | Multi-Tasking CNC Turning Center |
| Axis Configuration | 4-Axis |
| X-Axis | CNC Controlled |
| Z-Axis | CNC Controlled |
| Y-Axis | CNC Controlled |
| C-Axis | Full Contouring |
| Simultaneous Machining | Yes |
HURCO TMM10 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | Approx. 8.7″ |
| Y-Axis Travel | Approx. ±2.0″ |
| Z-Axis Travel | Approx. 22″ |
| Maximum Turning Length | Approx. 20″ |
| Maximum Turning Diameter | Approx. 12″ |
| Milling Envelope | Multi-Surface Machining |
HURCO TMM10 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Chuck Size | 10″ |
| Maximum Swing Over Bed | Approx. 21″ |
| Maximum Turning Diameter | Approx. 12″ |
| Maximum Turning Length | Approx. 20″ |
| Bar Capacity | Approx. 3.0″ |
| Production Type | Medium to High Volume |
HURCO TMM10 – SPINDLE
| Specification | Details |
|---|---|
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Motor | Approx. 20 HP |
| Milling Spindle Speed | 6,000 RPM |
| Milling Spindle Motor | Approx. 10 HP |
| C-Axis Positioning | Standard |
| Spindle Configuration | Turning & Milling |
HURCO TMM10 – TOOL CHANGER
| Specification | Details |
|---|---|
| Turret Stations | 12 |
| Live Tool Stations | 12 |
| Milling Capability | Yes |
| Drilling Capability | Yes |
| Tapping Capability | Yes |
| Automatic Tool Indexing | Standard |
HURCO TMM10 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Hurco Ultimax |
| Programming Type | Conversational & G-Code |
| Graphic Programming | Standard |
| Networking Capability | Available |
| Program Storage | Expanded Memory |
| High-Speed Processing | Yes |
HURCO TMM10 – COOLANT / DUST / WATER MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant System | Standard |
| Through Tool Coolant | Available |
| Coolant Tank | Integrated |
| Chip Conveyor | Optional |
| Coolant Filtration | Standard |
| Mist Collector Compatibility | Yes |
HURCO TMM10 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Voltage | 220V / 480V |
| Electrical Requirement | 3 Phase |
| Connected Load | Approx. 30 kVA |
| Air Requirement | Shop Air Required |
HURCO TMM10 – DIMENSIONS
| Specification | Details |
|---|---|
| Length | Approx. 135″ |
| Width | Approx. 80″ |
| Height | Approx. 85″ |
| Machine Weight | Approx. 12,000 lbs |
HURCO TMM10 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Hurco |
| Model | TMM10 |
| Year | 2006 |
| Machine Category | Multi-Tasking CNC Turning Center |
| Country of Origin | USA |
| Primary Application | Turning & Milling |
| Production Environment | Precision Manufacturing |
INDUSTRIES THAT USE HURCO TMM10
The HURCO TMM10 is widely used in industries that require both turning and milling operations on complex components. Aerospace manufacturers utilize the machine to produce actuator components, hydraulic fittings, aerospace fasteners, fuel system parts, and precision shafts. The machine’s multi-tasking capability allows complex features to be completed without multiple setups, improving accuracy and reducing production time.
Automotive manufacturers frequently use the TMM10 to produce transmission components, valve bodies, drive shafts, sensor housings, fuel system parts, and engine hardware. The combination of turning and milling functions makes it highly effective for producing intricate automotive components.
Medical device manufacturers benefit from the machine’s precision and flexibility when producing surgical instruments, orthopedic hardware, implant components, and specialized medical housings. The machine’s ability to maintain tight tolerances supports demanding medical manufacturing requirements.
Additional industries include defense, fluid power, oil and gas, industrial automation, electronics, energy production, and contract machining. The machine’s versatility allows manufacturers to handle a broad range of customer requirements efficiently and cost-effectively.
TYPICAL PARTS HURCO TMM10 CAN PRODUCE
The HURCO TMM10 is capable of producing a wide variety of precision-machined components. Aerospace applications include hydraulic fittings, actuator shafts, fuel system components, aerospace connectors, and structural hardware. The machine’s milling spindle enables complex features to be machined directly on turned components.
Automotive manufacturers commonly produce transmission components, drive shafts, valve bodies, fuel system hardware, sensor housings, and precision fittings. The machine’s multi-tasking design eliminates many secondary operations and improves production efficiency.
Medical applications include surgical tools, orthopedic implants, dental components, medical connectors, and precision instrument housings. The machine’s ability to achieve excellent surface finishes and tight tolerances supports demanding medical applications.
Other common applications include hydraulic valves, pneumatic fittings, electrical connectors, automation hardware, oilfield components, industrial machinery parts, semiconductor equipment components, and custom-engineered products. The machine’s ability to process a wide range of materials significantly expands its manufacturing versatility.
WHY CHOOSE HURCO TMM10
The HURCO TMM10 offers manufacturers an excellent combination of turning and milling capabilities within a single machine platform. One of its greatest advantages is the ability to complete complex parts in one setup, reducing handling, improving accuracy, and shortening production cycles.
The integrated Y-axis and live tooling system allow off-center machining operations that would normally require additional milling equipment. This helps manufacturers reduce floor space requirements while increasing overall productivity.
Another key advantage is Hurco’s conversational programming technology. The Ultimax control system is known for its user-friendly interface and efficient programming environment, making it easier for operators to create and modify machining programs.
The machine’s rigid construction and proven mechanical design contribute to long-term reliability and consistent machining performance. Even years after production, many TMM10 machines continue operating successfully in demanding manufacturing environments.
For shops seeking a flexible, cost-effective, and proven multi-tasking machining solution, the HURCO TMM10 remains an excellent choice.
WHY BUY USED HURCO TMM10
Purchasing a used HURCO TMM10 provides manufacturers with access to multi-tasking machining technology at a significantly lower cost than purchasing a newer turning and milling center. For many shops, this creates an opportunity to expand capabilities while preserving valuable capital resources.
The TMM10 combines turning, milling, drilling, and tapping functions within a single machine, allowing businesses to reduce secondary operations and improve workflow efficiency. Acquiring these capabilities through the used equipment market often delivers excellent return on investment.
Many used machines are available with tooling packages, chip conveyors, live tooling assemblies, workholding equipment, and software upgrades. These additions can further increase productivity while minimizing future capital expenditures.
Another significant advantage is availability. While newer multi-tasking machines may involve long lead times and higher acquisition costs, used TMM10 machines can often be purchased, installed, and placed into production much more quickly.
For manufacturers seeking affordable multi-tasking technology, reliable performance, and expanded machining capabilities, a used HURCO TMM10 offers outstanding value.
HOW MUCH DOES A USED HURCO TMM10 COST?
The value of a used HURCO TMM10 depends on machine condition, spindle hours, maintenance history, tooling inventory, installed options, and market demand. Machines that have been properly maintained and include comprehensive tooling packages generally command higher resale values due to their readiness for immediate production.
Additional equipment such as live tooling, chip conveyors, bar feeders, workholding systems, and upgraded control features can significantly affect pricing. Buyers often place greater value on machines that require minimal additional investment before entering service.
Demand for multi-tasking turning centers remains strong across aerospace, automotive, medical, energy, defense, and industrial manufacturing sectors. This ongoing demand helps support healthy resale values for machines that combine turning and milling capabilities.
In addition to the machine purchase price, buyers should evaluate transportation, rigging, installation, tooling, electrical requirements, and operator training costs. These expenses should be considered alongside the machine’s productivity benefits and operational flexibility.
Compared to purchasing a newer multi-tasking turning center, a used HURCO TMM10 can provide substantial cost savings while still delivering advanced machining capability, reduced setup requirements, and reliable production performance. For manufacturers seeking a practical and economical multi-tasking CNC solution, the HURCO TMM10 remains an excellent value in the used CNC equipment market.
Related Products
-
HURCO - VMX60SRTI
VIEW MACHINE -
HURCO - HM1700RI
VIEW MACHINE -
NEW ARRIVAL ON SALE

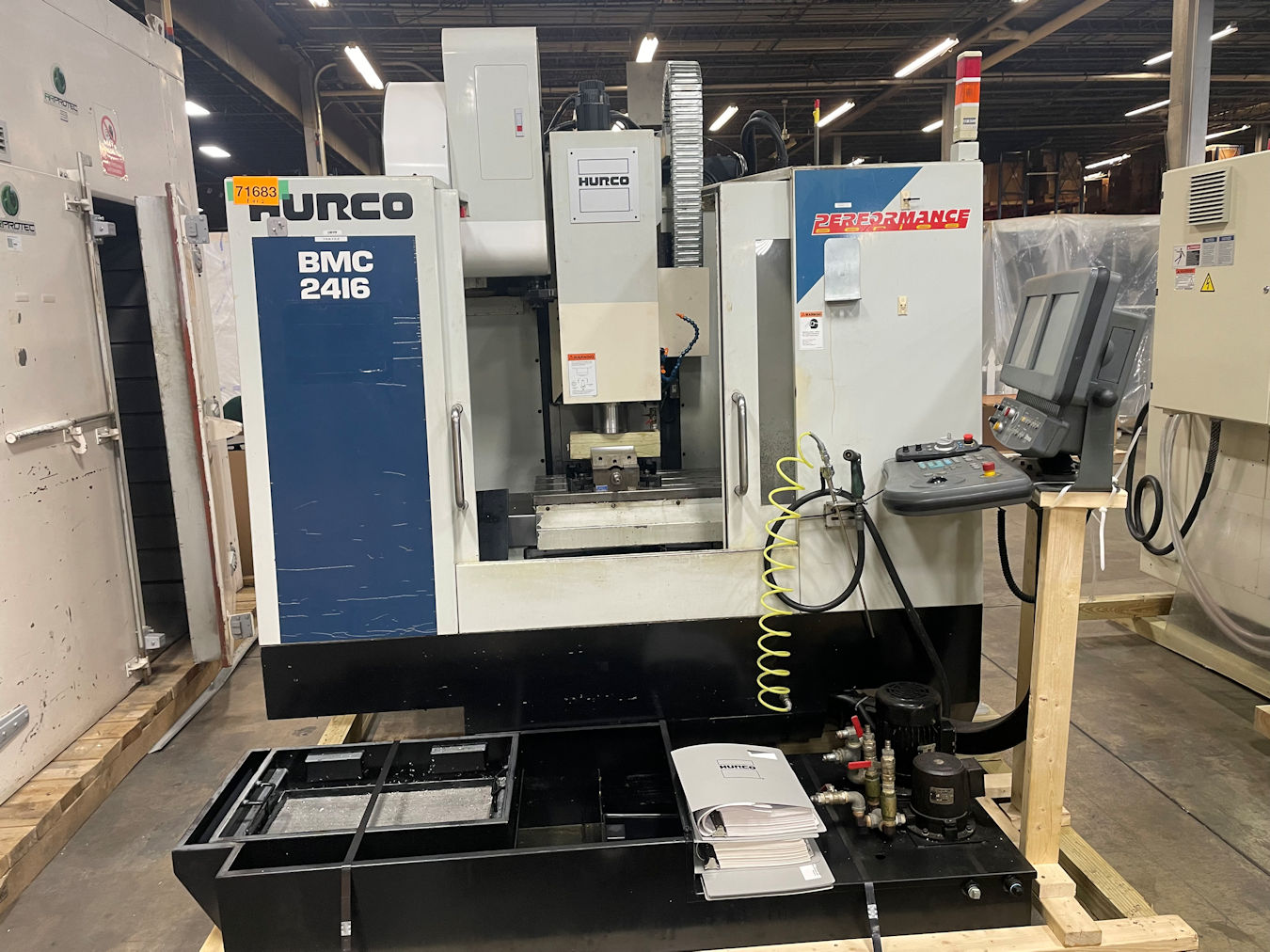

HURCO - BMC 2416
