Used HAAS VF6/40 2023 - CNC Machine For Sale - USA
HAAS VF6/40 2023

HAAS VF6/40 2023

MAKE: HAAS
MODEL: VF6/40
TYPE: Vertical Machine
YEAR: 2023
SKU: 111509
DEALER: Toolquip, Inc
COUNTRY: USA

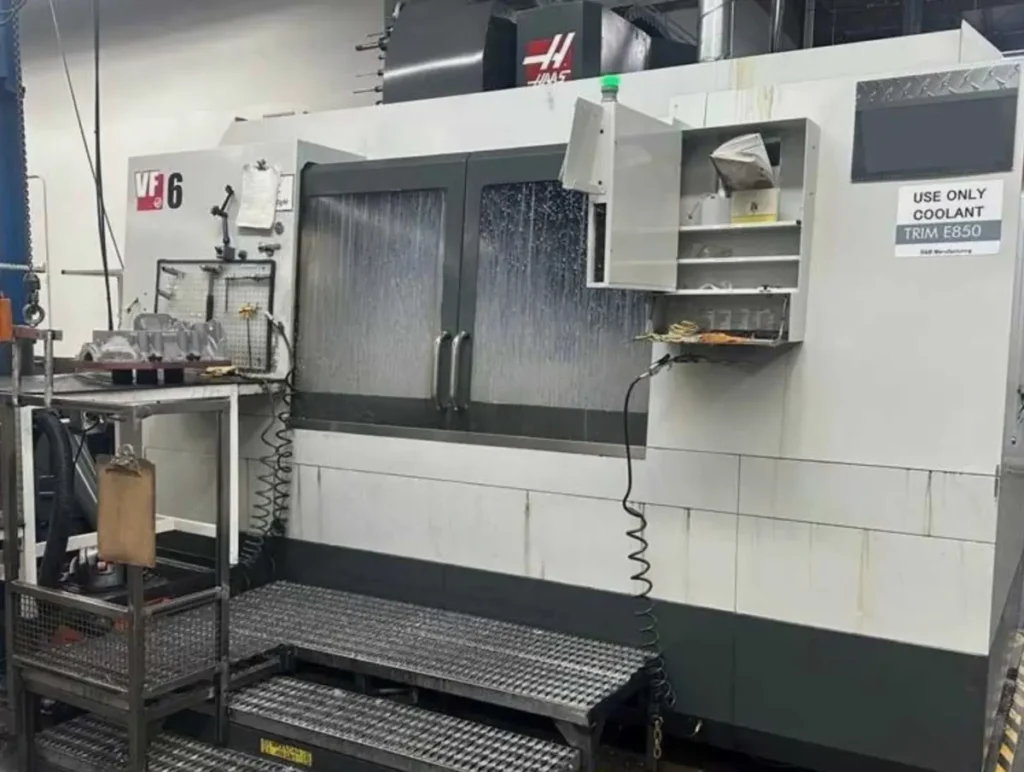

USED HAAS VF6/40 2023

The 2023 Haas VF6/40 is a large-capacity CNC vertical machining center designed for high-performance machining of large components, aerospace parts, molds, dies, fixtures, and industrial production parts. Built with a rigid cast-iron structure, 40-taper inline direct-drive spindle, and advanced Haas Next Generation Control (NGC), the VF6/40 delivers excellent accuracy, productivity, and reliability for demanding machining environments.

The machine features 64 in (1,626 mm) of X-axis travel, 32 in (813 mm) of Y-axis travel, and 30 in (762 mm) of Z-axis travel. It is equipped with an 8,100 RPM direct-drive spindle, 30 HP (22.4 kW), and a 30+1 side-mount automatic tool changer. With a large work envelope, high-speed spindle, and modern Haas control features, the VF6/40 2023 is suitable for aerospace, automotive, mold & die, energy, and precision manufacturing applications.

HAAS VF6/40 2023 – AXIS

SpecificationDetails
X-Axis Travel64 in (1,626 mm)
Y-Axis Travel32 in (813 mm)
Z-Axis Travel30 in (762 mm)
Axis Configuration3-Axis Vertical Machining Center
Rapid Traverse (X/Y/Z)600 IPM (15.2 m/min)
Guideway TypeLinear Guideways

HAAS VF6/40 2023 – TABLE

SpecificationDetails
Table Size64 × 28 in (1,626 × 711 mm)
Maximum Table Load4,000 lbs (1,814 kg)
T-Slots5
T-Slot Width0.626 in (15.9 mm)

HAAS VF6/40 2023 – SPINDLE

SpecificationDetails
Maximum Spindle Speed8,100 RPM
Spindle Power30 HP (22.4 kW)
Maximum Torque90 ft-lb @ 2,000 RPM
Spindle TaperCT40 / BT40 / HSK-A63
Drive TypeInline Direct Drive
Cooling SystemLiquid Cooled

HAAS VF6/40 2023 – TOOL CHANGER

SpecificationDetails
Tool Capacity30 + 1 Tools
Tool Changer TypeSide-Mount Tool Changer
Tool-to-Tool Time2.8 sec
Chip-to-Chip Time3.6 sec
Maximum Tool Weight12 lbs (5.4 kg)
Maximum Tool Diameter5 in (127 mm) with adjacent pockets empty

HAAS VF6/40 2023 – CONTROL SYSTEM

SpecificationDetails
CNC ControlHaas Next Generation Control (NGC)
ProgrammingISO G-Code
EthernetStandard
Wi-FiStandard
USB PortsStandard
HaasConnectStandard
HaasDropStandard
Rigid TappingStandard
Program Memory1 GB Standard

HAAS VF6/40 2023 – COOLANT SYSTEM

SpecificationDetails
Flood CoolantStandard
Coolant Tank Capacity95 gal (360 L)
Programmable Coolant NozzleStandard
Chip AugerStandard
Through-Spindle CoolantOptional
Chip WashdownStandard

HAAS VF6/40 2023 – POWER REQUIREMENTS

SpecificationDetails
Electrical Supply220V / 440V, 3-Phase
Full Load Current70A @ 220V / 35A @ 440V
Air Requirement4 SCFM @ 100 PSI

HAAS VF6/40 2023 – DIMENSIONS

SpecificationDetails
Shipping Length195 in
Shipping Width102 in
Shipping Height128.5 in
Machine WeightApprox. 22,300 lbs

HAAS VF6/40 2023 – GENERAL INFORMATION

SpecificationDetails
ManufacturerHaas Automation
ModelVF6/40
Year2023
Machine TypeCNC Vertical Machining Center
ConditionUsed
Country of OriginUSA

WHY BUY USED HAAS VF6/40 2023

Purchasing a used Haas VF6/40 2023 provides manufacturers access to a nearly new large-format CNC machining center at a lower investment compared to purchasing new. Its large travels, 40-taper spindle, modern Haas NGC control, and productivity features make it ideal for machining large molds, aerospace structures, fixtures, and industrial components.

The 2023 model includes modern Haas technology such as remote monitoring through HaasConnect, Wi-Fi connectivity, advanced tool management, programmable coolant control, and improved operator features.

HOW MUCH DOES A USED HAAS VF6/40 2023 COST?

The value of a used Haas VF6/40 2023 depends on spindle hours, machine options, tooling package, maintenance history, and overall condition.

Most used Haas VF6/40 2023 machines typically sell between:

$150,000 – $220,000

Machines equipped with Renishaw probing, through-spindle coolant, rotary tables, chip conveyors, high-speed machining options, and low spindle hours generally command higher resale values.

Before purchasing, buyers should inspect:

  • Spindle condition and runout
  • Ballscrews and guideways
  • Automatic tool changer operation
  • Coolant system
  • Machine geometry
  • CNC control functionality

INDUSTRIES THAT USE HAAS VF6/40 2023

  • Aerospace Manufacturing
  • Defense Manufacturing
  • Automotive Industry
  • Mold & Die Manufacturing
  • Energy Industry
  • Heavy Equipment Manufacturing
  • Tool & Fixture Manufacturing
  • Precision Engineering
  • Prototype Manufacturing
  • General CNC Machine Shops

TYPICAL PARTS HAAS VF6/40 2023 CAN PRODUCE

  • Aerospace Structural Components
  • Large Mold Bases
  • Fixture Plates
  • Automotive Tooling
  • Machine Frames
  • Industrial Equipment Parts
  • Aluminum Structures
  • Steel Components
  • Precision Fixtures
  • Prototype Parts

WHY CHOOSE HAAS VF6/40 2023

The Haas VF6/40 2023 combines large machining capacity, modern CNC technology, and reliable Haas engineering into a powerful production platform. Its 64-inch X-axis travel, 8,100 RPM direct-drive spindle, and 30+1 tool capacity make it an excellent choice for manufacturers requiring accuracy, flexibility, and productivity.

For companies looking for a modern used CNC vertical machining center capable of handling large and complex components, the Haas VF6/40 2023 delivers exceptional performance, versatility, and long-term value.
