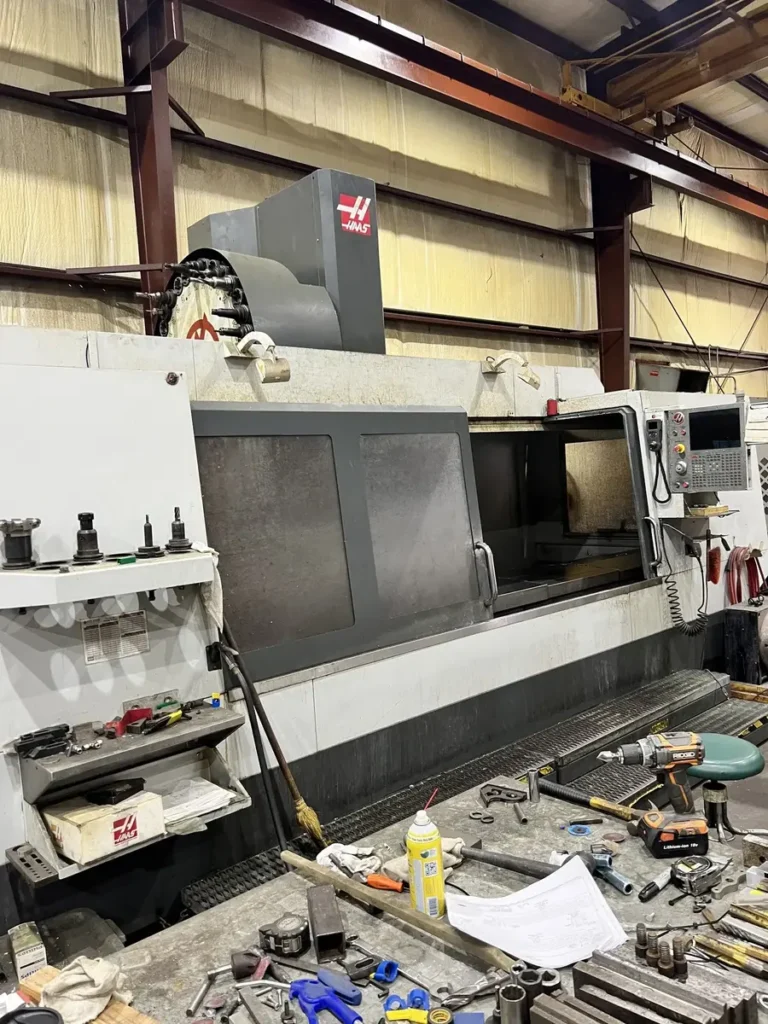

USED HAAS VF11 2014

The HAAS VF11 2014 is a large CNC vertical machining center designed for machining oversized components, structural parts, tooling, molds, fixtures, and other workpieces that cannot be accommodated by conventional small and mid-size VMCs. The VF11 belongs to Haas Automation’s large VF Series and provides an exceptionally long X-axis travel while maintaining a conventional vertical machining-center configuration.

The VF11 platform provides approximately 120 inches of X-axis travel, 40 inches of Y-axis travel, and 30 inches of Z-axis travel. Haas offers the VF11 platform in different spindle configurations, including 40-taper and 50-taper versions. The 40-taper configuration uses an inline direct-drive spindle rated at up to 30 HP and 8,100 RPM, while the 50-taper version uses a two-speed gearbox with up to 30 HP and 7,500 RPM.

The HAAS VF11 2014 is suitable for aerospace, defense, energy, transportation, heavy equipment, fabrication, tooling, mold and die, and general large-part machining. Because VF11 machines can differ substantially in spindle taper, tool capacity, options, and control configuration, the exact specifications should be verified from the machine serial number before purchase.

HAAS VF11 2014 – AXIS

HAAS VF11 2014 – AXIS TRAVELS / WORK ENVELOPE

The exceptionally long 120-inch X-axis travel is the defining characteristic of the VF11 and allows the machine to handle large workpieces and long components.

HAAS VF11 2014 – TABLE / CAPACITY

The large table provides substantial working space for oversized components, fixtures, structural parts, and long workpieces. Haas’s VF11/50 specification lists a 120 × 28 inch table with five standard T-slots and a 4,000 lb evenly distributed table load.

HAAS VF11 2014 – SPINDLE

The spindle configuration is important when evaluating a used VF11. The 40-taper VF11 uses an inline direct-drive spindle with up to 8,100 RPM, while the 50-taper VF11 uses a two-speed gearbox and up to 7,500 RPM, with substantially higher torque.

HAAS VF11 2014 – TOOL CHANGER

The VF11 platform uses a side-mount automatic tool changer. Haas lists 30+1 tool capacity for the current VF11/50 configuration.

HAAS VF11 2014 – FEEDRATES

Large-format VF11 machines use lower X-axis rapid rates than smaller Haas VMCs because of the exceptionally long axis travel. Haas lists 360 IPM X-axis rapid and 600 IPM Y and Z rapids for the VF11/50 platform.

HAAS VF11 2014 – CONTROL SYSTEM

The exact control and installed options should be verified on the individual 2014 machine. A 2014 Haas is particularly worth checking for its exact control hardware and software configuration when purchasing used equipment.

HAAS VF11 2014 – COOLANT / CHIP MANAGEMENT

The large VF11 platform has a substantially larger coolant system than smaller VF-series machines. Haas lists a 95-gallon coolant capacity for the VF11/50.

HAAS VF11 2014 – POWER REQUIREMENTS

Actual electrical requirements should be verified from the machine’s electrical nameplate and documentation before installation. Haas lists 220 VAC three-phase and 70 A full-load current for the low-voltage VF11/50 configuration.

HAAS VF11 2014 – DIMENSIONS

Because of its 120-inch travel and large table, transportation and installation require significantly more planning than a standard VF-series machine. Chip conveyors, rotary equipment, coolant systems, and other accessories can further increase the footprint and shipping weight.

HAAS VF11 2014 – GENERAL INFORMATION

These specifications represent the VF11 platform. The individual HAAS VF11 2014 should be checked for its exact spindle taper, spindle speed, tool changer, control, and installed options.

INDUSTRIES THAT USE HAAS VF11 2014

The HAAS VF11 2014 is suitable for aerospace, defense, energy, transportation, heavy equipment, construction equipment, industrial machinery, fabrication, tooling, mold and die, and large-part contract manufacturing.

The machine is especially useful for companies machining long components that would require multiple setups or repositioning on smaller VMCs.

TYPICAL PARTS HAAS VF11 2014 CAN PRODUCE

A HAAS VF11 2014 can manufacture large aerospace structures, aircraft components, heavy equipment parts, long tooling plates, molds, dies, structural components, industrial housings, machine bases, fixtures, and large fabricated components.

Typical machining operations include milling, drilling, tapping, boring, pocketing, contouring, facing, chamfering, and finishing.

Its long X-axis travel is particularly useful for components that need extensive machining along their length.

WHY CHOOSE HAAS VF11 2014

The HAAS VF11 2014 provides a very large 120 × 40 × 30 inch machining envelope, making it capable of handling workpieces that exceed the capacity of most conventional vertical machining centers.

The availability of both 40-taper and 50-taper configurations gives buyers flexibility. The 40-taper configuration is suited to general large-part machining and higher spindle speeds, while the 50-taper configuration provides greater rigidity and torque for larger cutting tools and tougher materials.

WHY BUY USED HAAS VF11 2014

Buying a used HAAS VF11 2014 can provide manufacturers with access to a large-format CNC machining center at a substantially lower investment than purchasing comparable new equipment.

Its biggest advantage is the 120-inch X-axis travel, which allows a shop to machine long components that would otherwise require multiple setups, repositioning, or a much more specialized machine.

A used VF11 can be particularly valuable for aerospace structures, heavy equipment components, long fixtures, tooling, molds, dies, and industrial parts.

When buying a 2014 machine, buyers should inspect the entire X-axis for wear and positioning accuracy because the exceptionally long travel can make geometry and alignment especially important. The spindle, gearbox if equipped, ballscrews, linear guides, tool changer, coolant system, control electronics, and lubrication system should also be tested.

HOW MUCH DOES A USED HAAS VF11 2014 COST?

The price of a used HAAS VF11 2014 can vary considerably depending on spindle taper, spindle hours, power-on hours, control configuration, machine condition, tooling, fourth-axis equipment, chip conveyor, probing, coolant options, and installation requirements.

The 40-taper and 50-taper versions should not be valued identically. A 50-taper machine offers a two-speed gearbox and considerably greater torque capability, while a 40-taper version provides higher spindle speed potential.

For used-equipment listing purposes, a reasonable estimated market range for a HAAS VF11 2014 is approximately $90,000 to $160,000 USD, depending on condition, configuration, hours, tooling, and accessories. A well-maintained machine with low hours, 50-taper spindle, probing, fourth-axis equipment, chip conveyor, through-spindle coolant, and extensive tooling may command more. Machines requiring major spindle, gearbox, control, axis, or electrical repairs may sell for substantially less.

As a large-format machine, transportation, rigging, electrical installation, and commissioning costs should also be considered when evaluating the total acquisition cost.

For a HAAS VF11 2014, buyers should evaluate the machine under power and verify spindle performance, X-axis geometry, axis accuracy, tool changer operation, control functionality, coolant delivery, lubrication, machine alignment, service history, and included options before determining its final market value.
