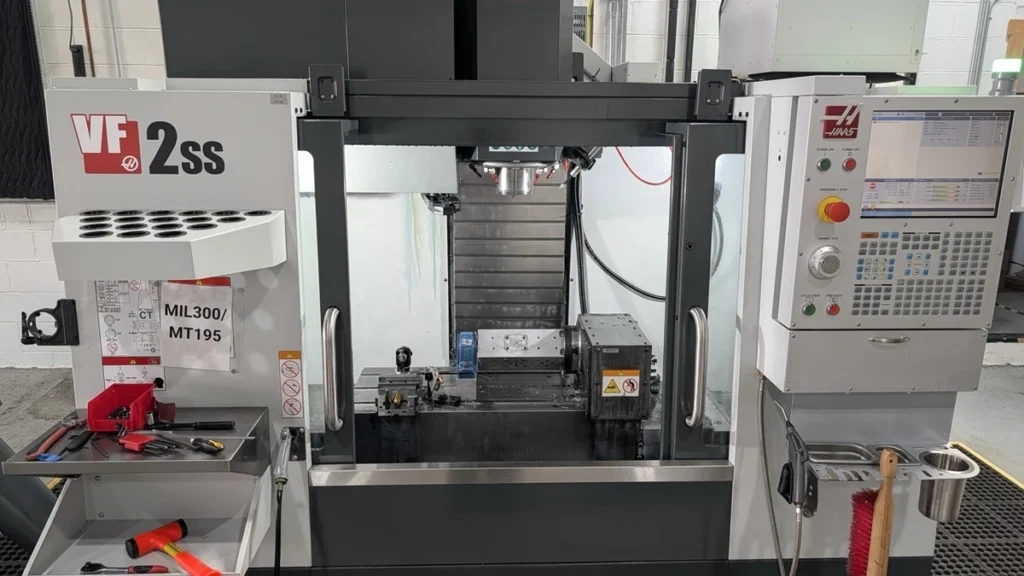

USED HAAS VF2SS 2022

The HAAS VF2SS 2022 is a high-speed CNC Vertical Machining Center (VMC) engineered for manufacturers that require exceptional productivity, fast cycle times, and outstanding machining precision. As part of the renowned Haas Super-Speed (SS) Series, the VF2SS combines a 12,000 RPM inline direct-drive spindle, ultra-fast rapid traverse rates, and a high-speed side-mount tool changer to maximize spindle utilization and minimize non-cutting time. The 2022 model incorporates the latest Haas Next Generation Control features, advanced networking capabilities, and automation readiness, making it an ideal solution for aerospace, medical, automotive, electronics, mold and die, and precision contract machining industries. Its rigid cast-iron construction, liquid-cooled spindle, and high-speed motion system enable reliable machining of aluminum, stainless steel, titanium, engineering plastics, and other demanding materials with excellent repeatability.

The 2022 HAAS VF2SS offers 30 inches (762 mm) of X-axis travel, 16 inches (406 mm) of Y-axis travel, and 20 inches (508 mm) of Z-axis travel, providing an ideal work envelope for high-speed production and precision machining. The 36″ × 14″ precision-ground table supports workpieces weighing up to 1,500 lbs (680 kg). Power is supplied by a 30 HP (22.4 kW) inline direct-drive spindle capable of 12,000 RPM, delivering excellent acceleration, smooth cutting performance, and superior surface finishes. The machine also features 1,400 IPM (35.6 m/min) rapid traverse rates and a 30+1 side-mount automatic tool changer capable of 1.8-second tool-to-tool changes, dramatically reducing machining cycle times during production. Optional 15,000 RPM spindle configurations were also available for customers requiring even higher spindle speeds.

Standard equipment includes the Haas Next Generation Control, 1 GB program memory, Ethernet, WiFi connectivity, HaasConnect remote monitoring, HaasDrop file transfer, High-Speed Machining, Advanced Tool Management, Rigid Tapping, Coordinate Rotation & Scaling, 4th-axis drive and wiring, chip auger, programmable coolant nozzle, flood coolant system, automatic lubrication, spindle orientation, and power-failure detection. Many used HAAS VF2SS 2022 machines are additionally equipped with valuable factory-installed options including Wireless Intuitive Probing System (WIPS), Through-Spindle Coolant (TSC), Automatic Parts Loader (APL), chip conveyor, rotary tables, 15,000 RPM spindle, coolant filtration systems, and extensive tooling packages. Actual machine specifications may vary depending on the original factory configuration.

Purchasing a used HAAS VF2SS 2022 allows manufacturers to obtain a nearly new high-performance machining center while avoiding the significant depreciation associated with buying new equipment. With advanced automation compatibility, modern Haas software, worldwide parts availability, and low maintenance costs, the VF2SS remains one of the most popular high-speed vertical machining centers available on the used CNC market.

HAAS VF2SS 2022 – AXIS

HAAS VF2SS 2022 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF2SS 2022 – CAPACITY

HAAS VF2SS 2022 – SPINDLE

HAAS VF2SS 2022 – TOOL CHANGER

HAAS VF2SS 2022 – CONTROL SYSTEM

HAAS VF2SS 2022 – COOLANT / CHIP MANAGEMENT

HAAS VF2SS 2022 – POWER REQUIREMENTS

HAAS VF2SS 2022 – DIMENSIONS

HAAS VF2SS 2022 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF2SS 2022

The HAAS VF2SS 2022 is widely used in aerospace, medical device manufacturing, automotive, electronics, mold and die, defense, robotics, industrial automation, semiconductor, and precision contract machining. Its high-speed spindle, rapid tool changes, and advanced control system make it ideal for machining aluminum, stainless steel, titanium, engineering plastics, and other precision materials while maintaining excellent productivity.

Manufacturers commonly use the VF2SS to produce aerospace brackets, hydraulic manifolds, medical implants, electronic enclosures, valve bodies, mold inserts, production fixtures, robotic components, transmission parts, automation equipment, precision housings, and custom-machined production components. The machine’s speed and accuracy make it equally effective for prototype development and high-volume manufacturing.

TYPICAL PARTS HAAS VF2SS 2022 CAN PRODUCE

The HAAS VF2SS 2022 can manufacture aerospace brackets, mold inserts, die components, hydraulic manifolds, valve bodies, aluminum housings, medical device components, robotic parts, tooling fixtures, transmission components, industrial automation equipment, pump bodies, precision production tooling, electronic enclosures, and custom-machined assemblies.

The machine excels at high-speed face milling, contour milling, pocket milling, drilling, tapping, thread milling, engraving, interpolation, boring, and fine finishing. When equipped with an optional rotary table or fourth-axis system, the VF2SS can efficiently machine multiple sides of a workpiece in a single setup, improving productivity while maintaining exceptional dimensional accuracy.

WHY CHOOSE HAAS VF2SS 2022

The HAAS VF2SS 2022 is an excellent choice for manufacturers focused on maximizing productivity and minimizing machining cycle times. Its 12,000 RPM spindle, 1.8-second tool changes, and 1,400 IPM rapid traverse rates significantly reduce non-cutting time while delivering exceptional machining accuracy. The rigid cast-iron construction minimizes vibration, improving tool life and surface finish quality during demanding machining operations.

The Haas Next Generation Control further enhances productivity through modern networking, WiFi connectivity, remote monitoring, advanced tool management, and seamless integration with automation systems such as the Haas Automatic Parts Loader. These features make the VF2SS an outstanding solution for manufacturers implementing lights-out machining and Industry 4.0 production strategies.

WHY BUY USED HAAS VF2SS 2022

Purchasing a used HAAS VF2SS 2022 enables manufacturers to acquire a premium high-speed machining center while avoiding the substantial depreciation of buying new equipment. Many used machines already include valuable factory-installed options such as Through-Spindle Coolant, WIPS probing, Automatic Parts Loader, rotary tables, chip conveyors, and extensive tooling packages, greatly increasing overall value.

Because the machine is a recent model, buyers benefit from modern electronics, updated software, excellent reliability, and long-term parts support. With proper maintenance, the VF2SS can deliver years of dependable high-speed production, making it an outstanding investment for shops seeking to increase productivity without paying full new-machine pricing.

HOW MUCH DOES A USED HAAS VF2SS 2022 COST?

The value of a used HAAS VF2SS 2022 depends on spindle hours, maintenance history, tooling package, installed factory options, automation equipment, and overall machine condition. Machines equipped with Through-Spindle Coolant (TSC), Wireless Intuitive Probing System (WIPS), Automatic Parts Loader (APL), chip conveyor, rotary tables, low spindle hours, and complete maintenance documentation generally command the highest resale values.

Before purchasing, buyers should inspect spindle condition, tool changer operation, linear guideways, ballscrews, lubrication system, coolant equipment, electrical cabinet, servo drives, probing systems, and Haas diagnostics. Machines with documented service history and preventive maintenance records generally provide the best long-term value and lowest operating costs.

Depending on spindle hours, installed options, tooling, automation package, and overall condition, a used HAAS VF2SS 2022 typically sells within an estimated price range of $55,000 to $90,000 USD. Premium machines featuring Automatic Parts Loader, Through-Spindle Coolant, WIPS, rotary tables, low spindle hours, and extensive tooling packages may exceed this range, while higher-hour machines with fewer options may be available at lower prices. A well-maintained HAAS VF2SS 2022 delivers exceptional speed, precision, reliability, and long-term manufacturing value, making it one of the most sought-after used high-speed CNC vertical machining centers available today.
