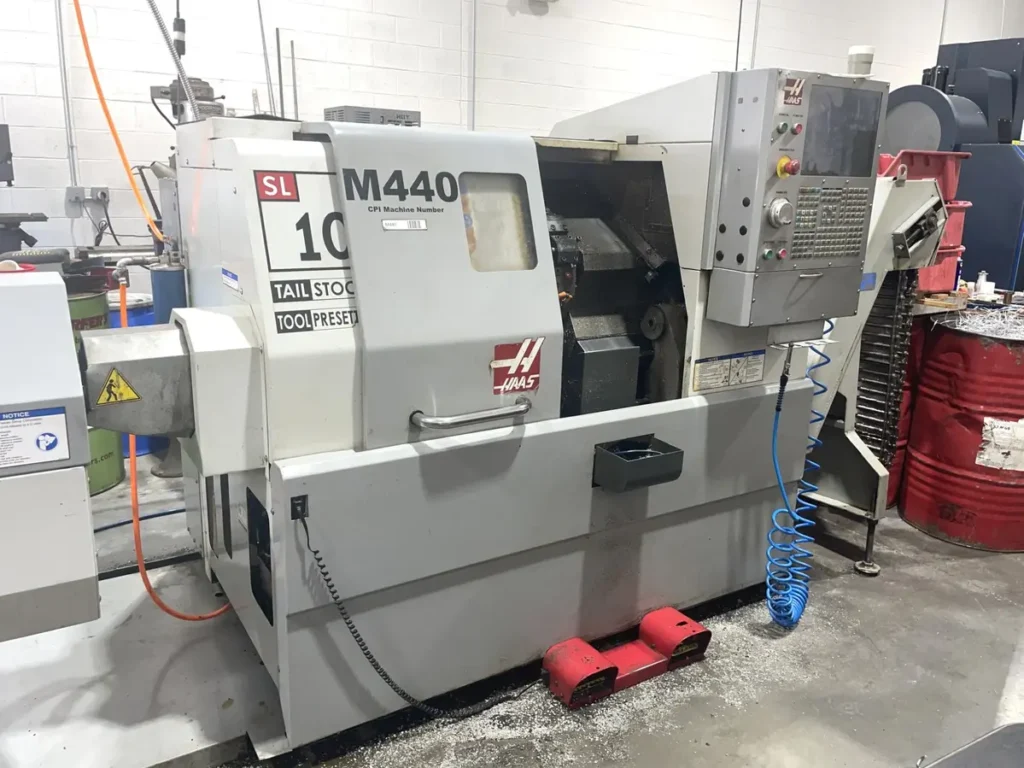

USED HAAS SL-10 – 2008
The HAAS SL-10 – 2008 is a compact 2-axis CNC turning center designed for precision turning, facing, boring, threading, drilling, and general production machining. The SL-10 was developed as a small-footprint CNC lathe that could provide the capabilities of a production turning center while requiring considerably less floor space than larger Haas SL-series machines. Its compact design makes it particularly useful for job shops, production departments, training facilities, maintenance departments, and manufacturers producing small to medium-sized turned components. The 2008 SL-10 is a straightforward CNC lathe configuration with a main spindle, hydraulic chuck, 12-position turret, and tailstock.
The 2008 HAAS SL-10 provides approximately 16.25 inches of swing, with a maximum turning diameter of approximately 11 inches and a maximum machining length of approximately 14 inches on the standard documented configuration. The X-axis travel is approximately 6.25 inches, while the Z-axis travel is approximately 14 inches. Some individual 2008 machines are documented with longer 16-inch X/Z work envelopes, so the exact machine configuration should be verified before purchase. Standard machines use a 6–6.5 inch chuck, provide approximately 1.75 inches of bar capacity, and feature a 2.31-inch spindle bore.
The spindle is capable of speeds up to 6,000 RPM, with the standard SL-10 platform using an A2-5 spindle nose. Documented 2008 machines are equipped with approximately 15 HP spindle motors, although some listings identify 20 HP vector-drive configurations. The 12-position bolt-on turret provides automatic tool indexing for turning and boring operations, while the tailstock supports longer workpieces and can be equipped with an MT3 taper. Tool presetters, chip augers, parts catchers, rigid tapping, barfeeder interfaces, and other production options are found on individual used machines.
The HAAS SL-10 is particularly useful for manufacturers that need a reliable CNC lathe for smaller components without requiring a large machine footprint. Typical applications include shafts, bushings, pins, spacers, collars, fittings, sleeves, threaded components, and general production parts. Its relatively high spindle speed, simple 2-axis architecture, automatic turret, and compact dimensions make it suitable for both repetitive production and general job-shop machining.
HAAS SL-10 2008 – AXIS
| Specification | Value |
|---|---|
| X Axis | 6.25″ (158.75 mm) |
| Z Axis | 14″ (355.6 mm) |
| Number of Axes | 2 |
| Machine Configuration | CNC Turning Center |
| X-Axis Travel | Approximately 6.25″ |
| Z-Axis Travel | Approximately 14″ |
| Rotary Axis | No |
| Y-Axis | No |
| C-Axis | No |
| Live Tooling | No |
The standard 2008 SL-10 is a 2-axis CNC turning center. Its configuration is focused on conventional turning operations rather than live tooling, Y-axis machining, or multi-axis turn-mill work.
HAAS SL-10 2008 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| Maximum Swing | 16.25″ (412.75 mm) |
| Swing Over Cross Slide | 8″ (203.2 mm) |
| Maximum Turning Diameter | 11″ (279.4 mm) |
| Maximum Machining Length | 14″ (355.6 mm) |
| X-Axis Travel | 6.25″ (158.75 mm) |
| Z-Axis Travel | 14″ (355.6 mm) |
| Center Distance | Approximately 16.5″ |
| Bar Capacity | 1.75″ (44.45 mm) |
| Spindle Bore | 2.31″ (58.7 mm) |
Some individual 2008 SL-10 machines are documented with approximately 12-inch maximum cutting diameter and 16-inch cutting length due to differences in machine configuration and published measurement methods.
HAAS SL-10 2008 – CAPACITY
| Specification | Value |
|---|---|
| Machine Type | CNC Horizontal Turning Center |
| Chuck Size | 6–6.5″ |
| Maximum Turning Diameter | Approximately 11″ |
| Maximum Machining Length | Approximately 14″ |
| Bar Capacity | 1.75″ |
| Spindle Bore | 2.31″ |
| Number of Axes | 2 |
| Tailstock | Yes |
| Live Tooling | No |
| Y-Axis | No |
| Sub-Spindle | No |
| Parts Catcher | Configuration Dependent |
| Barfeeder Interface | Configuration Dependent |
The SL-10 is primarily intended for small to medium turned parts. Its 6–6.5 inch chuck and 1.75-inch bar capacity make it suitable for a wide range of general-purpose turning applications.
HAAS SL-10 2008 – SPINDLE
| Specification | Value |
|---|---|
| Maximum Spindle Speed | 6,000 RPM |
| Spindle Motor | 15 HP Standard Configuration |
| Higher-Power Configuration | 20 HP on Certain Machines |
| Spindle Nose | A2-5 |
| Spindle Bore | 2.31″ |
| Draw Tube Bore | Approximately 1.81″ |
| Chuck | 6–6.5″ |
| Bar Capacity | 1.75″ |
| Spindle Configuration | 2-Axis Turning |
| Live Tooling | No |
The 6,000 RPM spindle is well suited to small-diameter turning and high production rates. The A2-5 spindle nose and approximately 1.75-inch bar capacity are characteristic of the standard SL-10 configuration.
HAAS SL-10 2008 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Turret | Automatic Turret |
| Turret Capacity | 12 Positions |
| Turret Type | Bolt-On |
| Tool Indexing | Automatic |
| Driven Tools | No |
| Live Tooling | No |
| Tool Presetter | Equipped on Certain Machines |
| Tool Management | Automatic |
The 12-position bolt-on turret provides automatic tool indexing for standard turning operations. Used 2008 SL-10 machines are frequently equipped with tool presetters, allowing tools to be measured and set before or during production setup.
HAAS SL-10 2008 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | Haas CNC / G-Code |
| USB | Equipped on Certain Machines |
| Rigid Tapping | Configuration Dependent |
| DNC | Configuration Dependent |
| Quick Code | Configuration Dependent |
| M19 Spindle Orientation | Configuration Dependent |
| Barfeeder Interface | Configuration Dependent |
| Intuitive Programming System | Equipped on Certain Machines |
The Haas CNC control provides a straightforward programming environment for 2-axis turning applications. Individual 2008 machines may have different software and communication options depending on their original configuration and subsequent upgrades.
HAAS SL-10 2008 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant System | Flood Coolant |
| Chip Management | Chip Auger |
| Chip Auger | Equipped on Many Machines |
| Coolant Filtration | Configuration Dependent |
| High-Pressure Coolant | Configuration Dependent |
| Automatic Lubrication | Standard |
| Parts Catcher | Configuration Dependent |
| Coolant Tank | Integrated |
The chip auger helps remove turning chips from the work area and is an important production feature on equipped SL-10 machines. Documented 2008 examples also include coolant systems and parts catchers.
HAAS SL-10 2008 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Electrical Supply | Three Phase |
| Voltage | 208/230 V on Documented Machines |
| Frequency | 60 Hz on Documented Machines |
| Connected Load | Configuration Dependent |
| Spindle Motor | 15 HP Standard |
| Air Supply | Required |
| Coolant System | Integrated |
| Hydraulic System | Integrated |
A documented 2008 SL-10 is wired for 208/230 V, three-phase, 60 Hz power. The exact electrical requirement should be confirmed from the machine’s electrical nameplate before installation.
HAAS SL-10 2008 – DIMENSIONS
| Specification | Value |
|---|---|
| Length | Approximately 70–92″ |
| Width | Approximately 55–75″ |
| Height | Approximately 69–80″ |
| Machine Weight | Approximately 5,500–8,500 lbs |
| Footprint | Configuration Dependent |
| Chip Conveyor / Auger | Additional Clearance Required |
| Barfeeder | Additional Clearance Required |
Published dimensions vary significantly between individual 2008 listings, with some machines listed around 70 × 55 × 69 inches and others around 90 × 75 × 80 inches. Weight similarly varies by configuration. The exact machine should therefore be measured before transportation or installation planning.
HAAS SL-10 2008 – GENERAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Haas |
| Model | SL-10 |
| Year | 2008 |
| Machine Type | CNC Horizontal Turning Center |
| CNC Control | Haas CNC |
| Number of Axes | 2 |
| X-Axis Travel | Approximately 6.25″ |
| Z-Axis Travel | Approximately 14″ |
| Maximum Swing | 16.25″ |
| Maximum Turning Diameter | Approximately 11″ |
| Maximum Machining Length | Approximately 14″ |
| Chuck Size | 6–6.5″ |
| Bar Capacity | 1.75″ |
| Spindle Bore | 2.31″ |
| Spindle Speed | 6,000 RPM |
| Spindle Nose | A2-5 |
| Spindle Motor | 15 HP Standard |
| Turret | 12 Position |
| Tailstock | Yes |
| Live Tooling | No |
| Y-Axis | No |
| Sub-Spindle | No |
| Chip Auger | Equipped on Many Machines |
| Tool Presetter | Configuration Dependent |
| Parts Catcher | Configuration Dependent |
The HAAS SL-10 is a compact 2-axis turning center designed for general-purpose CNC turning and production applications. Exact specifications should be verified against the individual 2008 machine because options and published specifications vary between machines.
INDUSTRIES THAT USE HAAS SL-10 2008
The HAAS SL-10 is suitable for a wide range of manufacturing environments requiring compact CNC turning capability.
- General manufacturing
- Automotive components
- Industrial equipment
- Maintenance and repair
- Job shops
- Machine shops
- Training facilities
- Tool and fixture manufacturing
- Hydraulic components
- Pneumatic components
- Electronics components
- Prototype manufacturing
- Small-batch production
- High-volume production
Its compact footprint makes the SL-10 particularly useful for facilities that need additional turning capacity without allocating floor space to a larger CNC lathe.
TYPICAL PARTS HAAS SL-10 2008 CAN PRODUCE
The HAAS SL-10 can perform standard CNC turning operations including facing, OD turning, ID boring, threading, grooving, drilling, chamfering, and parting.
Typical parts include:
- Shafts
- Bushings
- Pins
- Spacers
- Collars
- Sleeves
- Fittings
- Flanges
- Rollers
- Threaded components
- Hydraulic components
- Pneumatic components
- Bearing components
- Small pulleys
- Precision spacers
- General production components
The 6,000 RPM spindle is particularly useful for smaller-diameter components where higher spindle speeds can help maintain appropriate cutting speeds.
WHY CHOOSE HAAS SL-10 2008
The HAAS SL-10 provides a combination of compact size, straightforward 2-axis operation, automatic tooling, and relatively high spindle speed. Its approximately 16.25-inch swing and 11-inch maximum turning diameter provide useful capacity for a large range of smaller turned components.
The 6,000 RPM spindle is another important feature. Compared with larger heavy-duty lathes, the SL-10 is optimized more toward smaller components and production turning where high spindle speed can be useful. The A2-5 spindle, 1.75-inch bar capacity, and 6–6.5-inch chuck provide a practical workholding arrangement for general CNC turning.
The 12-position automatic turret simplifies tool changes between turning, boring, threading, grooving, and drilling operations. Tailstock-equipped machines can also support longer workpieces, while tool presetters, chip augers, parts catchers, and barfeeder interfaces can improve production efficiency on appropriately equipped machines.
For shops that need an additional CNC lathe for repetitive work, secondary operations, prototypes, or smaller turned parts, the SL-10 provides a relatively compact solution without requiring the floor space of a larger turning center.
WHY BUY USED HAAS SL-10 2008
Buying a used HAAS SL-10 – 2008 can provide manufacturers with an affordable way to add CNC turning capacity without investing in a new machine. Because the SL-10 uses a relatively simple 2-axis configuration, it can be suitable for shops that do not need Y-axis machining, live tooling, or a sub-spindle.
The used market also provides opportunities to purchase machines with valuable production options already installed. Depending on the individual machine, buyers may find a 6,000 RPM spindle, hydraulic chuck, tailstock, chip auger, tool presetter, parts catcher, rigid tapping, barfeeder interface, and additional tooling included with the machine.
Before purchasing a used SL-10, buyers should inspect spindle condition, spindle hours, axis backlash, turret indexing, chuck condition, tailstock alignment, hydraulic system, coolant system, chip auger, control operation, and overall machine geometry. An inspection under power is especially useful for confirming spindle noise, axis movement, turret operation, and cutting performance.
Machine hours can vary substantially. One documented 2008 SL-10 had only 435 spindle hours, while another documented machine showed more than 10,800 spindle hours, demonstrating why hours and maintenance history should be considered alongside the year of manufacture.
HOW MUCH DOES A USED HAAS SL-10 2008 COST?
The price of a used HAAS SL-10 – 2008 depends on machine hours, spindle condition, chuck configuration, tailstock, tooling, chip management, tool presetter, parts catcher, control options, and overall operating condition. Current and recent 2008 listings show a wide range of asking prices depending on configuration and condition.
A reasonable used-market estimate for a 2008 HAAS SL-10 is approximately $15,000–$30,000 USD for a running machine in typical condition. Machines with very low spindle hours, good maintenance records, additional tooling, a tool presetter, parts catcher, chip auger, and strong overall condition can command prices toward the upper end of this range. Higher-hour machines or machines requiring repairs may trade below this range. A current documented 2008 example is listed at $18,500, while another 2008 machine is being offered at approximately $42,500, illustrating the substantial variation between individual machines and asking prices.
When evaluating a used SL-10, buyers should compare spindle hours, cutting hours, machine condition, chuck size, spindle condition, turret operation, tailstock condition, tool presetter, chip auger, parts catcher, tooling, control condition, and maintenance history rather than relying only on the machine year.
For an individual machine, the serial number, exact machine configuration, spindle hours, servo hours, included tooling, options, and current operating condition should be confirmed before establishing a final purchase price.
