USED HAAS VF2SS 2017
The HAAS VF2SS 2017 is a high-performance CNC Vertical Machining Center (VMC) designed for manufacturers that need fast spindle speeds, rapid axis movement, quick tool changes, and dependable production capability. The VF2SS is part of the Haas Super-Speed series and is engineered to reduce machining cycle times while maintaining excellent accuracy and surface finish. The 2017 HAAS VF2SS is well suited for aerospace, automotive, medical, electronics, defense, mold and die, tooling, robotics, and precision contract manufacturing. Haas identifies the VF2SS as its popular Super-Speed model, combining a high-speed inline direct-drive spindle, rapid axis movement, and a high-speed side-mount tool changer.
The HAAS VF2SS provides 762 mm (30″) X-axis travel, 406 mm (16″) Y-axis travel, and 508 mm (20″) Z-axis travel. The worktable measures approximately 914 × 356 mm (36″ × 14″) and supports up to approximately 680 kg (1,500 lbs) when evenly distributed. The Super-Speed configuration features a 12,000 RPM inline direct-drive spindle, 30 HP (22.4 kW) spindle rating, and CT40/BT40 taper. Its 30+1 side-mount tool changer provides fast tool changes, making the VF2SS particularly suitable for high-volume and multi-operation production work.
A used HAAS VF2SS 2017 can provide manufacturers with high-speed machining capability at a substantially lower investment than new equipment. Actual specifications and installed options can vary between individual machines, so buyers should verify the original build sheet, spindle hours, control configuration, and accessories before purchase.
HAAS VF2SS 2017 – AXIS
| Specification | Value |
|---|---|
| X Axis | 762 mm (30″) |
| Y Axis | 406 mm (16″) |
| Z Axis | 508 mm (20″) |
| Number of Controlled Axes | 3 |
| 4th Axis Capability | Optional |
HAAS VF2SS 2017 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X Travel | 762 mm (30″) |
| Y Travel | 406 mm (16″) |
| Z Travel | 508 mm (20″) |
| Spindle Nose to Table Maximum | 610 mm (24″) |
| Spindle Nose to Table Minimum | 102 mm (4″) |
| Table Length | 914 mm (36″) |
| Table Width | 356 mm (14″) |
These dimensions correspond to the VF2SS platform specifications published by Haas.
HAAS VF2SS 2017 – CAPACITY
| Specification | Value |
|---|---|
| Table Size | 914 × 356 mm (36″ × 14″) |
| Maximum Table Load | 680 kg (1,500 lbs) |
| Standard T-Slots | 3 |
| T-Slot Width | 15.9–16.0 mm |
| T-Slot Center Distance | 125 mm |
HAAS VF2SS 2017 – SPINDLE
| Specification | Value |
|---|---|
| Standard Spindle Speed | 12,000 RPM |
| Optional Spindle Speed | 15,000 RPM |
| Spindle Motor | 30 HP (22.4 kW) |
| Maximum Torque | 90 ft-lb @ 2,000 RPM |
| Drive System | Inline Direct Drive |
| Spindle Taper | CT40 / BT40 |
| Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| Through Spindle Coolant | Optional |
The VF2SS Super-Speed spindle is designed for high-speed machining while retaining sufficient power for material-removal operations.
HAAS VF2SS 2017 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Capacity | 30+1 |
| Tool Changer Type | High-Speed Side-Mount |
| Maximum Tool Diameter, Full | 76 mm (3″) |
| Maximum Tool Diameter, Adjacent Pocket Empty | 127 mm (5″) |
| Maximum Tool Length | 279 mm (11″) |
| Maximum Tool Weight | Approximately 5.4 kg (12 lbs) |
| Tool-to-Tool Time | Approximately 1.6 seconds |
| Chip-to-Chip Time | Approximately 2.2 seconds |
The high-speed 30+1 side-mount tool changer helps minimize tool-change downtime during multi-tool production cycles.
HAAS VF2SS 2017 – FEEDRATES
| Specification | Value |
|---|---|
| X Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Y Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Z Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Maximum Cutting Feedrate | 21.2 m/min (833 IPM) |
High rapid rates help reduce non-cutting time when machining parts with frequent positioning movements.
HAAS VF2SS 2017 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Haas CNC Control |
| Display | Color LCD Monitor |
| USB | Available |
| Ethernet | Available |
| Rigid Tapping | Available |
| Advanced Tool Management | Available |
| Program Memory | Configuration Dependent |
| High-Speed Machining | Option / Configuration Dependent |
| 4th Axis Control | Option Dependent |
Because a 2017 VF2SS can have different factory options and control configurations, the actual machine should be checked for specific control features before purchase.
HAAS VF2SS 2017 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant Tank Capacity | 208 Liters (55 gal) |
| Coolant System | Multi-Stage Pump |
| Flood Coolant | Standard |
| Window Air Blast | Standard |
| Chip Washdown | Standard |
| Chip Conveyor | Optional |
| Through Spindle Coolant | Optional |
The VF2SS platform uses a large coolant capacity and chip-management system suited to continuous machining operations.
HAAS VF2SS 2017 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Standard Electrical Supply | 220 VAC Three Phase |
| High-Voltage Configuration | 380–480 VAC |
| Compressed Air | Approximately 4 SCFM @ 100 PSI |
| Minimum Air Pressure | Approximately 80 PSI |
Electrical requirements should be verified against the specific machine’s electrical configuration before installation.
HAAS VF2SS 2017 – DIMENSIONS
| Specification | Approximate Value |
|---|---|
| Shipping Length | Approximately 101–103″ |
| Shipping Width | Approximately 99–102″ |
| Shipping Height | Approximately 101–106″ |
| Shipping Weight | Approximately 7,800 lbs |
| Shipping Weight With Conveyor | Configuration Dependent |
Actual shipping dimensions and weight depend on options and chip-management equipment.
HAAS VF2SS 2017 – GENERAL INFORMATION
| Item | Details |
|---|---|
| Manufacturer | Haas Automation |
| Model | VF2SS |
| Year | 2017 |
| Machine Type | CNC Vertical Machining Center |
| Series | Super-Speed VF Series |
| CNC Control | Haas CNC Control |
| Spindle Taper | CT40 / BT40 |
| Standard Spindle Speed | 12,000 RPM |
| Spindle Power | 30 HP |
| Tool Capacity | 30+1 |
| Controlled Axes | 3 |
| 4th Axis | Optional |
INDUSTRIES THAT USE HAAS VF2SS 2017
The HAAS VF2SS 2017 is suitable for aerospace, automotive, medical, electronics, defense, mold and die, tooling, robotics, industrial equipment, and precision contract machining.
Its combination of high spindle speed, rapid axis movement, and fast tool changes makes it particularly useful for production applications involving numerous tools and repeated machining cycles. It can machine aluminum, steel, stainless steel, titanium, engineering plastics, and other materials when appropriate tooling and cutting parameters are used.
TYPICAL PARTS HAAS VF2SS 2017 CAN PRODUCE
The HAAS VF2SS 2017 can produce aerospace brackets, automotive components, mold inserts, fixture plates, medical components, electronic housings, robotics components, manifolds, tooling, machine components, and precision production parts.
Typical operations include high-speed milling, drilling, tapping, pocketing, contouring, boring, engraving, and finishing.
WHY CHOOSE HAAS VF2SS 2017
The HAAS VF2SS 2017 provides an attractive combination of 12,000 RPM spindle speed, 30 HP spindle power, 30+1 tool capacity, 1,400 IPM rapid traverses, and fast tool changes. These features can reduce non-cutting time and improve productivity on parts requiring multiple tools and frequent positioning.
The compact footprint also makes the VF2SS practical for job shops that need high-speed machining capability without committing to the floor space required by a larger VMC. The platform can also be configured with options such as probing, through-spindle coolant, chip conveyors, and rotary equipment.
WHY BUY USED HAAS VF2SS 2017
Purchasing a used HAAS VF2SS 2017 allows manufacturers to acquire a high-speed production machining center for substantially less than the cost of comparable new equipment. The machine’s Super-Speed configuration makes it particularly attractive for shops that need to maximize production output and reduce cycle times.
A properly maintained VF2SS 2017 can remain a productive asset for years. Buyers can also invest the capital saved on the machine into tooling, workholding, probing, rotary equipment, automation, and other production requirements.
Before purchasing, buyers should verify spindle hours, axis accuracy, ballscrew condition, spindle noise, tool changer operation, coolant system, control functions, maintenance history, and included options.
HOW MUCH DOES A USED HAAS VF2SS 2017 COST?
The price of a used HAAS VF2SS 2017 depends on spindle hours, machine condition, maintenance history, factory options, tooling, and accessories. Machines equipped with through-spindle coolant, probing, chip conveyors, rotary tables, additional spindle-speed options, and extensive tooling can command higher prices.
As a general estimate, a used HAAS VF2SS 2017 may typically sell for approximately $40,000 to $60,000 USD, depending heavily on condition, hours, configuration, and included equipment. This range should be considered an estimated market guide rather than a fixed valuation. Used Haas pricing can vary significantly according to machine condition and options; for context, recent discussions around other VF2SS models show substantial differences based on age, hours, condition, and equipment.
A lower-hour machine with WIPS probing, TSC, chip conveyor, rotary capability, and a strong maintenance history may command a premium, while a higher-hour machine requiring repairs or lacking major options may sell for considerably less.
A well-maintained HAAS VF2SS 2017 remains an excellent used CNC choice for manufacturers seeking high-speed milling, fast tool changes, reliable Haas controls, and strong production capability in a compact vertical machining center.
Related Products
-
HAAS - TL1
VIEW MACHINE -

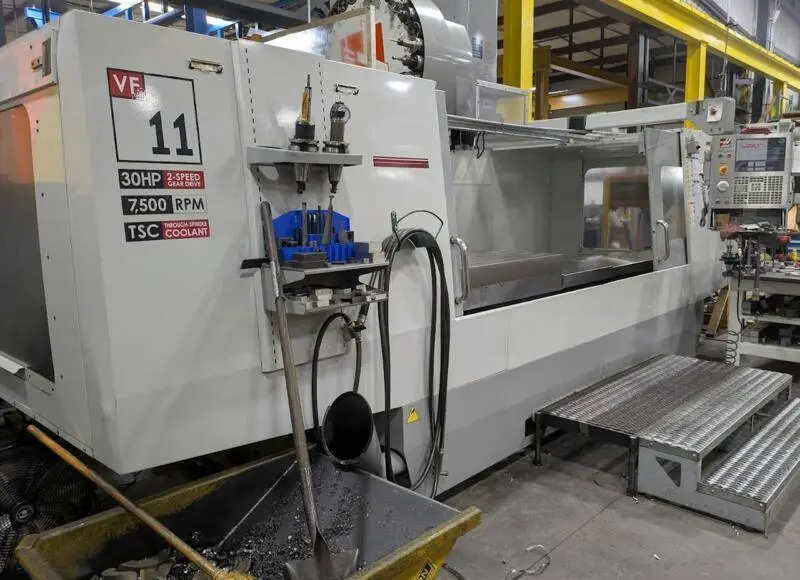

HAAS - VF11
VIEW MACHINE -
HAAS - EC1600ZT5AX
VIEW MACHINE -

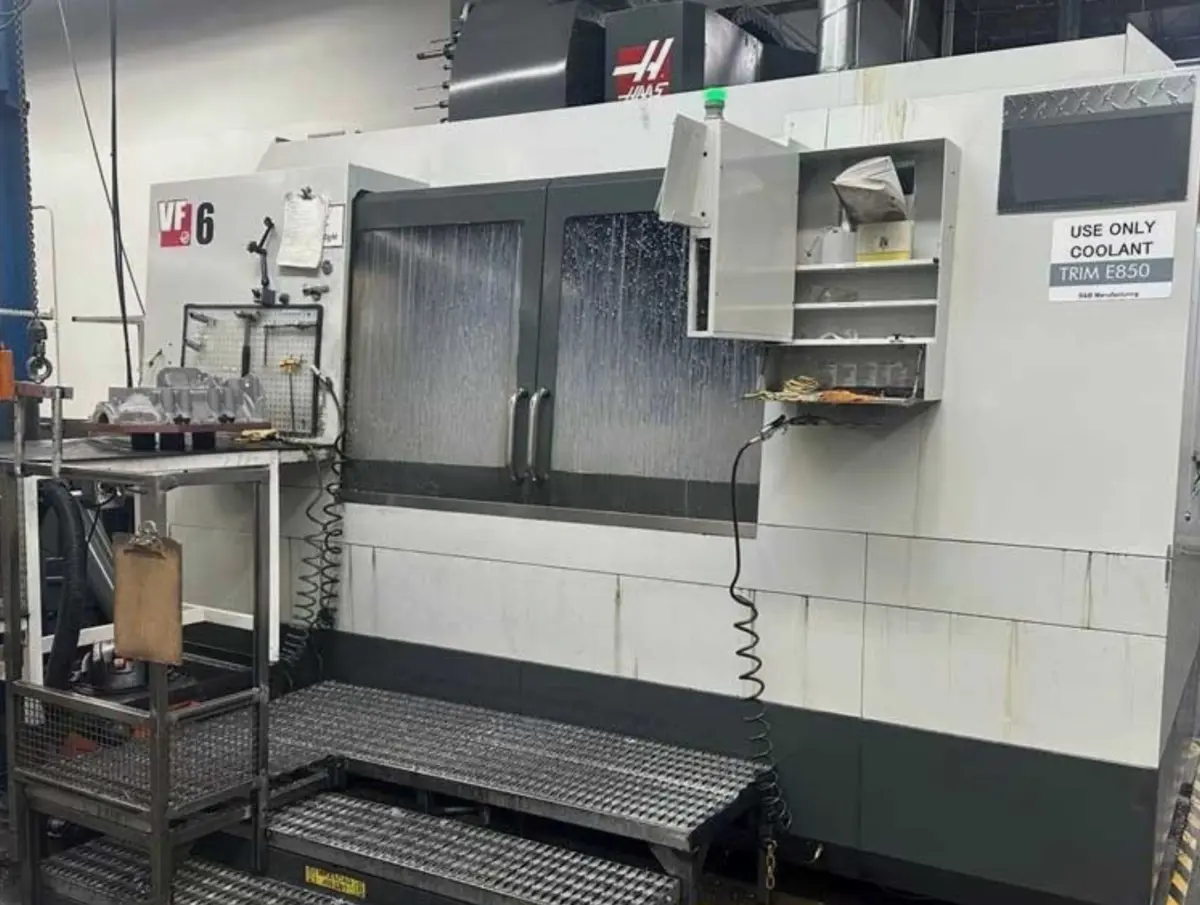

HAAS - VF6/40
