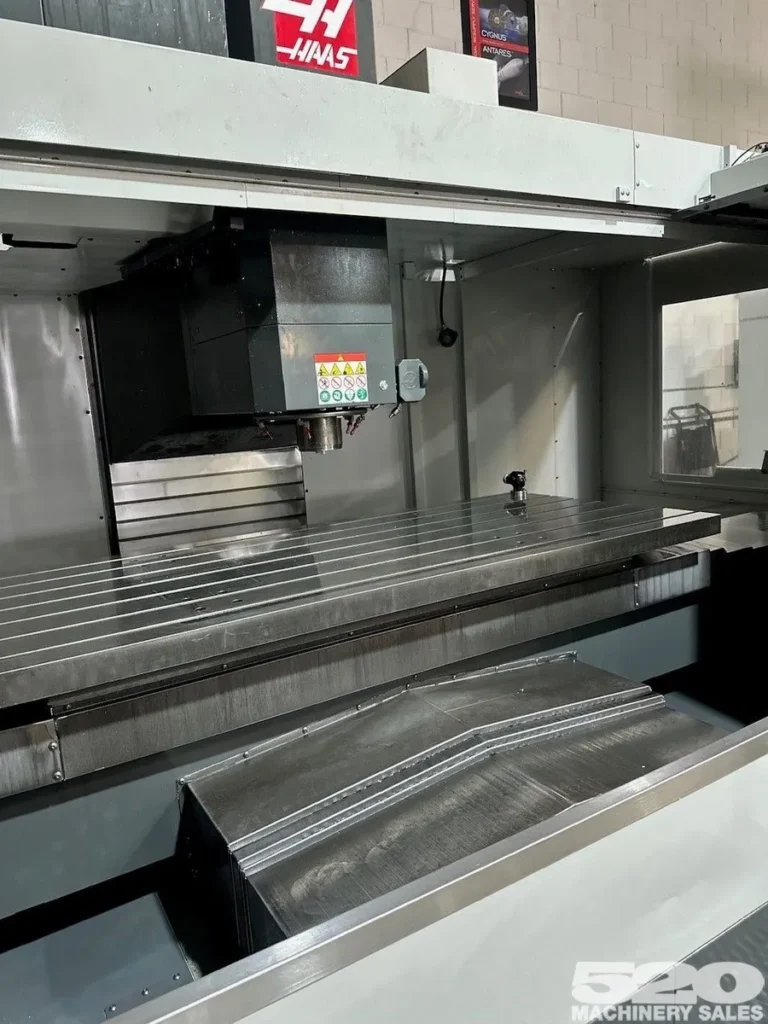

USED HAAS VF-9/40 – 2021

The HAAS VF-9/40 – 2021 is a large-frame CNC Vertical Machining Center designed for manufacturers that require extensive axis travel, large workholding capacity, and reliable 3-axis milling performance. As one of Haas Automation’s larger 40-taper vertical machining centers, the VF-9/40 provides approximately 84 inches of X-axis travel, 40 inches of Y-axis travel, and 30 inches of Z-axis travel. This large work envelope makes the machine suitable for machining large plates, castings, structural components, molds, fixtures, aerospace parts, and heavy industrial components.

The 2021 VF-9/40 is built around an 84 × 36-inch table with a maximum evenly distributed table load of approximately 4,000 lbs. The machine uses a 40-taper spindle and is designed as a 3-axis vertical machining center, while fourth-axis rotary equipment can be added depending on the individual machine configuration. Rapid traverse is approximately 600 IPM on X, Y, and Z, allowing the machine to move efficiently across its large working envelope.

The standard VF-9/40 configuration uses an 8,100 RPM inline direct-drive spindle rated at 30 HP, with approximately 90 ft-lbs of maximum torque at 2,000 RPM. The machine is equipped with a 30+1 side-mount automatic tool changer, with large-frame Haas models also incorporating features such as a chip auger, programmable coolant nozzle, and remote jog handle. Through-spindle coolant, probing, additional tool capacity, and other production options can vary by individual machine.

The HAAS VF-9/40 – 2021 is particularly attractive for manufacturers that need a relatively modern CNC machine with a very large work envelope without moving to a much larger gantry-style machining center. It can be used for aerospace, automotive, defense, energy, heavy equipment, industrial machinery, mold and die, fabrication, and general precision manufacturing applications.

---

HAAS VF-9/40 2021 – AXIS

Specification	Value
X Axis	84″ (2,134 mm)
Y Axis	40″ (1,016 mm)
Z Axis	30″ (762 mm)
Number of Controlled Axes	3
4th Axis	Configuration Dependent
Machine Configuration	CNC Vertical Machining Center
Spindle Orientation	Vertical

---

HAAS VF-9/40 2021 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X Travel	84″ (2,134 mm)
Y Travel	40″ (1,016 mm)
Z Travel	30″ (762 mm)
Spindle Nose to Table – Maximum	Approximately 34″
Spindle Nose to Table – Minimum	Approximately 4″
X Rapid Traverse	600 IPM
Y Rapid Traverse	600 IPM
Z Rapid Traverse	600 IPM
Maximum Cutting Feed	500 IPM
Table Length	84″ (2,134 mm)
Table Width	36″ (914 mm)

The 84 × 40 × 30-inch travel configuration gives the VF-9/40 a particularly large work envelope for a conventional 40-taper vertical machining center.

---

HAAS VF-9/40 2021 – CAPACITY

Specification	Value
Machine Type	CNC Vertical Machining Center
Number of Axes	3
Table Size	84″ × 36″
Table Load Capacity	4,000 lbs
X Travel	84″
Y Travel	40″
Z Travel	30″
Spindle Taper	40 Taper
Maximum Spindle Speed	8,100 RPM
Spindle Motor	30 HP
Tool Capacity	30+1
4th Axis	Configuration Dependent
Large-Part Machining	Yes

The large table and 4,000-lb evenly distributed load capacity make the VF-9/40 suitable for large workpieces that may exceed the capacity of smaller VF-series machines.

---

HAAS VF-9/40 2021 – SPINDLE

Specification	Value
Spindle Speed	8,100 RPM
Spindle Motor	30 HP (22.4 kW)
Spindle Taper	40 Taper
Drive System	Inline Direct Drive
Maximum Torque	90 ft-lbs @ 2,000 RPM
Optional Gearbox Torque	Up to 250 ft-lbs @ 450 RPM
Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Spindle Orientation	Vertical

The 30 HP, 8,100 RPM inline direct-drive spindle provides a balance between high-speed machining and the cutting power needed for larger components. An optional gearbox configuration can provide substantially higher low-speed torque.

---

HAAS VF-9/40 2021 – TOOL CHANGER

Specification	Value
Tool Changer Type	Side-Mount Automatic Tool Changer
Tool Capacity	30+1 Tools
Tool Interface	40 Taper
Maximum Tool Diameter – Full	2.5″
Maximum Tool Diameter – Adjacent Empty	5.0″
Maximum Extra-Large Tool Diameter	6.0″
Maximum Tool Length	16″
Maximum Tool Weight	12 lbs
Average Tool-to-Tool Time	2.8 sec
Average Chip-to-Chip Time	3.6 sec

The 30+1 side-mount tool changer provides enough capacity for multi-operation machining while allowing tools to remain loaded during production.

---

HAAS VF-9/40 2021 – CONTROL SYSTEM

Specification	Value
CNC Control	Haas CNC Control
Programming	G-Code / Haas Conversational
Machine Configuration	3 Axis
Remote Jog Handle	Standard / Equipped
Programmable Coolant Nozzle	Equipped
Probing	Configuration Dependent
Wireless Intuitive Probing System	Configuration Dependent
Tool Offset Management	Standard
Work Offset Management	Standard
Remote Diagnostics	Configuration Dependent

The exact control options and software packages should be verified on the individual 2021 machine, particularly where probing, wireless connectivity, or advanced machining functions are included.

---

HAAS VF-9/40 2021 – COOLANT / CHIP MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
Coolant Capacity	Approximately 95 gal
Through-Spindle Coolant	Configuration Dependent
High-Pressure Coolant	Configuration Dependent
Chip Auger	Standard / Equipped
Chip Conveyor	Configuration Dependent
Programmable Coolant Nozzle	Equipped
Through-Tool Air Blast	Configuration Dependent
Coolant Filtration	Configuration Dependent

The large-frame VF-9/40 incorporates a chip-management package designed for production machining, with a chip auger and programmable coolant nozzle included in the upgraded large-frame feature package.

---

HAAS VF-9/40 2021 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	Three Phase
Low Voltage Input	220 VAC
High Voltage Input	440 VAC
Full Load Amps – 220 VAC	Approximately 70 A
Full Load Amps – 440 VAC	Approximately 35 A
Spindle Motor	30 HP
Air Requirement	4 SCFM @ 100 PSI
Minimum Air Pressure	80 PSI

Actual electrical requirements should be verified from the machine’s nameplate and electrical documentation before installation.

---

HAAS VF-9/40 2021 – DIMENSIONS

Specification	Value
Shipping Length	Approximately 235″
Shipping Width	Approximately 120″
Shipping Height	Approximately 128.5″
Shipping Weight	Approximately 25,200 lbs
Export Crate Height	Approximately 130.5″
Machine Weight with EC Option	Approximately 28,300 lbs
Shipping Configuration	Heavy Industrial Rigging

Actual installed floor space can vary depending on chip conveyor, coolant equipment, enclosure configuration, electrical cabinet arrangement, and other options.

---

HAAS VF-9/40 2021 – GENERAL INFORMATION

Specification	Value
Manufacturer	Haas Automation
Model	VF-9/40
Year	2021
Machine Type	CNC Vertical Machining Center
Number of Axes	3
X Travel	84″
Y Travel	40″
Z Travel	30″
Table Size	84″ × 36″
Table Load Capacity	4,000 lbs
Spindle Speed	8,100 RPM
Spindle Motor	30 HP
Spindle Taper	40 Taper
Drive System	Inline Direct Drive
Tool Capacity	30+1
Maximum Cutting Feed	500 IPM
Rapid Traverse	600 IPM
Coolant Capacity	95 gal
4th Axis	Configuration Dependent
Chip Auger	Equipped
Programmable Coolant Nozzle	Equipped
Remote Jog Handle	Equipped
Machine Weight	Approximately 25,200 lbs

---

INDUSTRIES THAT USE HAAS VF-9/40 2021

The HAAS VF-9/40 2021 is designed for industries that require large machining capacity, substantial table space, and accurate 3-axis milling.

• Aerospace
• Automotive
• Defense
• Oil & Gas
• Energy
• Power Generation
• Heavy Equipment
• Construction Equipment
• Industrial Machinery
• Mold & Die
• Transportation
• General Manufacturing
• Precision Manufacturing

Its 84-inch X travel and 40-inch Y travel make it especially useful for large plates, castings, structural components, fixtures, housings, and other oversized parts.

---

TYPICAL PARTS HAAS VF-9/40 2021 CAN PRODUCE

The HAAS VF-9/40 2021 can machine a broad range of large precision components, including:

• Large aerospace components
• Structural aerospace parts
• Heavy equipment components
• Large machine bases
• Industrial housings
• Pump and valve components
• Large flanges
• Automotive tooling
• Dies and molds
• Fixtures
• Large plates
• Hydraulic components
• Energy-sector components
• Construction equipment components

Typical operations include face milling, end milling, pocketing, drilling, tapping, boring, reaming, interpolation, contouring, slotting, and multi-face machining.

---

WHY CHOOSE HAAS VF-9/40 2021

The HAAS VF-9/40 2021 is an attractive choice for manufacturers that need a very large vertical machining envelope without moving to a significantly more complex gantry-style machine. Its 84″ X travel, 40″ Y travel, and 30″ Z travel provide substantial capacity for large workpieces.

The 30 HP, 8,100 RPM 40-taper spindle provides a versatile combination of cutting power and spindle speed. The machine’s 4,000-lb table capacity also allows substantial workpieces and fixtures to be loaded while maintaining the flexibility expected from a modern Haas VMC.

The 30+1 side-mount tool changer, programmable coolant nozzle, chip auger, remote jog handle, and available probing and coolant options make the VF-9/40 particularly suitable for production environments where repeatability and reduced setup time are important.

---

WHY BUY USED HAAS VF-9/40 2021

Buying a used HAAS VF-9/40 2021 can provide a relatively modern large-format CNC machining center at a lower cost than purchasing a new machine. A 2021 machine can also offer modern Haas control features, extensive travel, and a large table while avoiding the depreciation associated with a new machine.

Common valuable features and options to look for include:

• 8,100 RPM spindle
• 30 HP spindle motor
• 40-taper spindle
• 30+1 side-mount ATC
• Through-spindle coolant
• High-pressure coolant
• Chip conveyor
• Programmable coolant nozzle
• Wireless Intuitive Probing System
• Renishaw probing
• Tool probing
• Remote jog handle
• 4th-axis rotary table
• DWO/TCPC
• Through-tool air blast
• Additional coolant filtration
• Expanded memory
• Ethernet / Wi-Fi connectivity

Before purchasing a used VF-9/40, buyers should inspect spindle condition, spindle bearings, axis backlash, ballscrews, linear guides, positioning accuracy, ATC operation, probing system, coolant system, chip auger or conveyor, control functions, and machine geometry. Spindle hours, cutting hours, maintenance records, tooling, and included accessories should also be verified.

---

HOW MUCH DOES A USED HAAS VF-9/40 2021 COST?

The current used market provides a useful indication of pricing for the HAAS VF-9/40 – 2021. Recent listings show 2021 VF-9/40 machines advertised at approximately $149,500 to $160,000 USD, depending on the individual machine and configuration.

A reasonable estimated market range for a used HAAS VF-9/40 2021 is approximately $140,000–$170,000 USD. Machines with low hours, probing, through-spindle coolant, chip conveyor, additional tooling, fourth-axis equipment, and strong maintenance records can command prices toward or above the upper end of this range.

Machine Condition / Configuration	Estimated Used Price
Higher Hours / Basic Configuration	$140,000–$150,000
Good Condition / Standard Configuration	$150,000–$160,000
Low Hours / Well Equipped	$160,000–$170,000
Extensive Options / Low Hours	$170,000+ Possible

The final value should be based on machine hours, spindle hours, spindle condition, control condition, axis accuracy, ATC operation, probing, coolant package, chip management, fourth-axis equipment, tooling, maintenance history, and the ability to demonstrate the machine under power.
