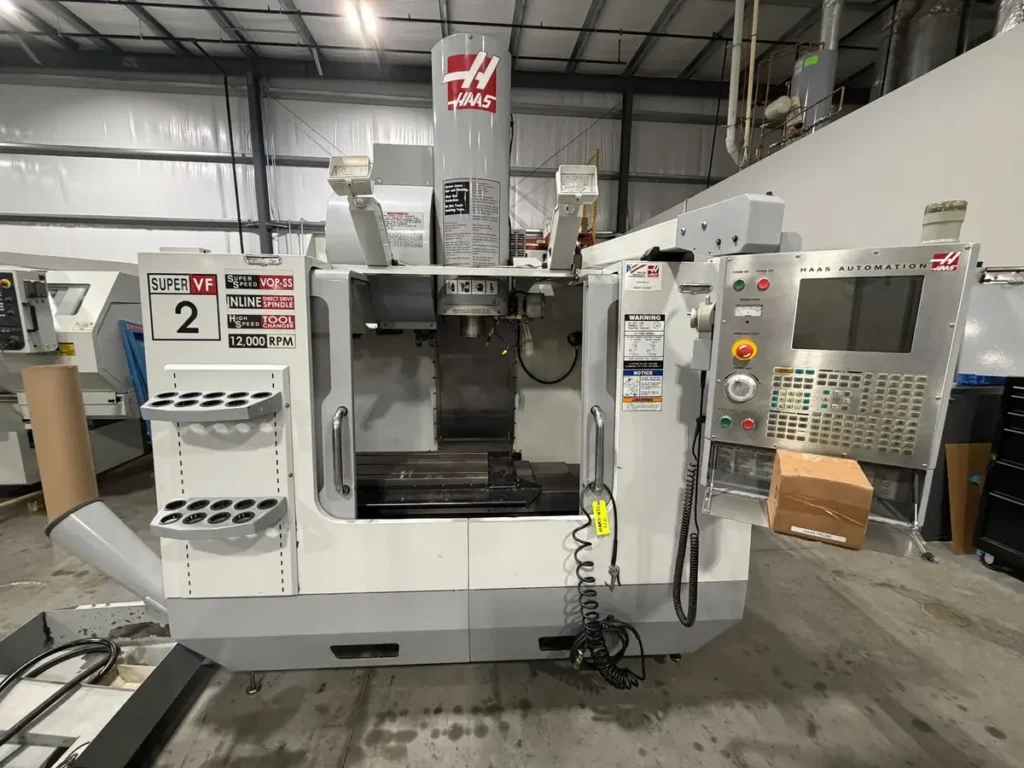

USED HAAS VF2SS 2006

The HAAS VF2SS 2006 is a high-speed CNC Vertical Machining Center (VMC) designed to deliver exceptional productivity, precision, and reliability for demanding machining applications. Introduced as part of the Haas Super-Speed (SS) Series, the VF2SS combines a 12,000 RPM inline direct-drive spindle, ultra-fast rapid traverse rates, and a high-speed side-mount automatic tool changer to significantly reduce cycle times compared to conventional vertical machining centers. The 2006 model quickly became a favorite among aerospace, automotive, mold and die, medical, electronics, and precision contract manufacturers due to its excellent balance of speed, rigidity, and operating costs. Even after nearly two decades, a properly maintained HAAS VF2SS 2006 continues to provide outstanding machining performance while offering a considerably lower acquisition cost than a new machining center.

The 2006 HAAS VF2SS features 30 inches (762 mm) of X-axis travel, 16 inches (406 mm) of Y-axis travel, and 20 inches (508 mm) of Z-axis travel, providing an ideal work envelope for precision components, production tooling, fixtures, and medium-sized workpieces. The 36″ × 14″ precision-ground table supports workpieces weighing up to 1,500 lbs (680 kg). Power is supplied by a 30 HP (22.4 kW) inline direct-drive spindle capable of 12,000 RPM, delivering excellent acceleration, smooth cutting performance, and superior surface finishes across aluminum, steel, stainless steel, titanium, and engineering plastics. The machine also features 1,400 IPM (35.6 m/min) rapid traverse rates together with a 30+1 high-speed side-mount tool changer capable of approximately 1.8-second tool-to-tool changes, allowing manufacturers to maximize spindle uptime and reduce production costs.

Standard equipment on the HAAS VF2SS 2006 generally includes the Classic Haas CNC Control, rigid tapping, programmable coolant nozzle, flood coolant system, automatic lubrication, spindle orientation, USB interface, Ethernet capability (depending on configuration), coordinate rotation and scaling, user-definable macros, fourth-axis drive and wiring, and chip auger. Many used machines have been upgraded over the years with valuable options including Through-Spindle Coolant (TSC), Renishaw Wireless Intuitive Probing System (WIPS), 15,000 RPM spindle upgrades, chip conveyor, rotary tables, coolant filtration systems, and additional tooling packages. Because Haas offered numerous factory options and many owners installed aftermarket upgrades, actual machine specifications can vary considerably between individual machines.

Purchasing a used HAAS VF2SS 2006 allows manufacturers to acquire a proven high-speed production machine at a fraction of the cost of purchasing new equipment. With excellent worldwide parts availability, simple maintenance procedures, intuitive programming, and a large installed machine base, the VF2SS remains one of the most popular and cost-effective used CNC vertical machining centers available today.

HAAS VF2SS 2006 – AXIS

HAAS VF2SS 2006 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF2SS 2006 – CAPACITY

HAAS VF2SS 2006 – SPINDLE

HAAS VF2SS 2006 – TOOL CHANGER

HAAS VF2SS 2006 – CONTROL SYSTEM

HAAS VF2SS 2006 – COOLANT / CHIP MANAGEMENT

HAAS VF2SS 2006 – POWER REQUIREMENTS

HAAS VF2SS 2006 – DIMENSIONS

HAAS VF2SS 2006 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF2SS 2006

The HAAS VF2SS 2006 is widely used throughout the aerospace, automotive, medical device, mold and die, electronics, industrial machinery, robotics, defense, and precision contract machining industries. Its combination of a 12,000 RPM spindle, rapid tool changes, and rigid machine construction makes it ideal for machining aluminum, stainless steel, titanium, engineering plastics, brass, and cast iron while maintaining excellent dimensional accuracy and surface finish.

Manufacturers commonly use the VF2SS to produce aerospace brackets, hydraulic manifolds, mold inserts, medical components, valve bodies, production fixtures, robotic components, transmission housings, aluminum enclosures, machine parts, automation equipment, and precision production tooling.

TYPICAL PARTS HAAS VF2SS 2006 CAN PRODUCE

The HAAS VF2SS 2006 can manufacture aerospace brackets, mold inserts, die components, hydraulic manifolds, valve bodies, aluminum housings, robotic components, tooling fixtures, medical device components, transmission parts, pump bodies, electronic enclosures, industrial automation components, production tooling, and custom-machined precision assemblies.

The machine excels at face milling, contour milling, pocket milling, drilling, tapping, thread milling, engraving, interpolation, boring, and high-speed finishing. When equipped with an optional rotary table or fourth-axis system, the VF2SS can machine multiple faces of a workpiece in a single setup, improving productivity while maintaining excellent repeatability.

WHY CHOOSE HAAS VF2SS 2006

The HAAS VF2SS 2006 remains one of the most respected machines in the Haas Super-Speed lineup because it combines speed, rigidity, and dependable long-term performance. Its 12,000 RPM inline direct-drive spindle, 1.8-second tool changes, and 1,400 IPM rapid traverse rates significantly reduce machining cycle times while maintaining excellent surface finishes and dimensional accuracy. The rigid cast-iron structure minimizes vibration, extends tool life, and delivers consistent machining performance during demanding production operations.

Another major advantage is the Classic Haas Control, which remains popular among machinists due to its intuitive interface, simple programming, and proven reliability. Combined with affordable maintenance costs and extensive worldwide parts support, the VF2SS continues to be a dependable machine for both job shops and production facilities.

WHY BUY USED HAAS VF2SS 2006

Purchasing a used HAAS VF2SS 2006 allows manufacturers to acquire a premium high-speed machining center at a significantly lower investment than purchasing a comparable new machine. Many used machines already include valuable factory-installed options such as Through-Spindle Coolant, WIPS probing, chip conveyor, rotary tables, fourth-axis capability, and extensive tooling packages, substantially increasing their value.

Because the VF2SS has an outstanding reputation for durability and long service life, well-maintained machines continue to provide dependable production for many years. Buyers should carefully inspect spindle condition, ballscrews, lubrication system, spindle taper wear, tool changer operation, machine geometry, and maintenance records before purchasing. Machines with documented preventive maintenance generally provide the greatest long-term value. Community feedback also suggests that older VF2SS machines remain highly serviceable when properly maintained.

HOW MUCH DOES A USED HAAS VF2SS 2006 COST?

The value of a used HAAS VF2SS 2006 depends on spindle hours, maintenance history, tooling package, installed options, and overall machine condition. Machines equipped with Through-Spindle Coolant, WIPS, chip conveyor, rotary tables, low spindle hours, and documented service history generally command the highest resale values.

Before purchasing, buyers should inspect spindle bearings, spindle taper wear, ballscrews, linear guideways, lubrication system, electrical cabinet, coolant equipment, servo drives, spindle load history, and machine diagnostics. Verifying backlash, axis accuracy, and tool changer performance can help avoid unexpected repair costs after installation.

Depending on spindle hours, tooling, condition, and installed options, a used HAAS VF2SS 2006 typically sells within an estimated price range of $20,000 to $40,000 USD. Premium machines equipped with Through-Spindle Coolant, WIPS, rotary tables, chip conveyor, low operating hours, and complete maintenance documentation may exceed this range, while higher-hour machines or those requiring refurbishment may sell below it. A properly maintained HAAS VF2SS 2006 continues to deliver outstanding productivity, machining accuracy, reliability, and long-term manufacturing value, making it an excellent investment for manufacturers seeking a high-speed CNC vertical machining center at an affordable price.
