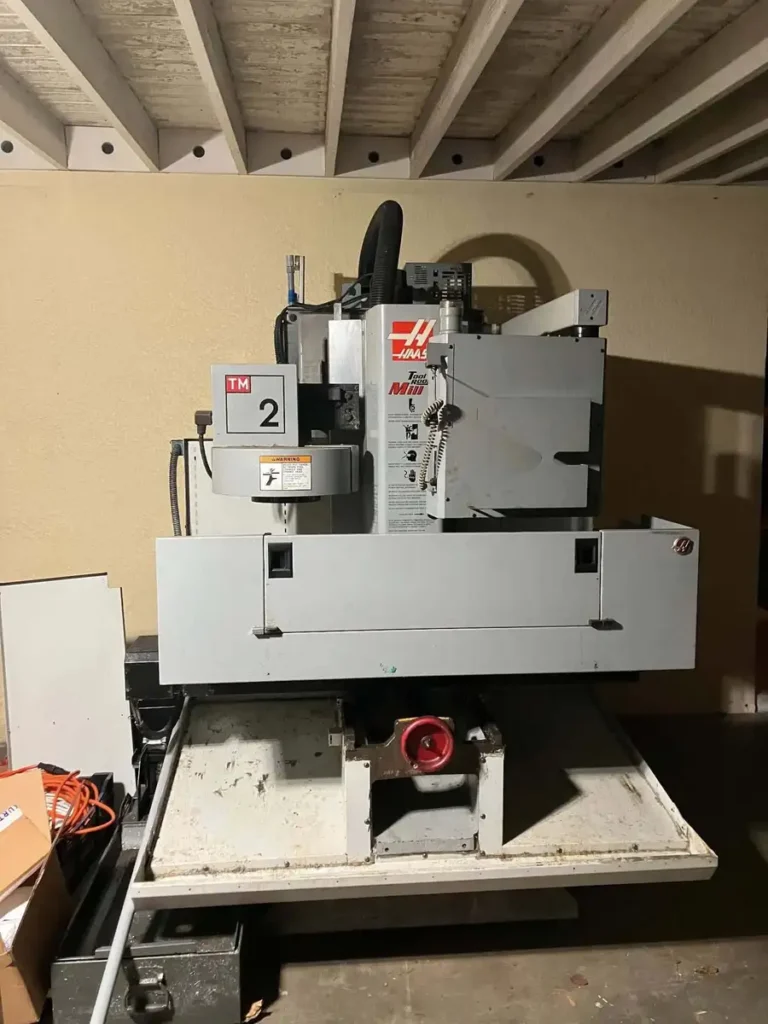

USED HAAS TM2 – 2006
The HAAS TM2 – 2006 is a CNC toolroom vertical machining center designed for machine shops, maintenance departments, educational facilities, prototype work, tooling, and low-volume production. The TM2 combines the flexibility of a toolroom mill with Haas CNC control, allowing operators to machine components with greater repeatability and accuracy than a conventional manual mill.
The TM2 provides approximately 40 inches of X-axis travel, 16 inches of Y-axis travel, and 16 inches of Z-axis travel, giving the machine a substantial working envelope for its class. It features a 40-taper spindle with 7.5 HP and a maximum spindle speed of approximately 4,000 RPM. The machine uses manual tool changes rather than the automatic tool changer found on the TM2P, making the TM2 a relatively simple and economical CNC machining solution.
The long table provides useful capacity for long plates, fixtures, brackets, tooling components, and other workpieces. The Haas CNC control also supports conversational programming, making the machine accessible to operators who may not have extensive experience writing G-code.
HAAS TM2 – 2006 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Toolroom Vertical Machining Center |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 40″ / 1,016 mm |
| Y-Axis Travel | 16″ / 406 mm |
| Z-Axis Travel | 16″ / 406 mm |
| CNC Interpolation | 3-Axis |
| 4th-Axis Capability | Optional |
| Rotary Integration | Available |
| Rigid Tapping | Available |
| Spindle Orientation | Available |
HAAS TM2 – 2006 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 40″ / 1,016 mm |
| Y-Axis Travel | 16″ / 406 mm |
| Z-Axis Travel | 16″ / 406 mm |
| Spindle Nose to Table Maximum | Approx. 20″ / 508 mm |
| Spindle Nose to Table Minimum | Approx. 4″ / 102 mm |
| Work Envelope | 40″ x 16″ x 16″ |
| Table Length | Approx. 57.8″ / 1,467 mm |
| Table Width | Approx. 10.5″ / 267 mm |
| Maximum Table Load | Approx. 350 lbs / 159 kg |
The 40-inch X-axis travel gives the TM2 excellent capacity for a toolroom machine and allows it to handle longer components than many compact CNC mills.
HAAS TM2 – 2006 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Table Length | Approx. 57.8″ / 1,467 mm |
| Table Width | Approx. 10.5″ / 267 mm |
| T-Slot Width | Approx. 0.626–0.630″ |
| T-Slot Center Distance | Approx. 4″ / 102 mm |
| Number of Standard T-Slots | 3 |
| Maximum Table Load | Approx. 350 lbs / 159 kg |
| Workholding | Vise / Fixture / Rotary |
| 4th-Axis Integration | Optional |
| Table Type | Fixed T-Slot |
The long table is useful for holding long plates and fixtures, while the three T-slots provide flexible workholding options.
HAAS TM2 – 2006 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | Direct-Speed Belt Drive |
| Spindle Taper | 40 Taper |
| Maximum Spindle Speed | Approx. 4,000 RPM |
| Spindle Motor | 7.5 HP / 5.6 kW |
| Maximum Torque | Approx. 33 ft-lb |
| Drive System | Belt Drive |
| Spindle Cooling | Air Cooled |
| Bearing Lubrication | Grease Packed |
| Spindle Orientation | Available |
| Tool Retention | Manual |
The 7.5 HP, 4,000 RPM, 40-taper spindle is suited to general-purpose machining, including steel, aluminum, cast iron, and other common manufacturing materials.
HAAS TM2 – 2006 – TOOLING
| Specification | Details |
|---|---|
| Tool Changer | None |
| Tool Change | Manual |
| Tool Taper | 40 Taper |
| Tool Capacity | Operator Dependent |
| Automatic Tool Change | No |
| Tool Management | CNC Offset Management |
| Toolholding | 40-Taper Tooling |
| Production Style | Manual Tool Change |
| Tool Retention | Manual |
The TM2 does not have a standard automatic tool changer. This makes it simpler than the TM2P and particularly suitable for applications where operators frequently perform manual tool changes.
HAAS TM2 – 2006 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | G-Code / Conversational |
| Conversational Programming | Yes |
| Work Offset Management | Yes |
| Tool Offset Management | Yes |
| Rigid Tapping | Available |
| User-Definable Macros | Configuration Dependent |
| Ethernet | Configuration Dependent |
| USB | Configuration Dependent |
| Rotary Programming | Available |
The Haas CNC control gives the TM2 the ability to perform precise programmed movements while also providing conversational programming capabilities for simpler jobs.
HAAS TM2 – 2006 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | Approx. 200 IPM |
| Y-Axis Rapid Traverse | Approx. 200 IPM |
| Z-Axis Rapid Traverse | Approx. 200 IPM |
| Maximum Cutting Feedrate | Approx. 200 IPM |
| X-Axis Maximum Thrust | Approx. 2,000 lbf |
| Y-Axis Maximum Thrust | Approx. 2,000 lbf |
| Z-Axis Maximum Thrust | Approx. 2,000 lbf |
| Feedrate Override | Standard |
| Linear Interpolation | Yes |
| Circular Interpolation | Yes |
The TM2 provides practical feedrates for general toolroom, prototype, maintenance, and small-batch machining applications.
HAAS TM2 – 2006 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Available |
| Coolant Pump | Available |
| Coolant Tank | Configuration Dependent |
| Programmable Coolant | Available |
| Air Blast | Available |
| Chip Auger | Optional / Configuration Dependent |
| Chip Conveyor | Configuration Dependent |
| Through-Spindle Coolant | Optional |
| Coolant Filtration | Configuration Dependent |
| Mist Collector | Optional |
Because this is a used 2006 machine, the actual coolant and chip-management configuration should be confirmed from the machine’s option list and physical inspection.
HAAS TM2 – 2006 – AUTOMATION / PROBING
| Specification | Details |
|---|---|
| Automatic Tool Changer | No |
| Work Probe | Optional |
| Tool Probe | Optional |
| Wireless Probing | Configuration Dependent |
| 4th-Axis Drive | Optional |
| 4th-Axis Wiring | Optional |
| Rigid Tapping | Available |
| Conversational Programming | Yes |
| Rotary Table Integration | Available |
| Manual Tool Change | Standard |
The TM2 can be equipped with additional probing and rotary equipment, but manual tool changing remains one of its primary differences from the TM2P.
HAAS TM2 – 2006 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Spindle Motor | 7.5 HP / 5.6 kW |
| Electrical Input | 220 VAC |
| Electrical Service | Single- or Three-Phase, Configuration Dependent |
| Three-Phase Low Voltage | 220 VAC |
| Three-Phase High Voltage | 440 VAC |
| Shop Air | Required |
| Air Requirement | Approx. 4 SCFM @ 100 PSI |
| Industrial Power | Required |
Electrical requirements should be confirmed from the machine’s serial-number-specific documentation before installation.
HAAS TM2 – 2006 – DIMENSIONS
| Specification | Details |
|---|---|
| Approximate Shipping Length | 127″ |
| Approximate Shipping Width | 78″ |
| Approximate Shipping Height | 100″ |
| Approximate Shipping Weight | 5,000–5,100 lbs |
| Approximate Metric Weight | 2,270–2,315 kg |
| Floor Space | Compact Toolroom Configuration |
| Installation | Industrial |
| Rigging | Required |
Actual shipping dimensions and weight can vary depending on coolant equipment, enclosure configuration, and other options installed on the machine.
HAAS TM2 – 2006 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Haas |
| Model | TM2 |
| Year | 2006 |
| Machine Category | Vertical Machining Center |
| Machine Type | CNC Toolroom Mill |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 40″ |
| Y-Axis Travel | 16″ |
| Z-Axis Travel | 16″ |
| Table Size | Approx. 57.8″ x 10.5″ |
| Maximum Table Load | Approx. 350 lbs |
| Spindle Speed | Approx. 4,000 RPM |
| Spindle Power | 7.5 HP |
| Spindle Taper | 40 Taper |
| Tool Changer | None |
| Tool Change | Manual |
| Maximum Feedrate | Approx. 200 IPM |
| CNC Control | Haas CNC |
| 4th-Axis Capability | Optional |
| Machine Weight | Approx. 5,060 lbs |
INDUSTRIES THAT USE HAAS TM2
The HAAS TM2 is suitable for:
- General machine shops
- Tool and die
- Mold manufacturing
- Aerospace
- Automotive
- Defense
- Maintenance and repair
- Prototype manufacturing
- Educational facilities
- Industrial machinery
- Contract manufacturing
- Precision engineering
Its large X-axis travel makes it particularly useful for long plates, fixtures, brackets, tooling, and machine components.
TYPICAL PARTS HAAS TM2 CAN PRODUCE
The TM2 can machine:
- Brackets
- Mounting plates
- Fixtures
- Jigs
- Housings
- Flanges
- Tooling components
- Prototype parts
- Machine components
- Repair components
- Industrial brackets
- Automotive components
- Custom production parts
Typical operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3-axis profiling.
WHY CHOOSE HAAS TM2
The major advantage of the HAAS TM2 is its combination of a 40 x 16 x 16-inch work envelope and a relatively simple toolroom-mill design. The 40-inch X-axis travel gives the machine excellent capacity for longer workpieces.
The 7.5 HP, 4,000 RPM, 40-taper spindle provides enough power for a broad range of general machining applications. Its manual tool-change arrangement also eliminates the additional complexity of an automatic tool changer.
For prototype and maintenance work, this can be an advantage because the operator can quickly change tools according to the job without needing a large tool magazine.
WHY BUY USED HAAS TM2 – 2006
A used 2006 HAAS TM2 can provide an affordable way for a shop to add CNC milling capability without investing in a newer production VMC.
The machine is particularly attractive for prototype work, repair machining, tooling, maintenance, educational use, and low-volume production. Its 40-inch X-axis travel provides significantly more capacity than many small CNC mills.
Before purchasing a used TM2, buyers should inspect the spindle, ballscrews, linear guides, table, way covers, drawbar, control electronics, coolant system, lubrication system, and electrical cabinet.
Because this is a 2006 machine, it is particularly important to check for backlash, spindle noise, axis accuracy, servo alarms, CRT/control condition, and evidence of previous crashes.
Buyers should also request power-on hours, cutting hours, spindle hours, maintenance records, alarm history, and a test-cut demonstration.
HOW MUCH DOES A USED HAAS TM2 – 2006 COST?
The value of a 2006 HAAS TM2 is strongly influenced by its mechanical condition, spindle condition, CNC control, hours, options, tooling, and maintenance history.
As an older TM2 without an automatic tool changer, it generally sells for less than newer TM2P machines. However, a clean machine with good geometry, a healthy spindle, functioning CNC control, and useful tooling can still have strong value for smaller shops.
| USED HAAS TM2 – 2006 PRICE RANGE | ESTIMATED COST |
|---|---|
| High Hours / Basic Configuration | $10,000 – $14,000 |
| Functional Used Machine | $14,000 – $18,000 |
| Good Condition / Production Ready | $18,000 – $22,000 |
| Excellent / Well Equipped | $22,000 – $26,000 |
| Very Low Hours / Premium Condition | $26,000+ |
For a 2006 HAAS TM2 in good working condition, I would estimate approximately $16,000–$22,000 USD.
For your inventory listing, I would recommend a practical asking-price range of $18,000–$22,000 USD for a clean, operational machine.
A low-hour machine with excellent spindle condition, good geometry, probing, 4th-axis capability, coolant equipment, and complete tooling could potentially command $22,000–$26,000+.
A high-hour machine requiring repairs or with substantial backlash, spindle wear, control problems, or missing accessories could fall closer to $10,000–$16,000.
Best estimated listing value: $18,000–$22,000 USD.
Related Products
-
HAAS - VF4
VIEW MACHINE -
HAAS - ST40Y
VIEW MACHINE -

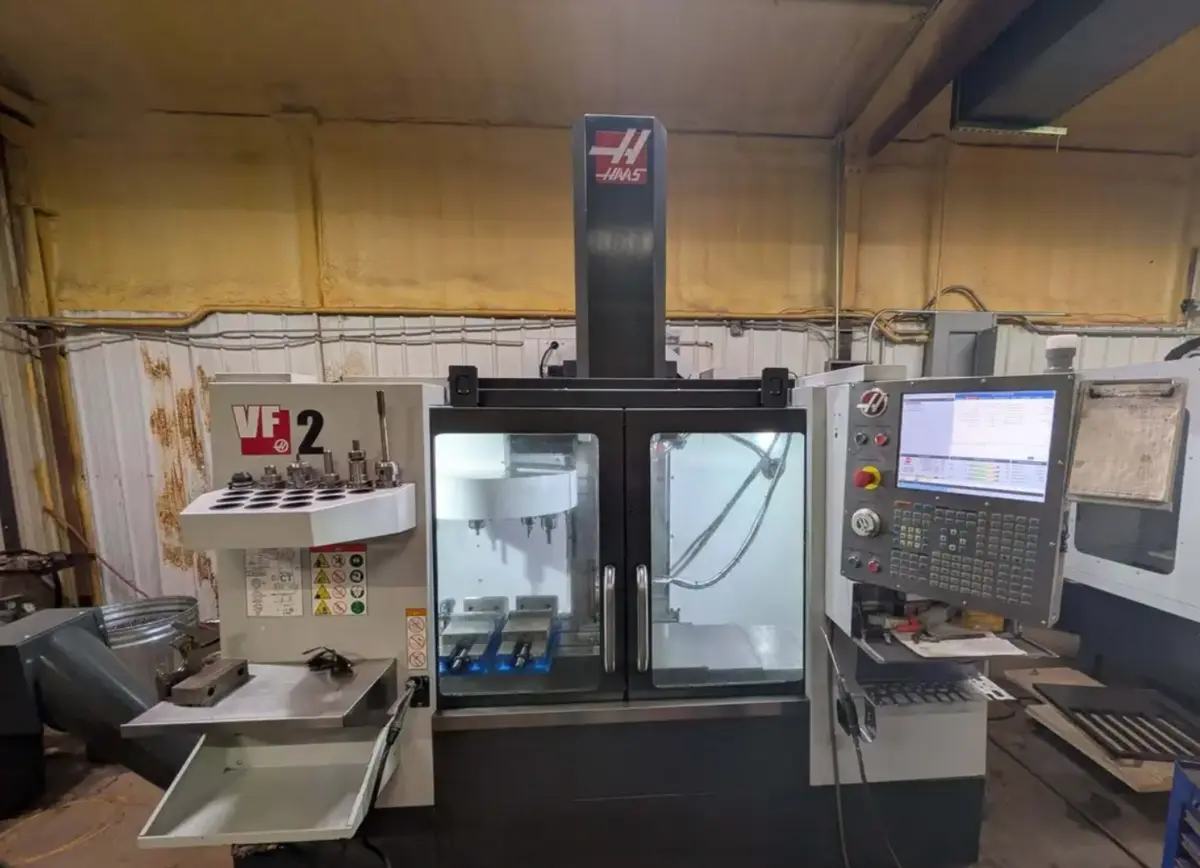

HAAS - VF2
