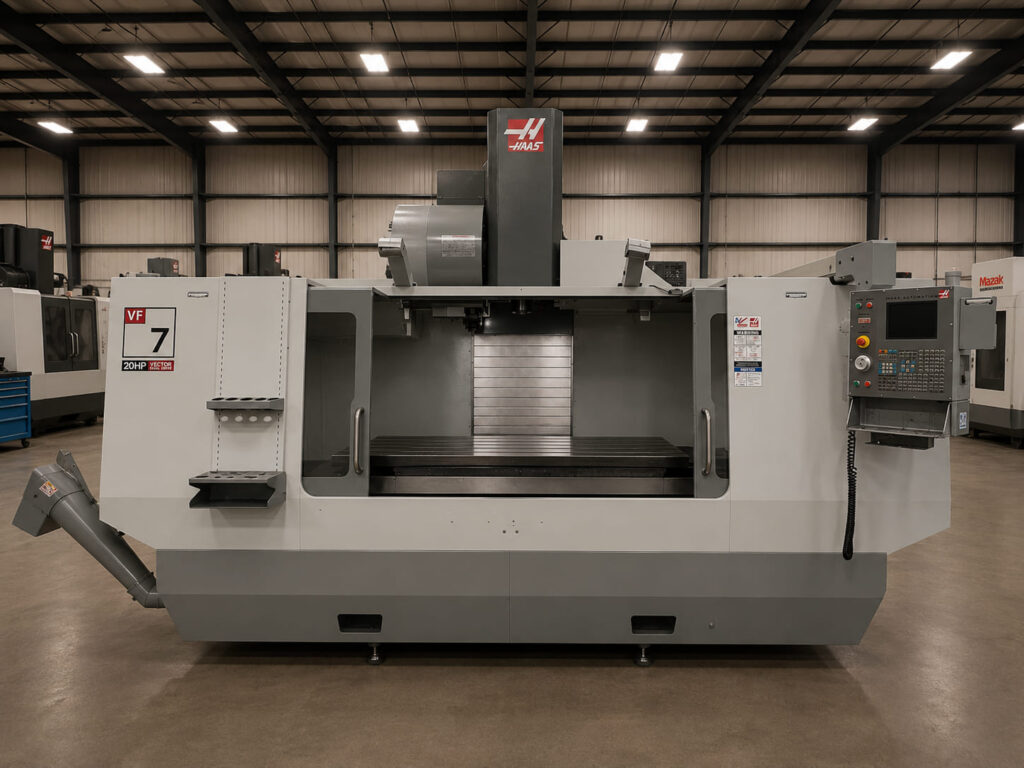

USED HAAS VF-7D/40 – 2006

The 2006 Haas VF-7D/40 is a large-frame 3-axis vertical machining center (VMC) engineered for machining oversized components that require long axis travels, high rigidity, and dependable production performance. Based on Haas Automation’s proven VF Series platform, the VF-7D/40 combines a massive work envelope with a robust cast-iron construction and a high-performance 40-taper spindle, making it an ideal solution for manufacturers producing large plates, fixtures, molds, aerospace structures, machine bases, and heavy industrial components. Its generous travels allow operators to machine large workpieces in a single setup, reducing handling time while improving accuracy and productivity.

The Haas VF-7D/40 offers approximately 84″ (2,134 mm) X-axis travel, 32″ (813 mm) Y-axis travel, and 30″ (762 mm) Z-axis travel. The large 84″ × 28″ (2,134 × 711 mm) T-slot table supports workpieces weighing up to 4,000 lbs (1,814 kg), making it suitable for demanding machining applications. The machine is equipped with a 30 HP (22.4 kW) inline direct-drive spindle capable of speeds up to 8,100 RPM, with an optional geared spindle available for higher torque machining. A 30+1 side-mount automatic tool changer provides rapid tool changes, while the Haas CNC Control offers intuitive programming, USB connectivity, Ethernet networking, rigid tapping, and high-speed machining capabilities. Standard equipment generally includes a chip auger, programmable coolant nozzle, flood coolant system, automatic lubrication, and remote jog handle.

The VF-7D/40 is widely used in aerospace manufacturing, heavy equipment production, mold making, transportation, energy, defense, and precision fabrication industries. Purchasing a used 2006 Haas VF-7D/40 provides manufacturers with a dependable large-capacity machining center at a significantly lower investment than purchasing a comparable new machine while benefiting from Haas’ extensive service network and excellent parts availability.

HAAS VF-7D/40 – AXIS

HAAS VF-7D/40 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF-7D/40 – CAPACITY / TABLE

HAAS VF-7D/40 – SPINDLE

HAAS VF-7D/40 – TOOL CHANGER

HAAS VF-7D/40 – CONTROL SYSTEM

HAAS VF-7D/40 – COOLANT / CHIP MANAGEMENT

HAAS VF-7D/40 – POWER REQUIREMENTS

HAAS VF-7D/40 – DIMENSIONS

HAAS VF-7D/40 – GENERAL INFORMATION

WHY BUY USED HAAS VF-7D/40 – 2006

Purchasing a used 2006 Haas VF-7D/40 gives manufacturers access to a large-capacity machining center capable of producing oversized precision components while significantly reducing capital investment. The machine’s expansive travels allow large workpieces to be completed in a single setup, improving dimensional accuracy and reducing production time. Its rigid cast-iron construction minimizes vibration during heavy cutting, allowing aggressive machining while maintaining excellent surface finishes.

The 30 HP inline direct-drive spindle, 30+1 side-mount tool changer, and generous table capacity provide outstanding versatility for machining steel, aluminum, cast iron, and other engineering materials. The Haas CNC Control simplifies programming and setup through an intuitive interface, USB connectivity, Ethernet networking, and proven reliability. Shops that manufacture large tooling, aerospace components, fabricated structures, and machine bases benefit from the VF-7D/40’s combination of speed, rigidity, and machining capacity.

Haas machines are well known for straightforward maintenance, readily available replacement parts, and strong factory support worldwide. Their excellent resale value and dependable long-term performance continue to make them a preferred choice for both production facilities and contract machine shops.

HOW MUCH DOES A USED HAAS VF-7D/40 – 2006 COST?

The price of a used 2006 Haas VF-7D/40 depends on spindle hours, overall machine condition, maintenance history, spindle configuration, installed options, tooling package, probing systems, and included accessories. Machines equipped with the optional gearbox, probing systems, fourth-axis rotary tables, high-speed machining software, and documented preventive maintenance typically command higher resale values.

When inspecting a used VF-7D/40, buyers should evaluate spindle condition, guideways, ball screws, automatic tool changer operation, lubrication system, coolant equipment, enclosure condition, and Haas CNC diagnostics. Proper inspection helps ensure long-term reliability while minimizing future maintenance costs.

Additional ownership expenses such as shipping, rigging, installation, electrical connection, tooling, operator training, and preventive maintenance should also be included in the investment calculation. Even after these costs, purchasing a used VF-7D/40 remains considerably more economical than buying a comparable new large-frame machining center.

Its combination of 2,134 × 813 × 762 mm travels, 30 HP spindle, 30+1 side-mount tool changer, rigid construction, and proven Haas CNC Control makes the 2006 Haas VF-7D/40 an outstanding long-term investment for manufacturers producing large precision components.

INDUSTRIES THAT USE HAAS VF-7D/40

• Aerospace Manufacturing
• Defense Manufacturing
• Heavy Equipment
• Industrial Machinery
• Mold & Die Industry
• Energy Industry
• Transportation Equipment
• Tool & Fixture Manufacturing
• Contract Manufacturing
• Precision Engineering

TYPICAL PARTS HAAS VF-7D/40 CAN PRODUCE

• Machine Bases
• Aerospace Structural Components
• Fixture Plates
• Mold Bases
• Weldments
• Large Aluminum Plates
• Tooling Components
• Industrial Frames
• Precision Fabricated Parts
• Heavy Equipment Components
• Prototype Assemblies
• Custom Large Machined Parts

WHY CHOOSE HAAS VF-7D/40

The 2006 Haas VF-7D/40 combines 84″ × 32″ × 30″ travels, a 30 HP 8,100 RPM inline direct-drive spindle, 30+1 side-mount automatic tool changer, a 4,000 lb table capacity, and the proven Haas CNC Control into a highly productive large-frame machining platform. Its exceptional work envelope, rigid construction, dependable performance, and strong service support make it one of the best used vertical machining centers for large-part precision manufacturing.
