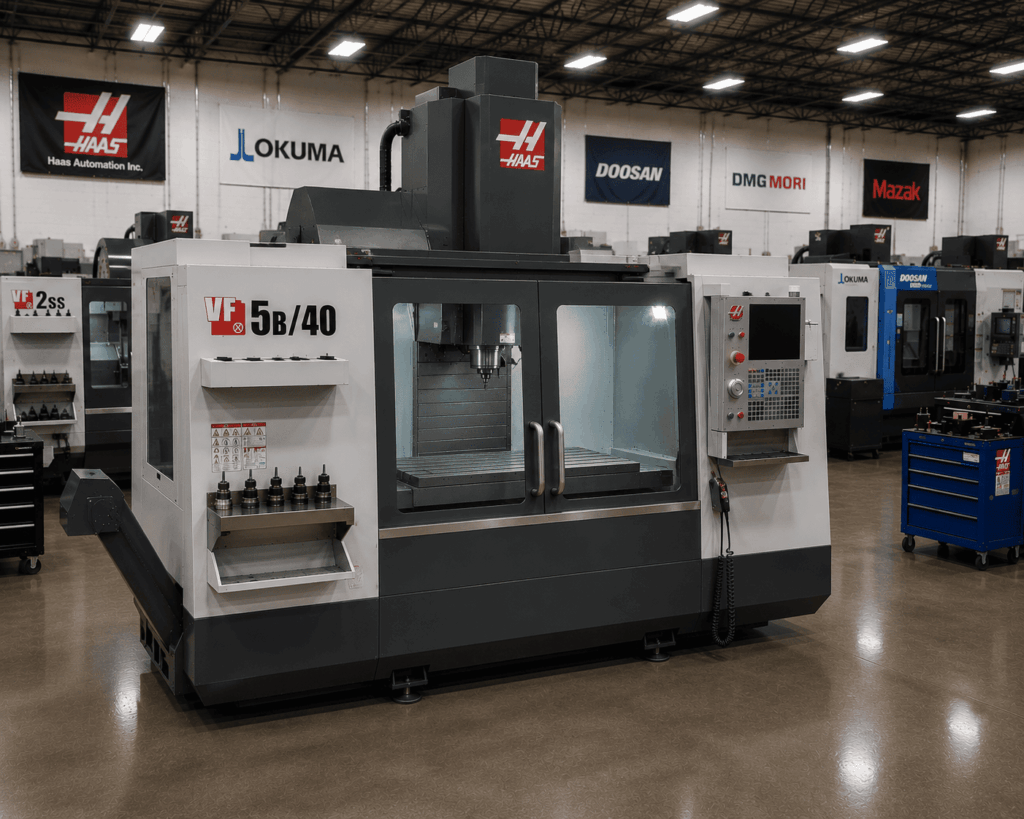

USED HAAS VF-5B/40 – 2006

The 2006 Haas VF-5B/40 is a high-capacity 3-axis CNC vertical machining center (VMC) designed for manufacturers that require a generous work envelope, dependable precision, and excellent material removal capabilities. The VF-5B/40 designation refers to a bridge-style configuration built around the proven VF-5/40 platform, offering a rigid machine structure with a 40-taper spindle for a broad range of machining applications. Manufactured by Haas Automation, the VF Series has become one of the most widely used CNC machining platforms in the world due to its reliability, user-friendly controls, and outstanding value. The VF-5B/40 is particularly well suited for machining large fixtures, tooling plates, mold components, aerospace structures, and production parts that require long travels and consistent accuracy.

Constructed with a heavily ribbed cast-iron frame, the Haas VF-5B/40 delivers excellent rigidity and vibration damping for both roughing and finishing operations. The machine provides approximately 50 inches of X-axis travel, 26 inches of Y-axis travel, and 25 inches of Z-axis travel, allowing operators to machine larger workpieces in a single setup. Equipped with a CAT 40 inline direct-drive spindle producing up to 8,100 RPM and powered by a 30 HP (22.4 kW) vector drive motor, the VF-5B/40 offers excellent cutting performance in aluminum, steel, stainless steel, cast iron, titanium, brass, and engineering plastics. Its combination of spindle speed, rigidity, and work envelope makes it suitable for high-precision machining as well as demanding production environments.

The 2006 model is typically equipped with the Classic Haas CNC Control, providing intuitive G-code programming, rigid tapping, programmable coolant, and reliable shop-floor performance. Most machines include a 20-station or optional 30+1 side-mount automatic tool changer, allowing efficient multi-tool machining while reducing idle time. Optional features such as fourth-axis rotary tables, chip conveyors, probing systems, high-speed machining software, and through-spindle coolant further increase the machine’s flexibility and production capabilities.

The Haas VF-5B/40 is widely used throughout the aerospace, automotive, mold and die, oil and gas, defense, agricultural equipment, and general manufacturing industries. Typical applications include large fixture plates, aerospace brackets, hydraulic manifolds, mold bases, machine components, tooling, structural weldments, and prototype parts. Its large machining envelope enables manufacturers to process oversized components while minimizing setups and improving overall productivity.

Purchasing a used 2006 Haas VF-5B/40 provides manufacturers with a dependable large-frame machining center at a substantially lower investment than purchasing new equipment. Haas machines are well known for their low maintenance costs, readily available replacement parts, operator-friendly controls, and long service life. A properly maintained VF-5B/40 continues to deliver reliable machining performance and excellent return on investment, making it an outstanding choice in the used CNC equipment market.

HAAS VF-5B/40 – 2006 SPECIFICATIONS

Axis

Specification	Value
Machine Type	Vertical Machining Center (VMC)
Controlled Axes	3 Axes
X-Axis Travel	50.0 in (1,270 mm)
Y-Axis Travel	26.0 in (660 mm)
Z-Axis Travel	25.0 in (635 mm)

Travels / Work Envelope

Specification	Value
X Travel	50.0 in (1,270 mm)
Y Travel	26.0 in (660 mm)
Z Travel	25.0 in (635 mm)
Spindle Nose to Table	4.2–29.2 in (107–742 mm)

Table

Specification	Value
Table Size	54 × 24 in (1,372 × 610 mm)
Maximum Table Load	4,000 lbs (1,814 kg)
Number of T-Slots	7
T-Slot Width	0.625 in (16 mm)

Spindle

Specification	Value
Spindle Taper	CAT 40
Maximum Spindle Speed	8,100 RPM
Spindle Motor	30 HP (22.4 kW)
Maximum Torque	90 ft-lb (122 Nm) @ 2,000 RPM
Drive Type	Inline Direct Drive

Tool Changer

Specification	Value
Tool Changer Type	Automatic Carousel or Optional Side-Mount
Tool Capacity	20 Tools (30+1 Optional)
Maximum Tool Diameter	3.5 in (89 mm)
Maximum Tool Length	16.0 in (406 mm)
Maximum Tool Weight	12 lbs (5.4 kg)
Tool-to-Tool Time	Approx. 4.2 sec
Chip-to-Chip Time	Approx. 4.5 sec

CNC Control

Specification	Value
CNC Control	Classic Haas Control
Programming	ISO G-Code
Rigid Tapping	Standard
Communication	RS-232 / Ethernet (configuration dependent)

Coolant / Chip Management

Specification	Value
Coolant System	Flood Coolant
Coolant Tank Capacity	95 gal (360 L)
Chip Removal	Standard Chip Auger
Chip Conveyor	Optional

Power Requirements

Specification	Value
Electrical Supply	220V or 440V, 3-Phase
Connected Load	Approx. 30 kVA
Pneumatic Supply	80–100 PSI (5.5–6.9 bar)

Dimensions

Specification	Value
Floor Space	Approx. 168 × 102 in (4,267 × 2,591 mm)
Machine Height	Approx. 109 in (2,769 mm)
Machine Weight	Approx. 12,700 lbs (5,761 kg)

General Information

Specification	Value
Manufacturer	Haas Automation
Model	VF-5B/40
Year	2006
Machine Category	Vertical Machining Center
Materials Machined	Aluminum, Steel, Stainless Steel, Cast Iron, Titanium, Brass, Engineering Plastics
Typical Applications	Aerospace Components, Mold Bases, Tooling Plates, Fixtures, Machine Components, Hydraulic Manifolds, Production Parts

HOW MUCH DOES A USED HAAS VF-5B/40 – 2006 COST?

A used 2006 Haas VF-5B/40 typically sells for $35,000 to $60,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and installed options such as a fourth-axis rotary table, probing system, chip conveyor, through-spindle coolant, or high-speed machining software. Machines with documented maintenance records, low operating hours, and factory-installed options generally command higher resale values because of their production readiness and remaining service life.

Before purchasing a used Haas VF-5B/40, buyers should inspect the spindle, ballscrews, guideways, lubrication system, tool changer operation, and overall machine geometry. A properly maintained VF-5B/40 provides excellent long-term value by combining a spacious machining envelope, dependable accuracy, and proven Haas reliability, making it an outstanding investment for manufacturers seeking a versatile large-frame vertical machining center.

---

HAAS VF-5B/40 VS HAAS VF-5/40 – WHICH ONE TO BUY?

The Haas VF-5B/40 and Haas VF-5/40 are CNC vertical machining centers designed for manufacturers requiring larger machining capacity, reliable performance, and flexible production capability. Both machines belong to the Haas VF Series and feature Haas CNC control technology, rigid cast-iron construction, CAT40 spindle tooling, automatic tool changer capability, and large work envelopes. The primary difference between these models is the B configuration of the Haas VF-5B/40, which provides additional machining flexibility and features designed for specific production requirements compared with the standard VF-5/40.

The Haas VF-5/40 is a versatile CNC vertical machining center designed for medium-to-large component machining. It is widely used in aerospace, automotive, medical, industrial equipment, mold making, and general manufacturing industries. The machine provides excellent rigidity and accuracy for milling, drilling, tapping, and contouring operations while maintaining the simplicity and reliability of Haas CNC controls.

The Haas VF-5B/40 is designed for manufacturers requiring enhanced flexibility for larger fixtures, specialized setups, and more demanding machining applications. It provides the same robust VF platform while allowing manufacturers to optimize their machining operations for different production requirements.

Both machines provide dependable performance, high accuracy, and excellent value for job shops and production facilities. The VF-5/40 is an excellent choice for general-purpose machining, while the VF-5B/40 is better suited for manufacturers needing additional capability and flexibility.

For businesses producing a wide variety of components and planning future expansion, the Haas VF-5B/40 can provide additional versatility. However, shops with standard machining requirements may find the VF-5/40 offers the best balance of performance and cost.

---

HAAS VF-5B/40 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VF-5B/40 does not turn, the problem may be related to spindle drive faults, electrical issues, machine safety conditions, lubrication problems, cooling failures, or CNC programming errors. A structured troubleshooting process can help identify the cause and reduce machine downtime.

Start by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive alarms, lubrication warnings, servo faults, thermal overload conditions, or tool changer problems can prevent spindle operation. Clear all alarms and confirm that the machine is ready before attempting spindle startup.

Inspect the spindle drive system for electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Verify spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power because these systems are essential for proper spindle operation.

Review the CNC program and machine setup. Missing M03 or M04 spindle commands, incorrect RPM settings, spindle orientation errors, interrupted tool changes, or improper machining parameters may prevent spindle startup. If maintenance, software updates, or parameter changes have recently occurred, spindle settings should be checked.

If the spindle attempts to start but stops immediately, inspect mechanical components including spindle bearings, CAT40 tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting loads. Vibration, overheating, or abnormal spindle noise may indicate spindle wear.

Regular spindle inspections, proper lubrication, electrical cabinet cleaning, and preventive maintenance help prevent unexpected spindle failures. If spindle alarms remain active after troubleshooting, professional Haas service diagnostics may be required.

---

HAAS VF-5B/40 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VF-5B/40 is designed for reliable CNC machining in demanding manufacturing environments. Due to its larger work envelope and production capability, regular preventive maintenance is essential for maintaining spindle performance, axis accuracy, and long-term machine reliability.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before beginning machining operations.

Weekly maintenance should include cleaning electrical cabinet filters, checking coolant pumps, coolant nozzles, chip management systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Proper lubrication and chip removal help maintain machine accuracy and prevent component wear.

Monthly inspections should focus on spindle runout, tool retention force, CAT40 tool holder condition, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned periodically to prevent contamination that affects cutting performance.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Detailed service records allow operators to detect potential problems before they become major repairs.

A consistent maintenance schedule improves spindle life, machining accuracy, surface finish quality, and production efficiency. The Haas VF-5B/40 is built for industrial machining applications, and proper preventive care ensures dependable operation throughout its service life.

---

FAQ

What is the Haas VF-5B/40?

The Haas VF-5B/40 is a CNC vertical machining center designed for manufacturers requiring increased machining capacity, flexibility, and dependable production performance. It features a rigid cast-iron structure, Haas CNC control system, CAT40 spindle tooling, automatic tool changer, and a large work envelope suitable for machining medium-to-large components.

The VF-5B/40 is commonly used in aerospace, automotive, industrial equipment, mold making, energy, and general manufacturing industries. It is capable of performing milling, drilling, tapping, and contouring operations on materials such as aluminum, steel, stainless steel, and engineered plastics. The machine is suitable for producing fixtures, molds, housings, prototypes, and production components requiring accuracy and repeatability.

The VF-5B/40 provides manufacturers with the reliability and flexibility of the Haas VF Series while offering the machining capacity required for more demanding applications.

---

What are the most common problems with the Haas VF-5B/40?

The most common problems with the Haas VF-5B/40 include spindle alarms, automatic tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, drawbar problems, tool retention issues, electrical communication faults, and axis positioning errors.

These problems are generally caused by normal component wear, insufficient lubrication, coolant contamination, excessive cutting loads, improper tooling, or lack of preventive maintenance. Regular cleaning, lubrication checks, spindle inspections, coolant management, electrical inspections, and scheduled service help reduce downtime and maintain reliable machine performance.
