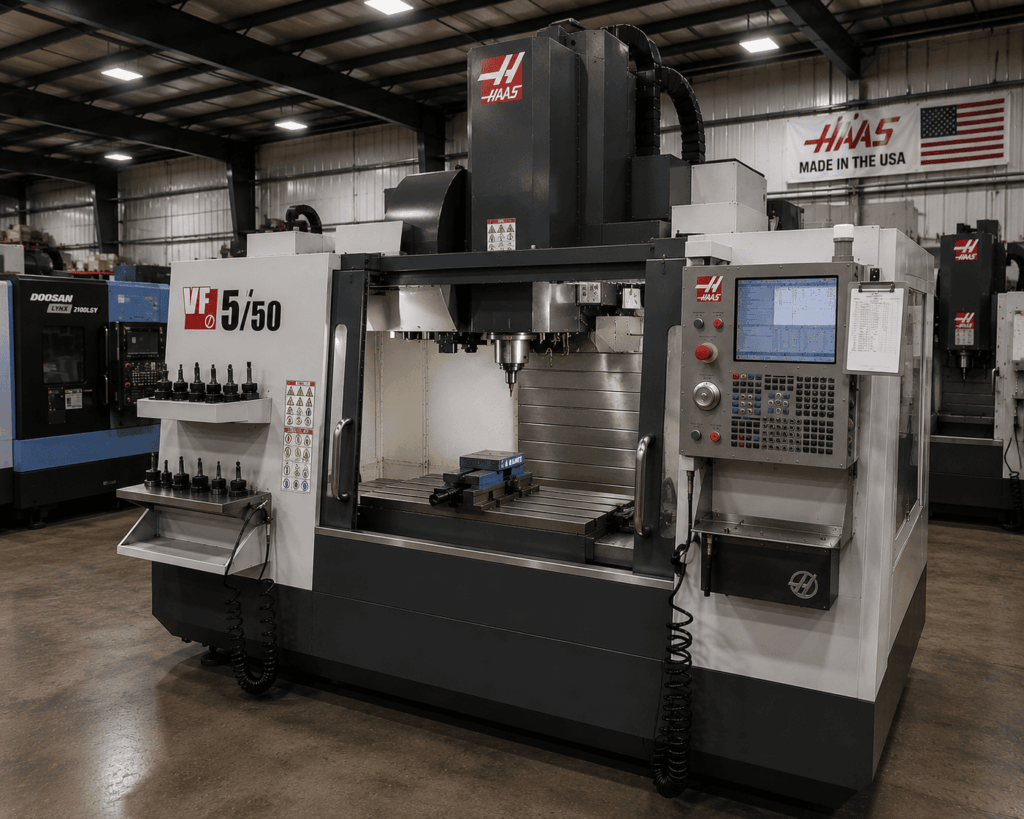

USED HAAS VF-5/50 – 2000

The 2000 Haas VF-5/50 is a heavy-duty 3-axis CNC vertical machining center (VMC) designed for manufacturers requiring high metal removal rates, exceptional rigidity, and the ability to machine large workpieces using larger cutting tools. Manufactured by Haas Automation, the VF-5/50 combines the spacious work envelope of the VF-5 with a powerful 50-taper geared spindle, making it an excellent choice for demanding machining applications in aerospace, energy, oil and gas, heavy equipment, mold and die, and general industrial manufacturing. Its rugged construction and high-torque spindle make it especially effective for machining difficult materials and large precision components.

Built with a heavily ribbed cast-iron frame, the Haas VF-5/50 delivers excellent rigidity, vibration damping, and long-term machining accuracy. The machine offers 50 inches of X-axis travel, 26 inches of Y-axis travel, and 25 inches of Z-axis travel, providing ample capacity for medium- to large-sized workpieces. Unlike the standard 40-taper VF models, the VF-5/50 features a CAT 50 spindle driven through a 2-speed gearbox, producing significantly higher torque for aggressive roughing operations, heavy face milling, deep drilling, and large-diameter tooling. The standard 7,500 RPM spindle is powered by a 30 HP (22.4 kW) vector drive, enabling efficient machining of alloy steel, stainless steel, cast iron, titanium, Inconel, and other difficult-to-machine materials.

The 2000 model is typically equipped with the Classic Haas CNC Control, offering user-friendly G-code programming, rigid tapping, programmable coolant, and dependable shop-floor performance. A 30+1 side-mount automatic tool changer provides quick and reliable tool changes while accommodating larger CAT 50 tooling. Optional equipment such as fourth-axis rotary tables, chip conveyors, through-spindle coolant, probing systems, and high-pressure coolant systems further increase the machine’s productivity and machining flexibility.

The Haas VF-5/50 is widely used in aerospace, defense, mining, construction equipment, power generation, oil and gas, and mold manufacturing industries. Typical applications include transmission housings, structural components, large fixtures, die sets, pump bodies, machine bases, hydraulic manifolds, heavy tooling, and precision fabricated components. Its high-torque spindle and generous work envelope make it ideal for both roughing and finishing large precision parts.

Purchasing a used 2000 Haas VF-5/50 allows manufacturers to obtain heavy-duty CNC machining capability at a significantly lower investment than purchasing a new machine. Haas machines are recognized worldwide for their reliable performance, readily available replacement parts, straightforward maintenance, and operator-friendly controls. A properly maintained VF-5/50 continues to deliver outstanding productivity, excellent machining accuracy, and long-term value, making it one of the most desirable large-frame 50-taper machining centers available in the used CNC market.

HAAS VF-5/50 – 2000 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS VF-5/50 – 2000 COST?

A used 2000 Haas VF-5/50 typically sells for $35,000 to $65,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and installed options such as through-spindle coolant, fourth-axis rotary tables, chip conveyor, probing systems, or high-pressure coolant. Machines with documented maintenance records, low operating hours, and factory-installed options generally command higher resale values because of their production readiness and remaining service life.

Before purchasing a used Haas VF-5/50, buyers should inspect the gearbox, spindle bearings, axis backlash, lubrication system, tool changer operation, guideways, and overall machine geometry. A well-maintained VF-5/50 provides excellent long-term value by combining high-torque machining performance, a large work envelope, and proven Haas reliability, making it an outstanding investment for manufacturers producing large, precision-machined components.

HAAS VF-5/50 VS HAAS VF-5 – WHICH ONE TO BUY?

The Haas VF-5/50 and Haas VF-5 are heavy-duty CNC vertical machining centers designed for manufacturers requiring increased cutting power, larger work envelopes, and reliable production performance. Both machines are part of the Haas VF Series and feature Haas CNC control technology, rigid cast-iron construction, automatic tool changer capability, and large machining capacity. The primary difference between these models is spindle tooling and cutting capability, with the Haas VF-5/50 featuring a CAT50 spindle system designed for heavier cutting applications compared with the CAT40 spindle configuration of the standard VF-5.

The Haas VF-5 is a versatile CNC vertical machining center designed for medium-to-large component manufacturing. It is commonly used in aerospace, automotive, industrial equipment, mold making, and general machining industries. The machine provides excellent accuracy, rigidity, and flexibility for milling, drilling, tapping, and contouring operations.

The Haas VF-5/50 is built for manufacturers requiring additional spindle rigidity and higher torque capability. The CAT50 spindle interface provides improved tool holding strength, making it better suited for aggressive cutting operations, larger cutters, harder materials, and heavy material removal applications.

Both machines provide dependable Haas performance and user-friendly CNC operation. The VF-5 is ideal for general machining applications where versatility and cost efficiency are important, while the VF-5/50 is better suited for heavy-duty machining environments where cutting power and rigidity are priorities.

For shops machining aluminum, steel, stainless steel, and other demanding materials, the Haas VF-5/50 offers greater flexibility for aggressive machining. However, manufacturers performing lighter machining operations may find the standard VF-5 provides sufficient capability at a lower operating cost.

HAAS VF-5/50 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VF-5/50 does not turn, the issue may be caused by spindle drive faults, electrical problems, safety interlocks, lubrication failures, cooling issues, or CNC programming errors. Since the VF-5/50 is designed for heavy-duty cutting with a CAT50 spindle system, proper troubleshooting is important to prevent damage and minimize downtime.

Start by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive faults, lubrication warnings, servo alarms, thermal overload conditions, or tool changer issues can prevent spindle operation. Clear all alarms and verify that the machine is ready before attempting spindle startup.

Inspect the spindle drive system for electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Check spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power because these systems are essential for protecting the spindle assembly.

Review the CNC program and machining setup. Incorrect M03 or M04 spindle commands, incorrect RPM settings, spindle orientation errors, interrupted tool changes, or incorrect cutting parameters may prevent spindle operation. If recent maintenance, software updates, or parameter changes were performed, verify spindle-related settings.

If the spindle starts but stops immediately, inspect mechanical components including spindle bearings, CAT50 tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting forces. Vibration, overheating, or abnormal spindle noise may indicate mechanical wear.

Regular spindle inspections, proper lubrication, electrical cabinet maintenance, and preventive care significantly reduce spindle failures. Persistent spindle alarms should be diagnosed using Haas service procedures.

HAAS VF-5/50 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VF-5/50 is a heavy-duty CNC vertical machining center designed for demanding manufacturing environments. Due to its CAT50 spindle system, increased cutting capability, and large machining capacity, regular preventive maintenance is essential for maintaining spindle reliability, accuracy, and long-term performance.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before beginning production. Proper chip removal prevents contamination of critical machine components.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, coolant nozzles, chip removal systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Guideways, covers, and moving components should be checked for smooth operation.

Monthly inspections should focus on spindle runout, tool retention force, CAT50 tool holder condition, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that affects tool life and surface finish.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Detailed maintenance records help identify developing issues before they become expensive repairs.

A consistent maintenance program improves spindle life, cutting performance, machining accuracy, and overall productivity. The Haas VF-5/50 is built for demanding machining applications, and proper preventive care ensures reliable performance throughout its operating life.

FAQ

What is the Haas VF-5/50?

The Haas VF-5/50 is a heavy-duty CNC vertical machining center equipped with a CAT50 spindle system designed for powerful cutting performance and increased rigidity. It is built for manufacturers requiring aggressive material removal, larger tooling capability, and reliable production machining.

The VF-5/50 features a rigid cast-iron structure, Haas CNC control system, automatic tool changer, large work envelope, and high-torque spindle capability. It is widely used in aerospace, automotive, energy, industrial equipment, mold making, and heavy manufacturing applications for producing large components, fixtures, housings, molds, and precision-machined parts.

What are the most common problems with the Haas VF-5/50?

The most common problems with the Haas VF-5/50 include spindle alarms, tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, drawbar problems, CAT50 tool retention issues, electrical communication faults, and axis positioning errors.

Because the VF-5/50 is designed for heavy-duty machining, issues may occur due to excessive cutting loads, insufficient lubrication, coolant contamination, normal component wear, or improper tooling practices. Regular spindle inspections, lubrication checks, coolant management, proper tooling maintenance, and scheduled preventive service help reduce downtime and maintain reliable machine performance.
