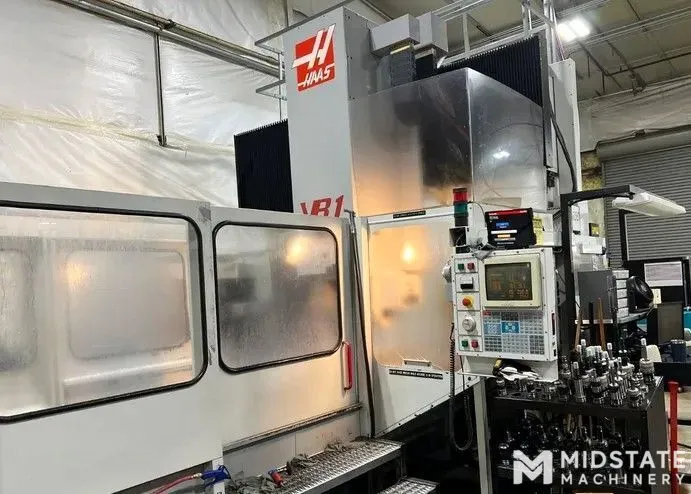

USED HAAS VB1 – 2000

The 2000 HAAS VB1 is a large-format 5-axis vertical gantry machining center designed for machining oversized aerospace components, composite tooling, molds, patterns, structural assemblies, and other large-scale precision parts. Introduced as part of Haas Automation’s gantry machining platform, the VB1 was engineered to provide long-axis travel, high-speed contouring capability, and simultaneous 5-axis machining performance for industries requiring exceptional flexibility on large workpieces.

Unlike conventional vertical machining centers, the VB1 utilizes a bridge-style gantry design that allows the machine to process extremely large components while maintaining rigidity and accuracy. The machine was particularly popular among aerospace manufacturers, mold makers, composite fabricators, transportation suppliers, and industrial equipment producers that required extensive machining envelopes combined with advanced contouring capabilities.

One of the defining characteristics of the HAAS VB1 is its integrated 5-axis contour machining system. The machine features a universal spindle head capable of simultaneous B-axis and C-axis motion, allowing complex surfaces, deep cavities, molds, aerospace structures, and composite tooling to be machined in a single setup. This significantly reduces setup time while improving dimensional accuracy and surface finish quality.

The machine’s 30 HP vector-drive spindle delivers speeds up to 15,000 RPM, providing excellent performance for aluminum, composites, plastics, tooling board, steel, and other engineering materials. The high-speed spindle combined with the machine’s large travels makes the VB1 an effective solution for both roughing and finishing operations on oversized parts.

The VB1 was also equipped with production-oriented features such as rigid tapping, spiral chip conveyor systems, remote handwheel operation, and advanced contouring capabilities. These features helped improve operator efficiency while supporting complex machining applications requiring long cycle times and high precision.

Because of its large machining capacity, 5-axis capability, and relatively low acquisition cost compared with modern gantry machining centers, the used 2000 HAAS VB1 remains attractive to manufacturers seeking large-format CNC machining capability.

HAAS VB1 – AXIS

HAAS VB1 – AXIS TRAVELS / WORK ENVELOPE

HAAS VB1 – TABLE

HAAS VB1 – SPINDLE

HAAS VB1 – TOOL CHANGER

HAAS VB1 – CONTROL SYSTEM

HAAS VB1 – COOLANT / CHIP MANAGEMENT

HAAS VB1 – POWER REQUIREMENTS

HAAS VB1 – DIMENSIONS

HAAS VB1 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VB1

TYPICAL PARTS HAAS VB1 CAN PRODUCE

WHY CHOOSE HAAS VB1

WHY BUY USED HAAS VB1

Purchasing a used 2000 HAAS VB1 provides manufacturers with access to a true large-format 5-axis gantry machining center at a fraction of the cost of a modern equivalent machine. New gantry machining centers with similar work envelopes and simultaneous 5-axis capability often require multi-million-dollar investments, making the VB1 an attractive alternative for companies seeking large-part machining capacity.

One of the machine’s greatest advantages is its enormous machining envelope. With 200 inches of X-axis travel, 84 inches of Y-axis travel, and 40 inches of Z-axis travel, the VB1 can process components that would be impossible to machine on traditional vertical machining centers. This capability makes it particularly valuable for aerospace tooling, composite molds, transportation components, and large industrial assemblies.

The integrated 5-axis spindle head further increases productivity by allowing complex geometries to be machined in fewer setups. Simultaneous B-axis and C-axis movement allows operators to machine difficult surfaces while maintaining optimal tool orientation and reducing manual repositioning requirements.

The 15,000 RPM cooled spindle provides the speed required for high-quality surface finishes on aluminum and composite materials while still supporting a broad range of machining applications. Combined with rigid tapping, chip management systems, and automated tool handling, the VB1 remains capable of supporting demanding production schedules.

For manufacturers needing large-format 5-axis machining without the cost of a new gantry platform, the HAAS VB1 continues to represent exceptional value.

HOW MUCH DOES A USED HAAS VB1 COST?

The value of a used 2000 HAAS VB1 depends heavily on machine condition, spindle health, control functionality, maintenance history, tooling packages, and overall machine geometry. Because these machines are specialized large-format gantry systems, pricing can vary substantially depending on configuration and condition.

Buyers typically evaluate spindle performance, axis accuracy, rotary head condition, backlash levels, machine alignment, tool changer operation, coolant systems, and control reliability before determining market value. Due to the machine’s size and complexity, inspection and verification of machine geometry are especially important.

Machines equipped with updated controls, probing systems, modern CAM integration, additional tooling packages, or documented maintenance histories generally command stronger prices. Transportation, rigging, and installation costs can also be significant because of the machine’s approximately 49,000-pound weight and large footprint.

A used 2000 HAAS VB1 commonly sells within an estimated range of $90,000 to $350,000, depending on machine condition, spindle hours, maintenance records, tooling inventory, control upgrades, and included accessories. Machines in excellent condition with verified accuracy and complete tooling packages often achieve values toward the upper end of the range.

Even after accounting for transportation, installation, and maintenance expenses, a used HAAS VB1 can provide a highly cost-effective solution for manufacturers requiring large-scale 5-axis gantry machining capability without investing in a new bridge-style machining center.
