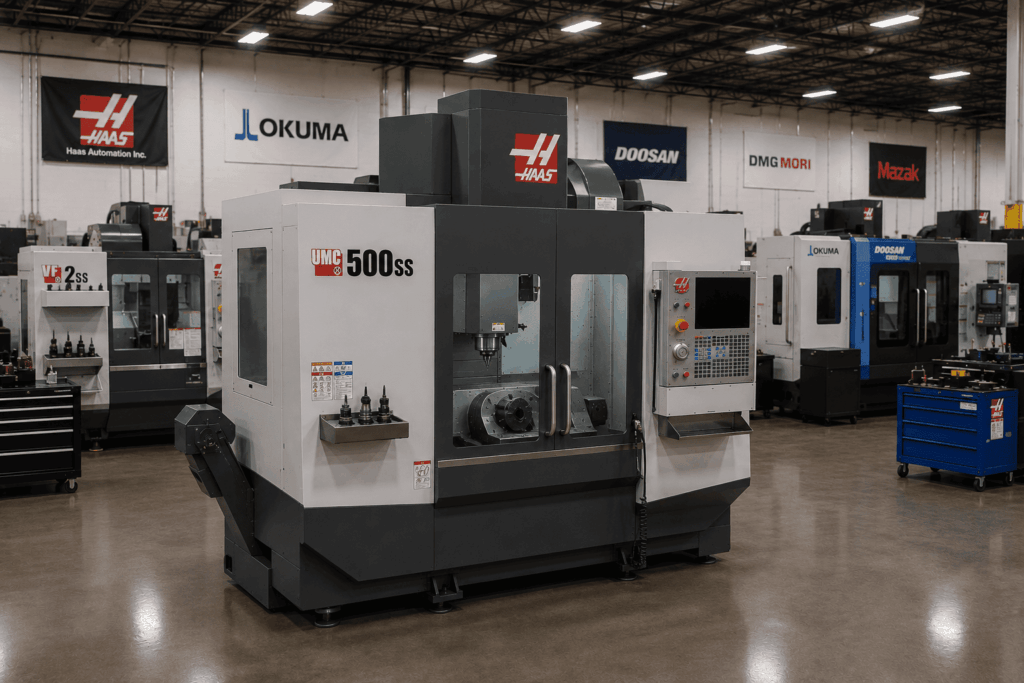

USED HAAS UMC-500SS – 2020

The 2020 Haas UMC-500SS is a compact, high-speed 5-axis universal machining center engineered for manufacturers that require simultaneous 5-axis machining, shorter cycle times, and exceptional precision. Manufactured by Haas Automation, the UMC-500SS is part of the company’s Super Speed (SS) series and is specifically designed for machining complex, multi-sided components in a single setup. Compared to standard vertical machining centers, the UMC-500SS significantly reduces setup time, improves positional accuracy, and increases overall productivity, making it an excellent choice for modern precision manufacturing environments.

The UMC-500SS features a rigid cast-iron construction, an inline direct-drive 40-taper spindle, and a high-speed dual-axis trunnion table that provides full simultaneous 5-axis machining capability. Equipped with a 12,000 RPM spindle, 30 HP (22.4 kW) spindle motor, and a 30+1 side-mount automatic tool changer, the machine is optimized for high-speed machining of aluminum, stainless steel, titanium, hardened alloys, engineering plastics, and composite materials. Super-speed rapid traverse rates of 1,200 IPM (30.5 m/min) and extremely fast tool changes minimize non-cutting time, allowing manufacturers to maximize spindle utilization and production efficiency. The machine’s compact footprint makes it ideal for shops looking to expand into 5-axis machining without sacrificing valuable floor space.

The 2020 model comes standard with the Haas Next Generation Control (NGC), providing advanced motion control, dynamic work offsets (DWO), Tool Center Point Control (TCPC), Ethernet and Wi-Fi connectivity, USB support, rigid tapping, high-speed machining functions, and the Wireless Intuitive Probing System (WIPS). The UMC-500SS is also compatible with optional pallet pool automation, chip conveyors, through-spindle coolant, and larger tool changers, allowing manufacturers to automate production and support lights-out machining.

The Haas UMC-500SS is widely used in the aerospace, medical, defense, automotive, mold and die, electronics, and precision engineering industries. Typical applications include aerospace structural components, orthopedic implants, turbine components, impellers, molds, medical instruments, precision fixtures, hydraulic manifolds, and complex prototype parts. Its ability to machine multiple faces and intricate geometries in a single operation greatly improves dimensional accuracy while reducing labor costs.

Purchasing a used 2020 Haas UMC-500SS allows manufacturers to obtain advanced simultaneous 5-axis machining capability at a significantly lower investment than purchasing a new machine. Haas machines are known for their intuitive controls, dependable reliability, excellent parts availability, and low operating costs. A properly maintained UMC-500SS continues to deliver outstanding machining accuracy, high productivity, and long-term value, making it one of the most desirable compact 5-axis machining centers in the used CNC equipment market.

HAAS UMC-500SS – 2020 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS UMC-500SS – 2020 COST?

A used 2020 Haas UMC-500SS typically sells for $135,000 to $210,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and installed options such as a pallet pool, through-spindle coolant, chip conveyor, expanded tool changer, probing systems, or automation equipment. Machines with low operating hours and factory-installed automation generally command premium prices due to their production readiness and advanced capabilities.

Before purchasing a used Haas UMC-500SS, buyers should inspect spindle condition, B- and C-axis calibration, trunnion accuracy, probing system functionality, lubrication system, and overall machine geometry. A properly maintained UMC-500SS provides exceptional long-term value by combining high-speed simultaneous 5-axis machining, compact design, and modern automation features, making it an excellent investment for manufacturers seeking to increase precision, reduce setups, and improve production efficiency.

HAAS UMC-500SS VS HAAS UMC-500 – WHICH ONE TO BUY?

The Haas UMC-500SS and Haas UMC-500 are 5-axis universal machining centers designed for manufacturers requiring advanced multi-sided machining, reduced setups, and high-precision production capability. Both machines are part of the Haas UMC Series and feature a trunnion-style 5-axis configuration, Haas CNC control, integrated rotary table, and compact footprint. The primary difference between the two models is spindle performance. The Haas UMC-500SS includes a Super-Speed spindle, providing higher RPM capability, faster acceleration, and improved productivity compared with the standard UMC-500.

The Haas UMC-500 is designed for precision machining of complex components requiring access to multiple sides of a workpiece. It is widely used in aerospace, medical, automotive, mold making, and general manufacturing applications. The machine allows manufacturers to complete multiple operations in a single setup, reducing fixture requirements, improving accuracy, and shortening production time.

The Haas UMC-500SS builds on the capabilities of the UMC-500 by adding a high-speed Super-Speed spindle. This makes it especially effective for aluminum machining, small precision components, complex 5-axis contouring, and high-volume production where shorter cycle times are important. The increased spindle speed allows faster material removal and improved surface finishes on suitable applications.

For shops producing heavier materials or general 5-axis machining applications, the Haas UMC-500 provides excellent performance and value. However, manufacturers focused on high-speed machining, aerospace components, medical parts, aluminum workpieces, and production efficiency will benefit from the UMC-500SS.

The right choice depends on machining requirements. The UMC-500 is a versatile 5-axis machining center, while the UMC-500SS is better suited for operations where speed, productivity, and cycle time reduction are critical factors.

HAAS UMC-500SS SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas UMC-500SS does not rotate, the problem may be related to spindle drive faults, safety interlocks, electrical issues, lubrication problems, cooling systems, or CNC programming errors. Because the UMC-500SS combines 5-axis machining with a high-speed spindle, several machine conditions must be checked before diagnosing a spindle failure.

Begin by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive faults, lubrication warnings, servo alarms, axis positioning errors, or tool changer conditions can prevent spindle operation. Clear all alarms and confirm the machine is ready before restarting the spindle.

Inspect the spindle drive system for electrical problems. Loose connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Verify spindle lubrication, spindle cooling, compressed air supply, coolant flow, and electrical power because these systems are essential for safe spindle operation.

Review the CNC program and machining setup. Incorrect M03 or M04 commands, incorrect spindle speed settings, spindle orientation commands, tool change interruptions, or 5-axis positioning conditions may prevent spindle startup. If maintenance or software updates have recently been performed, verify spindle parameters and machine settings.

If the spindle starts but stops immediately, inspect mechanical components including spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting loads. Excessive vibration, high spindle temperature, or unusual sounds often indicate spindle wear.

Regular spindle maintenance, proper lubrication, clean electrical cabinets, and scheduled inspection of spindle cooling systems help prevent unexpected failures. Persistent spindle alarms should be diagnosed using Haas service procedures to avoid additional machine damage.

HAAS UMC-500SS MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas UMC-500SS is an advanced 5-axis machining center designed for precision manufacturing, making preventive maintenance essential for maintaining accuracy, spindle performance, and rotary axis reliability. Proper care of the spindle, trunnion table, tool changer, lubrication system, and coolant system ensures consistent machining results.

Daily maintenance should include removing chips from the machine enclosure, spindle taper, tool changer, rotary table, and work area. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before production begins.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, chip management systems, coolant nozzles, automatic lubrication systems, spindle air purge systems, and automatic tool changer operation. Rotary table movement and 5-axis positioning should also be checked for smooth operation.

Monthly inspections should focus on spindle runout, tool retention force, rotary axis accuracy, trunnion alignment, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that affects tool life and machining quality.

Additional preventive care includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, verifying rotary calibration, replacing worn filters, maintaining lubrication systems, and checking machine geometry. Detailed maintenance records help identify developing issues before they become expensive repairs.

A consistent preventive maintenance program improves spindle life, maintains 5-axis accuracy, reduces unexpected downtime, and increases production efficiency. The Haas UMC-500SS is built for demanding precision machining environments, and proper maintenance ensures reliable performance throughout its service life.

FAQ

What is the Haas UMC-500SS?

The Haas UMC-500SS is a compact 5-axis CNC universal machining center equipped with a high-speed Super-Speed spindle and integrated trunnion rotary table. It allows manufacturers to machine multiple sides of complex components in a single setup, reducing fixtures and improving accuracy. The machine is widely used in aerospace, medical, automotive, mold making, and precision manufacturing applications for producing complex parts requiring simultaneous 5-axis machining.

The UMC-500SS features Haas CNC control technology, high-speed spindle capability, automatic tool changer, and advanced rotary machining capabilities. Its compact design makes it suitable for shops needing 5-axis performance without the footprint of a larger machining center.

What are the most common problems with the Haas UMC-500SS?

The most common problems with the Haas UMC-500SS include spindle alarms, rotary axis calibration errors, 5-axis positioning faults, automatic tool changer issues, lubrication warnings, encoder faults, servo drive alarms, coolant contamination, spindle orientation errors, tool retention problems, and electrical communication faults.

Some issues may develop due to improper calibration, insufficient lubrication, coolant contamination, heavy cutting conditions, or normal component wear. Regular preventive maintenance, rotary axis calibration, proper lubrication, coolant management, and timely inspection of critical components help minimize downtime and maintain reliable machine performance.
