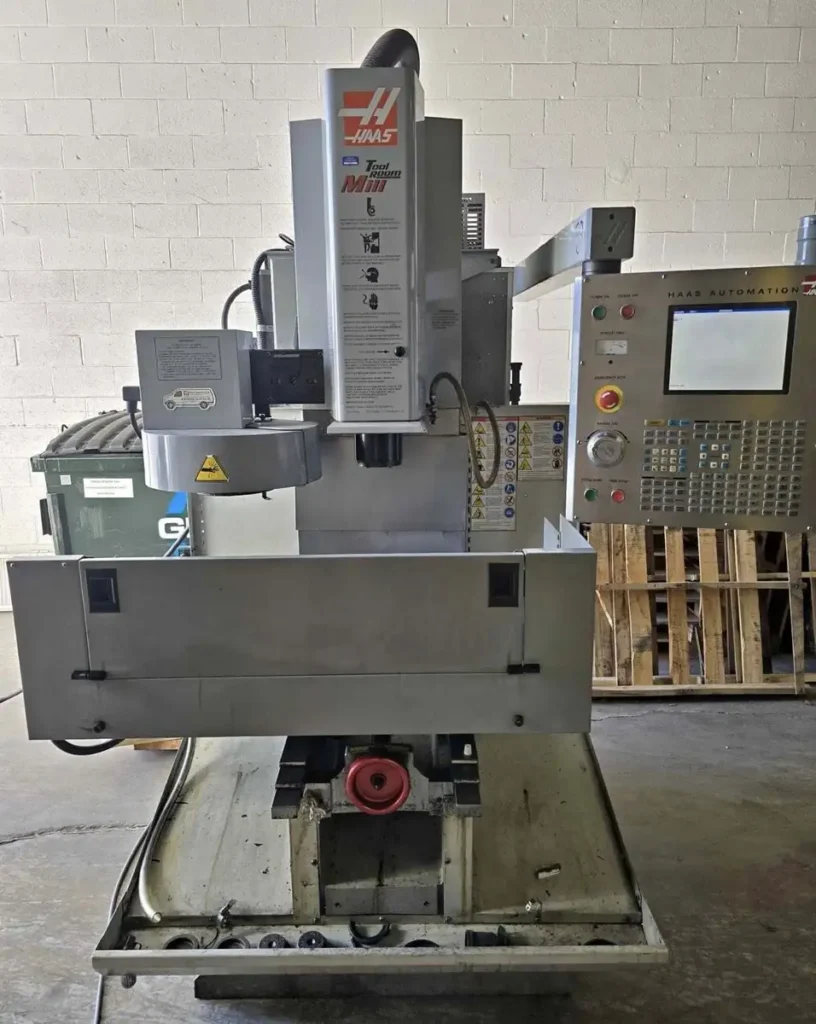

USED HAAS TM1 – 2007
The HAAS TM1 – 2007 is a CNC toolroom vertical machining center designed for job shops, prototype work, tooling, maintenance, education, and low-volume production. The TM1 combines the flexibility of a toolroom mill with Haas CNC control, providing a relatively compact machine platform while retaining the accuracy and repeatability of CNC machining.
The 2007 TM1 configuration provides approximately 30 inches of X-axis travel, 12 inches of Y-axis travel, and 16 inches of Z-axis travel. It uses a 40-taper spindle with 7.5 HP and up to 4,000 RPM, making it suitable for general-purpose milling, drilling, tapping, boring, and profiling. Used-machine listings for 2007 TM1 machines confirm this 30 x 12 x 16-inch travel configuration, 7.5 HP spindle, and 4,000 RPM speed.
Unlike the TM1P, the standard TM1 is primarily intended around manual tool changes, although individual machines can be equipped with optional tool-changing equipment. Haas describes the TM series as affordable, easy-to-use CNC toolroom mills with conversational programming and 40-taper tooling.
HAAS TM1 – 2007 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Toolroom Vertical Machining Center |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 30″ / 762 mm |
| Y-Axis Travel | 12″ / 305 mm |
| Z-Axis Travel | 16″ / 406 mm |
| CNC Interpolation | 3-Axis |
| 4th-Axis Capability | Optional |
| Rotary Integration | Available |
| Rigid Tapping | Available |
| Spindle Orientation | Configuration Dependent |
HAAS TM1 – 2007 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 30″ / 762 mm |
| Y-Axis Travel | 12″ / 305 mm |
| Z-Axis Travel | 16″ / 406 mm |
| Work Envelope | 30″ x 12″ x 16″ |
| Spindle Nose to Table Maximum | Approx. 20″ / 508 mm |
| Spindle Nose to Table Minimum | Approx. 4″ / 102 mm |
| Table Length | 47.75″ / 1,213 mm |
| Table Width | 10.5″ / 267 mm |
| Maximum Table Load | Approx. 350 lbs / 159 kg |
The 30-inch X-axis travel is useful for longer plates, fixtures, brackets, and tooling components while the 12-inch Y-axis travel keeps the TM1 compact.
HAAS TM1 – 2007 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Table Length | 47.75″ / 1,213 mm |
| Table Width | 10.5″ / 267 mm |
| T-Slot Width | Approx. 0.630″ |
| T-Slot Center Distance | 4″ / 102 mm |
| Number of Standard T-Slots | 3 |
| Maximum Table Load | Approx. 350 lbs / 159 kg |
| Workholding | Vise / Fixture / Rotary |
| 4th-Axis Integration | Optional |
| Table Type | Fixed T-Slot |
HAAS TM1 – 2007 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | Direct-Speed Belt Drive |
| Spindle Taper | CT 40 / BT40 |
| Maximum Spindle Speed | 4,000 RPM |
| Spindle Motor | 7.5 HP / 5.6 kW |
| Maximum Torque | Approx. 33 ft-lb @ 1,200 RPM |
| Drive System | Belt Drive |
| Bearing Lubrication | Grease Packed |
| Spindle Cooling | Air Cooled |
| Spindle Orientation | Configuration Dependent |
| Tool Retention | Manual / Configuration Dependent |
The 7.5 HP, 4,000 RPM, 40-taper spindle is well suited to general-purpose machining. Haas’ published TM specifications identify the spindle as 7.5 HP, 4,000 RPM, 40 taper, with 33 ft-lb maximum torque at 1,200 RPM.
HAAS TM1 – 2007 – TOOLING
| Specification | Details |
|---|---|
| Standard Tool Changer | None |
| Tool Change | Manual |
| Tool Taper | CT 40 / BT40 |
| Tool Capacity | Operator Dependent |
| Automatic Tool Change | Optional / Configuration Dependent |
| Tool Management | CNC Offset Management |
| Toolholding | 40-Taper Tooling |
| Production Style | Toolroom / Prototype / Low Volume |
The TM1 is differentiated from the TM1P by its simpler toolroom configuration. The TM1P is the model with the standard 10-tool carousel, while the TM1 can be configured with different tooling arrangements.
HAAS TM1 – 2007 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | G-Code / Conversational |
| Conversational Programming | Yes |
| Work Offset Management | Yes |
| Tool Offset Management | Yes |
| Rigid Tapping | Available |
| User-Definable Macros | Configuration Dependent |
| USB | Configuration Dependent |
| Ethernet | Configuration Dependent |
| Rotary Programming | Available |
The Haas CNC system allows the TM1 to be used by both experienced CNC programmers and operators who prefer conversational programming. Haas specifically promotes the TM series as easy to learn and operate, even without extensive G-code experience.
HAAS TM1 – 2007 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | 200 IPM / 5.1 m/min |
| Y-Axis Rapid Traverse | 200 IPM / 5.1 m/min |
| Z-Axis Rapid Traverse | 200 IPM / 5.1 m/min |
| Maximum Cutting Feedrate | 200 IPM / 5.1 m/min |
| X-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Y-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Z-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Feedrate Override | Standard |
| Linear Interpolation | Yes |
| Circular Interpolation | Yes |
Haas’ published TM1 specifications list 200 IPM rapid traverse and maximum cutting feedrate for all three axes.
HAAS TM1 – 2007 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Available |
| Coolant Pump | Available |
| Coolant Tank | Configuration Dependent |
| Programmable Coolant | Available |
| Chip Auger | Optional |
| Chip Conveyor | Configuration Dependent |
| Air Blast | Available |
| Through-Spindle Coolant | Optional |
| Coolant Filtration | Configuration Dependent |
| Mist Collector | Optional |
Coolant and chip-management equipment can vary substantially between individual used TM1 machines, so the actual 2007 machine should be inspected to determine which options are installed.
HAAS TM1 – 2007 – AUTOMATION / PROBING
| Specification | Details |
|---|---|
| Automatic Tool Changer | Configuration Dependent |
| Work Probe | Optional |
| Tool Probe | Optional |
| Wireless Probing | Configuration Dependent |
| 4th-Axis Drive | Optional |
| 4th-Axis Wiring | Optional |
| Rigid Tapping | Available |
| Conversational Programming | Yes |
| Rotary Table Integration | Available |
| Manual Tool Change | Standard Configuration |
The TM1 can be used with rotary equipment for expanded machining capability. Haas notes that the TM series can support available 4th- and 5th-axis functionality depending on configuration.
HAAS TM1 – 2007 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Spindle Motor | 7.5 HP / 5.6 kW |
| Single-Phase Input | 220 VAC |
| Single-Phase Full Load | Approx. 40 A |
| Three-Phase Low Voltage | 220 VAC |
| Three-Phase High Voltage | 440 VAC |
| Electrical Service | Single- or Three-Phase |
| Shop Air | Required |
| Air Requirement | 4 SCFM @ 100 PSI |
| Minimum Air Pressure | 80 PSI |
The current Haas TM1 specification lists 220 VAC single-phase and 220/440 VAC three-phase configurations, with approximately 4 SCFM at 100 PSI compressed air requirement. Exact electrical requirements should be verified from the 2007 machine’s serial-number-specific documentation.
HAAS TM1 – 2007 – DIMENSIONS
| Specification | Details |
|---|---|
| Table Length | 47.75″ / 1,213 mm |
| Table Width | 10.5″ / 267 mm |
| Approximate Machine Weight | 4,000 lbs / 1,814 kg |
| Floor Space | Compact Toolroom Configuration |
| Installation | Industrial |
| Rigging | Required |
| Shipping Dimensions | Configuration Dependent |
A used 2007 TM1 listing reports approximately 4,000 lbs machine weight, while actual shipping dimensions vary depending on enclosure, coolant equipment, and other options.
HAAS TM1 – 2007 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Haas |
| Model | TM1 |
| Year | 2007 |
| Machine Category | Vertical Machining Center |
| Machine Type | CNC Toolroom Mill |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 30″ |
| Y-Axis Travel | 12″ |
| Z-Axis Travel | 16″ |
| Table Size | 47.75″ x 10.5″ |
| Spindle Speed | 4,000 RPM |
| Spindle Power | 7.5 HP |
| Spindle Taper | CT 40 / BT40 |
| Maximum Torque | Approx. 33 ft-lb |
| Maximum Feedrate | 200 IPM |
| CNC Control | Haas CNC |
| 4th-Axis Capability | Optional |
| Coolant | Configuration Dependent |
| Machine Weight | Approx. 4,000 lbs |
INDUSTRIES THAT USE HAAS TM1
The HAAS TM1 is suitable for:
- General machine shops
- Aerospace
- Automotive
- Defense
- Tool and die
- Mold manufacturing
- Prototype manufacturing
- Maintenance and repair
- Educational facilities
- Industrial machinery
- Contract manufacturing
- Precision engineering
- Small-batch production
TYPICAL PARTS HAAS TM1 CAN PRODUCE
The TM1 can produce:
- Brackets
- Mounting plates
- Fixtures
- Jigs
- Housings
- Flanges
- Tooling components
- Prototype parts
- Machine components
- Automotive components
- Aerospace components
- Industrial brackets
- Repair components
- Custom production parts
Typical operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3-axis profiling.
WHY CHOOSE HAAS TM1
The main advantage of the HAAS TM1 is its combination of a 30 x 12 x 16-inch work envelope, 40-taper spindle, 7.5 HP motor, and relatively compact footprint. It offers considerably more CNC capability than a conventional manual toolroom mill while remaining relatively straightforward to operate.
The 40-taper spindle provides useful rigidity for machining steel, aluminum, cast iron, and other common materials. The 4,000 RPM spindle is well suited to general-purpose cutting rather than high-speed machining applications.
The TM1 is especially attractive for prototype and maintenance work because jobs can be set up quickly and the Haas control provides conversational programming as well as standard CNC programming.
WHY BUY USED HAAS TM1 – 2007
A used 2007 HAAS TM1 can be a cost-effective option for a shop looking to add CNC milling capability without the investment required for a newer production VMC.
Its 30-inch X-axis travel provides useful capacity for long plates, brackets, fixtures, and tooling components. The 40-taper spindle and 7.5 HP motor provide sufficient cutting capability for many general machining applications.
The machine’s age means that condition is more important than the year alone. Buyers should inspect the spindle, ballscrews, linear guides, table, way covers, drawbar, control electronics, lubrication system, coolant system, and electrical cabinet.
Special attention should be given to axis backlash, spindle runout, spindle noise, positioning accuracy, servo alarms, control operation, and evidence of previous crashes.
Hours can make a major difference in value. One currently advertised 2007 TM1 reportedly has only 143 spindle hours, while another used 2007 machine is listed at $18,500, showing how dramatically condition and usage can influence asking prices.
HOW MUCH DOES A USED HAAS TM1 – 2007 COST?
The value of a 2007 HAAS TM1 depends heavily on machine hours, spindle condition, axis accuracy, control condition, tooling, coolant equipment, enclosure, and any additional rotary equipment.
Current used-market examples provide a useful reference. One 2007 HAAS TM1 is advertised for $18,500, while another 2007 machine is listed with only 143 spindle hours and equipment including Haas CNC control, USB, intuitive programming, and handwheels.
For a typical operational machine, I would use the following practical pricing range:
| USED HAAS TM1 – 2007 PRICE RANGE | ESTIMATED COST |
|---|---|
| High Hours / Basic Configuration | $11,000 – $14,000 |
| Functional Used Machine | $14,000 – $17,000 |
| Good Condition / Production Ready | $17,000 – $20,000 |
| Excellent / Well Equipped | $20,000 – $23,000 |
| Very Low Hours / Premium Configuration | $23,000+ |
For a 2007 HAAS TM1 in good working condition, I would estimate approximately $15,000–$20,000 USD.
For your inventory listing, I would recommend a practical asking-price range of $17,000–$20,000 USD for a clean, operational machine.
A very low-hour machine with excellent spindle condition, probing, rotary capability, coolant equipment, complete tooling, and a clean control system could potentially command $21,000–$24,000+.
A high-hour machine requiring repairs or showing significant backlash, spindle wear, or control problems could fall closer to $10,000–$14,000.
Best estimated listing value: $17,000–$20,000 USD.
