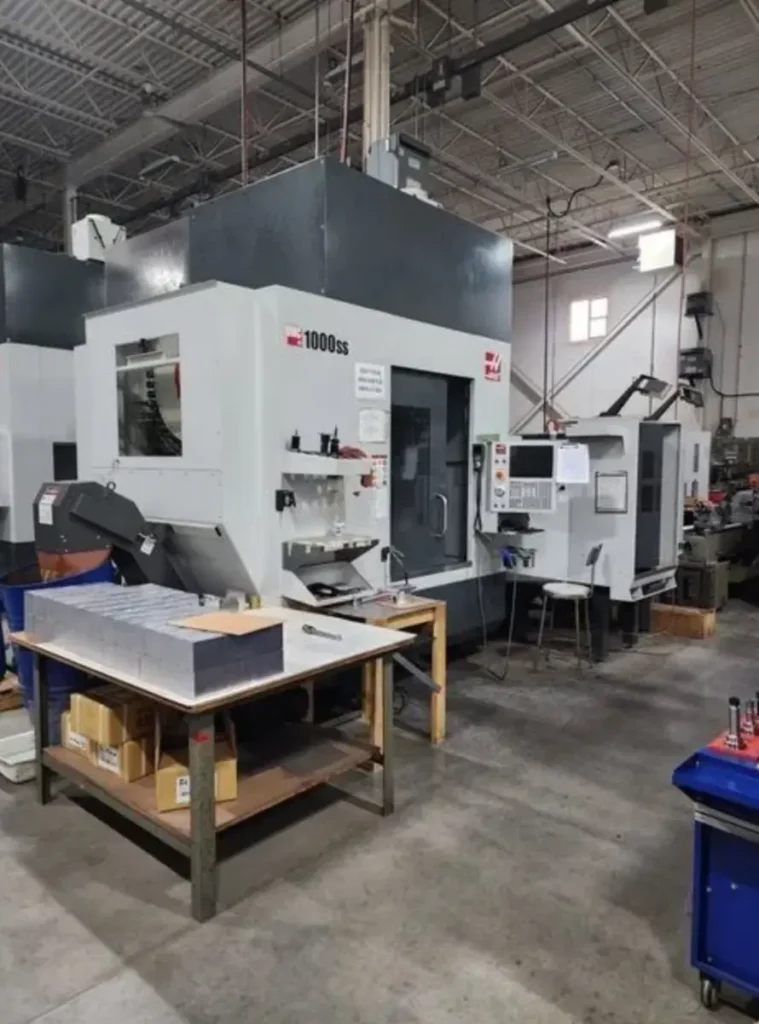

USED HAAS UMC-1000SS – 2020

The HAAS UMC-1000SS – 2020 is a high-speed, high-performance 5-axis universal machining center designed for manufacturers that require maximum productivity, faster cycle times, and the flexibility to machine complex components in a single setup. As part of Haas Automation’s Super Speed (SS) series, the UMC-1000SS combines the large work envelope of the standard UMC-1000 with upgraded spindle performance, faster rapids, quicker tool changes, and enhanced overall machining efficiency.

The UMC-1000SS was developed to meet the increasing demand for advanced multi-axis machining in industries where speed, precision, and flexibility are critical. Built around a robust cast iron structure, the machine provides excellent rigidity and thermal stability while supporting aggressive cutting parameters. The machine’s trunnion-style rotary table enables full simultaneous 5-axis machining, allowing manufacturers to access multiple sides of a workpiece without requiring repeated setups.

One of the major advantages of the UMC-1000SS is its ability to significantly reduce production times. The Super Speed configuration incorporates higher spindle speeds, faster axis acceleration, and reduced tool change times compared to standard models. These enhancements make the machine particularly effective for high-mix manufacturing environments where setup reduction and machining efficiency directly impact profitability.

The machine is capable of machining aluminum, stainless steel, carbon steel, titanium, tool steel, brass, copper alloys, engineering plastics, and composite materials. Its large machining envelope allows manufacturers to process sizable workpieces while maintaining the flexibility needed for intricate 5-axis machining operations. The machine is commonly equipped with the Haas Next Generation Control, wireless connectivity, probing systems, high-pressure coolant systems, and automation-ready features.

Industries utilizing the UMC-1000SS include aerospace manufacturing, medical device production, automotive engineering, defense manufacturing, mold and die production, industrial equipment manufacturing, energy sector production, and precision contract machining. Common applications include aerospace brackets, structural components, medical implants, molds, fixtures, impellers, housings, turbine components, and complex prototype parts.

The 2020 HAAS UMC-1000SS remains one of the most desirable used 5-axis machining centers because it combines modern technology, large-capacity machining, high-speed performance, and strong value retention within the used CNC machinery market.

---

HAAS UMC-1000SS – AXIS

Specification	Value
Number of Axes	5 Axis
Axis Configuration	X, Y, Z, B, C
Machine Type	Universal Machining Center
Simultaneous Machining	Full 5-Axis Simultaneous
Rotary System	Integrated Trunnion Table

---

HAAS UMC-1000SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	40 in
Y-Axis Travel	25 in
Z-Axis Travel	25 in
B-Axis Rotation	+120° / -35°
C-Axis Rotation	360° Continuous
Maximum Part Diameter	29 in
Maximum Part Height	25 in

---

HAAS UMC-1000SS – CAPACITY / TABLE

Specification	Value
Table Diameter	25 in
Table Length	39.4 in
Maximum Table Load	1,500 lbs
Table Type	CNC Trunnion Table
Rotary Resolution	High Precision Servo Control
Workholding Compatibility	Fixtures, Chucks, Tombstones

---

HAAS UMC-1000SS – SPINDLE

Specification	Value
Spindle Taper	CAT 40
Maximum Spindle Speed	15,000 RPM
Spindle Power	30 HP
Maximum Torque	90 ft-lb
Spindle Type	Inline Direct Drive
High-Speed Machining	Standard

---

HAAS UMC-1000SS – TOOL CHANGER

Specification	Value
Tool Capacity	50 Tools
Tool Changer Type	Side-Mount Tool Changer
Tool-to-Tool Time	Approx. 1.6 Seconds
Chip-to-Chip Time	Approx. 2.4 Seconds
Tool Selection	Random Access

---

HAAS UMC-1000SS – CONTROL SYSTEM

Specification	Value
CNC Control	Haas Next Generation Control
Programming Capability	Simultaneous 5-Axis Programming
Ethernet Connectivity	Standard
Wireless Networking	Available
USB Ports	Standard
Remote Monitoring	Supported

---

HAAS UMC-1000SS – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Optional
Programmable Coolant Nozzle	Available
Chip Auger	Standard
Chip Conveyor	Optional
Coolant Filtration	Integrated

---

HAAS UMC-1000SS – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 45 kVA

---

HAAS UMC-1000SS – DIMENSIONS

Specification	Value
Machine Length	Approx. 170 in
Machine Width	Approx. 160 in
Machine Height	Approx. 125 in
Machine Weight	Approx. 23,500 lbs

---

HAAS UMC-1000SS – GENERAL INFORMATION

Specification	Value
Manufacturer	Haas Automation
Model	UMC-1000SS
Year	2020
Machine Category	Universal 5-Axis Machining Center
Construction	Heavy-Duty Cast Iron Frame
Spindle Taper	CAT 40
Typical Materials	Aluminum, Steel, Titanium, Plastics
Production Type	High-Speed Multi-Axis Manufacturing

---

INDUSTRIES THAT USE HAAS UMC-1000SS

• Aerospace Manufacturing
• Medical Device Manufacturing
• Defense Industry
• Automotive Engineering
• Mold & Die Manufacturing
• Industrial Equipment Manufacturing
• Energy Sector Manufacturing
• Precision Engineering
• Research & Development
• Contract Machining

---

TYPICAL PARTS HAAS UMC-1000SS CAN PRODUCE

• Aerospace Structural Components
• Turbine Components
• Impellers
• Medical Implants
• Orthopedic Devices
• Injection Molds
• Die Cast Tooling
• Precision Housings
• Industrial Machine Components
• Aerospace Brackets
• Prototype Components
• Complex Multi-Surface Parts

---

WHY CHOOSE HAAS UMC-1000SS

The HAAS UMC-1000SS is one of the most capable high-speed 5-axis machining centers in its class. Manufacturers choose this machine because it combines a large work envelope with the productivity enhancements of the Super Speed platform. The result is a machine capable of producing complex parts faster while maintaining excellent accuracy and surface finish quality.

One of the machine’s greatest strengths is its 15,000 RPM spindle and high-speed axis movements. These features allow manufacturers to reduce cycle times significantly, particularly when machining aluminum, stainless steel, and other materials commonly used in aerospace and medical applications. Faster spindle speeds also improve surface finish quality and support advanced high-speed machining strategies.

The machine’s simultaneous 5-axis capability enables complex parts to be machined in a single setup. This reduces labor requirements, minimizes fixture changes, and improves dimensional consistency. For manufacturers producing intricate components, these advantages can dramatically increase overall productivity.

The large machining envelope provides excellent flexibility. The UMC-1000SS can accommodate larger workpieces than many competing 5-axis machines while maintaining the precision needed for demanding applications. This versatility allows manufacturers to serve a wider range of customers and industries.

The Haas Next Generation Control further enhances machine performance through intuitive programming, advanced networking capabilities, and real-time machine monitoring. Operators can quickly create programs, optimize machining strategies, and manage production efficiently.

For manufacturers seeking speed, flexibility, and modern 5-axis capability, the HAAS UMC-1000SS remains one of the strongest options available.

---

WHY BUY USED HAAS UMC-1000SS

Purchasing a used HAAS UMC-1000SS provides manufacturers with access to advanced high-speed 5-axis machining technology at a substantially lower cost than purchasing a new machine. Since the model remains highly desirable and relatively modern, used machines often provide exceptional value while retaining many of the capabilities found in current production equipment.

One of the biggest benefits of purchasing a used UMC-1000SS is reduced capital expenditure. New 5-axis machining centers equipped with high-speed spindles and advanced automation features often require significant investment. Buying used allows manufacturers to acquire these capabilities while preserving capital for tooling, fixtures, automation, software, and facility improvements.

The machine’s reputation for reliability also contributes to its popularity. Haas machines are widely known for ease of operation, readily available replacement parts, and strong service support. These factors help reduce long-term ownership costs and simplify maintenance planning.

Another significant advantage is immediate availability. New machine purchases can involve lengthy lead times due to factory production schedules. A used UMC-1000SS can often be purchased, installed, and placed into production much more quickly, allowing manufacturers to respond rapidly to customer demand.

Many used machines include valuable options such as probing systems, through-spindle coolant, chip conveyors, expanded tool capacities, rotary upgrades, and automation interfaces. These features can substantially increase machine value while reducing future upgrade costs.

For manufacturers seeking modern 5-axis machining capability with high-speed performance and proven reliability, a used HAAS UMC-1000SS offers an outstanding balance of capability and value.

---

HOW MUCH DOES A USED HAAS UMC-1000SS COST?

The market value of a used HAAS UMC-1000SS depends on machine condition, spindle hours, maintenance history, installed options, tooling packages, software configuration, and overall market demand. Because the UMC-1000SS combines large-capacity machining with high-speed performance, it remains one of the most sought-after models in the used Haas product lineup.

Machine condition is typically the most important factor affecting pricing. Machines with lower spindle hours, complete maintenance records, and excellent overall condition generally command higher market values. Buyers often prioritize well-maintained equipment because it offers lower ownership risk and reduced repair expenses.

Installed options can significantly influence pricing. Features such as through-spindle coolant, probing systems, chip conveyors, high-pressure coolant packages, expanded tool changers, automation interfaces, and advanced software packages often increase machine value because they improve productivity and operational flexibility.

The machine’s relatively recent 2020 model year also supports strong resale values. Manufacturers seeking modern controls, current-generation machine design, and advanced networking features frequently target late-model UMC-1000SS machines.

Additional ownership costs such as transportation, rigging, installation, tooling, training, and commissioning should also be considered when evaluating a purchase. These costs can vary depending on machine location and facility requirements.

In today’s used CNC machinery market, a 2020 HAAS UMC-1000SS typically sells within a range of approximately $160,000 to $290,000, depending on spindle hours, machine condition, installed options, tooling packages, and overall configuration. Machines equipped with premium options, automation packages, extensive tooling, and documented maintenance histories often command pricing toward the upper end of the range.

When evaluating overall value, manufacturers should focus on the machine’s ability to reduce setup times, increase throughput, improve part quality, and expand machining capabilities. These benefits continue to make the HAAS UMC-1000SS one of the most desirable used 5-axis machining centers available in today’s CNC marketplace.
