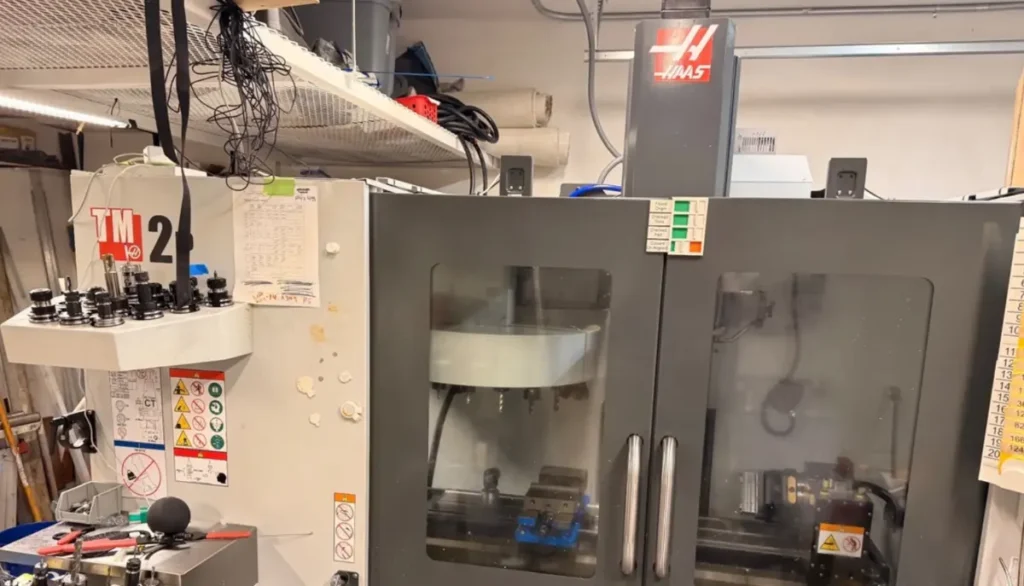

USED HAAS TM2P 2023

The HAAS TM2P 2023 is a 3-axis CNC toolroom mill designed to provide full CNC machining capabilities while retaining the flexibility and accessibility associated with a toolroom machine. Manufactured by Haas Automation, the TM2P is especially useful for job shops, maintenance departments, prototype manufacturers, tooling companies, educational facilities, and small-batch production environments.

The TM2P provides a substantial 40″ X-axis travel, 16″ Y-axis travel, and 16″ Z-axis travel, giving it a long machining envelope suitable for plates, fixtures, tooling, molds, dies, brackets, and other elongated components. The machine uses a 40-taper spindle with a 7.5 HP motor and 6,000 RPM maximum speed, along with a standard 10-tool carousel changer.

The 2023 TM2P also benefits from Haas CNC control technology, conversational programming capabilities, and HaasConnect remote monitoring. Depending on the individual machine’s configuration, options can include wireless probing, 4th-axis capability, chip management, programmable coolant, and other productivity features.

Because the TM2P is designed around a long table and extended X-axis travel, it can be an excellent choice for shops that need more machining length than a compact toolroom mill while not requiring the fully enclosed configuration of a conventional VF-series VMC.

HAAS TM2P 2023 – AXIS

The 40″ X-axis travel is the major advantage of the TM2P, giving the machine a long machining range for tooling, fixtures, plates, and elongated workpieces.

HAAS TM2P 2023 – WORK ENVELOPE

The long table gives operators plenty of room to position vises, fixtures, rotary equipment, and long workpieces. Haas’ current specifications list a 57.8″ × 10.5″ table with three standard T-slots.

HAAS TM2P 2023 – SPINDLE

The TM2P uses a 7.5 HP, 6,000 RPM, 40-taper belt-drive spindle designed for general-purpose milling.

HAAS TM2P 2023 – TOOL CHANGER

The standard 10-tool carousel allows operators to program multiple machining operations without manually changing tools between every operation. Haas also offers optional tool-changer configurations depending on the machine build.

HAAS TM2P 2023 – FEEDRATES

The 400 IPM rapid traverse specification allows the machine to move efficiently between machining positions while maintaining the straightforward operating characteristics of the Toolroom Mill series.

HAAS TM2P 2023 – CONTROL SYSTEM

The TM2P is designed with full CNC capabilities and conversational programming, making it accessible to both experienced CNC programmers and operators who prefer guided setup and programming workflows. Haas also identifies HaasConnect remote monitoring as an available feature.

HAAS TM2P 2023 – COOLANT AND CHIP MANAGEMENT

The exact coolant and chip-management configuration should be verified on the individual 2023 machine because Haas lists optional equipment separately from the standard machine specification.

HAAS TM2P 2023 – AIR REQUIREMENTS

The machine requires a suitable compressed-air supply for its pneumatic systems and automatic tool-changing functions.

HAAS TM2P 2023 – MACHINE DIMENSIONS

The relatively compact shipping footprint and approximately 5,060-pound machine weight make the TM2P considerably easier to accommodate than many full-size vertical machining centers.

HAAS TM2P 2023 – GENERAL INFORMATION

Specifications shown are for the standard TM2P configuration; optional equipment can change the specifications of an individual machine.

INDUSTRIES THAT USE HAAS TM2P 2023

The HAAS TM2P is suitable for:

• General manufacturing
• Aerospace
• Automotive
• Tool and die
• Mold making
• Fabrication
• Industrial machinery
• Maintenance and repair
• Prototyping
• CNC job shops
• Educational facilities
• Small-batch production

Its extended X-axis travel is particularly useful for tooling and components that are too long for smaller CNC toolroom mills.

TYPICAL PARTS HAAS TM2P 2023 CAN PRODUCE

The machine can produce:

• Tooling plates
• Fixtures
• Jigs
• Brackets
• Mounting plates
• Molds
• Dies
• Machine components
• Prototype parts
• Automotive components
• Aerospace components
• Industrial components

Typical machining operations include face milling, pocketing, drilling, tapping, boring, profiling, contouring, slotting, reaming, chamfering, and 3D surface machining.

WHY CHOOSE HAAS TM2P 2023

The biggest advantage of the HAAS TM2P 2023 is its combination of long X-axis travel, 40-taper tooling, automatic tool changing, and full CNC capability in a relatively compact machine.

The 40″ X travel and 57.8″ table length provide significant working space for long components and fixtures, while the 16″ Y and Z travels support a broad range of general milling applications.

The 40-taper spindle provides access to widely available industrial tooling, while the automatic carousel changer reduces manual intervention during multi-operation jobs.

The TM2P is also useful for shops transitioning from manual milling toward CNC production because its conversational programming system can simplify setup and programming. Haas specifically markets the TM2P as combining toolroom flexibility with full CNC capabilities.

WHY BUY USED HAAS TM2P 2023

Buying a used HAAS TM2P 2023 can provide a manufacturer, job shop, or tooling company with a relatively recent CNC machining platform at a lower investment than buying a new machine.

A 2023 model can be especially attractive when it has low spindle hours, low cutting hours, a clean machine history, functioning CNC control, good spindle condition, and desirable options such as wireless probing, fourth-axis capability, chip management, and programmable coolant.

The machine’s 40″ X-axis travel makes it particularly useful for manufacturers working with long plates, fixtures, tooling, molds, and machine components. Its 40-taper spindle and automatic tool changer provide capabilities beyond those of many basic manual or entry-level CNC mills.

When purchasing a used TM2P, buyers should inspect the spindle bearings, spindle taper, drawbar, belt drive, X/Y/Z ballscrews, linear guides, axis backlash, tool changer, CNC control, lubrication system, coolant system, and overall machine geometry.

A test cut should be performed whenever possible to evaluate positioning accuracy, repeatability, spindle vibration, surface finish, tool changing, and axis movement.

HOW MUCH DOES A USED HAAS TM2P 2023 COST?

The price of a used HAAS TM2P 2023 depends on spindle hours, cutting hours, overall condition, installed options, tooling, probing, fourth-axis equipment, chip management, maintenance history, and location.

As a useful reference point, Haas documentation shows a 2023 TM2P base quote of $47,995, with separate options and tooling increasing the total quoted price to $57,870 or $67,970 on two different 2023 quotations. These are new-machine quotations rather than used-market selling prices, but they provide useful context for valuation.

For used-equipment listing purposes, a reasonable broad estimate for a used HAAS TM2P 2023 is approximately $35,000 to $50,000 USD, depending heavily on hours, condition, configuration, and included accessories.

A low-hour machine with a healthy spindle, functioning Haas control, automatic tool changer, wireless probing, fourth-axis capability, chip management, and excellent machine geometry can command a premium.

Before establishing the final selling price, buyers should verify spindle hours, cutting hours, spindle condition, X/Y/Z-axis accuracy, ballscrew backlash, linear-guide condition, tool changer operation, drawbar condition, control functionality, probing system, coolant and chip-management equipment, and overall machine geometry.
