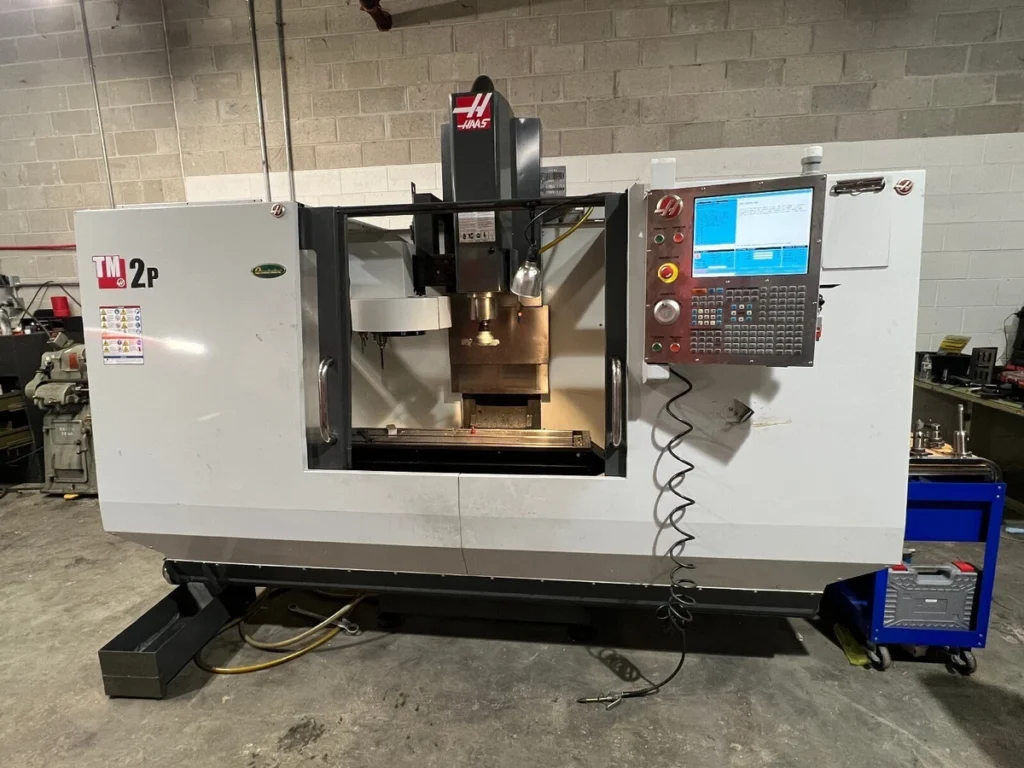

USED HAAS TM2P – 2013

The HAAS TM2P – 2013 is a CNC toolroom vertical machining center designed for shops that need the flexibility of a toolroom mill combined with the accuracy and automation of a Haas CNC control. The TM2P offers a large 40-inch X-axis travel, 16-inch Y-axis travel, and 16-inch Z-axis travel, making it well suited for machining long plates, fixtures, brackets, tooling, prototypes, and general production components. Haas designed the TM-P Series as an affordable CNC solution for job shops, educational facilities, maintenance departments, and manufacturers transitioning from manual machining to CNC.

The TM2P uses a 40-taper, 7.5 HP, 6,000 RPM direct-speed belt-drive spindle and a 10-pocket automatic tool changer. It can use either CT40 or BT40 tooling and offers approximately 33 ft-lb of maximum torque at 1,200 RPM. Its long 57.75-inch table provides useful capacity despite the machine’s relatively compact design.

---

HAAS TM2P – 2013 – AXIS

Specification	Details
Machine Type	CNC Toolroom Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	40″ / 1,016 mm
Y-Axis Travel	16″ / 406 mm
Z-Axis Travel	16″ / 406 mm
4th-Axis Capability	Available
Rotary Integration	Available
CNC Interpolation	3-Axis
Spindle Orientation	Available
Rigid Tapping	Available

---

HAAS TM2P – 2013 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	40″ / 1,016 mm
Y-Axis Travel	16″ / 406 mm
Z-Axis Travel	16″ / 406 mm
Spindle Nose to Table Maximum	20″ / 508 mm
Spindle Nose to Table Minimum	4″ / 102 mm
Work Envelope	40″ x 16″ x 16″
Table Length	57.75″ / 1,466 mm
Table Width	10.5″ / 267 mm
Maximum Table Load	Approx. 1,000 lbs / 454 kg

The 40-inch X-axis travel is one of the strongest features of the TM2P, allowing it to handle considerably longer workpieces than many compact VMCs. Haas’ specifications identify a 57.75 x 10.5-inch table and a maximum evenly distributed table load of 1,000 pounds for this platform.

---

HAAS TM2P – 2013 – CAPACITY / TABLE

Specification	Details
Table Length	57.75″ / 1,466 mm
Table Width	10.5″ / 267 mm
T-Slot Width	5/8″ / 16 mm
T-Slot Center Distance	4″ / 101.6 mm
Number of Standard T-Slots	3
Maximum Table Load	1,000 lbs / 454 kg
Workholding	Vise / Fixture / Rotary
4th-Axis Integration	Available
Table Type	Fixed T-Slot

---

HAAS TM2P – 2013 – SPINDLE

Specification	Details
Spindle Type	Direct-Speed Belt Drive
Spindle Taper	CT40 / BT40
Maximum Spindle Speed	6,000 RPM
Spindle Motor	7.5 HP / 5.6 kW
Maximum Torque	33 ft-lb @ 1,200 RPM
Drive System	Belt Drive
Bearing Lubrication	Grease Packed
Spindle Cooling	Air Cooled
Spindle Orientation	Available
Tool Retention	Automatic

The TM2P’s 7.5 HP, 6,000 RPM spindle is intended for general-purpose machining rather than ultra-high-speed applications. The 40-taper interface provides compatibility with widely used industrial tooling.

---

HAAS TM2P – 2013 – TOOL CHANGER

Specification	Details
Tool Changer Type	Carousel
Tool Capacity	10 Stations
Tool Taper	CT40 / BT40
Maximum Tool Diameter	3.5″ / 89 mm
Maximum Tool Weight	12 lbs / 5.4 kg
Tool-to-Tool Time	Approx. 5.7 sec
Chip-to-Chip Time	Approx. 6.5 sec
Automatic Tool Change	Yes
Tool Management	CNC Controlled

The 10-pocket automatic tool changer allows the TM2P to perform multiple machining operations without requiring manual tool changes. Haas specifies approximately 5.7 seconds tool-to-tool and 6.5 seconds chip-to-chip changing time.

---

HAAS TM2P – 2013 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming	G-Code / Conversational
Conversational Programming	Yes
Intuitive Programming System	Available
Rigid Tapping	Available
Work Offset Management	Yes
Tool Offset Management	Yes
USB Connectivity	Available
Ethernet	Available
User-Definable Macros	Available
Advanced Tool Management	Available

The TM-P platform was designed to make CNC machining accessible to operators who may not have extensive G-code experience. Haas’ Visual Part Programming System and conversational programming functions simplify setup and programming.

---

HAAS TM2P – 2013 – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	Approx. 400 IPM / 10.2 m/min
Y-Axis Rapid Traverse	Approx. 400 IPM / 10.2 m/min
Z-Axis Rapid Traverse	Approx. 400 IPM / 10.2 m/min
Maximum Cutting Feedrate	Approx. 400 IPM / 10.2 m/min
X-Axis Maximum Thrust	2,000 lbf
Y-Axis Maximum Thrust	2,000 lbf
Z-Axis Maximum Thrust	2,000 lbf
Feedrate Override	Standard
Linear Interpolation	Yes
Circular Interpolation	Yes

The TM2P platform provides 400 IPM rapid traverse rates on X, Y, and Z, along with a 400 IPM maximum cutting feedrate.

---

HAAS TM2P – 2013 – COOLANT & CHIP MANAGEMENT

Specification	Details
Flood Coolant	Available
Coolant Tank	Approx. 5 Gallons
Coolant Pump	Standard
Programmable Coolant	Available
Chip Auger	Configuration Dependent
Chip Conveyor	Configuration Dependent
Air Blast	Available
Through-Spindle Coolant	Optional
Coolant Filtration	Configuration Dependent
Mist Collector	Optional

The TM2P is equipped for conventional flood coolant, with additional coolant and chip-management options depending on the original machine configuration. Published TM2P specifications identify a 5-gallon flood coolant system on the standard configuration.

---

HAAS TM2P – 2013 – AUTOMATION / PROBING

Specification	Details
Wireless Intuitive Probing System	Available
Work Probe	Available
Tool Probe	Available
4th-Axis Drive	Available
4th-Axis Wiring	Available
Rigid Tapping	Available
Automatic Tool Changer	Standard
Conversational Programming	Standard
Advanced Tool Management	Available
Rotary Table Integration	Available

WIPS can be used for work-offset setting, tool-length measurement, and in-process inspection. Fourth-axis equipment can also expand the TM2P’s capability for indexed rotary machining.

---

HAAS TM2P – 2013 – POWER REQUIREMENTS

Specification	Details
Spindle Motor	7.5 HP / 5.6 kW
Single-Phase Input	220 VAC
Single-Phase Full Load	Approx. 40 A
Three-Phase Low Voltage	220 VAC
Three-Phase Low Voltage Full Load	Approx. 25 A
Three-Phase High Voltage	440 VAC
Three-Phase High Voltage Full Load	Approx. 13 A
Electrical Service	Single- or Three-Phase
Shop Air	Required
Air Requirement	Approx. 4 SCFM @ 100 PSI

One useful advantage of the TM2P is its ability to operate on single- or three-phase power, depending on configuration. The published specification identifies approximately 4 SCFM at 100 PSI compressed-air requirements.

---

HAAS TM2P – 2013 – DIMENSIONS

Specification	Details
Approximate Shipping Length	127″
Approximate Shipping Width	78″
Approximate Shipping Height	100″
Approximate Shipping Weight	5,060 lbs
Metric Weight	Approx. 2,295 kg
Floor Space	Compact Toolroom Configuration
Installation	Industrial
Rigging	Required

The published TM2P specifications list approximately 127 x 78 x 100 inches shipping dimensions and a shipping weight of approximately 5,060 pounds.

---

HAAS TM2P – 2013 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas
Model	TM2P
Year	2013
Machine Category	Vertical Machining Center
Machine Type	CNC Toolroom Mill
Axis Configuration	3-Axis
X-Axis Travel	40″
Y-Axis Travel	16″
Z-Axis Travel	16″
Table Size	57.75″ x 10.5″
Maximum Table Load	Approx. 1,000 lbs
Spindle Speed	6,000 RPM
Spindle Power	7.5 HP
Spindle Taper	CT40 / BT40
Tool Capacity	10 Stations
Maximum Feedrate	400 IPM
CNC Control	Haas CNC
4th-Axis Ready	Available
Shipping Weight	Approx. 5,060 lbs

---

INDUSTRIES THAT USE HAAS TM2P

The HAAS TM2P is suitable for many manufacturing environments, including:

• General machine shops
• Aerospace
• Automotive
• Defense
• Tool and die
• Mold manufacturing
• Maintenance and repair
• Prototype manufacturing
• Educational facilities
• Industrial machinery
• Contract manufacturing
• Precision engineering

Its long X-axis travel is especially valuable for shops machining long plates, fixtures, tooling components, brackets, and machine components.

---

TYPICAL PARTS HAAS TM2P CAN PRODUCE

The TM2P can produce:

• Brackets
• Mounting plates
• Fixtures
• Jigs
• Housings
• Flanges
• Tooling components
• Prototype parts
• Machine components
• Automotive components
• Aerospace components
• Industrial brackets
• Repair components
• Custom production parts

Typical machining operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3-axis profiling.

---

WHY CHOOSE HAAS TM2P

The primary advantage of the HAAS TM2P is its combination of a 40 x 16 x 16-inch machining envelope with a relatively compact toolroom-mill design. It provides substantially more X-axis capacity than many compact CNC mills while remaining easier to install than a larger production VMC.

The 7.5 HP, 6,000 RPM, 40-taper spindle is appropriate for general-purpose machining, while the 10-station automatic tool changer allows multiple tools to be used during a single machining cycle.

The machine is also flexible for smaller shops because the TM-P platform supports conversational programming, 4th-axis capability, probing, rigid tapping, advanced tool management, and other CNC features depending on configuration.

---

WHY BUY USED HAAS TM2P – 2013

A used 2013 HAAS TM2P can be a practical choice for manufacturers that want a large-travel CNC toolroom mill without the expense and footprint of a full-size VMC.

The machine’s 40-inch X-axis travel, 40-taper spindle, 10-tool ATC, and CNC control make it capable of both prototype and repeat-production work. The long table is particularly useful for machining multiple smaller components in one setup or accommodating long workpieces.

Before purchasing a used TM2P, inspect the spindle, ballscrews, linear guides, table, tool changer, drawbar, control electronics, coolant system, lubrication system, and electrical cabinet.

For a 2013 machine, buyers should also request power-on hours, cutting hours, spindle hours, maintenance history, alarm history, crash history, and a test-cut demonstration.

If the machine includes WIPS probing, 4th-axis wiring, additional coolant equipment, and complete tooling, it can offer considerably more value than a basic TM2P.

---

HOW MUCH DOES A USED HAAS TM2P – 2013 COST?

The used value of a 2013 HAAS TM2P depends heavily on spindle hours, machine condition, control condition, installed options, tooling, and whether the machine is ready for immediate production.

Because the TM2P is an older toolroom CNC rather than a high-production VMC, its value is generally driven more by mechanical condition and installed options than simply by the model year.

USED HAAS TM2P – 2013 PRICE RANGE	ESTIMATED COST
High Hours / Basic Configuration	$18,000 – $23,000
Functional Used Machine	$23,000 – $28,000
Good Condition / Production Ready	$28,000 – $33,000
Excellent / Well Equipped	$33,000 – $38,000
Very Low Hours / Premium Configuration	$38,000+

For a 2013 HAAS TM2P in good working condition, I would estimate approximately $25,000–$33,000 USD.

For your inventory listing, I would recommend a practical estimated asking-price range of $28,000–$33,000 USD for a clean, operational machine.

A low-hour machine with WIPS probing, 4th-axis capability, excellent spindle condition, complete tooling, and strong mechanical accuracy could reasonably command $33,000–$38,000+.

A high-hour machine with spindle wear, mechanical backlash, control issues, missing accessories, or repair requirements could fall closer to $18,000–$25,000.

Best estimated listing value: $28,000–$33,000 USD.

For an actual listing, verify the machine’s hour meter, spindle hours, control version, installed options, spindle condition, tool changer operation, and 4th-axis equipment before setting the final asking price.
