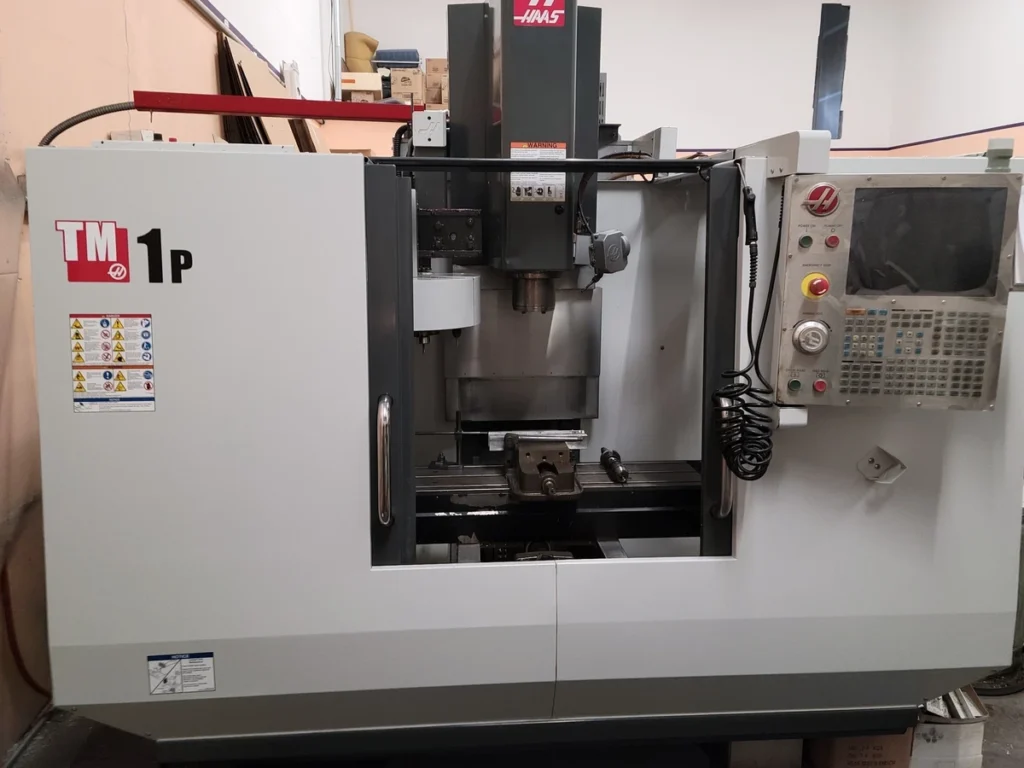

USED HAAS TM1P – 2012

The HAAS TM1P – 2012 is a CNC toolroom vertical machining center designed for job shops, prototype manufacturing, tooling, maintenance, education, and low-volume production. The TM1P combines the accessible design of a toolroom mill with a Haas CNC control and a 10-pocket automatic tool changer, allowing operators to perform multiple machining operations without manually changing tools.

The machine provides 30 inches of X-axis travel, 16 inches of Y-axis travel, and 16 inches of Z-axis travel. It uses a 40-taper, 7.5 HP, 6,000 RPM spindle with approximately 33 ft-lb of torque at 1,200 RPM. The TM1P also offers rapid traverses and maximum cutting feedrates of approximately 400 IPM.

A documented 2012 TM1P example was manufactured in August 2012 and was equipped with a 10-tool magazine, CAT 40 spindle, wireless intuitive probing, rigid tapping, chip auger, coolant system, and full enclosure, demonstrating the type of configuration that can be found in the used market.

---

HAAS TM1P – 2012 – AXIS

Specification	Details
Machine Type	CNC Toolroom Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	30″ / 762 mm
Y-Axis Travel	16″ / 406 mm
Z-Axis Travel	16″ / 406 mm
CNC Interpolation	3-Axis
4th-Axis Capability	Optional
Rotary Integration	Available
Rigid Tapping	Available
Spindle Orientation	Available

---

HAAS TM1P – 2012 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	30″ / 762 mm
Y-Axis Travel	16″ / 406 mm
Z-Axis Travel	16″ / 406 mm
Spindle Nose to Table Maximum	Approx. 20″ / 508 mm
Spindle Nose to Table Minimum	Approx. 4″ / 102 mm
Work Envelope	30″ x 16″ x 16″
Table Length	47.8″ / 1,213 mm
Table Width	10.5″ / 267 mm
Maximum Table Load	Up to 1,000 lbs / 454 kg, configuration dependent

The 30-inch X-axis travel gives the TM1P good capacity for long workpieces while maintaining a relatively compact toolroom-mill footprint. Haas’ current published specification lists the table at approximately 47.8 x 10.5 inches.

---

HAAS TM1P – 2012 – CAPACITY / TABLE

Specification	Details
Table Length	Approx. 47.8″ / 1,213 mm
Table Width	10.5″ / 267 mm
T-Slot Width	Approx. 0.626–0.630″
T-Slot Center Distance	4″ / 102 mm
Number of Standard T-Slots	3
Maximum Table Load	Up to 1,000 lbs / 454 kg, configuration dependent
Workholding	Vise / Fixture / Rotary
4th-Axis Integration	Optional
Table Type	Fixed T-Slot

---

HAAS TM1P – 2012 – SPINDLE

Specification	Details
Spindle Type	Direct-Speed Belt Drive
Spindle Taper	CAT 40 / CT or BT40
Maximum Spindle Speed	6,000 RPM
Spindle Motor	7.5 HP / 5.6 kW
Maximum Torque	33 ft-lb @ 1,200 RPM
Drive System	Direct-Speed Belt Drive
Bearing Lubrication	Grease Packed
Spindle Cooling	Air Cooled
Spindle Orientation	Available
Tool Retention	Automatic

The 7.5 HP, 6,000 RPM CAT 40 spindle provides a good balance between spindle speed and cutting capability for general-purpose machining. A documented 2012 machine is listed with a CAT 40 spindle and 7.5 HP motor.

---

HAAS TM1P – 2012 – TOOL CHANGER

Specification	Details
Tool Changer Type	Carousel
Tool Capacity	10 Stations
Tool Taper	CAT 40 / CT or BT40
Maximum Tool Diameter	Approx. 3.5″ / 89 mm
Maximum Tool Length	Approx. 12″ / 305 mm
Maximum Tool Weight	Approx. 12 lbs / 5.4 kg
Automatic Tool Change	Yes
Tool Management	CNC Controlled
Tool-to-Tool Time	Approx. 5.7 sec
Chip-to-Chip Time	Approx. 6.5 sec

The 10-tool automatic changer is a defining feature of the TM1P. It makes the machine substantially more productive for multi-operation work than a manual toolroom mill.

---

HAAS TM1P – 2012 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming	G-Code / Conversational
Conversational Programming	Yes
Display	15″ Color LCD, configuration dependent
USB	Available
Ethernet	Available
Visual Quick Code	Available
Visual Part Programming	Available
Rigid Tapping	Available
Coordinate Rotation and Scaling	Available
Wireless Intuitive Probing	Configuration dependent

A documented 2012 machine includes a 15-inch color LCD, USB, Ethernet, Visual Quick Code, rigid tapping, coordinate rotation/scaling, and wireless intuitive probing. Individual machines may have different option packages.

---

HAAS TM1P – 2012 – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	400 IPM / 10.2 m/min
Y-Axis Rapid Traverse	400 IPM / 10.2 m/min
Z-Axis Rapid Traverse	400 IPM / 10.2 m/min
Maximum Cutting Feedrate	400 IPM / 10.2 m/min
X-Axis Maximum Thrust	Approx. 2,000 lbf
Y-Axis Maximum Thrust	Approx. 2,000 lbf
Z-Axis Maximum Thrust	Approx. 2,000 lbf
Feedrate Override	Standard
Linear Interpolation	Yes
Circular Interpolation	Yes

Haas lists 400 IPM rapid traverse and maximum cutting feedrate for the TM1P.

---

HAAS TM1P – 2012 – COOLANT & CHIP MANAGEMENT

Specification	Details
Flood Coolant	Available
Coolant System	Flood
Coolant Capacity	Approx. 20 gal / 76 L
Coolant Pump	Available
Programmable Coolant	Available
Chip Auger	Optional / Configuration Dependent
Chip Conveyor	Configuration Dependent
Air Blast	Available
Through-Spindle Coolant	Optional
Mist Collector	Optional

The TM1P platform is offered with a 20-gallon flood coolant system, while chip augers, probing, and other options depend on the specific machine. A documented 2012 example included a chip auger and coolant system.

---

HAAS TM1P – 2012 – AUTOMATION / PROBING

Specification	Details
Automatic Tool Changer	Standard
Tool Capacity	10
Work Probe	Optional
Tool Probe	Optional
Wireless Intuitive Probing	Optional
4th-Axis Drive	Optional
4th-Axis Wiring	Optional
Rigid Tapping	Available
Conversational Programming	Standard
Rotary Table Integration	Available

A 2012 example listed by Champion Machinery included wireless intuitive probing, rigid tapping, a 10-tool magazine, and chip auger.

---

HAAS TM1P – 2012 – POWER REQUIREMENTS

Specification	Details
Spindle Motor	7.5 HP / 5.6 kW
Single-Phase Input	220 VAC
Single-Phase Full Load	Approx. 40 A
Three-Phase Low Voltage	220 VAC
Three-Phase Low Voltage Full Load	Approx. 25 A
Three-Phase High Voltage	440 VAC
Three-Phase High Voltage Full Load	Approx. 13 A
Electrical Service	Single- or Three-Phase
Shop Air	Required
Air Requirement	Approx. 4 SCFM @ 100 PSI

Haas specifies 220 VAC single-phase or 220/440 VAC three-phase configurations, depending on the machine configuration.

---

HAAS TM1P – 2012 – DIMENSIONS

Specification	Details
Approximate Shipping Length	112″
Approximate Shipping Width	80″
Approximate Shipping Height	100″
Current Published Shipping Weight	Approx. 4,440 lbs / 2,014 kg
Floor Space	Compact Toolroom Configuration
Installation	Industrial
Rigging	Required

Haas’ current standard TM1P specification lists approximately 112 x 80 x 100 inches and 4,440 pounds shipping weight. Older 2012 machines can differ, so the serial-number-specific machine documentation should be used for exact shipping information.

---

HAAS TM1P – 2012 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas
Model	TM1P
Year	2012
Machine Category	Vertical Machining Center
Machine Type	CNC Toolroom Mill
Axis Configuration	3-Axis
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	16″
Table Size	Approx. 47.8″ x 10.5″
Spindle Speed	6,000 RPM
Spindle Power	7.5 HP
Spindle Taper	CAT 40 / CT or BT40
Tool Capacity	10 Stations
Maximum Cutting Feedrate	400 IPM
CNC Control	Haas CNC
4th-Axis Capability	Optional
Coolant	Flood
Tool Changer	Automatic
Machine Weight	Configuration Dependent

---

INDUSTRIES THAT USE HAAS TM1P

The HAAS TM1P is suitable for:

• General machine shops
• Aerospace
• Automotive
• Defense
• Tool and die
• Mold manufacturing
• Prototype manufacturing
• Maintenance and repair
• Educational facilities
• Industrial machinery
• Contract manufacturing
• Precision engineering
• Small-batch production

---

TYPICAL PARTS HAAS TM1P CAN PRODUCE

The TM1P can produce:

• Brackets
• Mounting plates
• Fixtures
• Jigs
• Housings
• Flanges
• Tooling components
• Prototype parts
• Machine components
• Automotive components
• Aerospace components
• Industrial brackets
• Repair components
• Custom production parts

Typical machining operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3-axis profiling.

---

WHY CHOOSE HAAS TM1P

The main advantage of the HAAS TM1P is its combination of 30 x 16 x 16-inch travels, a 40-taper spindle, 10-tool automatic tool changer, and 400 IPM rapid rates in a relatively compact machine.

The 7.5 HP, 6,000 RPM spindle provides enough capability for a broad range of general machining applications. The automatic tool changer allows operators to load multiple tools and perform drilling, milling, tapping, boring, and finishing operations in a single setup.

The TM1P is also well suited to shops transitioning from manual milling to CNC because of its conversational programming capabilities and relatively straightforward Haas control.

---

WHY BUY USED HAAS TM1P – 2012

A used 2012 HAAS TM1P can be a practical option for a shop looking for a CNC toolroom mill with automatic tool changing without paying the price of a newer machine.

The machine offers 30-inch X-axis travel, 16-inch Y and Z travel, a 7.5 HP 6,000 RPM spindle, CAT 40 tooling, 10-tool ATC, 400 IPM rapids, and Haas CNC control.

A documented 2012 machine was equipped with WIPS probing, rigid tapping, VQC, coolant, chip auger, full enclosure, and a 10-tool magazine, showing that well-equipped examples can offer considerable functionality.

Before purchasing, inspect the spindle, ballscrews, linear guides, table, way covers, automatic tool changer, drawbar, coolant system, lubrication system, and electrical cabinet.

For a machine of this age, buyers should also check power-on hours, motion hours, spindle hours, backlash, spindle runout, axis accuracy, alarm history, maintenance records, and crash history.

---

HOW MUCH DOES A USED HAAS TM1P – 2012 COST?

The used value of a 2012 HAAS TM1P varies significantly depending on condition, hours, tooling, probing, chip-management equipment, enclosure, and maintenance history.

Current marketplace evidence shows a 2012 TM1P advertised at $27,000 on eBay, while another 2012 example is listed at $24,500. Equipt currently shows used TM1P listings and a market guide, although its displayed price data is limited.

Based on these market references and the age/configuration of the machine, a practical pricing range is:

USED HAAS TM1P – 2012 PRICE RANGE	ESTIMATED COST
High Hours / Basic Configuration	$18,000 – $21,000
Functional Used Machine	$21,000 – $24,000
Good Condition / Production Ready	$24,000 – $27,000
Excellent / Well Equipped	$27,000 – $30,000
Very Low Hours / Premium Configuration	$30,000+

For a 2012 HAAS TM1P in good working condition, I would estimate approximately $23,000–$27,000 USD.

For your inventory listing, I would recommend a practical asking-price range of $25,000–$28,000 USD for a clean, operational machine with good tooling and accessories.

A machine equipped with WIPS probing, chip auger, rigid tapping, full enclosure, good spindle condition, low hours, and complete tooling could potentially command $28,000–$31,000+.

A high-hour machine with substantial wear, missing accessories, or repair requirements could fall closer to $18,000–$22,000.

Best estimated listing value: $25,000–$28,000 USD.
