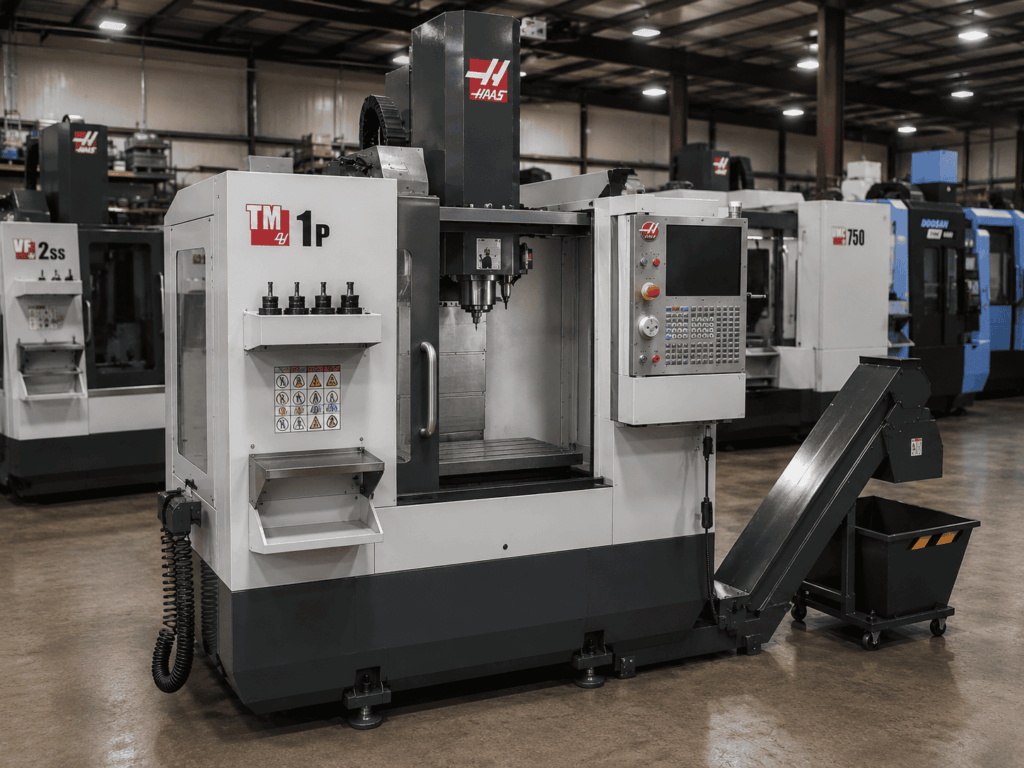

USED HAAS TM-1P – 2005

The 2005 Haas TM-1P is a versatile 3-axis CNC Toolroom Mill designed for prototype machining, maintenance work, low-volume production, and educational environments. Manufactured by Haas Automation, the TM-1P bridges the gap between a manual knee mill and a full-production CNC machining center by combining the simplicity of manual machining with the precision and repeatability of CNC technology. Unlike traditional production machining centers, the TM-1P is engineered for flexibility, ease of programming, and cost-effective operation, making it a popular choice for toolrooms, machine shops, maintenance departments, research facilities, and manufacturers transitioning from manual to CNC machining.

Built with a rigid cast-iron frame and precision linear motion components, the Haas TM-1P delivers dependable accuracy while remaining easy to operate and maintain. The machine features 30 inches of X-axis travel, 16 inches of Y-axis travel, and 16 inches of Z-axis travel, providing ample capacity for machining fixtures, tooling, repair parts, brackets, prototypes, and small production components. The 2005 model is equipped with a 40-taper spindle capable of 6,000 RPM, powered by a 7.5 HP (5.6 kW) vector drive motor. Its direct-speed belt-driven spindle offers smooth cutting performance across a wide range of materials including aluminum, steel, stainless steel, brass, plastics, and composite materials. Unlike the standard TM-1, the TM-1P includes a 10-pocket automatic tool changer, significantly improving productivity by reducing setup and tool change times.

The 2005 Haas TM-1P is typically equipped with the Classic Haas CNC Control, offering user-friendly G-code programming, conversational programming capabilities, USB or RS-232 communication (depending on configuration), and reliable shop-floor performance. The machine operates on either single-phase or three-phase electrical power, making it ideal for smaller shops and facilities without industrial three-phase service. Optional accessories such as rigid tapping, coolant systems, probing, rotary tables, and chip management systems further increase the machine’s versatility for a wide variety of machining tasks.

The Haas TM-1P is widely used in industries including aerospace, automotive, medical, electronics, maintenance, education, and general manufacturing. Typical applications include tooling, fixtures, machine repair parts, gauges, brackets, prototype components, molds, and custom fabricated parts. Because of its ease of use and affordable operating costs, the TM-1P is especially valuable for one-off machining jobs, engineering departments, and shops producing short production runs.

Purchasing a used 2005 Haas TM-1P provides manufacturers with reliable CNC milling capability at a fraction of the cost of a new machine. Haas machines are well known for their straightforward controls, readily available replacement parts, low maintenance requirements, and dependable long-term performance. A properly maintained TM-1P continues to deliver excellent accuracy and productivity, making it one of the most sought-after toolroom mills available in the used CNC equipment market.

HAAS TM-1P – 2005 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS TM-1P – 2005 COST?

A used 2005 Haas TM-1P typically sells for $12,000 to $25,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and installed options such as rigid tapping, coolant system upgrades, rotary tables, or probing equipment. Machines with documented maintenance records and low operating hours generally command higher resale values because they require less refurbishment before entering production.

Before purchasing a used Haas TM-1P, buyers should inspect the spindle condition, ballscrews, axis backlash, lubrication system, automatic tool changer operation, and overall machine accuracy. A properly maintained 2005 Haas TM-1P offers excellent long-term value by combining dependable CNC performance, easy programming, and low operating costs, making it an ideal investment for prototype work, maintenance machining, educational programs, and small manufacturing shops.

HAAS TM-1P VS HAAS TM-1 – WHICH ONE TO BUY?

The Haas TM-1P and Haas TM-1 are Toolroom Mills designed to provide affordable CNC machining capabilities for job shops, toolrooms, prototype manufacturers, maintenance departments, and educational facilities. Both machines combine the simplicity of manual machining with the flexibility of CNC operation, making them popular choices for businesses transitioning from conventional mills to CNC technology. The main difference between the two models is that the Haas TM-1P is an upgraded version with enhanced performance, improved spindle capability, and additional standard features compared with the original TM-1.

The Haas TM-1 is designed for basic CNC milling operations including drilling, tapping, pocketing, contouring, and fixture machining. Its compact footprint and straightforward operation make it ideal for small shops and training environments where affordability and ease of use are important.

The Haas TM-1P improves upon the TM-1 with faster machining capability, a more powerful spindle option, improved control features, and better production performance. It is better suited for shops that require increased productivity while maintaining the flexibility of a toolroom-style machine. The TM-1P can handle a wider variety of materials and more demanding machining applications.

Both machines provide excellent value for prototype work, repair machining, short production runs, and educational applications. The TM-1 is suitable for basic CNC milling requirements, while the TM-1P offers greater capability for manufacturers looking for improved performance and longer-term production flexibility.

For users mainly performing light machining, training, or occasional CNC work, the Haas TM-1 provides a cost-effective solution. However, for businesses expecting regular production, faster cycle times, and improved machining capacity, the Haas TM-1P is the better investment due to its enhanced features and greater productivity.

HAAS TM-1P SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas TM-1P does not rotate, the issue is usually caused by machine safety conditions, spindle drive faults, electrical problems, lubrication issues, or CNC programming errors. A structured troubleshooting process helps identify the cause quickly and prevents unnecessary downtime.

Begin by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive alarms, lubrication warnings, servo faults, or thermal overload conditions can prevent spindle operation. Clear all alarms and verify that the machine is ready before attempting spindle startup.

Inspect the spindle drive system for possible electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, or spindle motor overloads may stop spindle rotation. Verify that spindle lubrication, cooling systems, compressed air supply, and machine power are functioning correctly. Proper lubrication and cooling are critical for protecting spindle components.

Review the CNC program and machine settings. Missing M03 or M04 spindle commands, incorrect spindle speed settings, spindle orientation commands, or interrupted tool change operations can prevent spindle startup. If recent maintenance, software updates, or battery replacement has occurred, verify machine parameters.

If the spindle starts but immediately stops, inspect mechanical components such as spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting loads. Excessive vibration, overheating, or abnormal spindle noise may indicate mechanical wear.

Regular preventive maintenance, proper lubrication, clean electrical cabinets, and routine spindle inspections significantly reduce unexpected spindle failures. If spindle alarms remain active after basic troubleshooting, professional Haas service diagnostics may be required.

HAAS TM-1P MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas TM-1P is designed for dependable CNC milling performance, but regular preventive maintenance is essential for maintaining accuracy, spindle reliability, and long-term machine life. Proper care of the spindle, tool changer, lubrication system, coolant system, and axis components helps ensure consistent machining performance.

Daily maintenance should include removing chips from the machine enclosure, spindle taper, tool holders, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, and spindle cleanliness before beginning production. Workholding fixtures, cutting tools, and tool holders should also be checked for wear or contamination.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, coolant nozzles, chip trays, automatic lubrication systems, spindle air purge systems, and tool changer operation. Smooth tool changes and proper lubrication are essential for maintaining machining accuracy.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that can reduce tool life and surface finish quality.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Maintaining detailed service records helps identify potential issues before they become major repairs.

A consistent maintenance program improves spindle life, machining accuracy, surface finish, and overall machine reliability. The Haas TM-1P is designed for job shops and toolrooms requiring dependable CNC performance, and proper preventive care ensures maximum productivity throughout its operating life.

FAQ

What is the Haas TM-1P?

The Haas TM-1P is a CNC Toolroom Mill designed to provide affordable and flexible CNC machining capability for small shops, toolrooms, maintenance departments, prototype manufacturers, and educational facilities. It combines the operation of a traditional manual mill with the automation and precision of a Haas CNC control system. The machine is capable of performing milling, drilling, tapping, pocketing, and contouring operations on materials such as aluminum, steel, plastics, and other engineering materials.

The TM-1P features a rigid cast-iron structure, high-performance spindle, automatic tool changer option, large work envelope, and user-friendly programming environment. Its compact footprint makes it suitable for businesses that need CNC capability without investing in a large production machining center.

What are the most common problems with the Haas TM-1P?

The most common problems with the Haas TM-1P include spindle alarms, automatic tool changer issues, lubrication system warnings, encoder faults, servo drive alarms, coolant contamination, tool retention problems, spindle orientation errors, electrical communication faults, and axis positioning issues.

These problems are generally related to normal machine wear, insufficient maintenance, contamination, improper lubrication, or incorrect operating procedures. Regular cleaning, lubrication, coolant management, inspection of wear components, and scheduled preventive maintenance can significantly reduce downtime and maintain reliable machining performance.
