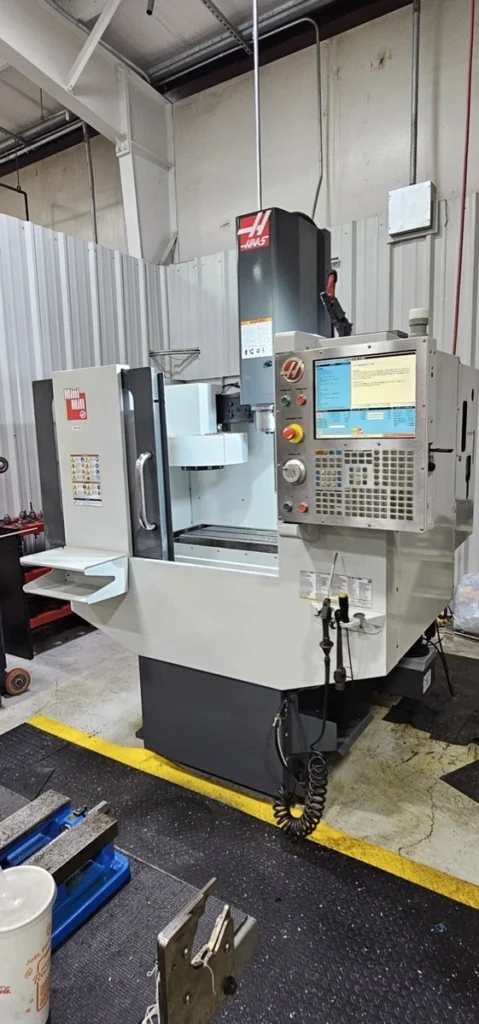

USED HAAS MINI MILL 2014
The 2014 Haas Mini Mill is a compact 3-axis vertical machining center designed for milling, drilling, tapping, boring, and general precision machining applications. Manufactured by Haas Automation, the Mini Mill was developed to provide full-size CNC machining capability in a compact and cost-effective package. It is widely used by job shops, manufacturers, educational institutions, prototype facilities, and production environments where floor space and machine investment are important considerations.
The Haas Mini Mill 2014 provides approximately 16 inches of X-axis travel, 14 inches of Y-axis travel, and 14 inches of Z-axis travel, giving it a practical work envelope for small and medium-sized components. The machine typically features a 40-taper spindle with an 8,000 RPM maximum speed and approximately 7.5 HP, providing suitable performance for machining aluminum, steel, stainless steel, plastics, and other common engineering materials.
A 10-pocket carousel automatic tool changer allows the machine to perform multiple machining operations without frequent manual tool changes. Depending on the exact configuration, options may include a 20-tool changer, probing systems, high-speed machining features, rigid tapping, and other production enhancements.
The compact design of the 2014 Haas Mini Mill makes it an excellent choice for facilities needing additional CNC capacity without the footprint of a full-size VMC. Purchasing a used Haas Mini Mill 2014 can provide reliable CNC machining capability at a significantly lower investment than buying a new comparable machine.
HAAS MINI MILL 2014 – AXIS
| Specification | Value |
|---|---|
| Number of Axes | 3 |
| X-Axis Travel | 406 mm (16″) |
| Y-Axis Travel | 356 mm (14″) |
| Z-Axis Travel | Approximately 356 mm (14″) |
| Rapid Traverse | Approximately 18–20 m/min |
HAAS MINI MILL 2014 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X-Axis Travel | 406 mm (16″) |
| Y-Axis Travel | 356 mm (14″) |
| Z-Axis Travel | Approximately 356 mm (14″) |
| Spindle Nose to Table | Depends on Machine Configuration |
| Machining Envelope | Suitable for Small and Medium-Sized Components |
HAAS MINI MILL 2014 – CAPACITY / TABLE
| Specification | Value |
|---|---|
| Table Length | Approximately 914 mm (36″) |
| Table Width | Approximately 305 mm (12″) |
| Maximum Table Load | Approximately 227 kg (500 lbs) |
| Number of T-Slots | 3 |
| T-Slot Width | Approximately 16 mm |
| T-Slot Center Distance | Approximately 110 mm |
HAAS MINI MILL 2014 – SPINDLE
| Specification | Value |
|---|---|
| Maximum Spindle Speed | 8,000 RPM |
| Spindle Motor Power | Approximately 7.5 HP |
| Spindle Taper | CT40 / BT40 |
| Drive Type | Direct Speed Belt Drive |
| Maximum Torque | Approximately 61 Nm |
| Bearing Lubrication | Air/Oil Injection |
| Cooling | Air Cooled |
HAAS MINI MILL 2014 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Changer Type | Carousel Automatic Tool Changer |
| Standard Tool Capacity | 10 Tools |
| Optional Tool Capacity | 20 Tools |
| Maximum Tool Diameter | Approximately 89 mm |
| Maximum Tool Weight | Approximately 5.4 kg |
| Tool to Tool Time | Approximately 4.2 Seconds |
| Chip to Chip Time | Approximately 5 Seconds |
HAAS MINI MILL 2014 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | Conversational and EIA/ISO |
| Rigid Tapping | Available |
| Ethernet Connectivity | Available Depending on Configuration |
| USB Connectivity | Available Depending on Configuration |
| Advanced Tool Management | Available |
| High Speed Machining | Optional |
HAAS MINI MILL 2014 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant System | Flood Coolant |
| Coolant Tank Capacity | Approximately 45 Gallons |
| Coolant Pump | Standard |
| Chip Management | Enclosed Work Area |
| Automatic Lubrication | Standard |
| Chip Conveyor | Optional |
HAAS MINI MILL 2014 – FEEDRATES
| Specification | Value |
|---|---|
| X-Axis Rapid | Approximately 800 ipm |
| Y-Axis Rapid | Approximately 800 ipm |
| Z-Axis Rapid | Approximately 800 ipm |
| Maximum Cutting Feedrate | Approximately 650 ipm |
| Rapid Traverse | Approximately 20.3 m/min |
HAAS MINI MILL 2014 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Electrical Supply | 220V, 3-Phase |
| Optional High Voltage | Depending on Configuration |
| Air Requirement | Approximately 4 SCFM at 100 PSI |
| Minimum Air Pressure | Approximately 80 PSI |
| Electrical Configuration | Machine-Specific |
HAAS MINI MILL 2014 – DIMENSIONS
| Specification | Value |
|---|---|
| Machine Footprint | Compact Space-Saving Design |
| Machine Length | Approximately 2,000 mm |
| Machine Width | Approximately 1,900 mm |
| Machine Height | Approximately 2,300 mm |
| Machine Weight | Approximately 1,800–2,000 kg |
HAAS MINI MILL 2014 – GENERAL INFORMATION
| Item | Details |
|---|---|
| Manufacturer | Haas Automation |
| Machine Type | Vertical Machining Center |
| Model | Mini Mill |
| Year | 2014 |
| Number of Axes | 3 |
| Spindle Taper | CT40 / BT40 |
| Primary Operations | Milling, Drilling, Tapping, Boring |
| Typical Materials | Aluminum, Steel, Stainless Steel, Brass, Plastics |
WHY BUY USED HAAS MINI MILL 2014
Purchasing a used Haas Mini Mill 2014 provides manufacturers with a compact and versatile CNC vertical machining center at a lower investment than purchasing new equipment. The Mini Mill is particularly attractive to job shops and smaller manufacturers that need reliable machining capability but have limited floor space.
The 40-taper spindle provides greater tooling flexibility than smaller BT30 machining centers, allowing the machine to handle a broad range of milling, drilling, tapping, and boring operations. The standard 8,000 RPM spindle and approximately 7.5 HP motor provide practical performance for machining aluminum, steel, stainless steel, and other common engineering materials.
The machine’s compact footprint is one of its greatest advantages. A Haas Mini Mill can provide an additional production spindle without requiring the space of a full-size vertical machining center. This makes it useful as a second-operation machine, prototype machine, dedicated production machine, or additional capacity for a growing shop.
The automatic tool changer allows multiple tools to be loaded for multi-operation work, while the Haas CNC Control provides a familiar programming and operating platform. Depending on the machine configuration, features such as rigid tapping, probing, high-speed machining, and expanded tool capacity may further improve productivity.
For manufacturers seeking a proven, compact, and affordable CNC vertical machining center, the 2014 Haas Mini Mill offers an excellent combination of versatility, reliability, and value.
HOW MUCH DOES A USED HAAS MINI MILL 2014 COST?
The price of a used Haas Mini Mill 2014 depends on the machine’s overall condition, spindle hours, maintenance history, CNC control configuration, installed options, tooling, and previous operating environment. Machines with lower operating hours, documented maintenance records, probing systems, expanded tool capacity, and additional tooling packages may command higher resale values.
Before purchasing a used Mini Mill, buyers should inspect spindle operation, spindle bearings, axis accuracy, ball screws, linear guideways, tool changer operation, coolant system, lubrication system, and CNC control diagnostics. Spindle hours and total power-on hours should also be reviewed to better understand the machine’s previous usage.
Additional costs such as transportation, rigging, installation, electrical connection, tooling, calibration, and operator setup should be included when calculating the total investment.
The 2014 Haas Mini Mill remains an attractive used CNC option because it provides a 40-taper spindle, compact design, automatic tool changing, and a practical machining envelope at a lower price than many larger VMCs. For job shops, prototype manufacturers, educational facilities, and production environments, a properly maintained used Haas Mini Mill 2014 can deliver excellent long-term value.
INDUSTRIES THAT USE HAAS MINI MILL 2014
- Aerospace Manufacturing
- Automotive Manufacturing
- Medical Device Manufacturing
- Electronics Manufacturing
- Precision Engineering
- Contract Manufacturing
- Industrial Equipment
- Tool and Fixture Manufacturing
- Prototype Manufacturing
- Educational and Technical Training
TYPICAL PARTS HAAS MINI MILL 2014 CAN PRODUCE
- Precision Brackets
- Aluminum Housings
- Fixture Components
- Small Mold Components
- Automotive Parts
- Medical Components
- Electronic Enclosures
- Hydraulic Components
- Precision Plates
- Prototype Parts
- Machine Components
- Custom Production Parts
WHY CHOOSE HAAS MINI MILL 2014
The 2014 Haas Mini Mill combines a compact footprint, 40-taper spindle, 8,000 RPM spindle speed, automatic tool changing, and a practical 3-axis machining envelope to provide reliable CNC milling capability in a space-efficient package. Its compact design makes it suitable for both small job shops and larger manufacturers needing additional machining capacity. With its versatile tooling platform and proven Haas CNC Control, the 2014 Haas Mini Mill remains a popular choice in the used CNC machining market.
