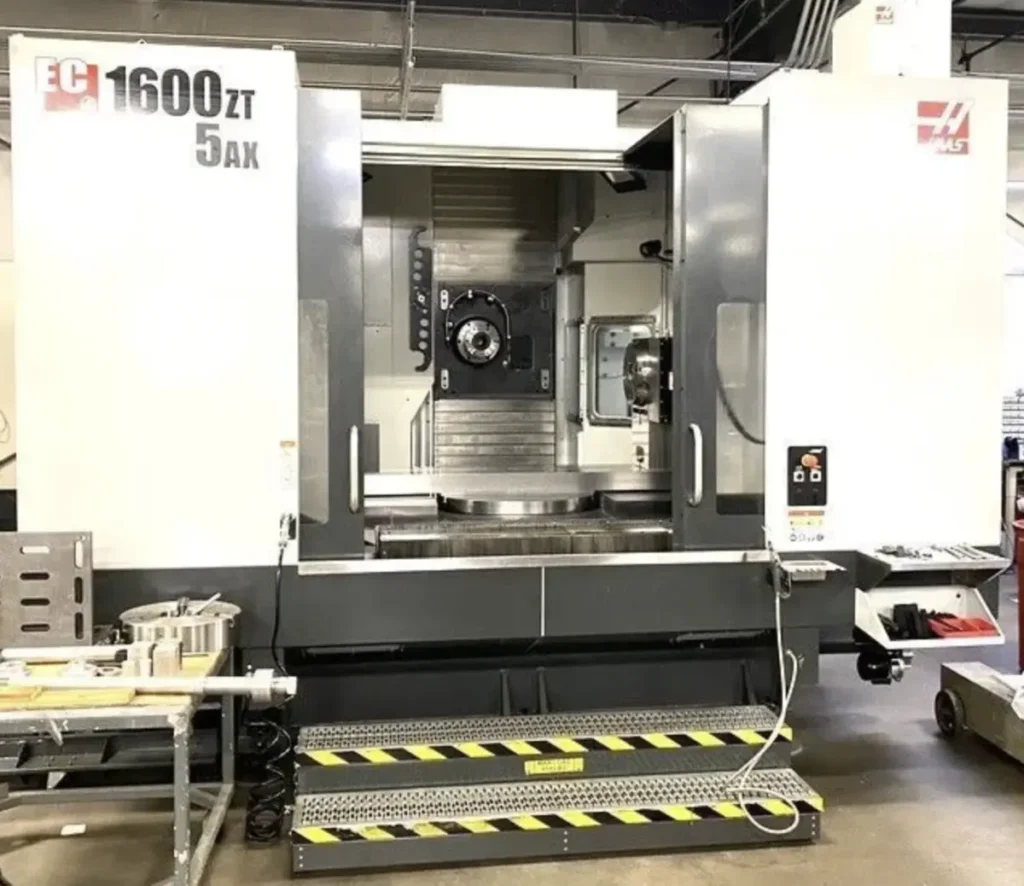

HAAS EC1600ZT-5AX – 2022
USED HAAS EC1600ZT-5AX – 2022
The HAAS EC1600ZT-5AX is a large-capacity 5-axis horizontal machining center designed for manufacturers that require advanced multi-sided machining, heavy-duty cutting performance, and exceptional productivity when machining large and complex components. Built on the proven HAAS EC1600 platform, the 2022 HAAS EC1600ZT-5AX combines a spacious work envelope, integrated 5-axis machining capability, powerful CAT 50 spindle, and modern CNC technology to deliver a versatile solution for demanding manufacturing applications.
As industries continue to push for greater efficiency and reduced setup times, 5-axis machining has become increasingly important for producing complex parts with intricate geometries. The EC1600ZT-5AX allows manufacturers to machine multiple sides of a component in a single setup, significantly reducing fixture changes, improving part accuracy, and shortening overall production cycles. This capability is particularly valuable when machining aerospace structures, energy-sector components, heavy equipment parts, and large industrial assemblies.
The machine’s horizontal spindle configuration offers excellent chip evacuation, allowing chips to naturally fall away from the workpiece during machining. This improves tool life, enhances surface finishes, and reduces the risk of chip recutting during long machining cycles. Combined with the machine’s rigid cast iron construction, the EC1600ZT-5AX provides the stability required for both aggressive roughing operations and precision finishing applications.
The dual-pallet system further enhances productivity by allowing operators to load and unload workpieces while machining continues on the opposite pallet. This dramatically increases spindle utilization and reduces downtime. The machine’s large pallet capacity enables manufacturers to process oversized workpieces weighing several tons while maintaining exceptional accuracy and repeatability.
The 2022 HAAS EC1600ZT-5AX is commonly utilized in aerospace, defense, energy, oil and gas, transportation, mining, marine, and industrial equipment manufacturing sectors. Its ability to combine large-part capacity with advanced 5-axis machining flexibility makes it one of the most capable horizontal machining centers available in the used CNC equipment market.
For manufacturers seeking to increase production efficiency while reducing setup complexity, the HAAS EC1600ZT-5AX offers a powerful and cost-effective solution.
HAAS EC1600ZT-5AX – AXIS
| Specification | Details |
|---|---|
| Machine Type | 5-Axis Horizontal Machining Center |
| Axis Configuration | Full 5-Axis |
| X-Axis Travel | 64″ |
| Y-Axis Travel | 50″ |
| Z-Axis Travel | 40″ |
| B-Axis Rotation | 360° Continuous |
| Additional Rotary Axis | Integrated 5-Axis Capability |
| Simultaneous 5-Axis Machining | Yes |
HAAS EC1600ZT-5AX – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 64″ |
| Y-Axis Travel | 50″ |
| Z-Axis Travel | 40″ |
| Maximum Workpiece Diameter | 78″ |
| Maximum Workpiece Height | 55″ |
| Pallet Size | 63″ x 55″ |
| Maximum Workpiece Weight | 10,000 lbs |
HAAS EC1600ZT-5AX – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Number of Pallets | 2 |
| Pallet Dimensions | 63″ x 55″ |
| Maximum Pallet Load | 10,000 lbs |
| Rotary Table Type | Integrated 5-Axis Trunnion System |
| Continuous Positioning | Yes |
| Multi-Sided Machining | Yes |
HAAS EC1600ZT-5AX – SPINDLE
| Specification | Details |
|---|---|
| Maximum Spindle Speed | 10,000 RPM |
| Spindle Motor Power | 50 HP |
| Peak Power | 60 HP |
| Spindle Taper | CAT 50 |
| Drive Type | Inline Direct Drive |
| Through-Spindle Coolant | Available |
HAAS EC1600ZT-5AX – TOOL CHANGER
| Specification | Details |
|---|---|
| Tool Capacity | 50 Tools |
| Tool Changer Type | Side-Mount Automatic Tool Changer |
| Maximum Tool Diameter | 5″ |
| Maximum Tool Length | 16″ |
| Maximum Tool Weight | 30 lbs |
| Random Tool Access | Standard |
HAAS EC1600ZT-5AX – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Haas Next Generation Control |
| Programming Capability | Full 5-Axis Machining |
| Ethernet Networking | Standard |
| USB Connectivity | Standard |
| Remote Monitoring | Available |
| High-Speed Processing | Yes |
HAAS EC1600ZT-5AX – COOLANT / DUST / WATER MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant System | Standard |
| Through-Spindle Coolant | Available |
| Chip Conveyor | Standard |
| Coolant Filtration System | Standard |
| Large Coolant Capacity | Yes |
| Automatic Chip Removal | Yes |
HAAS EC1600ZT-5AX – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Voltage | 220V / 440V |
| Electrical Requirement | 3 Phase |
| Connected Load | Approx. 65 kVA |
| Air Requirement | Shop Air Required |
HAAS EC1600ZT-5AX – DIMENSIONS
| Specification | Details |
|---|---|
| Length | Approx. 320″ |
| Width | Approx. 230″ |
| Height | Approx. 150″ |
| Machine Weight | Approx. 48,000 lbs |
HAAS EC1600ZT-5AX – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Haas Automation |
| Model | EC1600ZT-5AX |
| Year | 2022 |
| Machine Category | 5-Axis Horizontal Machining Center |
| Country of Origin | USA |
| Primary Application | Large-Part 5-Axis Machining |
| Production Environment | High-Performance Manufacturing |
INDUSTRIES THAT USE HAAS EC1600ZT-5AX
The HAAS EC1600ZT-5AX is widely used across industries requiring complex machining of large components. Aerospace manufacturers utilize the machine for structural aircraft components, engine mounts, bulkheads, landing gear assemblies, and large titanium or aluminum aerospace structures. The machine’s simultaneous 5-axis capability allows intricate geometries to be produced efficiently while maintaining tight tolerances.
Energy and power generation companies frequently machine turbine housings, compressor casings, pump bodies, generator frames, and valve assemblies. The machine’s large work envelope and powerful spindle make it suitable for handling large castings and heavy-duty materials.
Heavy equipment manufacturers use the EC1600ZT-5AX for gearbox housings, transmission components, mining equipment structures, hydraulic system components, and machine frames. The ability to machine multiple sides of a part in one setup improves productivity and accuracy.
Additional industries include defense manufacturing, oil and gas equipment production, transportation equipment manufacturing, marine applications, industrial automation, and precision contract machining operations.
TYPICAL PARTS HAAS EC1600ZT-5AX CAN PRODUCE
The HAAS EC1600ZT-5AX is capable of producing a wide variety of large and complex precision-machined components. Aerospace applications include bulkheads, structural aircraft assemblies, engine support structures, landing gear components, and complex aerospace housings.
Energy-sector manufacturers commonly machine turbine casings, compressor housings, valve bodies, generator frames, pump assemblies, and large support structures. The machine’s 5-axis capability enables machining of complex surfaces and angled features without multiple setups.
Heavy equipment manufacturers frequently produce transmission housings, gearbox casings, hydraulic manifolds, mining equipment components, machine bases, and structural weldments. The machine’s large pallet capacity allows oversized workpieces to be machined efficiently.
Other applications include marine propulsion systems, oilfield equipment, agricultural machinery components, defense system structures, transportation equipment assemblies, robotic automation bases, and custom-engineered industrial products.
WHY CHOOSE HAAS EC1600ZT-5AX
The HAAS EC1600ZT-5AX offers manufacturers an outstanding combination of size, power, flexibility, and productivity. One of its greatest advantages is the ability to perform full 5-axis machining on large workpieces that would otherwise require multiple machines or numerous setups.
The horizontal spindle configuration provides superior chip evacuation and coolant access, helping improve tool life and machining consistency. This is particularly beneficial during long machining cycles involving difficult materials and large parts.
The integrated 5-axis system allows complex geometries, compound angles, and multiple surfaces to be machined in a single setup. This reduces setup time, improves dimensional accuracy, and increases overall manufacturing efficiency.
The dual-pallet design further enhances productivity by allowing continuous operation during part loading and unloading. Combined with the powerful CAT 50 spindle and modern Haas control system, the machine delivers exceptional performance across a broad range of manufacturing applications.
For companies seeking advanced large-part machining capability, the HAAS EC1600ZT-5AX remains one of the most versatile and productive solutions available.
WHY BUY USED HAAS EC1600ZT-5AX
Purchasing a used HAAS EC1600ZT-5AX allows manufacturers to acquire advanced 5-axis machining technology at a significantly lower investment compared to purchasing a new machine. This provides access to high-end manufacturing capability while preserving capital for tooling, automation, staffing, and facility improvements.
The 2022 model incorporates modern CNC technology, advanced motion control, improved networking capabilities, and sophisticated machining functionality that remain highly relevant in today’s manufacturing environment. These features help ensure long-term productivity and competitiveness.
Many used machines include valuable options such as through-spindle coolant, probing systems, expanded tool storage, advanced software packages, rotary enhancements, and tooling packages. These additions can substantially increase machine value and reduce future investment requirements.
Another major benefit is reduced lead time. New large-frame 5-axis horizontal machining centers often require extended delivery schedules, whereas used machines may be available for immediate installation and production.
For manufacturers seeking high-performance large-part machining with excellent return on investment, a used HAAS EC1600ZT-5AX offers exceptional value.
HOW MUCH DOES A USED HAAS EC1600ZT-5AX COST?
The value of a used HAAS EC1600ZT-5AX depends on machine condition, spindle hours, maintenance records, installed options, tooling inventory, and overall market demand. Machines with lower operating hours and documented maintenance histories typically command higher resale values because they are viewed as lower-risk investments.
Optional features such as through-spindle coolant, advanced probing systems, expanded tool changers, software upgrades, automation interfaces, and tooling packages can significantly influence market pricing. Buyers often place greater value on machines that are fully equipped and ready for production.
Demand for large 5-axis horizontal machining centers remains strong across aerospace, defense, energy, transportation, heavy equipment, and industrial manufacturing sectors. This demand helps support strong resale values for machines such as the EC1600ZT-5AX.
In addition to the purchase price, buyers should consider transportation, rigging, installation, electrical infrastructure, tooling, programming support, and operator training expenses. These factors contribute to the total cost of ownership and should be evaluated carefully during the purchasing process.
Compared to purchasing a new machine with similar capabilities, a used 2022 HAAS EC1600ZT-5AX can provide substantial savings while still delivering modern technology, advanced 5-axis functionality, large-part machining capability, and exceptional productivity. For manufacturers seeking a premium horizontal machining solution, the EC1600ZT-5AX remains one of the best values available in the used CNC machine market.
Related Products
-

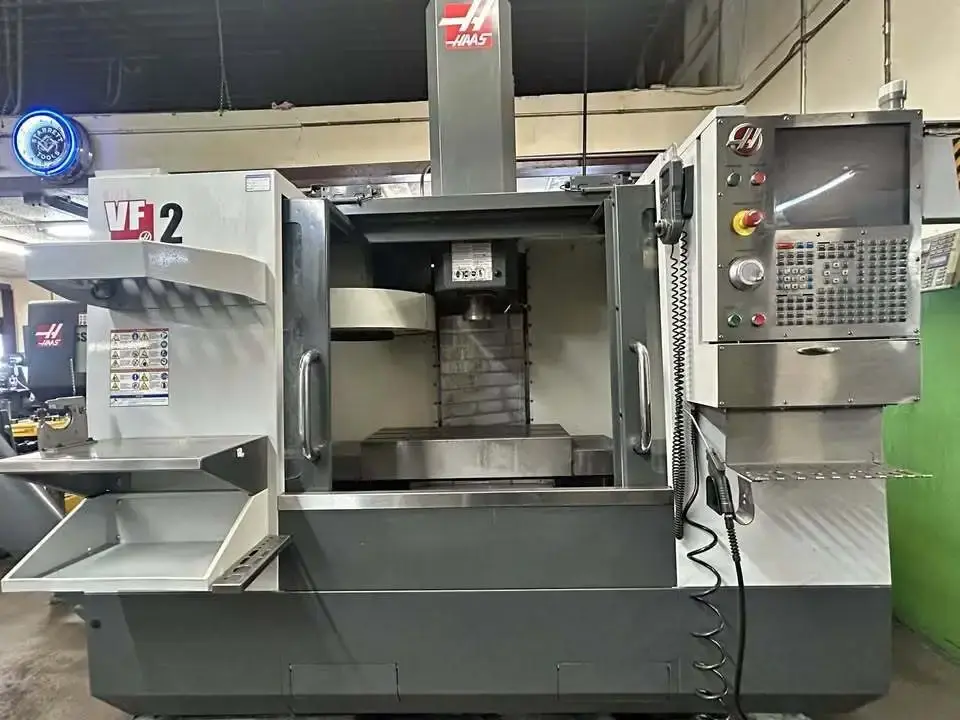

HAAS - VF2
