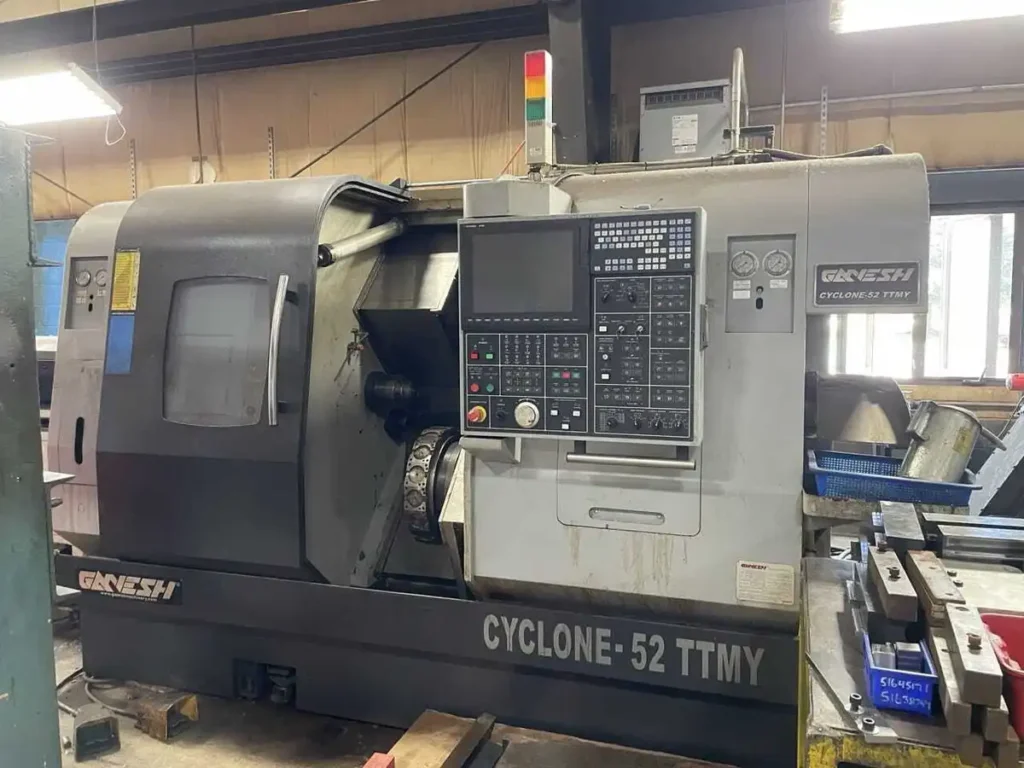

USED GANESH CYCLONE-52TTMY – 2014

The Ganesh Machinery CYCLONE-52TTMY – 2014 is a high-speed twin-spindle, twin-turret CNC turning center built for manufacturers that need maximum throughput and complete part processing in a single setup. Featuring dual opposing spindles, upper and lower turrets, Y-axis capability, and live tooling, this machine can perform turning, drilling, tapping, cross-milling, and back-side machining without operator intervention. It is an excellent solution for shops producing large quantities of precision parts where cycle time reduction and consistency are critical.

The 2014 GANESH CYCLONE-52TTMY typically includes 6″ to 8″ chucks, a 2.0″ (52 mm) bar capacity, and spindle speeds up to 6,000 RPM on both spindles. The machine generally features two 12-station turrets, C-axis control on each spindle, Y-axis travel of approximately ±2″ (50 mm), and live tooling capable of up to 5,000 RPM. Most units are equipped with a FANUC control, chip conveyor, parts catcher, and bar feeder interface for automated production.

The CYCLONE-52TTMY is engineered to machine both sides of a part while allowing simultaneous cutting on two turrets, dramatically reducing cycle times and increasing spindle utilization.

Industries that commonly use this machine include automotive, medical, aerospace, electronics, hydraulics, and high-volume precision subcontract manufacturing. Typical applications include fittings, connectors, valve stems, shafts, bushings, and other turned-and-milled components.

The GANESH CYCLONE-52TTMY remains a sought-after model in the used CNC market because it offers advanced production capability, dependable FANUC controls, and excellent value.

GANESH CYCLONE-52TTMY – AXIS

GANESH CYCLONE-52TTMY – CAPACITY

GANESH CYCLONE-52TTMY – SPINDLES

GANESH CYCLONE-52TTMY – TURRETS

GANESH CYCLONE-52TTMY – CONTROL SYSTEM

GANESH CYCLONE-52TTMY – AUTOMATION

GANESH CYCLONE-52TTMY – DIMENSIONS

GANESH CYCLONE-52TTMY – GENERAL INFORMATION

INDUSTRIES THAT USE GANESH CYCLONE-52TTMY

• Automotive
• Medical Device Manufacturing
• Aerospace
• Electronics
• Hydraulics and Pneumatics
• Defense
• Precision Contract Machining

TYPICAL PARTS GANESH CYCLONE-52TTMY CAN PRODUCE

• Precision Fittings
• Connectors
• Valve Components
• Shafts
• Bushings
• Medical Components
• Turned and Milled Production Parts

WHY CHOOSE GANESH CYCLONE-52TTMY

The GANESH CYCLONE-52TTMY is built for shops that need to maximize output and minimize handling. Its twin-spindle, twin-turret design enables simultaneous machining and complete front-and-back processing in one cycle.

Y-axis and live tooling capabilities allow milling, drilling, and tapping without moving parts to another machine. This improves accuracy, reduces labor, and shortens lead times.

For manufacturers focused on high-volume precision production, the CYCLONE-52TTMY delivers excellent efficiency and dependable performance.

WHY BUY USED GANESH CYCLONE-52TTMY – 2014

Purchasing a used GANESH CYCLONE-52TTMY – 2014 is an excellent strategy for manufacturers looking to add high-output turning capacity without the expense of buying a new twin-turret CNC lathe. This machine was designed for rapid, unattended production and remains highly effective for modern manufacturing operations that require complete front-and-back machining in one cycle.

One of the greatest benefits of buying this model used is the opportunity to acquire advanced capabilities such as Y-axis, live tooling, dual spindles, and simultaneous machining at a significantly lower cost. Many pre-owned machines are sold with valuable accessories including chip conveyors, parts catchers, bar feeder interfaces, and extensive tooling packages, which can greatly reduce startup costs.

The CYCLONE-52TTMY is particularly attractive to manufacturers producing connectors, fittings, medical components, and hydraulic parts in large volumes. Its twin-turret architecture shortens cycle times by allowing two tools to cut at the same time, while the sub-spindle completes back-side machining automatically.

Ganesh machines are known for practical designs, FANUC controls, and dependable day-to-day performance. For companies seeking to improve throughput and reduce labor costs, a used 2014 GANESH CYCLONE-52TTMY offers outstanding productivity and strong long-term value.

HOW MUCH DOES A USED GANESH CYCLONE-52TTMY – 2014 COST?

The cost of a used GANESH CYCLONE-52TTMY – 2014 varies depending on spindle hours, machine condition, maintenance history, and included options. Machines with lower hours, complete service documentation, and substantial live tooling packages generally command stronger resale values.

Options such as bar feeders, chip conveyors, parts catchers, and high-pressure coolant systems can significantly increase machine value because they reduce the additional investment required to begin production.

Buyers should inspect spindle condition, turret indexing accuracy, synchronization between the two spindles, and Y-axis performance. Machines that have been well maintained and recently inspected may command higher asking prices but can offer greater reliability and lower risk.

Purchasing a used 2014 GANESH CYCLONE-52TTMY typically provides significant savings compared to buying a new twin-spindle production lathe while delivering excellent throughput, advanced features, and strong return on investment.
