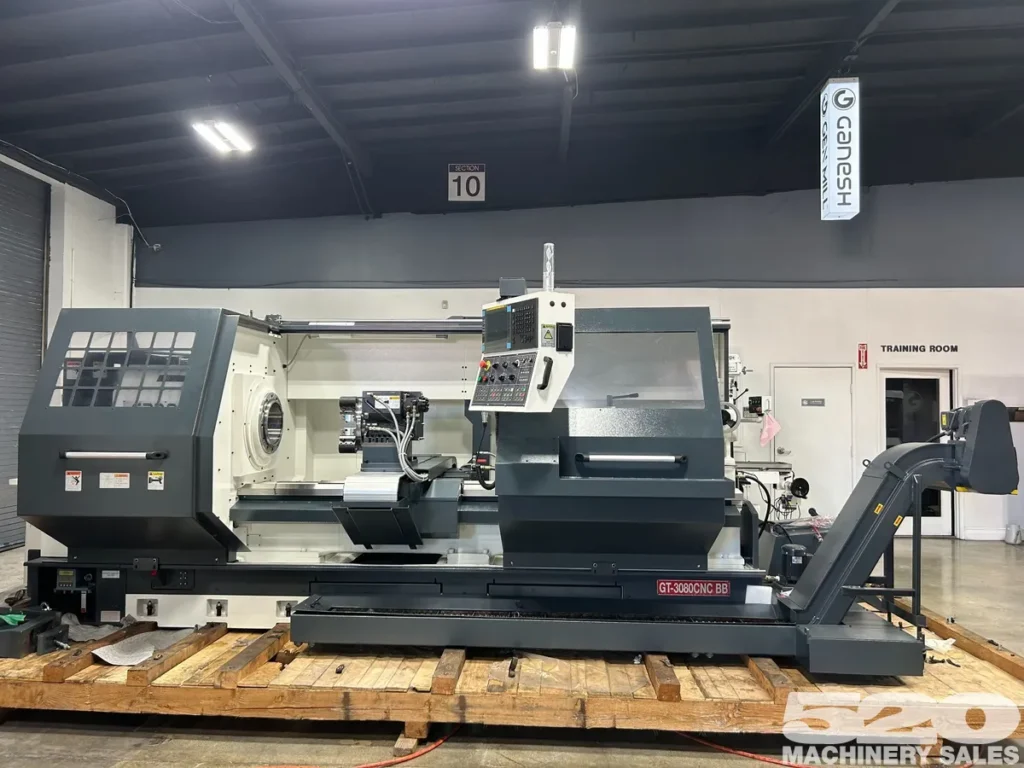

USED GANESH CYCLONE GTW-3080 – 2025

The 2025 Ganesh Machinery Cyclone GTW-3080 is a heavy-duty big-bore CNC turning center designed for large-diameter and long-length workpieces commonly found in oilfield, energy, and industrial applications. The GTW-3080 belongs to Ganesh’s robust GTW series and is engineered to provide exceptional spindle bore capacity, high torque, and rigid construction for machining tubular components, large shafts, couplings, and heavy-duty precision parts.

Unlike compact CNC lathes designed for small components, the GTW-3080 is purpose-built for oversized materials. The machine offers a 30-inch swing over bed, approximately 22-inch maximum turning diameter, and 78-inch machining length. A standout feature is the optional 10-inch through-hole spindle, allowing extremely large pipe and tube stock to pass directly through the spindle for efficient oilfield and hollow-spindle machining. Standard spindle configurations use a 6.69-inch bore, while the big-bore option expands capability substantially.

The GTW-3080 is typically equipped with a FANUC 0i-TF CNC control, an 8-station hydraulic turret, programmable tailstock, chip conveyor, and coolant system. A 30 HP geared spindle motor delivers high torque at low RPM, with spindle speeds up to approximately 1,000 RPM in standard configuration or 600 RPM with the 10-inch big-bore spindle option.

Industries using the GANESH CYCLONE GTW-3080 include oil and gas, pipeline manufacturing, power generation, shipbuilding, mining, and heavy equipment repair. Typical parts include drill collars, couplings, casing connectors, pump shafts, roller assemblies, and large precision sleeves.

Because the 2025 model is current-generation equipment, used listings are often new-in-stock or demonstration machines with little to no production time. This gives buyers the opportunity to acquire near-new heavy-duty CNC capacity at a substantial discount while avoiding long factory lead times.

GANESH CYCLONE GTW-3080 – AXIS

GANESH CYCLONE GTW-3080 – AXIS TRAVELS / WORK ENVELOPE

GANESH CYCLONE GTW-3080 – CAPACITY / TABLE

GANESH CYCLONE GTW-3080 – SPINDLE

GANESH CYCLONE GTW-3080 – TOOL CHANGER

GANESH CYCLONE GTW-3080 – CONTROL SYSTEM

GANESH CYCLONE GTW-3080 – COOLANT / DUST / WATER MANAGEMENT

GANESH CYCLONE GTW-3080 – POWER REQUIREMENTS

GANESH CYCLONE GTW-3080 – DIMENSIONS

GANESH CYCLONE GTW-3080 – GENERAL INFORMATION

INDUSTRIES THAT USE GANESH CYCLONE GTW-3080

• Oil and Gas
• Pipeline Manufacturing
• Power Generation
• Mining
• Shipbuilding
• Heavy Equipment Manufacturing
• Steel Mills
• Defense
• Industrial Repair
• General Heavy Machining

TYPICAL PARTS GANESH CYCLONE GTW-3080 CAN PRODUCE

• Drill Collars
• Pipe Couplings
• Casing Connectors
• Large Shafts
• Pump Sleeves
• Roller Assemblies
• Hydraulic Cylinders
• Bearing Housings
• Valve Bodies
• Turbine Components
• Thick-Wall Tubing
• Hollow Spindle Workpieces

WHY CHOOSE GANESH CYCLONE GTW-3080

The GANESH CYCLONE GTW-3080 is specifically engineered for shops machining large-diameter tubular and shaft components. Its massive spindle bore and geared spindle deliver the torque needed for heavy cutting in alloy steels and oilfield materials.

The machine combines FANUC control reliability with rugged Taiwanese construction and practical features such as a chip conveyor, tailstock, steady rest, and large-capacity coolant system. This configuration makes it ideal for demanding industrial applications.

The optional 10-inch through-hole spindle is particularly valuable for oilfield and pipeline manufacturers, enabling large tubing to be machined efficiently without specialized fixtures.

For companies requiring a dependable big-bore CNC lathe, the GTW-3080 offers excellent performance, robust construction, and strong value.

WHY BUY USED GANESH CYCLONE GTW-3080

Purchasing a used GANESH CYCLONE GTW-3080 – 2025 is one of the most cost-effective ways to acquire near-new heavy-duty CNC turning capability. Since many 2025 listings are new-in-stock or demonstration units, buyers can obtain current-generation equipment with little or no production time.

The most significant benefit is reduced capital cost. New heavy-duty oilfield lathes can require substantial investment, especially when equipped with the optional 10-inch spindle bore. Buying used allows manufacturers to save significantly while still receiving advanced CNC controls and premium accessories.

Immediate availability is another major advantage. Factory lead times for specialized big-bore machines can extend for months, while available used units can often ship immediately.

Used machines frequently include valuable extras such as chip conveyors, steady rests, hydraulic tooling, and tailstocks, reducing installation and tooling costs.

For oilfield, pipeline, and heavy industrial manufacturers, the used GANESH CYCLONE GTW-3080 delivers near-new performance, rapid deployment, and excellent return on investment.

HOW MUCH DOES A USED GANESH CYCLONE GTW-3080 COST?

The price of a used GANESH CYCLONE GTW-3080 – 2025 depends on spindle configuration, included accessories, and whether the machine is a demo or brand-new inventory unit. Recent 2025 listings with the 10-inch big-bore package have been advertised at approximately $134,990.

USED GANESH CYCLONE GTW-3080 PRICE GUIDE

NEW VS USED COST COMPARISON

Pricing is influenced by whether the machine includes the 10-inch big-bore spindle, chuck, steady rests, tooling, and installation accessories. Buyers should confirm spindle bore configuration and inspect machine condition before purchase.

For manufacturers machining large pipe, tubular products, and heavy industrial components, the used GANESH CYCLONE GTW-3080 offers outstanding heavy-duty performance and excellent value.
