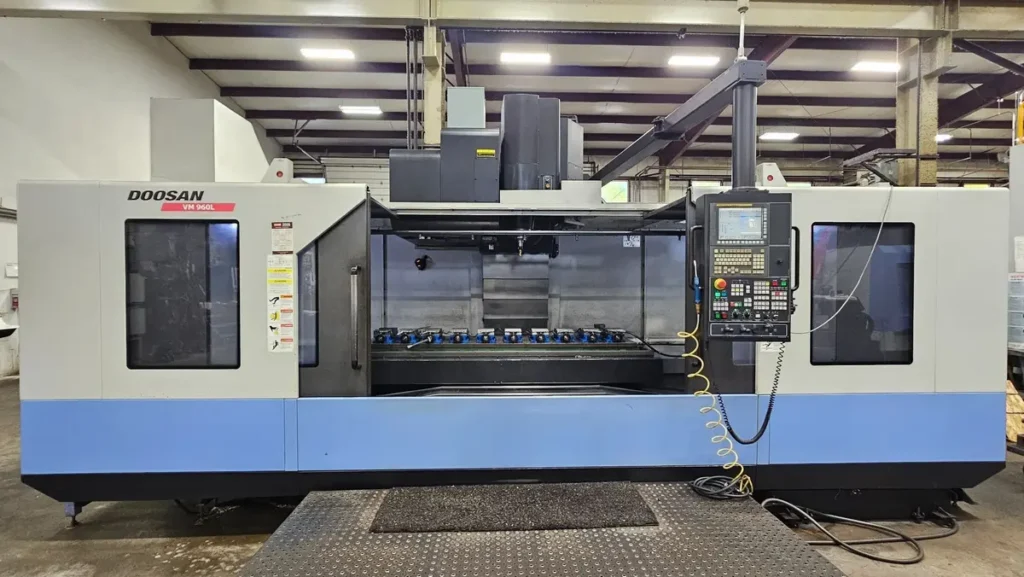

USED DOOSAN VM 960L – 2014

The DOOSAN VM 960L 2014 is a heavy-duty CNC Vertical Machining Center designed for large-part milling, drilling, boring, tapping, contouring, profiling, and precision production machining. The VM 960L is part of Doosan’s large VM-Series machining centers and is designed for manufacturers that require exceptionally long X-axis travel, a large worktable, high table-load capacity, and rigid construction for demanding cutting applications.

The 2014 DOOSAN VM 960L provides approximately 2,400 mm (94.5″) of X-axis travel, 960 mm (37.8″) of Y-axis travel, and 800 mm (31.5″) of Z-axis travel. Its large approximately 2,600 × 950 mm (102.4″ × 37.4″) table can support approximately 4,500 kg (9,920 lbs), providing substantial capacity for large components, heavy fixtures, and multiple-part setups. A documented 2014 configuration is equipped with a CAT50 two-speed geared spindle, 6,000 RPM spindle speed, approximately 35 HP spindle motor, and 40-position automatic tool changer.

The machine is commonly configured with a FANUC 31i-B CNC control, box-way construction, through-spindle coolant, chip conveyor, screw conveyors, Renishaw tool and part probes, spindle chiller, remote MPG, Ethernet, USB/data server, and Doosan conversational programming functions. Rapid traverse is approximately 630 IPM (16 m/min) on X, Y, and Z, providing efficient positioning across the machine’s large work envelope.

The DOOSAN VM 960L 2014 is an excellent choice for manufacturers producing large aerospace structures, heavy equipment components, energy and power-generation parts, industrial machinery components, large molds, machine bases, housings, fixtures, and other large precision-machined workpieces.

---

DOOSAN VM 960L 2014 – AXIS

Specification	Value
X Axis	2,400 mm (94.5″)
Y Axis	960 mm (37.8″)
Z Axis	800 mm (31.5″)
B Axis	Not Standard
C Axis	Not Standard
Machine Configuration	Heavy-Duty CNC Vertical Machining Center
Axis Configuration	3-Axis
Fourth Axis	Configuration Dependent
Guideway Configuration	Box Way

---

DOOSAN VM 960L 2014 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X Axis Travel	2,400 mm (94.5″)
Y Axis Travel	960 mm (37.8″)
Z Axis Travel	800 mm (31.5″)
Table Length	2,600 mm (102.4″)
Table Width	950 mm (37.4″)
Maximum Table Load	Approximately 4,500 kg (9,920 lbs)
Spindle Nose to Table	Approximately 39″
Spindle Nose to Column	Approximately 1,005 mm (39.6″)
T-Slots	Configuration Dependent
Fourth-Axis Capability	Configuration Dependent
Machining Envelope	Large-Capacity

---

DOOSAN VM 960L 2014 – CAPACITY

Specification	Value
Machine Type	CNC Vertical Machining Center
Table Size	102.4″ × 37.4″
Maximum Table Load	9,920 lbs
X-Axis Travel	94.5″
Y-Axis Travel	37.8″
Z-Axis Travel	31.5″
Spindle Taper	CAT50
Spindle Speed	6,000 RPM
Spindle Motor	Approximately 35 HP
Tool Capacity	40 Tools
Number of Axes	3
Fourth Axis	Configuration Dependent
Through-Spindle Coolant	Yes / Configuration Dependent
Rigid Tapping	Configuration Dependent

---

DOOSAN VM 960L 2014 – SPINDLE

Specification	Value
Main Spindle Speed	6,000 RPM
Spindle Motor	Approximately 35 HP
Spindle Taper	CAT50
Spindle Configuration	Vertical
Spindle Type	Two-Speed Geared Head
Spindle Drive	Geared
Spindle Torque	Configuration Dependent
Spindle Chiller	Equipped / Configuration Dependent
Through-Spindle Coolant	230 PSI Configuration
Spindle Orientation	Yes
Rigid Tapping	Configuration Dependent

The 6,000 RPM CAT50 geared spindle provides the combination of rigidity, torque, and cutting capacity required for large and heavy components.

---

DOOSAN VM 960L 2014 – TOOL CHANGER

Specification	Value
Tool Capacity	40 Tools
Tool Changer	Automatic Tool Changer
Tool Interface	CAT50
Tool Magazine	Side-Mount
Tool Selection	Automatic
Maximum Tool Diameter	Configuration Dependent
Maximum Tool Length	Configuration Dependent
Maximum Tool Weight	Configuration Dependent
Tool Management	Automatic
Tool Monitoring	Configuration Dependent

The 40-position automatic tool changer provides substantial tooling capacity for large production programs involving roughing, finishing, drilling, boring, tapping, and specialty machining operations.

---

DOOSAN VM 960L 2014 – CONTROL SYSTEM

Specification	Value
CNC Control	FANUC 31i-B
Programming	ISO G-Code
Doosan Conversational Programming	Configuration Dependent
Tool Offset Management	Yes
Work Coordinate Management	Yes
Rigid Tapping	Configuration Dependent
Custom Macro B	Configuration Dependent
AI Contour Control	Configuration Dependent
Tool Life Management	Configuration Dependent
Tool Load Monitoring	Configuration Dependent
Program Storage	Configuration Dependent
Ethernet	Equipped
USB / Data Server	Equipped / Configuration Dependent
Remote MPG	Equipped / Configuration Dependent

A documented 2014 configuration uses the FANUC 31i-B 3-axis CNC control along with Doosan-specific machining and monitoring functions.

---

DOOSAN VM 960L 2014 – FEEDRATES

Specification	Value
X Rapid Traverse	630 IPM / 16 m/min
Y Rapid Traverse	630 IPM / 16 m/min
Z Rapid Traverse	630 IPM / 16 m/min
X/Y/Z Rapid Traverse	Approximately 16 m/min
Maximum Cutting Feed	Approximately 315 IPM / 8,000 mm/min
Feedrate Override	Yes
Rapid Override	Yes
Interpolation	Linear / Circular
Acceleration / Deceleration	Configuration Dependent

The approximately 630 IPM rapid-traverse rate provides efficient positioning across the machine’s exceptionally long X-axis travel.

---

DOOSAN VM 960L 2014 – FOURTH AXIS / ROTARY CAPABILITY

Specification	Value
Fourth-Axis Drive	Configuration Dependent
Fourth-Axis Wiring	Configuration Dependent
Rotary Table	Optional
Rotary Machining	Configuration Dependent
Indexing Machining	Yes, When Equipped
Continuous Rotary Machining	Configuration Dependent
Multi-Sided Machining	Yes
Rotary Probing	Configuration Dependent

A VM 960L equipped with fourth-axis equipment can machine multiple sides of large components while reducing manual repositioning.

---

DOOSAN VM 960L 2014 – COOLANT / CHIP MANAGEMENT

Specification	Value
Flood Coolant	Standard
Through-Spindle Coolant	230 PSI Configuration
Chip Conveyor	Equipped
Screw Conveyors	Equipped / Configuration Dependent
Coolant Filtration	Configuration Dependent
Spindle Chiller	Equipped
Automatic Lubrication	Standard
Coolant Tank	Configuration Dependent
Chip Washdown	Configuration Dependent
High-Pressure Coolant	230 PSI Configuration

The chip conveyor and screw-conveyor arrangement is particularly useful on a machine of this size because large production cycles can generate substantial amounts of chips.

---

DOOSAN VM 960L 2014 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	Three Phase
Voltage	220 VAC / Configuration Dependent
Frequency	60 Hz / Configuration Dependent
Main Spindle Motor	Approximately 35 HP
Connected Load	Configuration Dependent
Air Supply	Required
Hydraulic System	Configuration Dependent
Transformer	Configuration Dependent
Spindle Cooling	Equipped

---

DOOSAN VM 960L 2014 – DIMENSIONS

Specification	Value
Length	Approximately 213″
Width	Approximately 252.6″
Height	Approximately 140″
Machine Weight	Approximately 57,500 lbs
Approximate Metric Weight	26,082 kg
Floor Space	Configuration Dependent
Shipping Configuration	Configuration Dependent

The large footprint and weight reflect the VM 960L’s extra-long travel, heavy-duty box-way construction, and large-capacity table.

---

DOOSAN VM 960L 2014 – GENERAL INFORMATION

Item	Details
Manufacturer	Doosan
Model	VM 960L
Year	2014
Machine Type	Heavy-Duty CNC Vertical Machining Center
CNC Control	FANUC 31i-B
X-Axis Travel	94.5″
Y-Axis Travel	37.8″
Z-Axis Travel	31.5″
Table Size	102.4″ × 37.4″
Maximum Table Load	9,920 lbs
Spindle Taper	CAT50
Spindle Speed	6,000 RPM
Spindle Motor	Approximately 35 HP
Spindle Type	Two-Speed Geared Head
Tool Capacity	40 Tools
X/Y/Z Rapid Traverse	630 IPM
Through-Spindle Coolant	230 PSI Configuration
Renishaw Probing	Equipped / Configuration Dependent
Chip Conveyor	Equipped
Screw Conveyors	Configuration Dependent
Spindle Chiller	Equipped
Box Ways	Yes
Fourth Axis	Configuration Dependent

---

INDUSTRIES THAT USE DOOSAN VM 960L 2014

The DOOSAN VM 960L 2014 is well suited for industries requiring extremely large work envelopes, high table-load capacity, and rigid machining performance, including:

• Aerospace
• Defense
• Power generation
• Energy
• Oil & gas
• Heavy equipment
• Automotive
• Industrial machinery
• Shipbuilding and marine
• Mold and die
• General precision manufacturing
• Contract manufacturing

Its approximately 94.5″ X-axis travel, 37.8″ Y-axis travel, 31.5″ Z-axis travel, and 9,920 lb table capacity make it particularly useful for large structures, machine bases, heavy housings, molds, fixtures, and long components.

---

TYPICAL PARTS DOOSAN VM 960L 2014 CAN PRODUCE

The DOOSAN VM 960L 2014 can manufacture:

• Large aerospace structures
• Heavy equipment components
• Machine bases
• Large housings
• Energy components
• Turbine components
• Industrial machinery components
• Large brackets
• Heavy fixtures
• Mold components
• Die components
• Pump and valve components
• Structural components
• Large precision-machined parts

The machine can perform face milling, pocketing, drilling, boring, tapping, reaming, contouring, profiling, slotting, deep-hole machining, and other heavy-duty CNC milling operations.

---

WHY CHOOSE DOOSAN VM 960L 2014

The DOOSAN VM 960L 2014 is an excellent choice for manufacturers looking for an exceptionally large-capacity vertical machining center capable of handling long and heavy workpieces. Its 94.5″ X-axis travel and 102.4″ table length provide a working envelope significantly larger than conventional mid-size VMCs.

The CAT50, 6,000 RPM geared spindle and approximately 35 HP motor are designed for the rigidity and cutting power required for large components. The CAT50 interface also provides a robust tooling platform for heavy milling and material removal.

The box-way construction provides strong support and vibration damping, while the 9,920 lb table capacity allows manufacturers to use substantial fixtures and heavy workholding. The 40-tool automatic tool changer, Renishaw probing, 230 PSI through-spindle coolant, chip conveyor, and spindle chiller can further improve production efficiency on appropriately equipped machines.

---

WHY BUY USED DOOSAN VM 960L 2014

Purchasing a used DOOSAN VM 960L 2014 allows manufacturers to acquire an extremely large-capacity CNC vertical machining center while reducing the capital investment compared with purchasing comparable new equipment.

Many used machines may include valuable options such as:

• FANUC 31i-B CNC control
• 94.5″ X-axis travel
• 37.8″ Y-axis travel
• 31.5″ Z-axis travel
• 102.4″ × 37.4″ table
• 9,920 lb table capacity
• CAT50 spindle
• 6,000 RPM spindle
• 35 HP spindle motor
• Two-speed geared head
• 40-position ATC
• Renishaw tool probe
• Renishaw work probe
• 230 PSI through-spindle coolant
• Chip conveyor
• Screw conveyors
• Spindle chiller
• Box-way construction
• Ethernet
• USB/data server
• Manual pulse generator
• Tool-load monitoring
• Tool-life management
• Fourth-axis preparation

Before purchasing, buyers should inspect the spindle, CAT50 taper, drawbar, geared-head operation, X/Y/Z axis movement, ballscrews, box ways, automatic tool changer, FANUC control, probing system, through-spindle coolant, chip conveyors, spindle chiller, lubrication system, electrical cabinet, and overall machine geometry.

For a 2014 machine of this size, spindle hours, cutting hours, alarm history, previous crash history, maintenance documentation, control condition, axis accuracy, and availability of replacement components should also be reviewed.

---

HOW MUCH DOES A USED DOOSAN VM 960L 2014 COST?

The value of a used DOOSAN VM 960L 2014 depends heavily on machine condition, spindle hours, spindle configuration, CNC control, tool changer, probing equipment, through-spindle coolant, chip conveyors, table condition, axis accuracy, tooling package, and maintenance history.

A documented 2014 configuration includes a FANUC 31i-B control, 94.5″ X travel, 37.8″ Y travel, 31.5″ Z travel, 35 HP geared spindle, 6,000 RPM, CAT50 taper, 40-tool ATC, Renishaw probes, and 230 PSI through-spindle coolant, representing a heavily equipped large-capacity version.

Current used listings for the closely related VM 960L platform demonstrate a wide range of asking prices depending on year and condition. A 2008 VM-960L, for example, has been advertised around $49,000 USD, while 2014 VM 960L machines are currently being offered on a request-for-quote basis rather than at published prices.

For used-equipment listing purposes, a used DOOSAN VM 960L 2014 can typically be expected to sell in the approximately $70,000 to $120,000 USD range, with the actual value depending heavily on condition, spindle hours, options, tooling, and location.

A low-hour machine with a healthy 35 HP CAT50 spindle, accurate X/Y/Z positioning, functioning 40-tool ATC, Renishaw probing, 230 PSI through-spindle coolant, chip conveyor, spindle chiller, and complete maintenance documentation may command a premium. A machine requiring spindle, ballscrew, servo, tool-changer, control, or electrical repairs may sell for considerably less.
