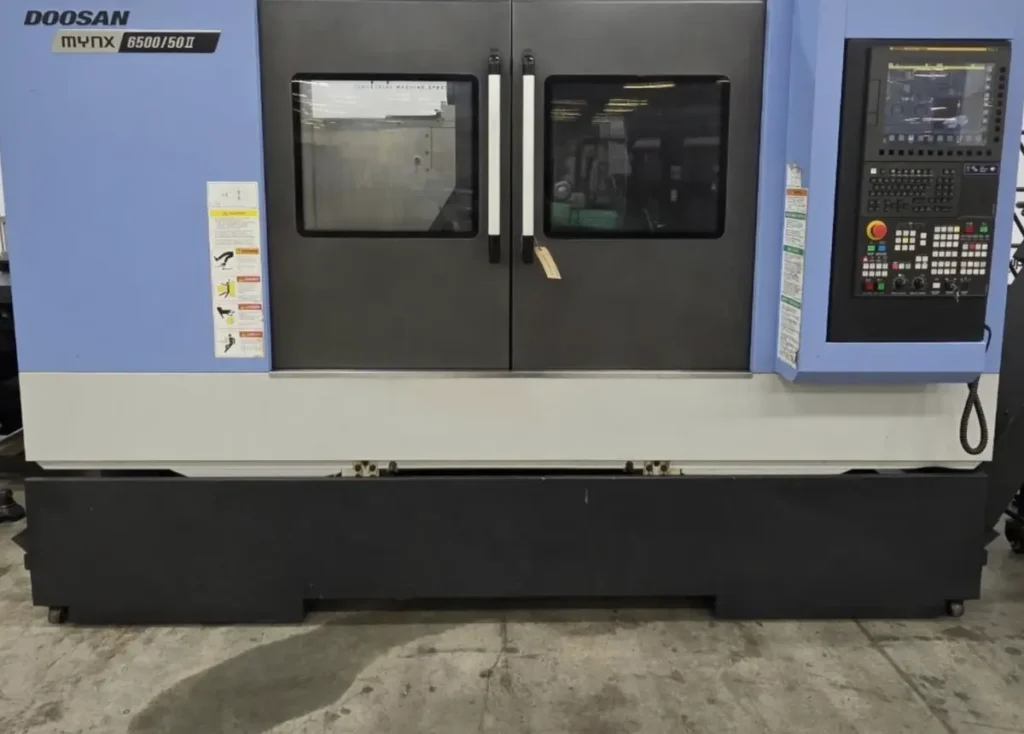

DOOSAN MYNX 6500/50 II – 2022
USED DOOSAN MYNX 6500/50 II – 2022
The 2022 DOOSAN MYNX 6500/50 II is a heavy-duty CNC vertical machining center designed for manufacturers requiring substantial cutting capacity, rigid construction, large workpiece capability, and dependable performance during demanding milling operations. Built as part of the MYNX II series, the MYNX 6500/50 II combines a large 50-taper spindle configuration with extensive X-, Y-, and Z-axis travels, making it well suited for machining large and heavy industrial components. The machine provides approximately 50 inches of X-axis travel, 26.4 inches of Y-axis travel, and 24.6 inches of Z-axis travel, giving manufacturers a substantial work envelope for large production components.
The MYNX 6500/50 II utilizes a highly rigid machine structure developed specifically for heavy-duty cutting applications. Its rigid construction helps minimize vibration and deflection during aggressive machining operations while maintaining stable cutting performance across demanding production cycles. The machine is particularly suited for manufacturers working with steel, stainless steel, cast iron, hardened materials, and other difficult-to-machine alloys where rigidity, spindle torque, and structural stability are important considerations.
One of the defining characteristics of the MYNX 6500/50 II is its ISO #50 spindle configuration. The 50-taper spindle is designed to support larger and heavier cutting tools than lighter-duty machining center configurations, making the machine particularly appropriate for roughing operations, large-diameter cutters, deep material removal, and heavy-duty milling. The standard MYNX 6500/50 II specification provides a spindle speed of approximately 6,000 RPM, while machine configurations and regional specifications can vary depending on the original factory options.
The machine provides approximately 1,270 mm of X-axis travel, 670 mm of Y-axis travel, and 625 mm of Z-axis travel. These travels allow the MYNX 6500/50 II to accommodate large fixtures and substantial workpieces while providing sufficient vertical clearance for many industrial milling applications. The approximately 1,400 mm by 670 mm worktable provides a large platform for heavy components, fixtures, vises, tombstones, and production workholding systems. The rated maximum workpiece capacity is approximately 1,300 kg, although actual usable capacity depends on workholding configuration, workpiece geometry, fixture arrangement, and machine condition.
The MYNX 6500/50 II is designed around production stability rather than compact-shop convenience. Its large footprint and approximately 9,500 kg machine weight provide a substantial foundation for heavy machining operations. The machine’s rigid structure and heavy-duty architecture make it suitable for manufacturers that need to remove significant amounts of material while maintaining dimensional consistency and repeatable machining performance.
Rapid traverse capability is another important feature of the MYNX 6500/50 II. The machine provides approximately 30 m/min rapid traverse in the X and Y axes and approximately 24 m/min in the Z axis. These rapid movements help reduce non-cutting time during positioning, tool changes, approach movements, and transitions between machining operations.
The MYNX 6500/50 II can be used for a wide range of milling operations including face milling, shoulder milling, pocketing, contouring, drilling, boring, tapping, slotting, roughing, and finishing. Its large work envelope and heavy-duty spindle configuration make it particularly valuable when machining components that would exceed the practical capacity of smaller vertical machining centers.
The machine is commonly suitable for machining steel, stainless steel, aluminum, cast iron, alloy steels, tool steels, and other engineering materials. Depending on tooling, spindle configuration, coolant strategy, and cutting parameters, the machine can support both aggressive material removal and more controlled finishing operations.
The MYNX II series is also designed around practical production efficiency. DN Solutions describes the series as a mid-to-large-sized heavy-duty machining center family, with rigid construction intended to provide durability and stable accuracy during heavy-duty cutting. The MYNX platform also supports different spindle and tool-storage configurations depending on machine specification.
Tool-changing capability can vary according to the exact machine configuration. Published MYNX 6500/50 II specifications identify configurations with approximately 24- or 30-tool storage capacity, allowing the machine to support multi-operation machining without excessive manual tool changes. This makes the machine practical for high-mix manufacturing environments where several cutting tools may be required for a single component.
The machine’s large table and 50-taper spindle make it particularly attractive for manufacturers producing molds, dies, structural components, heavy equipment parts, industrial housings, machine bases, energy-sector components, and large precision assemblies. Its combination of long axis travel, rigid construction, and heavy-duty spindle capability provides flexibility for both production machining and job-shop applications.
Many used 2022 DOOSAN MYNX 6500/50 II machines can also be equipped with useful production accessories such as chip conveyors, coolant systems, tool probing, workpiece probing, high-pressure coolant, additional tool storage, and specialized workholding equipment. The exact options should always be verified against the individual machine because used-machine configurations can differ significantly.
The MYNX 6500/50 II is especially useful for manufacturers that need to perform substantial material removal without moving the workpiece between multiple machines. Keeping large components in one machining center can reduce handling requirements, improve positional consistency, and simplify production workflows.
Industries including aerospace, defense, heavy equipment, energy, oil and gas, transportation, industrial machinery, mold and die manufacturing, and general precision machining can benefit from the machine’s large work envelope and heavy-duty machining architecture.
Because of its combination of large travels, ISO #50 spindle capability, substantial worktable, rigid machine structure, and heavy-duty cutting performance, the 2022 DOOSAN MYNX 6500/50 II remains a capable used CNC vertical machining center for manufacturers requiring large-format production machining.
DOOSAN MYNX 6500/50 II – AXIS
| SpecificationDetails | |
|---|---|
| Machine Configuration | Heavy-Duty CNC Vertical Machining Center |
| Axis Configuration | X, Y, Z CNC Axes |
| X-Axis Travel | Approx. 50 in |
| Y-Axis Travel | Approx. 26.4 in |
| Z-Axis Travel | Approx. 24.6 in |
| X-Axis Rapid Traverse | Approx. 1,181 IPM |
| Y-Axis Rapid Traverse | Approx. 1,181 IPM |
| Z-Axis Rapid Traverse | Approx. 945 IPM |
| Machine Structure | High-Rigidity Heavy-Duty Construction |
The published MYNX 6500/50 II specification identifies approximately 1,270 mm X travel, 670 mm Y travel, 625 mm Z travel, and rapid traverse rates of approximately 30/30/24 m/min for X/Y/Z.
DOOSAN MYNX 6500/50 II – AXIS TRAVELS / WORK ENVELOPE
| SpecificationDetails | |
|---|---|
| X-Axis Travel | Approx. 50 in |
| Y-Axis Travel | Approx. 26.4 in |
| Z-Axis Travel | Approx. 24.6 in |
| Spindle Nose to Table | Approx. 7.9–32.5 in |
| Table Length | Approx. 55.1 in |
| Table Width | Approx. 26.4 in |
| Maximum Workpiece Weight | Approx. 2,866 lbs |
| Work Envelope | Large Industrial Machining |
The 50-taper configuration provides approximately 200–825 mm of spindle-nose-to-table clearance, while the table measures approximately 1,400 × 670 mm and supports approximately 1,300 kg according to published specifications.
DOOSAN MYNX 6500/50 II – CAPACITY / TABLE
| SpecificationDetails | |
|---|---|
| Table Configuration | Fixed CNC Machining Table |
| Table Size | Approx. 55.1 × 26.4 in |
| Maximum Workpiece Weight | Approx. 2,866 lbs |
| Workholding Compatibility | Vises, Fixtures & Custom Workholding |
| Production Capability | Heavy-Duty Milling |
| Typical Workpiece Size | Medium & Large Industrial Components |
| Heavy Machining Capability | Yes |
| Large Fixture Compatibility | Yes |
DOOSAN MYNX 6500/50 II – SPINDLE
| SpecificationDetails | |
|---|---|
| Spindle Configuration | Heavy-Duty 50-Taper Spindle |
| Maximum Spindle Speed | Approx. 6000 RPM |
| Spindle Power | Approx. 20 HP* |
| Spindle Torque | Approx. 211 ft-lb* |
| Spindle Taper | ISO #50 |
| Spindle Style | Heavy-Duty Precision Spindle |
| Tool Interface | 7/24 Taper |
| Cutting Application | Heavy Milling & Material Removal |
*Published MYNX II specifications list approximately 15 kW and 286.5 N·m for the 6500/50 II configuration; individual machines may have different factory options or ratings.
DOOSAN MYNX 6500/50 II – TOOL CHANGER
| SpecificationDetails | |
|---|---|
| Tool Changer Type | Automatic Tool Changer |
| Tool Storage Capacity | Approx. 24–30 Tools |
| Tooling Configuration | ISO #50 |
| Tool Change Capability | Automatic |
| Large Tool Compatibility | Yes |
| Heavy Tool Compatibility | Yes |
| Production Application | Multi-Operation Machining |
Published MYNX 6500/50 II lineup information identifies 24-tool and 30-tool configurations depending on equipment specification.
DOOSAN MYNX 6500/50 II – CONTROL SYSTEM
| SpecificationDetails | |
|---|---|
| CNC Control Platform | Doosan CNC Control |
| Display Interface | Color CNC Display |
| Programming Capability | G-Code & Conversational Functions |
| Data Management | CNC Program Storage |
| Operator Interface | Industrial CNC Control Panel |
| Production Monitoring | Machine Diagnostic Functions |
| Programming Application | Production & High-Mix Machining |
Some 2022 MYNX machines were equipped with Doosan i-Plus control configurations and related programming and data-management functions; the exact control should be verified on the individual used machine.
DOOSAN MYNX 6500/50 II – COOLANT / DUST / WATER MANAGEMENT
| SpecificationDetails | |
|---|---|
| Coolant Delivery System | Flood Coolant |
| Coolant Management | Recirculating System |
| Chip Management | Chip Conveyor or Chip Tray |
| Coolant Tank | Machine-Specific Capacity |
| Coolant Pump | Industrial CNC Pump |
| High-Pressure Coolant | Optional / Configuration Dependent |
| Chip Evacuation | Production-Oriented System |
DOOSAN MYNX 6500/50 II – POWER REQUIREMENTS
| SpecificationDetails | |
|---|---|
| Electrical Configuration | Industrial CNC Power |
| Voltage Requirement | Configuration Dependent |
| Phase | 3-Phase |
| Electrical Installation | Heavy-Duty CNC Layout |
| Shop Air Requirement | Standard Industrial Air |
| Power Consumption | Dependent on Machine Configuration |
| Installation Requirement | Professional CNC Installation |
DOOSAN MYNX 6500/50 II – DIMENSIONS
| SpecificationDetails | |
|---|---|
| Approximate Machine Weight | Approx. 20,944 lbs |
| Machine Length | Approx. 119 in |
| Machine Width | Approx. 132 in |
| Machine Height | Approx. 132 in |
| Installation Footprint | Large Production Layout |
| Machine Category | Heavy-Duty Vertical Machining Center |
Published specifications list approximately 9,500 kg machine weight and approximately 3,016 × 3,350 mm footprint dimensions for the MYNX 6500/50 II.
DOOSAN MYNX 6500/50 II – GENERAL INFORMATION
| SpecificationDetails | |
|---|---|
| Manufacturer | Doosan |
| Current Manufacturer Brand | DN Solutions |
| Model | MYNX 6500/50 II |
| Year | 2022 |
| Machine Category | Heavy-Duty CNC Vertical Machining Center |
| Primary Application | Heavy Milling & Material Removal |
| Spindle Taper | ISO #50 |
| Common Materials Machined | Steel, Stainless Steel, Cast Iron, Aluminum |
INDUSTRIES THAT USE DOOSAN MYNX 6500/50 II
The DOOSAN MYNX 6500/50 II is well suited for industries requiring large-format CNC milling capability, rigid machining performance, and reliable material-removal capacity. Its approximately 50-inch X-axis travel and large worktable allow manufacturers to machine components that may exceed the practical capacity of smaller vertical machining centers.
Aerospace manufacturers can utilize the MYNX 6500/50 II for machining structural components, mounting plates, brackets, housings, adapters, tooling components, and large precision assemblies. The machine’s long axis travels and heavy-duty spindle configuration provide the capacity required for machining substantial aerospace components while maintaining controlled cutting conditions.
Defense manufacturers can use the machine for machining large structural components, equipment housings, mounting systems, support components, fixtures, and specialized production hardware. The rigid machine structure is particularly useful when machining tough alloys or performing substantial material removal.
Oil and gas manufacturers commonly require large CNC machining capacity for valve bodies, pump components, manifolds, flanges, equipment housings, and other industrial components. The MYNX 6500/50 II provides a large work envelope and 50-taper spindle configuration that can support demanding machining applications.
Heavy equipment manufacturers can use the machine for machining hydraulic components, mounting structures, brackets, transmission components, machine bases, large housings, and support assemblies. Its heavy-duty construction makes it appropriate for production environments where substantial cutting forces are generated.
Energy-sector manufacturers can also benefit from the machine when producing components used in power-generation systems, industrial equipment, turbines, support structures, and large mechanical assemblies. The large table and extensive axis travel provide useful flexibility when handling large workpieces.
Mold and die manufacturers may use the MYNX 6500/50 II for larger mold bases, die components, inserts, fixtures, and production tooling. The machine’s large work envelope allows manufacturers to keep more substantial tooling components on one machine instead of dividing machining operations among multiple smaller machines.
Automotive and transportation manufacturers can use the MYNX for machining large housings, structural components, fixtures, production tooling, drivetrain components, and heavy-duty industrial parts.
General machine shops can also benefit from the machine because it provides a combination of large capacity and heavy-duty cutting capability that can support a broad variety of customer projects.
The MYNX 6500/50 II is especially useful for shops that regularly receive large, heavy, or difficult-to-machine workpieces and need a vertical machining center capable of handling substantial cutting loads.
TYPICAL PARTS DOOSAN MYNX 6500/50 II CAN PRODUCE
| Part TypeExamples | |
|---|---|
| Aerospace Components | Structural Plates, Adapters, Brackets |
| Oil & Gas Hardware | Valve Bodies, Manifolds, Flanges |
| Heavy Equipment Parts | Housings, Mounts, Support Components |
| Energy Components | Industrial Bases, Structural Parts |
| Mold & Die Components | Mold Bases, Inserts, Die Components |
| Automotive Parts | Housings, Fixtures, Structural Components |
| Industrial Components | Machine Bases, Plates, Frames |
| Precision Hardware | Brackets, Mounting Plates, Custom Fixtures |
WHY CHOOSE DOOSAN MYNX 6500/50 II
The DOOSAN MYNX 6500/50 II is designed for manufacturers that require substantial CNC milling capacity combined with rigid machine construction and heavy-duty cutting capability. Its approximately 1,270 mm X-axis travel, 670 mm Y-axis travel, and 625 mm Z-axis travel provide a large machining envelope suitable for medium and large industrial components.
One of the machine’s primary advantages is its ISO #50 spindle configuration. Compared with smaller spindle-taper configurations, the 50-taper architecture is particularly suitable for heavy-duty tooling and demanding material-removal operations. Manufacturers machining steel, cast iron, stainless steel, and other difficult materials can benefit from the machine’s rigid cutting platform and substantial tooling capability.
The large 1,400 × 670 mm table provides considerable workholding flexibility. Manufacturers can install large vises, fixtures, custom workholding systems, and multi-part production fixtures depending on the application. The approximately 1,300 kg maximum workpiece capacity also provides useful capability for heavy industrial components.
Another important advantage is the rigid machine structure. Heavy-duty machining generates substantial cutting forces, particularly when using large cutters and aggressive material-removal strategies. The MYNX architecture is designed to provide durability and stability during heavy cutting, helping manufacturers maintain consistent machining performance.
The machine’s rapid traverse rates also contribute to production efficiency. With approximately 30 m/min rapid movement in X and Y and 24 m/min in Z, the machine can efficiently reposition between cutting operations and reduce non-cutting time during production cycles.
The large work envelope makes the MYNX 6500/50 II particularly useful for manufacturers that regularly encounter components too large for conventional compact vertical machining centers. Keeping a large workpiece on one machine can reduce repositioning requirements and help maintain dimensional relationships between machined features.
The automatic tool changer further improves production efficiency by allowing multiple machining operations to be performed without constant operator intervention. Depending on the machine configuration, MYNX 6500/50 II machines can be equipped with approximately 24- or 30-tool storage systems.
The machine is also well suited for high-mix manufacturing. A single workpiece may require face milling, roughing, pocketing, drilling, tapping, boring, and finishing operations. With an automatic tool changer and large machining envelope, the MYNX can accommodate a substantial number of these operations within one setup.
Another important benefit is its versatility across different materials. The machine can support machining applications involving aluminum and other lighter materials while also providing the rigidity needed for steel, stainless steel, cast iron, and harder engineering materials.
Maintenance and serviceability are also important considerations when selecting a used MYNX. Its established industrial platform and widespread use in manufacturing environments can make it practical for machine shops that require familiar CNC service and maintenance procedures.
For shops involved in heavy industrial machining, the MYNX 6500/50 II offers a useful combination of large travel capacity, heavy-duty spindle architecture, substantial workholding capability, and production flexibility.
Manufacturers seeking a vertical machining center for large components, aggressive milling operations, heavy material removal, and demanding industrial production can benefit from the MYNX 6500/50 II’s overall machine architecture.
WHY BUY USED DOOSAN MYNX 6500/50 II
Purchasing a used 2022 DOOSAN MYNX 6500/50 II allows manufacturers to obtain a relatively modern heavy-duty vertical machining center while potentially reducing the capital expenditure associated with purchasing a new large-format machining center. The machine’s substantial travel range, 50-taper spindle configuration, and large table make it particularly attractive to manufacturers that need large-component machining capability.
One of the biggest advantages of purchasing used CNC machinery is the ability to add productive manufacturing capacity without committing the same level of capital required for new equipment. A properly maintained 2022 MYNX 6500/50 II can provide many years of productive service when its spindle, axes, guideways, lubrication system, control, coolant system, and other major components have been appropriately maintained.
The MYNX 6500/50 II is especially attractive as a used machine because its basic architecture is focused on heavy-duty machining. The ISO #50 spindle and rigid construction provide useful capability for shops that regularly perform aggressive milling operations.
Another advantage is machine availability. Manufacturers purchasing new large vertical machining centers may face production schedules, factory lead times, transportation requirements, and installation planning. A used machine that is already available can provide a faster path toward increasing machining capacity.
Many used MYNX machines are also offered with production accessories that may already be installed. Depending on the individual machine, buyers may find chip conveyors, coolant systems, tool probing, workpiece probing, additional tooling capacity, workholding equipment, and other production options included with the machine.
Buying a machine with these accessories already installed can reduce the time and expense associated with configuring a basic machine for production.
The machine’s large table is another important reason to consider a used MYNX 6500/50 II. Manufacturers that have outgrown smaller machining centers can use the larger work envelope to accept larger customer projects without immediately investing in a much larger machining platform.
The 50-taper spindle is also useful for shops performing heavy roughing and material removal. Larger cutters and heavy-duty tooling can be used for applications where a smaller spindle configuration may not provide the desired production capability.
Used MYNX 6500/50 II machines can also be useful for contract manufacturers because they provide flexibility across different types of customer work. A single machine can potentially handle structural components, housings, plates, fixtures, tooling, industrial components, and heavy machinery parts.
Before purchasing a used machine, buyers should inspect spindle condition, axis movement, backlash, positioning accuracy, guideway condition, ballscrews, lubrication system, coolant system, tool changer operation, control functionality, electrical systems, and machine history.
Spindle hours and overall operating hours should also be reviewed when available. A machine with documented maintenance records can provide valuable information about previous service intervals and component replacement.
The physical condition of the machine should also be considered. Excessive coolant contamination, damaged covers, neglected lubrication, unusual spindle noise, hydraulic problems, or damaged electrical components can increase the cost of bringing a used machine into production.
For manufacturers that need large-format CNC milling capability without immediately committing to a new-machine purchase, the used 2022 DOOSAN MYNX 6500/50 II can provide substantial machining capacity within a practical used-equipment strategy.
HOW MUCH DOES A USED DOOSAN MYNX 6500/50 II COST?
The price of a used 2022 DOOSAN MYNX 6500/50 II depends on several factors including machine condition, spindle hours, control configuration, installed options, tool changer capacity, coolant system, chip conveyor, probing equipment, maintenance history, location, and current used CNC machinery market conditions.
Unlike smaller vertical machining centers, the MYNX 6500/50 II is a large heavy-duty machine, so transportation, rigging, installation, electrical preparation, and commissioning can represent a significant portion of the total acquisition cost.
A typical used 2022 DOOSAN MYNX 6500/50 II may commonly be offered in the approximate $110,000 to $190,000 range depending on configuration, condition, hours, accessories, and seller. Exceptional machines with low operating hours, desirable options, strong maintenance records, and production-ready accessories may be listed outside this range.
Machine condition is one of the most important factors affecting price. Buyers should evaluate the spindle, axis positioning, ballscrews, guideways, tool changer, coolant system, lubrication system, electrical cabinet, control system, and machine geometry before determining whether a particular asking price is reasonable.
The spindle is especially important because the MYNX 6500/50 II is designed for heavy-duty cutting. Buyers should check spindle noise, vibration, temperature behavior, tool retention, taper condition, and overall spindle performance.
Tool changer configuration can also affect pricing. MYNX 6500/50 II machines may be found with different tool-storage configurations, and a machine equipped with a larger tool magazine can provide additional production flexibility. Published specifications identify 24- and 30-tool configurations for the 6500/50 II platform.
Accessories can significantly change the overall value of a used machine. Chip conveyors, probing systems, high-pressure coolant, additional tooling, workholding equipment, and specialized production options may reduce the amount of additional investment required after purchase.
The control system should also be inspected carefully. Buyers should verify that the CNC control boots correctly, accepts programs, communicates with peripheral equipment, operates all axes correctly, and does not display unresolved alarms.
Machine location is another cost consideration. A large MYNX 6500/50 II weighs approximately 9,500 kg, so transportation and professional rigging can be substantial.
Buyers should therefore consider the total acquisition cost, rather than focusing only on the machine’s advertised purchase price. Transportation, rigging, installation, electrical service, coolant, tooling, workholding, inspection, and commissioning can all influence the final investment.
The 2022 model year also makes the machine relatively modern within the used CNC market, which can be attractive to manufacturers seeking newer equipment without paying full new-machine pricing.
For manufacturers requiring a large-format vertical machining center with extensive axis travel, an ISO #50 spindle, substantial worktable, and heavy-duty construction, the used DOOSAN MYNX 6500/50 II represents a substantial production platform.
Its combination of approximately 50-inch X travel, 26.4-inch Y travel, 24.6-inch Z travel, 55.1 × 26.4-inch table, 50-taper spindle, and approximately 2,866-pound workpiece capacity provides a strong foundation for demanding industrial machining applications.
For shops seeking large-capacity CNC milling capability, heavy material-removal performance, and a machine capable of handling demanding industrial workpieces, the used 2022 DOOSAN MYNX 6500/50 II can be a practical addition to a production machining environment.
