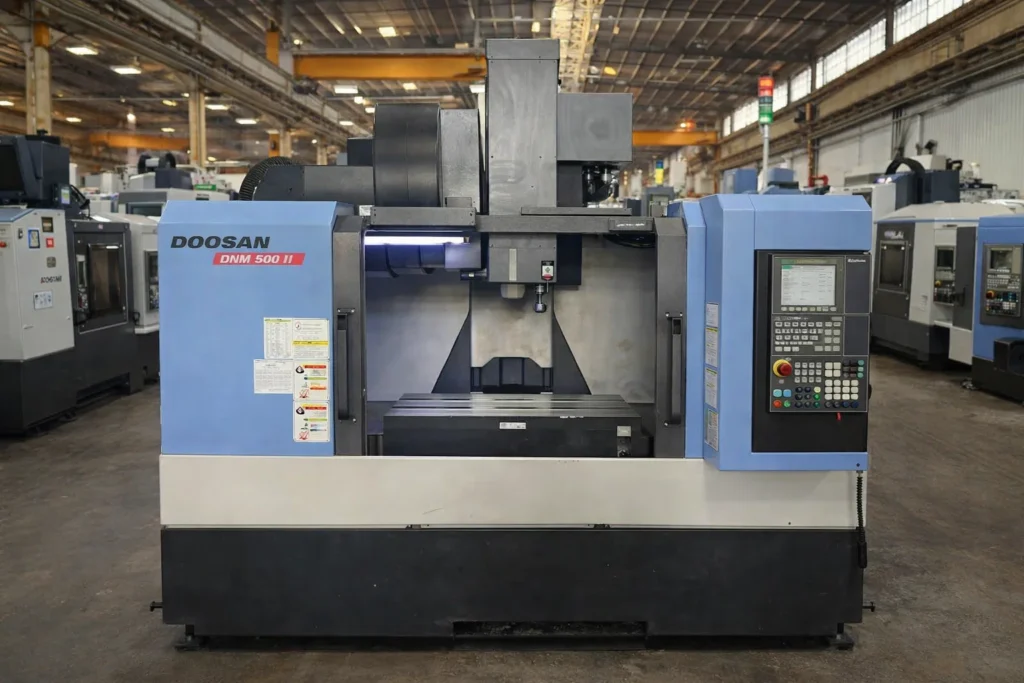

The Doosan DNM 500 is a mid-size CNC vertical machining center (VMC) designed for high-precision machining, strong cutting performance, and consistent production reliability. It sits in the middle of the DNM lineup, offering a larger work envelope than compact models like the DNM 400 while still maintaining a manageable footprint for most machine shops.
Built with a rigid cast iron structure and linear motion (LM) guideways, the DNM 500 delivers excellent stability, high-speed movement, and long-term accuracy. It is typically equipped with a CAT/BT 40 spindle running at 8,000 RPM standard, with many machines offering optional 10,000–12,000 RPM configurations for higher-speed applications.
The machine provides axis travels of approximately 40″ × 21″ × 20″, making it ideal for medium-sized components and multi-part setups. It also comes with a 30-tool automatic tool changer, allowing efficient multi-operation machining with reduced downtime.
Commonly paired with FANUC controls, the DNM 500 is widely used in industries such as automotive, aerospace, and general engineering. Its combination of rigidity, capacity, and reliability makes it a go-to machine for both job shops and production environments.
DOOSAN DNM 500SPECIFICATIONS
DOOSAN DNM 500 – AXIS TRAVELS
X-Axis Travel: ~1020 mm (40″)
Y-Axis Travel: ~540 mm (21″)
Z-Axis Travel: ~510 mm (20″)
Medium Work Envelope
Ideal for Medium Parts
High Precision Movements
DOOSAN DNM 500 – CAPACITY
Table Size: ~1200 × 540 mm
Max Table Load: ~800 kg
Suitable for Medium Components
Strong Workholding Capability
Production Ready
Balanced Capacity
DOOSAN DNM 500 – SPINDLE
Max Spindle Speed: 8,000 – 12,000 RPM
Spindle Taper: CAT / BT 40
Motor Power: ~15–20 kW (~20 HP)
Direct / Belt Drive Options
Good Torque Output
Versatile Machining
DOOSAN DNM 500 – TABLE
Table Configuration: Fixed Table
Working Surface: ~1200 × 540 mm
T-Slot Table
Rigid Construction
Supports Fixtures & Vises
Stable Setup
DOOSAN DNM 500 – TOOL TURRET
Tool Changer Type: Automatic
Tool Capacity: 30 Tools
Tool Change Type: Side Mount / Twin Arm
Tool Taper: CAT 40
Fast Tool Changes
Reliable ATC System
DOOSAN DNM 500 – FEEDRATES
Rapid Traverse X/Y: ~36 m/min
Rapid Traverse Z: ~30 m/min
Smooth Axis Motion
Stable Cutting Performance
Optimized for Productivity
Consistent Accuracy
DOOSAN DNM 500 – COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant Available
Flood Coolant System
Dual Chip Conveyors
Efficient Chip Removal
Easy Maintenance
Clean Operation
DOOSAN DNM 500 – CONTROL SYSTEM
CNC Control: FANUC i-Series
User-Friendly Interface
Reliable Performance
Easy Programming
Widely Supported
Industry Standard
DOOSAN DNM 500 – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 200–240 VAC
Approx Power: ~30–40 kVA
Air Requirement: ~6–7 bar
Efficient Power Usage
Suitable for Most Shops
DOOSAN DNM 500 – DIMENSIONS
Machine Length: ~3000–3750 mm
Machine Width: ~2200–2300 mm
Machine Height: ~2600–2700 mm
Machine Weight: ~6500 kg
Medium Footprint
Stable Installation
DOOSAN DNM 500 – GENERAL INFORMATION
Machine Type: Vertical Machining Center (VMC)
Linear Guideway Construction
Mid-Size Platform
High Reliability
Designed for Production
Easy to Maintain
INDUSTRIES THAT USE DOOSAN DNM 500
Automotive
Aerospace
General Engineering
Tool & Die
Job Shops
Precision Manufacturing
TYPICAL PARTS DOOSAN DNM 500 CAN PRODUCE
Machine Components
Mold Bases
Fixtures & Jigs
Automotive Parts
Structural Parts
Aluminum & Steel Parts
WHY CHOOSE DOOSAN DNM 500
Balanced Size & Capacity
Reliable Performance
Versatile Applications
Strong Spindle Capability
Easy to Operate
Excellent Used Market Value
WHY BUY USED DOOSAN DNM 500
Buying a used Doosan DNM 500 is a practical and cost-effective solution for shops looking to expand machining capacity without investing in a new machine.
One of the biggest advantages of this machine is its balanced size and capability. It offers significantly more travel and table space than smaller VMCs while still fitting comfortably into most shop layouts. This makes it highly versatile for a wide range of applications.
Another key benefit is its proven reliability. The DNM 500 is built with durable components such as hardened box structures, linear guideways, and robust spindle systems, ensuring consistent performance even in demanding production environments.
The machine is also highly productive. With a 30-tool automatic tool changer, high rapid traverse rates, and optional features like through-spindle coolant and chip conveyors, it supports efficient machining and reduced cycle times.
Additionally, the widespread use of FANUC controls ensures ease of programming, operator familiarity, and readily available service support. Many used machines also include upgrades like 4th-axis capability, probing systems, and high-pressure coolant, further increasing their value.
HOW MUCH DOES A USED DOOSAN DNM 500COST?
The price of a used Doosan DNM 500 depends on factors such as year, condition, spindle hours, and included options.
Typically, used machines range between $30,000 and $70,000. Older models (late 2000s to early 2010s) tend to be on the lower end, while newer or well-maintained machines with additional features can command higher prices.
Machines equipped with options such as through-spindle coolant, probing, 4th-axis rotary tables, or upgraded spindle speeds (10K–12K RPM) generally fall toward the higher end of the range.
Overall, the DNM 500 offers excellent value as a mid-size VMC, delivering strong performance and versatility at a competitive price point.
