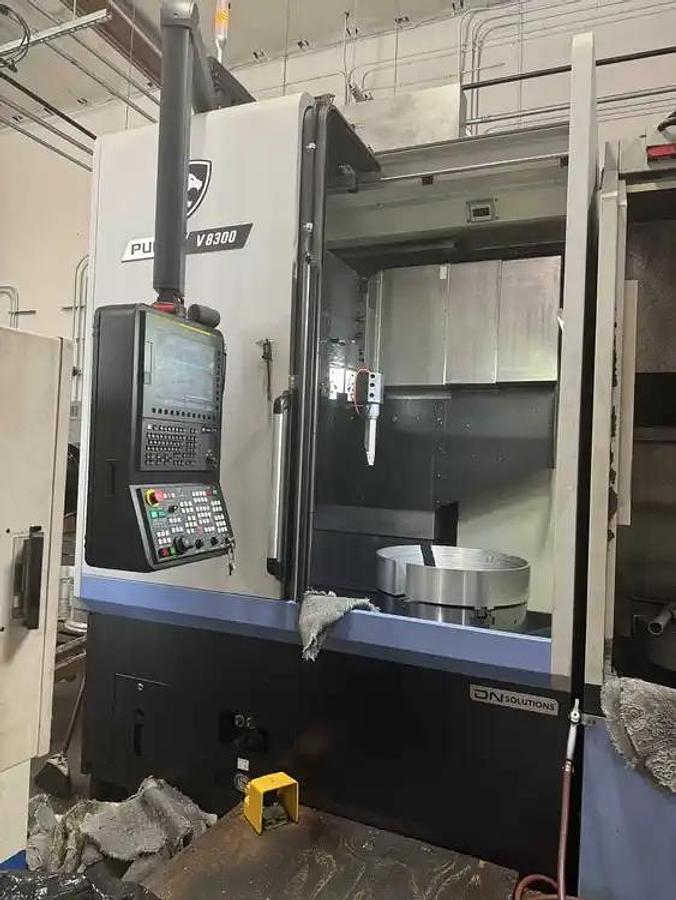

USED DOOSAN PUMA V8300 – 2023

The 2023 Doosan Puma V8300 is a state-of-the-art vertical turning center (VTL) designed for machining large, heavy, and complex round components with exceptional rigidity and precision. Manufactured by Doosan Machine Tools, now operating as DN Solutions, the Puma V8300 combines high-torque spindle performance, box-way construction, and advanced CNC controls to deliver outstanding productivity in demanding applications. The machine is particularly well suited for aerospace, energy, automotive, and heavy equipment manufacturers that machine large housings, flanges, rings, and brake components.

The Puma V8300 offers a maximum turning diameter of approximately 32.7 inches (830 mm) and a maximum work height of about 29.5 inches (750 mm). It is commonly equipped with a 24-inch hydraulic chuck and can handle workpieces weighing up to approximately 1,918 pounds (870 kg). A powerful 50 HP spindle motor delivers high torque at speeds up to 2,000 RPM, enabling both aggressive roughing and precision finishing. The machine uses a rigid column-integrated box guide structure and a servo-driven 12-station turret for long-term accuracy and stable cutting performance. Optional automatic tool changer (ATC) systems and live tooling configurations are also available.

Most 2023 models feature the FANUC 0i-Plus control with Doosan Easy Operation Package, offering conversational features, advanced diagnostics, and network connectivity. Standard equipment often includes chip conveyor, coolant system, spindle oil chiller, and programmable hydraulic chuck.

Industries using the DOOSAN PUMA V8300 include aerospace, automotive, energy, oil and gas, heavy equipment, and precision contract machining. Typical parts include bearing housings, brake drums, flywheels, turbine rings, and large flanges.

The 2023 DOOSAN PUMA V8300 remains highly sought after in the used CNC market because it offers near-new technology, low operating hours, and outstanding heavy-duty turning performance.

DOOSAN PUMA V8300 – AXIS

DOOSAN PUMA V8300 – AXIS TRAVELS / WORK ENVELOPE

DOOSAN PUMA V8300 – CAPACITY / TABLE

DOOSAN PUMA V8300 – SPINDLE

DOOSAN PUMA V8300 – TOOL CHANGER

DOOSAN PUMA V8300 – CONTROL SYSTEM

DOOSAN PUMA V8300 – COOLANT / CHIP MANAGEMENT

DOOSAN PUMA V8300 – POWER REQUIREMENTS

DOOSAN PUMA V8300 – DIMENSIONS

DOOSAN PUMA V8300 – GENERAL INFORMATION

INDUSTRIES THAT USE DOOSAN PUMA V8300

• Aerospace
• Automotive
• Energy and Power Generation
• Oil and Gas
• Heavy Equipment
• Defense
• Rail
• Bearing Manufacturing
• Precision Contract Machining
• General Manufacturing

TYPICAL PARTS DOOSAN PUMA V8300 CAN PRODUCE

• Bearing Housings
• Brake Drums and Rotors
• Flywheels
• Large Flanges
• Turbine Rings
• Wheel Hubs
• Pump Casings
• Gear Blanks
• Valve Bodies
• Transmission Components

WHY CHOOSE DOOSAN PUMA V8300

The DOOSAN PUMA V8300 is designed for manufacturers that need the stability and convenience of vertical turning. Large and heavy workpieces are naturally supported by the chuck, reducing deflection and improving machining accuracy.

Its 50 HP spindle and box-way construction provide the rigidity required for heavy cuts in cast iron, alloy steel, and stainless materials. The FANUC control and optional ATC make the machine easy to program and highly efficient in both job shop and production environments.

For companies machining medium-to-large round components, the Puma V8300 offers an ideal combination of capacity, precision, and modern automation.

WHY BUY USED DOOSAN PUMA V8300 – 2023

Purchasing a used DOOSAN PUMA V8300 – 2023 is an excellent opportunity to acquire near-new vertical turning technology at a substantial discount compared with buying directly from the factory. Since these machines are only a few years old, many available units have low spindle hours and are equipped with premium options such as automatic tool changers, probing, and advanced coolant systems.

A major advantage of buying used is that expensive accessories such as additional tooling, hydraulic workholding, and chip conveyors are often included in the sale. This reduces startup costs and allows the machine to begin production quickly after installation.

The Puma V8300 is engineered for long-term accuracy and dependable operation. Its rigid cast structure, high-torque spindle, and widely supported FANUC control make it a practical and reliable investment.

For manufacturers seeking modern vertical turning capability without the full cost of a new machine, the used DOOSAN PUMA V8300 – 2023 offers exceptional value and productivity.

HOW MUCH DOES A USED DOOSAN PUMA V8300 – 2023 COST?

The price of a used DOOSAN PUMA V8300 – 2023 depends on spindle hours, included options, tooling packages, and overall machine condition.

USED DOOSAN PUMA V8300 – 2023 PRICE GUIDE

NEW VS USED COST COMPARISON

Machines with automatic tool changers, live tooling configurations, and extensive tooling packages typically command higher prices. Buyers should review spindle load history, turret accuracy, chuck condition, and CNC diagnostics before purchasing.

For companies seeking a modern, high-rigidity vertical turning center, the used DOOSAN PUMA V8300 – 2023 provides excellent production capability and strong return on investment.
