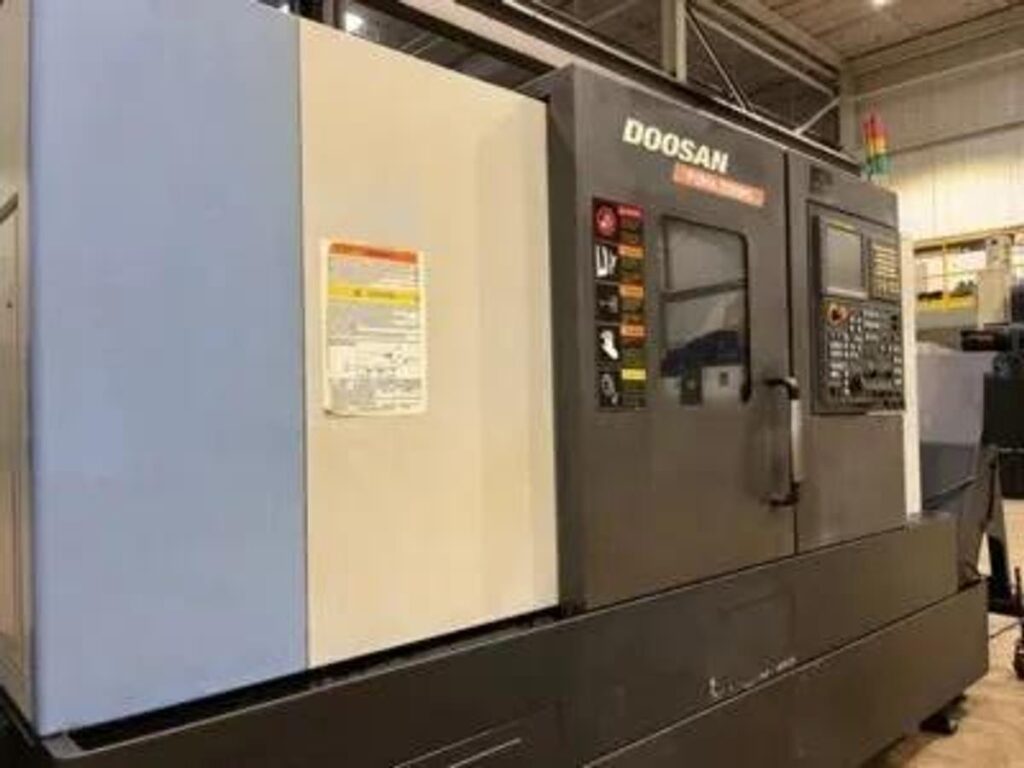

USED DOOSAN PUMA 2100MS – 2012

The 2012 Doosan Puma 2100MS is a highly versatile CNC turning center equipped with live tooling, C-axis control, and a sub-spindle, allowing manufacturers to complete both primary and secondary machining operations in a single setup. Manufactured by Doosan Machine Tools, the Puma series has earned a strong reputation for rugged construction, excellent cutting performance, and long-term reliability. The 2100MS is especially popular among job shops and production facilities that require high productivity and reduced handling of complex parts.

This model typically features an 8-inch main chuck and a 6-inch sub-spindle chuck, with a maximum turning diameter of approximately 16 inches and a machining length of around 20.5 inches. Bar capacity is about 2.6 inches, making the machine suitable for a broad range of turned components. The live tooling turret enables milling, drilling, tapping, and off-center machining, while the sub-spindle allows complete part transfer and back-working. These capabilities significantly reduce cycle times and improve dimensional accuracy.

Most 2012 Puma 2100MS machines are equipped with a 4,500 RPM main spindle, 25 HP spindle motor, 12-station turret, and FANUC i-Series control. Common options include chip conveyor, parts catcher, bar feeder interface, and automatic tool presetter. The machine is built on rigid box guideways that provide outstanding stability and excellent surface finish, even during demanding cuts.

Industries using the DOOSAN PUMA 2100MS include aerospace, medical, oil and gas, automotive, hydraulics, and general precision manufacturing. Typical parts include hydraulic fittings, valve bodies, shafts, bushings, and threaded connectors.

The 2012 model remains highly desirable in the used CNC market because it combines turning, milling, and sub-spindle capabilities in one dependable and productive platform.

DOOSAN PUMA 2100MS – AXIS

DOOSAN PUMA 2100MS – AXIS TRAVELS / WORK ENVELOPE

DOOSAN PUMA 2100MS – CAPACITY / CHUCK

DOOSAN PUMA 2100MS – SPINDLE

DOOSAN PUMA 2100MS – LIVE TOOLING

DOOSAN PUMA 2100MS – CONTROL SYSTEM

DOOSAN PUMA 2100MS – COOLANT / CHIP MANAGEMENT

DOOSAN PUMA 2100MS – POWER REQUIREMENTS

DOOSAN PUMA 2100MS – DIMENSIONS

DOOSAN PUMA 2100MS – GENERAL INFORMATION

INDUSTRIES THAT USE DOOSAN PUMA 2100MS

• Aerospace
• Medical Device Manufacturing
• Automotive
• Oil and Gas
• Hydraulics and Pneumatics
• Defense
• Energy
• Precision Contract Machining
• Agricultural Equipment
• General Manufacturing

TYPICAL PARTS DOOSAN PUMA 2100MS CAN PRODUCE

• Hydraulic Fittings
• Valve Bodies
• Shafts
• Bushings
• Aerospace Connectors
• Medical Components
• Pump Parts
• Precision Sleeves
• Threaded Adapters
• Tool Holders
• Complex Turn-Mill Parts
• Complete Finished Components

WHY CHOOSE DOOSAN PUMA 2100MS

The DOOSAN PUMA 2100MS is an ideal solution for shops that need to combine turning, milling, and back-working in one machine. The addition of a sub-spindle eliminates the need for secondary operations and dramatically reduces handling time. This results in shorter cycle times, improved concentricity, and higher overall throughput.

The machine’s box guideway construction provides excellent rigidity and damping, allowing aggressive cuts in steel, stainless steel, and alloy materials. The FANUC control is widely used and familiar to operators and technicians, simplifying programming and maintenance. Live tooling and C-axis capability make it possible to machine flats, cross holes, keyways, and threads in a single setup.

For manufacturers producing medium-sized precision components, the Puma 2100MS offers a powerful combination of flexibility, reliability, and production efficiency. Many shops choose this model because it delivers multi-tasking performance without the complexity and cost of a full multi-axis mill-turn center.

WHY BUY USED DOOSAN PUMA 2100MS – 2012

Purchasing a used DOOSAN PUMA 2100MS – 2012 is a smart investment for manufacturers seeking advanced turning and milling capabilities at a significantly lower cost than a new machine. New CNC lathes with live tooling, C-axis control, and sub-spindles often cost well over $200,000. By purchasing used, shops can obtain similar functionality for a fraction of that amount.

One of the greatest advantages of buying this machine used is the ability to acquire valuable accessories already installed. Many machines are sold with bar feeders, parts catchers, tool presetters, live tooling holders, and chip conveyors. These extras can save tens of thousands of dollars and allow immediate production after installation.

The Puma 2100MS has a strong reputation for long-term reliability and excellent machining accuracy. Its FANUC control ensures broad technician familiarity and straightforward support. Replacement parts and service remain readily available, making ownership practical and cost-effective.

For job shops, medical manufacturers, and aerospace suppliers, the used DOOSAN PUMA 2100MS – 2012 provides exceptional productivity, flexibility, and return on investment.

HOW MUCH DOES A USED DOOSAN PUMA 2100MS – 2012 COST?

The price of a used DOOSAN PUMA 2100MS – 2012 depends on machine hours, maintenance history, included tooling, bar feeder compatibility, and the overall condition of the main and sub-spindles. Because the machine combines live tooling and complete part transfer capabilities, well-maintained examples tend to retain strong market value.

USED DOOSAN PUMA 2100MS – 2012 PRICE GUIDE

NEW VS USED COST COMPARISON

Machines equipped with bar feeders, mist collectors, live tooling packages, and extensive workholding typically command higher prices. Buyers should evaluate spindle condition, turret indexing accuracy, sub-spindle transfer performance, and control diagnostics before purchasing.

For shops seeking a dependable CNC turning center capable of complete front and back machining, the used DOOSAN PUMA 2100MS – 2012 offers outstanding value and long-term production capability.
