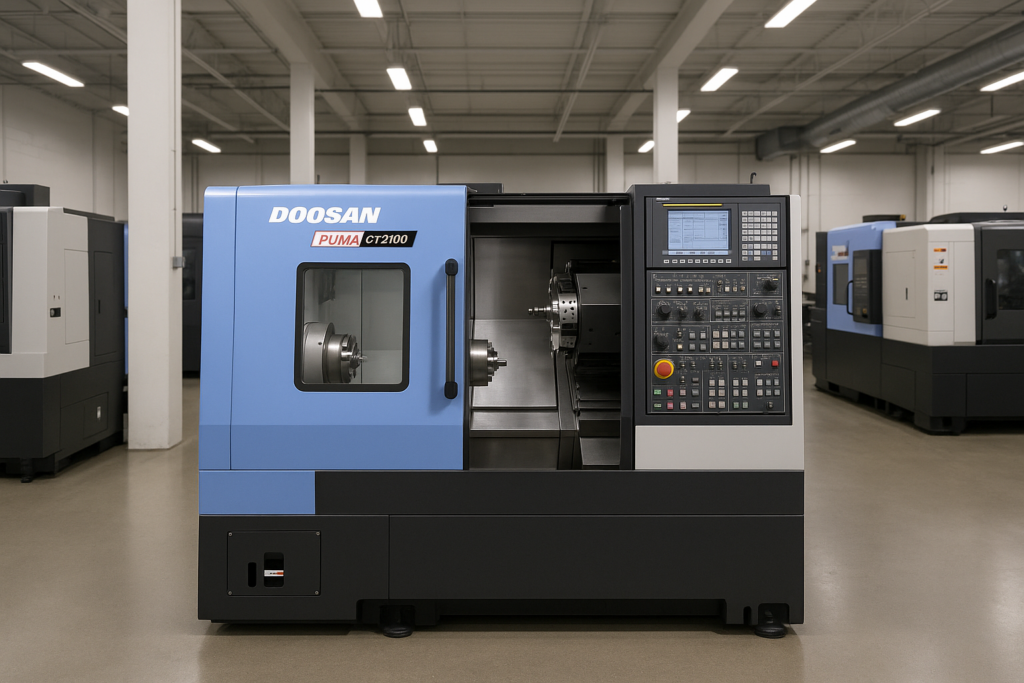

The DOOSAN PUMA GT2100 is a compact and high-performance CNC turning center designed for precision turning applications in small to medium part production. Built with a rigid slant-bed structure and high-quality linear guideways, the GT2100 provides excellent stability, smooth motion, and reliable accuracy, making it suitable for both job shop and production environments. Its space-efficient design makes it an ideal choice for manufacturers looking to maximize productivity while minimizing floor space requirements.
The PUMA GT2100 is equipped with a powerful spindle that delivers strong torque and high-speed capability, allowing efficient machining of materials such as aluminum, steel, and various engineering alloys. The machine is controlled by a Fanuc or Siemens CNC system, offering intuitive programming, reliable performance, and easy integration with CAD/CAM software. A fast and responsive turret system, along with rapid traverse rates, helps reduce cycle times and improve overall machining efficiency. Optional features such as part catchers, bar feeders, and chip conveyors further enhance automation and streamline production workflows.
The DOOSAN PUMA GT2100 is widely used in automotive, general engineering, and precision component manufacturing, where consistent accuracy and repeatability are critical. Its combination of compact design, robust performance, and user-friendly operation makes it a cost-effective solution for manufacturers seeking a reliable CNC lathe for high-quality turning operations and efficient production output.
DOOSAN PUMA GT2100SPECIFICATIONS
CAPACITIES
Max Turning Diameter: Ø350 mm (13.8 in)
Max Turning Length: 550 mm (21.6 in)
Bar Capacity: 65 mm (2.56 in)
MAIN SPINDLE
Spindle Nose: A2-6
Max Spindle Speed: 4,500 rpm
Spindle Power: 18.5 kW (24.8 hp)
Max Spindle Torque: ~350 Nm
Spindle Bearing Diameter: 120 mm
TURRET
Turret Type: Servo Indexing
Number of Tool Stations: 12
Indexing Time: 0.2 sec/tool (bi-directional)
Tool Size: OD – 25 mm, ID – 40 mm
AXES & FEEDRATES
X-Axis Travel: 205 mm
Z-Axis Travel: 580 mm
Rapid Traverse (X/Z): 30 / 36 m/min
Axis Guideways: Box-type for rigidity
COOLANT & CHIP MANAGEMENT
Coolant Tank Capacity: ~180 liters
Chip Conveyor: Optional
Through-Spindle Coolant: Not standard (available in variants)
CONTROL SYSTEM
FANUC 0i-TF Plus
Conversational programming and tool life monitoring
USB, Ethernet, and DNC ready
DOOSAN PUMA GT2100 – GENERAL INFORMATION
Model: Doosan PUMA GT2100
Machine Type: Horizontal CNC Turning Center (2-Axis)
Bed Type: 30° Slant Bed with box-type construction
Control: FANUC 0i-TF Plus (standard)
Applications: Precision turning, threading, grooving, and facing
DOOSAN PUMA GT2100 – KEY CAPABILITIES
High-torque main spindle for difficult-to-machine materials
Fast indexing 12-station turret with bi-directional motion
Wide turret carriage for stable and consistent tool contact
Compact footprint and easy integration in production lines
Built for heavy-duty turning with low vibration
INDUSTRIES THAT USE DOOSAN PUMA GT2100
Automotive (brake hubs, shafts, pulleys)
Oil & Gas (threaded pipe fittings, collars)
Aerospace (rings, bushings, connectors)
General Machining (flanges, pins, couplings)
Bearing and valve manufacturing
TYPICAL PARTS DOOSAN PUMA GT2100 CAN PRODUCE
Round components with tight tolerances
Short shafts, pins, and rollers
Flanges and bushings with precision threads
Valve stems and spindles
Hydraulic fittings
WHY CHOOSE THE DOOSAN PUMA GT2100
Proven reliability and high uptime in mass production
Excellent chip control and thermal stability
Ideal for shops seeking simple, cost-effective turning
Low cost of ownership with minimal maintenance
FANUC controls make programming easy and widely supported
Summary Table
PARAMETER
VALUE
Max Turning Dia
Ø350 mm (13.8 in)
Max Turning Length
550 mm (21.6 in)
Bar Capacity
65 mm (2.56 in)
Spindle Power
18.5 kW (24.8 hp)
Spindle Speed
4,500 rpm
Tool Stations
12 (servo indexing)
Rapid Traverse (X/Z)
30 / 36 m/min
Control System
FANUC 0i-TF Plus
How much does used DOOSAN PUMA GT2100 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard turning)
$45,000 – $60,000
Mid-Spec (chip conveyor, chuck, tools)
$60,000 – $70,000
High-Spec (low hours, pristine cond.)
$70,000 – $80,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
