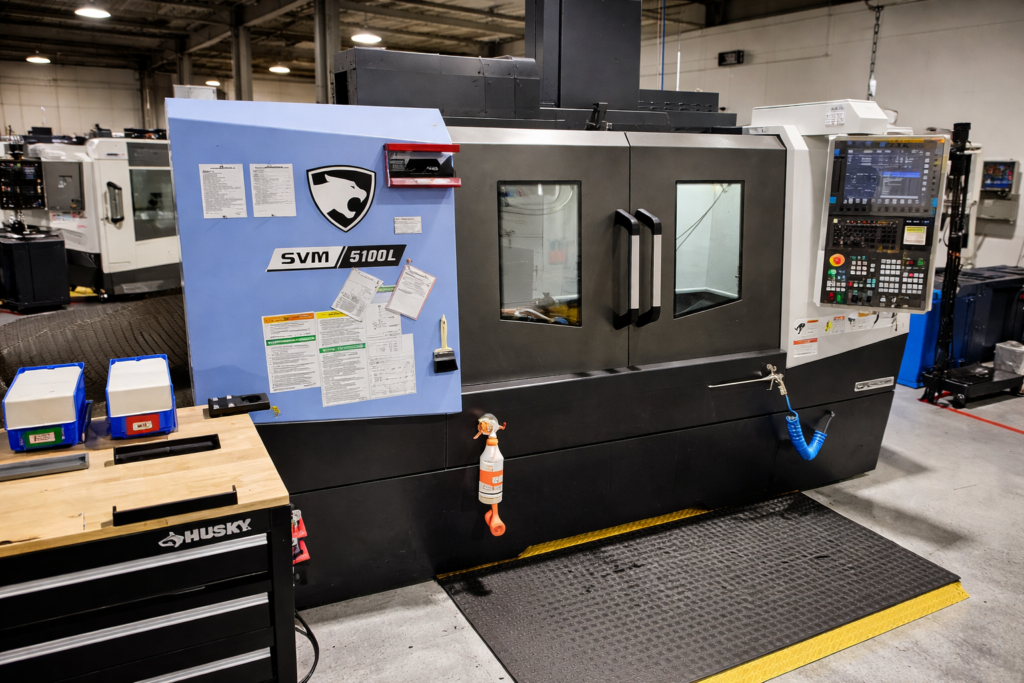

The Doosan SVM5100L is a high-speed CNC vertical machining center designed for efficient and precise milling operations, particularly in light to medium-duty applications. Manufactured by Doosan Machine Tools (now DN Solutions), the SVM5100L is part of the Swift series, engineered to reduce cycle times and improve productivity.
The machine offers X-axis travel of approximately 1,270 mm, Y-axis of 510 mm, and Z-axis of 510 mm, providing a large working envelope for medium-sized components. It is equipped with a 12,000 RPM spindle and a 25 HP (18.5 kW) motor, enabling high-speed machining of materials such as aluminum and light steels.
The SVM5100L features a 30-tool automatic tool changer (ATC), CAT40 BIG-PLUS spindle system, and rapid traverse rates of up to 36 m/min, significantly reducing non-cutting time. Its rigid Meehanite cast iron structure ensures stability and accuracy, while advanced CNC controls—typically Fanuc 0i-Plus—provide precision and ease of use.
Overall, the SVM5100L is known for its speed, reliability, and cost-effective performance, making it ideal for production environments focused on high-efficiency machining.
DOOSAN SVM5100LSPECIFICATIONS
DOOSAN SVM5100L – AXIS
X-Axis
Y-Axis
Z-Axis
DOOSAN SVM5100L – AXIS TRAVELS
X-Axis Travel: ~1,300 mm
Y-Axis Travel: ~510 mm
Z-Axis Travel: ~570 mm
DOOSAN SVM5100L – CAPACITY
Table Size: ~1,500 x 520 mm
Maximum Table Load: ~1,000 kg
Maximum Workpiece Height: ~650 mm
T-Slots: ~5 Slots
DOOSAN SVM5100L – SPINDLE
Spindle Type: Vertical Spindle
Spindle Taper: BT40
Maximum Spindle Speed: ~8,000 RPM (Optional: 12,000 RPM)
Spindle Motor Power: ~15–18.5 kW
Direct Drive / Belt Drive Options
DOOSAN SVM5100L – TABLE
Table Dimensions: ~1,500 x 520 mm
Table Load Capacity: ~1,000 kg
Precision Ground Surface
Suitable for Long Workpieces
DOOSAN SVM5100L – TOOL MAGAZINE
Tool Magazine Capacity: 24 Tools
Tool Type: BT40
Tool Change Time: ~2.5 sec
Automatic Tool Changer (ATC)
DOOSAN SVM5100L – FEEDRATES
Rapid Traverse (X/Y/Z): ~36 / 36 / 30 m/min
Cutting Feed Rate: Programmable
High-Speed Servo Motors
DOOSAN SVM5100L – COOLANT & CHIP MANAGEMENT
Coolant System: Flood Coolant
Chip Disposal: Chip Conveyor (Optional)
Efficient Chip Evacuation
DOOSAN SVM5100L – CONTROL SYSTEM
CNC Control: FANUC Oi-MF
User-Friendly Interface
High-Speed Machining Capability
DOOSAN SVM5100L – POWER & AIR REQUIREMENTS
Power Requirement: ~380–415V, 3 Phase
Connected Load: ~30–35 kVA
Air Requirement: ~5–6 bar
DOOSAN SVM5100L – DIMENSIONS
Machine Footprint: ~3.2 m x 2.5 m
Machine Height: ~2.7–2.9 m
Machine Weight: ~6,500–7,500 kg
DOOSAN SVM5100L – GENERAL INFORMATION
Machine Type: Vertical Machining Center (VMC)
Extended Table for Long Parts
High Rigidity Structure
Suitable for Medium to Heavy Duty Machining
Ideal for Long Workpiece Applications
INDUSTRIES THAT USE DOOSAN SVM5100L
Automotive Industry
Aerospace Industry
Die & Mold Industry
General Engineering
Precision Manufacturing
TYPICAL PARTS DOOSAN SVM5100L CAN PRODUCE
Long Plates
Molds & Dies
Structural Components
Machine Parts
Automotive Components
WHY CHOOSE DOOSAN SVM5100L
Extended X-Axis for Long Parts
High Accuracy and Stability
Reliable FANUC Control
Good Power for Heavy Cutting
Versatile Milling Capability
Easy Operation and Maintenance
WHY BUY USED DOOSAN SVM5100L
Purchasing a used Doosan SVM5100L is a smart investment for manufacturers seeking high-speed machining capability at a lower cost. One of the biggest advantages is affordability—used machines provide strong performance at a fraction of the price of new vertical machining centers.
The SVM5100L is specifically designed for high productivity, with fast spindle acceleration and rapid axis movement that reduce cycle times and improve throughput. This makes it particularly suitable for industries machining aluminum die-cast parts and light steel components.
Machines from Doosan Machine Tools are known for durability and long service life. Even units with higher cutting hours can continue to perform efficiently with proper maintenance, making them a reliable long-term investment.
Another key benefit is availability. Used machines are typically ready for immediate delivery, avoiding long lead times associated with new equipment. Additionally, widely used CNC systems like Fanuc ensure easy maintenance, with readily available spare parts and service support.
Overall, a used SVM5100L offers an excellent balance of speed, reliability, and cost efficiency for modern machining operations.
HOW MUCH DOES A USED DOOSAN SVM5100LCOST?
The cost of a used Doosan SVM5100L depends on year of manufacture, condition, configuration, and cutting hours. Since the SVM5100L is a relatively modern machine, units built before 2000 are not available.
Machines from 2000 to 2010 are also limited, but comparable early vertical machining centers with similar specifications typically range from $30,000 to $70,000, depending on condition and usage.
For machines produced between 2010 and 2025, prices generally range from $70,000 to $130,000 or more. Newer models with low cutting hours, full features such as 12,000 RPM spindle, 30-tool ATC, and advanced Fanuc controls command higher prices due to improved efficiency and reduced wear.
Cutting time is one of the most critical pricing factors. Machines with low spindle hours (under 5,000–8,000 hours) command premium pricing, while high-hour machines are more affordable but may require maintenance such as spindle bearing replacement, tool changer servicing, or ball screw inspection.
Overall, the SVM5100L remains a strong value in the used market due to its productivity, speed, and widespread demand in modern machining environments.
