Used DOOSAN MYNX 750 - 2008 CNC Machine For Sale - Illinois - USA

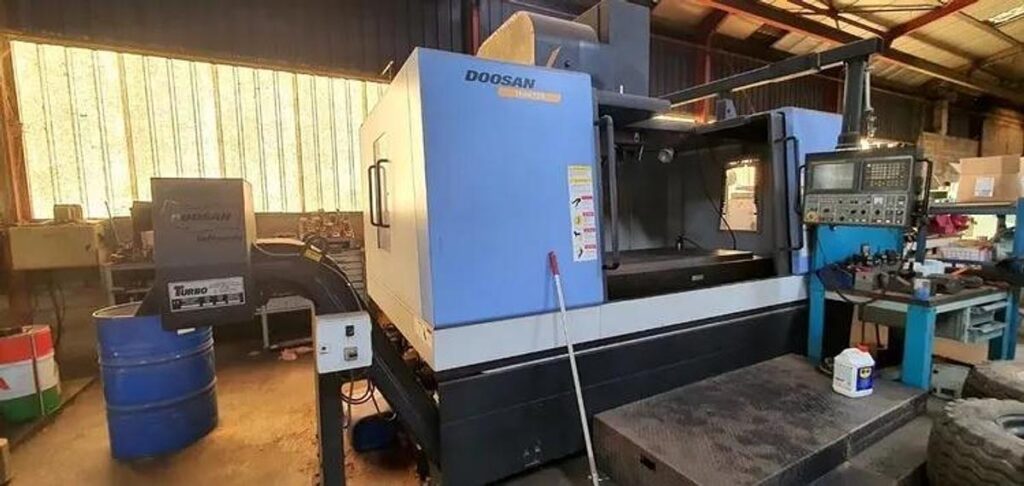

DOOSAN MYNX 750 – 2008

DOOSAN MYNX 750 – 2008

MAKE: DOOSAN
MODEL: MYNX 750
TYPE: Vertical Machines
YEAR: 2008
SKU: 106009
DEALER: Blackout Equipment LLC
COUNTRY: USA
STATE: Illinois

USED DOOSAN MYNX 750 – 2008

The 2008 Doosan Mynx 750 is a large-capacity vertical machining center designed for heavy-duty milling, drilling, tapping, and precision contouring of oversized components. Manufactured by Doosan Machine Tools, the Mynx series is known for rugged construction, powerful spindle performance, and excellent value. The Mynx 750 is especially popular among mold makers, heavy equipment manufacturers, aerospace suppliers, and general machining facilities that need substantial travel and table capacity in a dependable CNC platform.

This model typically offers approximately 60 inches (1,524 mm) of X-axis travel, 30 inches (762 mm) of Y-axis travel, and 27.6 inches (700 mm) of Z-axis travel. The large table, often around 67 inches by 30 inches, can support workpieces weighing up to 3,300 pounds or more. These capabilities make the machine ideal for machining large aluminum plates, steel fixtures, mold bases, and fabricated structures.

Most 2008 Doosan Mynx 750 machines are equipped with a CAT 40 or CAT 50 spindle, depending on configuration, with spindle speeds ranging from 6,000 to 8,000 RPM and spindle motors in the 20 to 30 HP range. Tool capacity is typically 24 to 30 tools. Controls are commonly FANUC 18i-MB or similar, providing reliable G-code programming and strong service support. Common options include chip conveyor, through-spindle coolant, Renishaw probing, and fourth-axis rotary tables.

Industries using the DOOSAN MYNX 750 include aerospace, automotive, mold and die, oil and gas, heavy equipment, and precision contract machining. Typical parts include fixture plates, molds, pump housings, machine bases, and structural components.

The 2008 DOOSAN MYNX 750 remains highly sought after in the used CNC market because it combines generous travels, strong cutting capability, and proven long-term reliability.

DOOSAN MYNX 750 – AXIS

ParameterSpecification
Number of Controlled Axes3 Axis (X, Y, Z)
X AxisYes
Y AxisYes
Z AxisYes
Optional 4th Axis ReadyCommon

DOOSAN MYNX 750 – AXIS TRAVELS / WORK ENVELOPE

ParameterSpecification
X Axis Travel60.0″ (1,524 mm)
Y Axis Travel30.0″ (762 mm)
Z Axis Travel27.6″ (700 mm)
Spindle Nose to Table5.9″ – 33.5″
Rapid Traverse RateUp to 945 IPM (24 m/min)

DOOSAN MYNX 750 – CAPACITY / TABLE

ParameterSpecification
Table Size67″ × 30″ (1,700 × 762 mm)
Maximum Table Load3,300 lbs (1,500 kg)
T-Slots5
Table HeightApproximately 35″ (890 mm)

DOOSAN MYNX 750 – SPINDLE

ParameterSpecification
Maximum Spindle Speed6,000 – 8,000 RPM
Spindle Motor20 – 30 HP
Spindle TaperCAT 40 or CAT 50
Drive TypeGear or Belt Driven

DOOSAN MYNX 750 – TOOL CHANGER

ParameterSpecification
Standard Tool Capacity24 Tools
Optional Tool Capacity30 Tools
Tool Change TypeAutomatic Tool Changer
Tool-to-Tool TimeApproximately 2.5 – 4.0 sec

DOOSAN MYNX 750 – CONTROL SYSTEM

ParameterSpecification
CNC ControlFANUC 18i-MB
ProgrammingISO G-Code
NetworkingEthernet / RS-232
Rigid TappingStandard

DOOSAN MYNX 750 – COOLANT / DUST / WATER MANAGEMENT

ParameterSpecification
Flood Coolant SystemStandard
Through-Spindle CoolantOptional
Chip ConveyorCommonly Included
Probing SystemOptional

DOOSAN MYNX 750 – POWER REQUIREMENTS

ParameterSpecification
Electrical Requirement220V or 480V / 3 Phase
Connected Load35 – 60 kVA
Air Requirement90 PSI

DOOSAN MYNX 750 – DIMENSIONS

ParameterSpecification
Machine Length180″ – 210″ (4,572 – 5,334 mm)
Machine Width120″ – 150″ (3,048 – 3,810 mm)
Machine Height120″ (3,048 mm)
Machine Weight18,000 – 24,000 lbs (8,165 – 10,886 kg)

DOOSAN MYNX 750 – GENERAL INFORMATION

ParameterSpecification
ManufacturerDoosan Machine Tools
ModelMynx 750
Year2008
Machine TypeVertical Machining Center
Country of ManufactureSouth Korea
Typical ConditionProduction Ready

INDUSTRIES THAT USE DOOSAN MYNX 750

  • Aerospace
  • Automotive
  • Mold and Die
  • Oil and Gas
  • Heavy Equipment
  • Energy
  • Tool and Fixture Building
  • Defense
  • Precision Contract Machining
  • General Manufacturing

TYPICAL PARTS DOOSAN MYNX 750 CAN PRODUCE

  • Large Fixture Plates
  • Mold Bases
  • Machine Frames
  • Pump Housings
  • Structural Brackets
  • Aerospace Components
  • Weldment Machining
  • Hydraulic Manifolds
  • Tooling Plates
  • Press Components
  • Prototype Parts
  • Production Components

WHY CHOOSE DOOSAN MYNX 750

The DOOSAN MYNX 750 offers a powerful combination of large travels, strong spindle performance, and proven reliability. Its spacious work envelope makes it ideal for machining oversized components that would not fit on standard vertical machining centers.

The machine’s rigid construction supports aggressive material removal while maintaining tight tolerances and excellent surface finishes. With FANUC controls and readily available replacement parts, the Mynx 750 is easy to program, maintain, and integrate into existing production workflows.

For manufacturers seeking a dependable large-format vertical machining center, the Mynx 750 provides excellent performance and long-term value.

WHY BUY USED DOOSAN MYNX 750 – 2008

Purchasing a used DOOSAN MYNX 750 – 2008 is a practical way to acquire large-capacity milling capability at a significantly lower cost than buying a new machine. New machines with similar travels and table capacities can cost several hundred thousand dollars depending on spindle configuration and optional accessories.

Many used machines include valuable features such as chip conveyors, probing systems, fourth-axis rotary tables, and tooling packages. These extras can reduce setup costs and allow the machine to begin producing parts immediately after installation.

The Mynx series is well known for durability and strong machining performance. Well-maintained machines continue to deliver reliable service for many years, making them a smart investment for both job shops and production facilities.

For companies machining large plates, mold bases, and structural components, the used DOOSAN MYNX 750 – 2008 offers excellent productivity and strong return on investment.

HOW MUCH DOES A USED DOOSAN MYNX 750 – 2008 COST?

The price of a used DOOSAN MYNX 750 – 2008 depends on spindle type, control condition, machine hours, included tooling, and overall maintenance history.

USED DOOSAN MYNX 750 – 2008 PRICE GUIDE

ConditionEstimated Price Range (USD)
Excellent, Fully Equipped$35,000 – $85,000
Very Good Condition$25,000 – $55,000
Standard Production Condition$18,000 – $35,000
Higher Hours or Needs Repair$8,000 – $20,000

NEW VS USED COST COMPARISON

Purchase TypeEstimated Cost (USD)
New Comparable Large Vertical Machining Center$180,000 – $450,000+
Used 2008 Model$8,000 – $85,000

Pricing is influenced by spindle taper, axis condition, control updates, and included accessories such as probing and rotary tables. Buyers should inspect spindle bearings, way systems, ballscrews, and CNC diagnostics before purchase.

For manufacturers seeking a reliable and cost-effective large-format vertical machining center, the used DOOSAN MYNX 750 – 2008 represents an outstanding investment with excellent production capability.
