USED DOOSAN NHP 5000

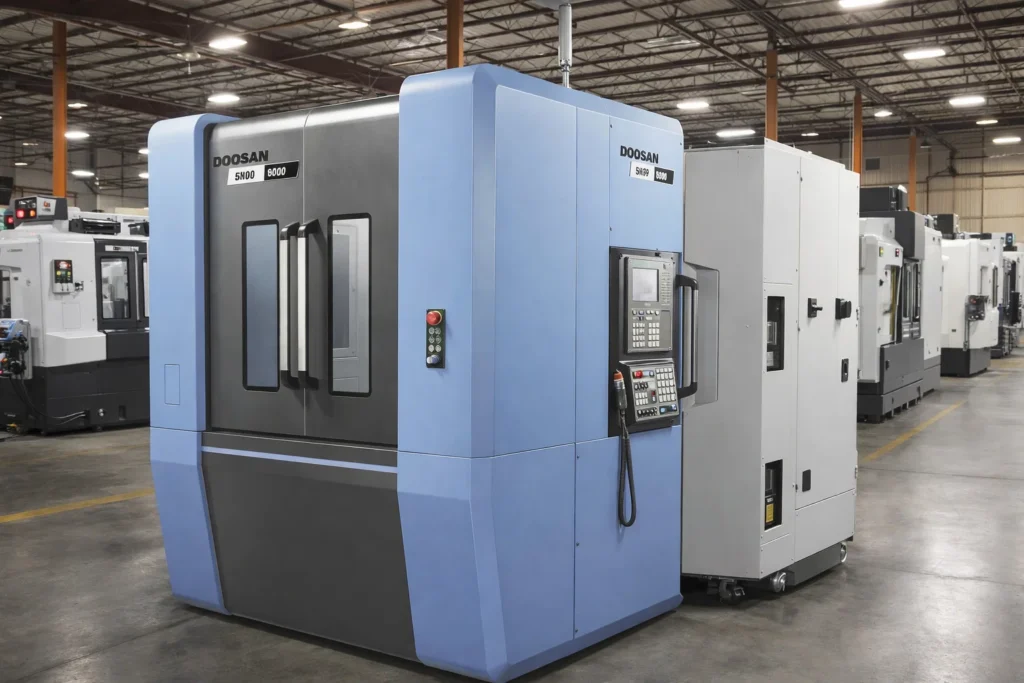

The Doosan NHP 5000 is a high-performance horizontal machining center designed for precision, speed, and productivity in modern manufacturing environments. Unlike vertical machining centers, the NHP 5000 utilizes a horizontal spindle configuration, which allows for superior chip evacuation and efficient multi-face machining in a single setup. This design significantly reduces downtime and improves overall throughput, making it ideal for industries such as automotive, aerospace, and general engineering.

The machine offers axis travels of approximately 730 mm in X, 730 mm in Y, and 880 mm in Z, along with a pallet size of 500 x 500 mm and a maximum workpiece weight of around 500 kg. It is equipped with a BIG PLUS CAT 40 spindle capable of reaching speeds up to 15,000 RPM, powered by a 30 kW motor that delivers strong torque and high-speed machining capability.

A key feature of the NHP 5000 is its productivity-focused design, including rapid traverse rates of up to 60 m/min, tool change times as fast as 0.9 seconds, and an automatic pallet changer system that minimizes idle time. The machine is typically equipped with a Fanuc 31i-B control, offering advanced machining capabilities and reliability. With its combination of speed, automation, and precision, the NHP 5000 is widely used in high-production environments where efficiency and consistency are critical.

DOOSAN NHP 5000 SPECIFICATIONS

WHY BUY USED DOOSAN NHP 5000

Buying a used Doosan NHP 5000 is an excellent choice for manufacturers seeking high productivity and advanced machining capabilities without the cost of a new machine. One of the biggest advantages of this model is its efficiency. The horizontal spindle design combined with a pallet-changing system allows continuous machining, significantly reducing setup time and improving overall shop productivity.

Another major benefit is performance. The NHP 5000 is designed for high-speed machining with rapid axis movement and extremely fast tool change times, enabling shorter cycle times and increased output. Its ability to handle multi-face machining in a single setup reduces the need for repositioning, improving accuracy and consistency across parts.

Cost savings are also a key factor. A new NHP 5000 can cost upwards of $350,000 to $400,000 depending on configuration, making used machines a far more accessible option for many shops. A used machine still offers advanced features such as pallet changers, large tool capacity, and automation readiness at a fraction of the price.

Additionally, the use of widely adopted Fanuc controls ensures ease of operation, availability of spare parts, and access to skilled operators. Many used units are also equipped with high-pressure coolant systems, probing systems, and expanded tool magazines, further increasing their value. For shops aiming to scale production efficiently, the NHP 5000 provides a powerful and cost-effective solution.

HOW MUCH DOES A USED DOOSAN NHP 5000 COST?

The cost of a used Doosan NHP 5000 varies based on manufacturing year, machine condition, and most importantly, cutting hours. Since these machines are typically used in high-production environments, cutting time is a critical factor in determining wear on key components such as the spindle, pallet system, and linear guideways.

Machines manufactured before 2000 are extremely rare in this category, but when available, they typically range from $30,000 to $60,000. These machines often have very high cutting hours exceeding 30,000–45,000 hours and may require refurbishment, particularly in spindle and pallet systems.

Machines built between 2000 and 2010 are more commonly available and generally range from $60,000 to $120,000. These units usually have cutting hours between 12,000 and 30,000 hours. Machines with documented maintenance history, lower spindle wear, and fully functional pallet changers tend to command higher prices within this range.

For newer machines from 2010 to 2025, prices typically range from $120,000 to $250,000 or more. Machines with lower cutting hours—typically under 10,000–15,000 hours—can command premium pricing, especially if equipped with options such as larger tool magazines, probing systems, and high-pressure through-spindle coolant. A 2018 machine with approximately 14,000 cutting hours, for example, represents a mid-range option in terms of pricing and remaining life.

Ultimately, the best value comes from balancing age with cutting hours, as a well-maintained machine with moderate usage can often deliver better long-term reliability than a newer machine that has been heavily used in continuous production environments.
