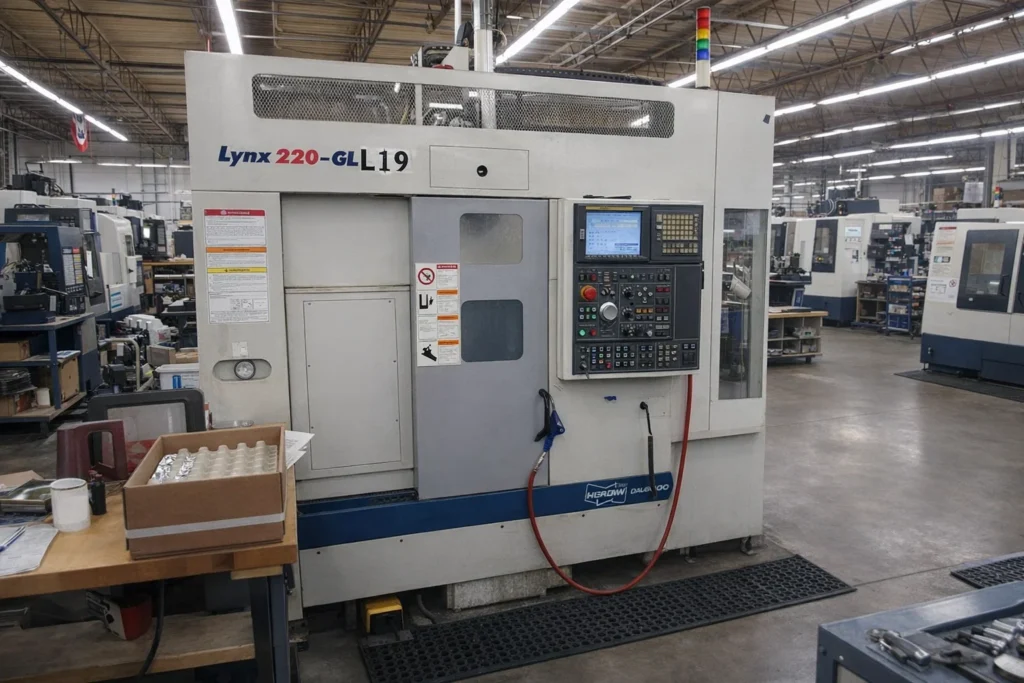

USED DOOSAN LYNX 220GL

The Doosan Lynx 220GL is a long-bed gang tool CNC lathe, designed specifically for high-speed bar work and extended-length part production. It is an evolution of the Lynx 220G, combining the speed advantages of gang tooling with increased Z-axis travel for machining longer components.

Like the 220G, this machine is a 2-axis CNC turning center (X and Z), but the “GL” variant features a longer bed configuration, making it more versatile for parts that require additional machining length. It is commonly used with bar feeders, enabling continuous, high-volume production.

The machine typically supports a 6-inch chuck with a bar capacity of around 44–45 mm, and offers a maximum turning diameter in the ~165–200 mm range, depending on setup. Its extended Z-axis travel (typically ~500 mm or more) allows for machining longer shafts and components compared to the standard gang model.

The Lynx 220GL is equipped with a high-speed spindle (up to ~6,000 RPM) and a ~15–20 HP motor, delivering excellent cutting performance and surface finish quality. Similar to other Lynx models, it uses FANUC CNC controls, ensuring reliability, ease of programming, and global service support.

DOOSAN LYNX 220GL SPECIFICATIONS

WHY BUY USED DOOSAN LYNX 220GL

A used Doosan Lynx 220GL is an excellent investment for manufacturers focused on longer bar-fed parts and high-throughput production.

The key advantage is the combination of gang tooling + long-bed design:

• No turret indexing time → faster cycle times
• Extended Z travel → ability to machine longer parts in one setup

This makes the machine ideal for:

• Long shafts
• Hydraulic components
• Automotive pins and rods
• Precision turned parts from bar stock

Because gang tooling uses fixed tool positions, it reduces mechanical complexity, resulting in:

• Lower maintenance requirements
• Higher reliability
• Consistent repeatability in production runs

The Lynx 220GL is also highly compatible with automation systems, including:

• Bar feeders (very common on GL models)
• Parts catchers
• Chip conveyors

These features make it well-suited for lights-out machining and continuous production environments.

Additionally, the FANUC control system ensures easy integration into existing shops and simplifies operator training.

HOW MUCH DOES A USED DOOSAN LYNX 220GL COST?

The price of a used Doosan Lynx 220GL generally ranges between $18,000 and $45,000, depending on condition, year, and included equipment.

• $18K–$25K: Older models, basic configuration
• $25K–$35K: Good condition with chip conveyor and tooling
• $35K–$45K: Fully equipped machines with bar feeders and production setups

Machines with bar feeders and automation packages command higher prices due to their ability to run continuous, unattended production.

Overall, the Lynx 220GL delivers excellent ROI for shops needing speed, simplicity, and longer part capability.
