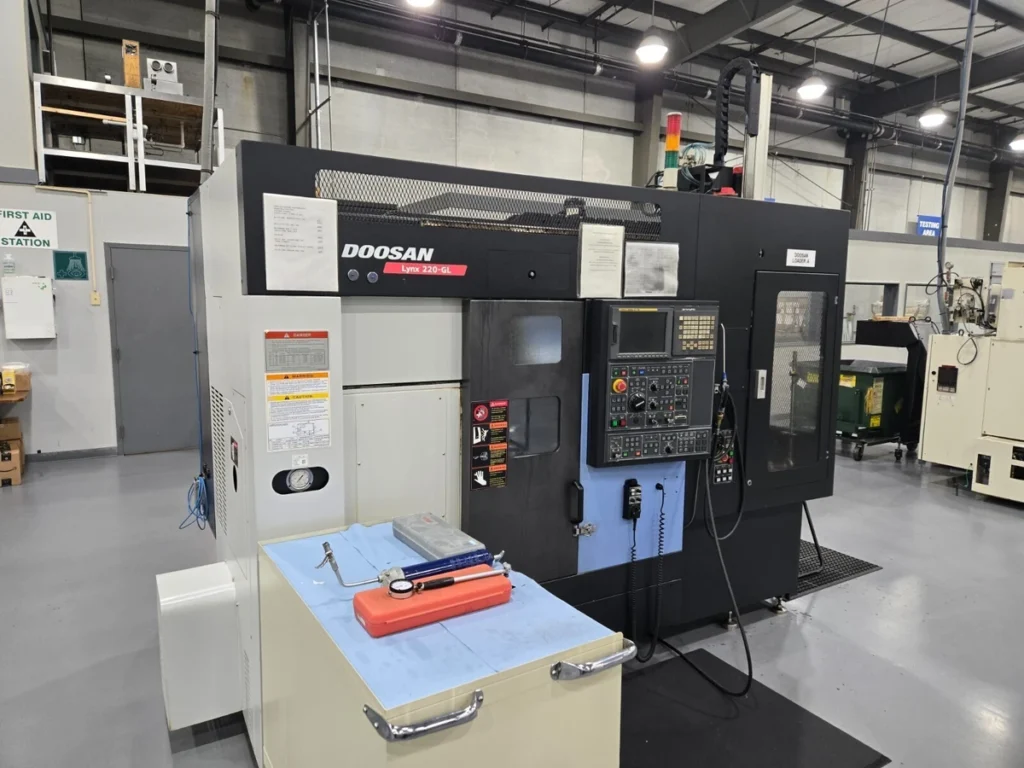

USED DOOSAN LYNX 220 GL – 2008

The DOOSAN LYNX 220 GL – 2008 is a compact yet highly capable CNC turning center designed to deliver precision, productivity, and reliability for a wide range of turning applications. Part of Doosan’s highly successful Lynx series, the 220 GL was developed to provide manufacturers with an affordable and efficient turning solution capable of handling both short-run and production machining requirements. Known for its robust construction, ease of operation, and excellent value, the Lynx 220 GL remains one of the most popular entry-level CNC lathes available in the used machinery market.

Built with a rigid Meehanite cast iron base and heavily reinforced machine structure, the Lynx 220 GL provides excellent vibration dampening and thermal stability. This design allows the machine to maintain high levels of accuracy even during demanding machining operations. The machine’s compact footprint makes it particularly attractive for job shops and manufacturers looking to maximize production capacity while minimizing floor space requirements.

The Lynx 220 GL features a high-performance spindle, servo-driven turret, and precision linear guideways that enable fast positioning and efficient material removal. The machine is well suited for machining a variety of materials including carbon steel, stainless steel, aluminum, brass, bronze, cast iron, engineering plastics, and specialty alloys. Its versatility allows manufacturers to produce everything from simple turned parts to more complex components requiring multiple operations.

The machine is commonly equipped with a FANUC CNC control system, providing operators with a reliable and widely recognized platform for programming and machine operation. The combination of FANUC controls and Doosan mechanical reliability has made the Lynx 220 GL a favorite among small and medium-sized manufacturing facilities.

Industries that frequently utilize the Lynx 220 GL include automotive manufacturing, hydraulic equipment production, aerospace subcontracting, medical device manufacturing, industrial equipment production, energy sector suppliers, agricultural equipment manufacturing, and general contract machining. Typical applications include shafts, bushings, fittings, valve components, couplings, rollers, hydraulic parts, and precision machined components.

The 2008 DOOSAN LYNX 220 GL continues to be highly sought after because it offers dependable performance, affordable operating costs, excellent parts availability, and proven long-term durability.

---

DOOSAN LYNX 220 GL – AXIS

Specification	Value
Number of Axes	2 Axis
Axis Configuration	X, Z
Machine Type	CNC Turning Center
Control Type	CNC
Tailstock	Optional Programmable Tailstock
Live Tooling Capability	Optional

---

DOOSAN LYNX 220 GL – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	6.3 in
Z-Axis Travel	13.8 in
Maximum Turning Diameter	12.6 in
Maximum Turning Length	12.2 in
Swing Over Bed	20 in
Swing Over Saddle	13.8 in

---

DOOSAN LYNX 220 GL – CAPACITY / TABLE

Specification	Value
Chuck Size	8 in
Bar Capacity	2.6 in
Maximum Workpiece Diameter	12.6 in
Maximum Workpiece Length	12.2 in
Workholding Type	Hydraulic Chuck
Maximum Workpiece Weight	Approx. 220 lbs

---

DOOSAN LYNX 220 GL – SPINDLE

Specification	Value
Maximum Spindle Speed	4,500 RPM
Spindle Power	20 HP
Spindle Torque	140 ft-lb
Spindle Bore	3.0 in
Spindle Nose	A2-6
Spindle Type	Precision Belt-Driven

---

DOOSAN LYNX 220 GL – TOOL CHANGER

Specification	Value
Turret Stations	12
Turret Type	Servo Indexing Turret
Tool Selection	Automatic
Tooling Style	VDI/BOLT-ON
Index Time	Approx. 0.2 Seconds

---

DOOSAN LYNX 220 GL – CONTROL SYSTEM

Specification	Value
CNC Control	FANUC 21i-TB
Programming Capability	Turning and Threading
USB Connectivity	Available
Networking Capability	Optional
Conversational Programming	Available

---

DOOSAN LYNX 220 GL – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Coolant Tank Capacity	Approx. 40 Gallons
Chip Conveyor	Optional
Coolant Filtration	Integrated
Coolant Pump	Standard

---

DOOSAN LYNX 220 GL – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 25 kVA

---

DOOSAN LYNX 220 GL – DIMENSIONS

Specification	Value
Machine Length	Approx. 95 in
Machine Width	Approx. 65 in
Machine Height	Approx. 68 in
Machine Weight	Approx. 7,000 lbs

---

DOOSAN LYNX 220 GL – GENERAL INFORMATION

Specification	Value
Manufacturer	Doosan Machine Tools
Model	Lynx 220 GL
Year	2008
Machine Category	CNC Turning Center
Construction	Meehanite Cast Iron Base
CNC Control	FANUC
Typical Materials	Steel, Aluminum, Brass, Stainless Steel
Production Type	Job Shop and Production Machining

---

INDUSTRIES THAT USE DOOSAN LYNX 220 GL

• Automotive Manufacturing
• Hydraulic Equipment Manufacturing
• Medical Device Manufacturing
• Aerospace Subcontracting
• Industrial Equipment Manufacturing
• Agricultural Equipment Manufacturing
• Energy Industry Suppliers
• Precision Engineering
• Contract Machining
• General Manufacturing

---

TYPICAL PARTS DOOSAN LYNX 220 GL CAN PRODUCE

• Shafts
• Bushings
• Hydraulic Fittings
• Couplings
• Rollers
• Valve Components
• Threaded Components
• Bearing Housings
• Medical Components
• Aerospace Fittings
• Pump Components
• Precision Turned Parts

---

WHY CHOOSE DOOSAN LYNX 220 GL

The DOOSAN LYNX 220 GL has earned a reputation as one of the most dependable and cost-effective CNC turning centers in its class. Manufacturers choose this machine because it offers an excellent balance of performance, reliability, and affordability while maintaining the flexibility required for both production and job shop environments.

One of the machine’s greatest strengths is its rigid construction. The heavy-duty cast iron base provides outstanding vibration control, allowing operators to achieve consistent dimensional accuracy and excellent surface finishes. This stability is especially important when machining harder materials or performing extended production runs.

The machine’s compact footprint is another significant advantage. Many manufacturers face floor space limitations, and the Lynx 220 GL delivers substantial machining capability without requiring excessive shop space. This allows companies to maximize production efficiency while minimizing facility costs.

The FANUC control system further contributes to the machine’s popularity. FANUC controls are widely used throughout the industry, making it easier to find qualified operators, programmers, and maintenance personnel. The control’s reliability and user-friendly interface help reduce training requirements and improve operational efficiency.

Maintenance costs are generally lower than many competing machines due to the straightforward design and widespread availability of replacement parts. This makes the Lynx 220 GL particularly attractive for smaller manufacturers and job shops seeking dependable long-term performance.

The machine’s versatility allows it to handle a broad range of applications, from simple turning operations to more complex production work. Whether machining hydraulic fittings, aerospace components, medical parts, or industrial equipment components, the Lynx 220 GL provides the flexibility needed to support diverse manufacturing requirements.

For companies seeking a proven CNC lathe with a strong track record of reliability and productivity, the Lynx 220 GL remains an excellent choice.

---

WHY BUY USED DOOSAN LYNX 220 GL

Purchasing a used DOOSAN LYNX 220 GL provides manufacturers with access to proven CNC turning technology at a significantly lower cost than purchasing a new machine. For many businesses, the used machinery market offers an opportunity to expand production capacity while preserving capital for tooling, automation, and facility improvements.

One of the most significant advantages of buying a used Lynx 220 GL is cost savings. The machine delivers dependable turning performance and modern CNC functionality while often costing substantially less than newer equipment. This lower acquisition cost can dramatically improve return on investment and shorten payback periods.

The machine’s reputation for durability further enhances its value. Doosan turning centers are known for robust construction and long service life. Properly maintained Lynx machines frequently remain productive for decades, making them attractive investments for manufacturers seeking dependable equipment.

Availability is another major benefit. New machine purchases often involve lengthy lead times, while used machines are typically available for immediate purchase and installation. This allows manufacturers to increase capacity quickly and respond faster to customer demand.

Many used Lynx 220 GL machines include valuable options such as chip conveyors, tailstocks, bar feeders, upgraded tooling packages, and additional software capabilities. These features can increase productivity while reducing future upgrade expenses.

The machine’s popularity also contributes to excellent support availability. Replacement parts, service technicians, tooling, and operator expertise are widely available throughout the industry, helping reduce downtime and maintenance concerns.

For job shops, production facilities, and growing manufacturers seeking a reliable CNC turning solution, a used DOOSAN LYNX 220 GL offers exceptional value and long-term productivity.

---

HOW MUCH DOES A USED DOOSAN LYNX 220 GL COST?

The value of a used DOOSAN LYNX 220 GL depends on several factors including machine condition, spindle hours, maintenance history, installed options, tooling packages, and current market demand. Because the Lynx series has maintained a strong reputation for reliability and affordability, these machines continue to hold value in the used CNC marketplace.

Machine condition is generally the most important factor influencing pricing. Machines with documented maintenance histories, lower operating hours, and excellent mechanical condition typically command higher prices. Buyers often prioritize well-maintained equipment because it reduces the risk of unexpected repairs and downtime.

Installed options can significantly affect market value. Features such as programmable tailstocks, chip conveyors, bar feeders, live tooling capability, upgraded controls, high-pressure coolant systems, and tooling packages frequently increase machine pricing. These additions improve machine flexibility and reduce future capital investment requirements.

Market demand also influences pricing. Small and medium-sized manufacturers continue seeking reliable CNC lathes that offer strong performance without excessive acquisition costs. The Lynx 220 GL remains attractive because it delivers dependable machining capability while maintaining relatively low ownership costs.

Additional ownership expenses should also be considered when evaluating a machine purchase. Transportation, rigging, installation, tooling, and operator training costs may vary depending on machine location and facility requirements.

In today’s used CNC machinery market, a 2008 DOOSAN LYNX 220 GL typically sells within a range of approximately $18,000 to $45,000, depending on machine condition, spindle hours, installed options, tooling packages, and overall configuration. Machines with low hours, extensive tooling, bar feeders, and documented maintenance histories generally command values toward the upper end of the range.

When evaluating value, manufacturers should focus not only on purchase price but also on the machine’s ability to improve productivity, support customer requirements, reduce downtime, and provide reliable long-term performance. These factors continue to make the DOOSAN LYNX 220 GL one of the most popular used CNC turning centers available today.
