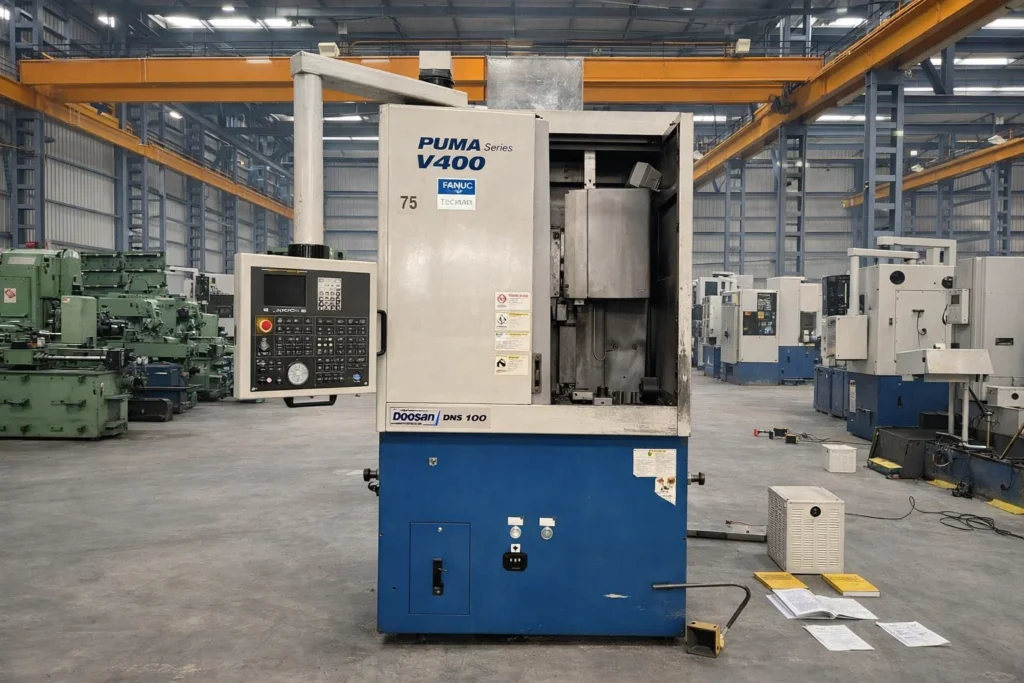

The Doosan Puma V400 is a compact yet powerful CNC vertical turning center designed for high-precision machining of medium-sized components. Manufactured by Doosan Machine Tools (now DN Solutions), this machine is widely used in automotive, aerospace, and general engineering industries.
The Puma V400 features a maximum turning diameter of approximately 496 mm and a turning length of around 460 mm, making it ideal for parts such as flanges, brake discs, and housings. It is equipped with a high-speed spindle capable of up to 3,000 RPM and a spindle motor around 22 kW, delivering strong cutting performance.
Built with a rigid Meehanite cast iron structure and box guideways, the machine provides excellent vibration damping and long-term accuracy, even under heavy cutting conditions. The vertical design allows gravity to stabilize the workpiece, improving machining precision and reducing setup complexity.
Typically equipped with a 12-station turret and CNC controls such as Fanuc or Siemens, the Puma V400 ensures flexibility, reliability, and consistent performance across a wide range of machining applications.
DOOSAN PUMA V400SPECIFICATIONS
DOOSAN V400 – AXIS
X-Axis
Z-Axis
C-Axis (Spindle Indexing)
DOOSAN V400 – AXIS TRAVELS
X-Axis Travel: ~268 mm
Z-Axis Travel: ~488 mm
DOOSAN V400 – CAPACITY
Maximum Turning Diameter: ~496 mm
Maximum Turning Length: ~461 mm
Maximum Swing Diameter: ~580–610 mm (approx)
Chuck Size: ~12 inch
DOOSAN V400 – SPINDLE
Spindle Nose: A2-8
Maximum Spindle Speed: ~3,000 RPM
Spindle Motor Power: ~22–26 kW
High Torque Vertical Spindle
DOOSAN V400 – TABLE
Table Type: Vertical Turning Table
Chuck Size: 12 inch
Hydraulic Clamping System
Suitable for Heavy Disc-Type Components
DOOSAN V400 – TOOL TURRET
Turret Type: Servo Turret
Number of Stations: 12
Fast Indexing (~0.15 sec)
Heavy-Duty Tooling Capability
DOOSAN V400 – FEEDRATES
Rapid Traverse (X/Z): ~20 / 24 m/min
Cutting Feed Rate: Programmable
High Rigidity Feed System
DOOSAN V400 – COOLANT & CHIP MANAGEMENT
Coolant System: Flood Coolant
Chip Disposal: Chip Conveyor
Optimized Chip Flow Design
DOOSAN V400 – CONTROL SYSTEM
CNC Control: FANUC Series
User-Friendly Interface
Reliable CNC Performance
DOOSAN V400 – POWER & AIR REQUIREMENTS
Power Requirement: ~380–415V, 3 Phase
Connected Load: ~40–45 kVA
Air Requirement: ~5–6 bar
DOOSAN V400 – DIMENSIONS
Machine Footprint: ~2.9 m x 2.0 m
Machine Height: ~3.2 m
Machine Weight: ~6,000–12,000 kg
DOOSAN V400 – GENERAL INFORMATION
Machine Type: Vertical Turning Center (VTL)
Compact Vertical Design
High Rigidity Meehanite Casting
Designed for Heavy-Duty Cutting
High Precision & Productivity
INDUSTRIES THAT USE DOOSAN V400
Automotive Industry
Aerospace Industry
Oil & Gas Industry
Heavy Engineering
General Manufacturing
TYPICAL PARTS DOOSAN V400 CAN PRODUCE
Brake Discs
Flywheels
Flanges
Housings
Bearing Rings
WHY CHOOSE DOOSAN V400
Compact Vertical Design Saves Space
High Torque for Heavy Cutting
Excellent Stability for Disc-Type Parts
Fast Tool Indexing Improves Productivity
Reliable FANUC Control
Ideal for Medium to Heavy Workpieces
WHY BUY USED DOOSAN PUMA V400
Purchasing a used Doosan Puma V400 is a practical and cost-effective decision for manufacturers seeking reliable vertical turning capability. One of the biggest advantages is significant cost savings—used machines can deliver strong performance at a fraction of the cost of new equipment.
The Puma V400 is built with a rigid structure and high-quality components from Doosan Machine Tools, ensuring long service life. Even machines with high cutting hours can continue to perform efficiently when properly maintained, making them a dependable long-term investment.
Another key benefit is stability and accuracy. The vertical design naturally supports heavy parts, reducing vibration and improving machining consistency. This makes it particularly suitable for industries machining round components like discs, rings, and housings.
Used machines are also typically available for immediate delivery, helping businesses avoid long lead times. Additionally, widely used CNC systems like Fanuc make maintenance easier, with readily available spare parts and service support.
Overall, a used Puma V400 offers a strong balance of performance, reliability, and cost efficiency for a wide range of machining needs.
HOW MUCH DOES A USED DOOSAN PUMA V400COST?
The cost of a used Doosan Puma V400 varies based on year of manufacture, condition, configuration, and cutting hours. Machines built before 2000 are less common but typically range from $20,000 to $40,000. These machines often have higher cutting hours and older CNC controls but can still perform standard operations effectively.
Machines from 2000 to 2010 are the most common in the market and generally fall within the $40,000 to $80,000 range. These units typically include Fanuc controls, improved spindle performance, and moderate to high cutting hours (often 8,000–20,000+ hours).
For machines produced between 2010 and 2025, prices usually range from $80,000 to $150,000 or more, depending on configuration and condition. Machines with lower cutting hours (under 5,000–8,000 hours) command premium pricing due to reduced wear and better overall performance.
Cutting time is a critical factor—low-hour machines retain higher value, while high-hour machines are more affordable but may require maintenance such as spindle servicing, turret alignment, or guideway inspection to maintain optimal performance.
