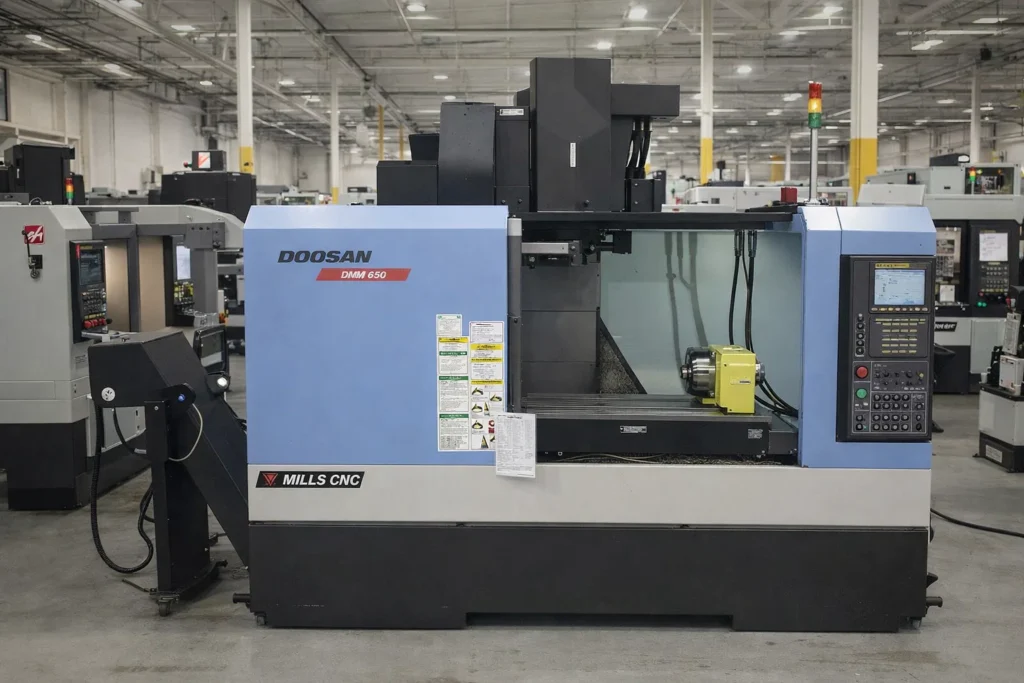

The Doosan DNM 650 is a large-capacity CNC vertical machining center (VMC) designed for heavy-duty machining, high productivity, and precision manufacturing of medium to large components. It is one of the larger models in the DNM series, offering significantly more travel and table capacity compared to machines like the DNM 500 or 5700.
Built with a rigid Meehanite cast iron structure and linear motion (LM) guideways, the DNM 650 delivers excellent stability, reduced vibration, and long-term accuracy even under heavy cutting conditions. The machine is typically equipped with a CAT/BT 40 spindle capable of 8,000–12,000 RPM, with high-speed versions reaching up to 15,000 RPM for demanding applications.
With axis travels of approximately 1,270 × 670 × 625 mm and a large table size around 1,300 × 670 mm, the DNM 650 is ideal for machining large plates, structural components, and multi-part setups. It supports a table load of up to 1,000 kg, making it suitable for heavy workpieces.
Equipped with FANUC controls, high-speed ATC, and efficient chip management systems, the DNM 650 is widely used in industries such as automotive, aerospace, die & mold, and general engineering.
DOOSAN DNM 650SPECIFICATIONS
DOOSAN DNM 650 – AXIS TRAVELS
X-Axis Travel: 1270 mm (50″)
Y-Axis Travel: 670 mm (26.4″)
Z-Axis Travel: 625 mm (24.6″)
Large Work Envelope
Ideal for Medium to Large Parts
High Precision Movements
DOOSAN DNM 650 – CAPACITY
Table Size: 1300 × 670 mm
Max Table Load: 1000 kg
Suitable for Heavy Components
Multi-Part Setup Capability
Production Ready
High Load Capacity
DOOSAN DNM 650 – SPINDLE
Max Spindle Speed: 8,000 – 12,000 RPM (up to 15,000 optional)
Spindle Taper: CAT / BT 40
Motor Power: ~15–22 kW
Torque: ~120–167 Nm
Direct / Belt Drive Options
Heavy-Duty & High-Speed Capability
DOOSAN DNM 650 – TABLE
Table Configuration: Fixed Table
Working Surface: 1300 × 670 mm
T-Slot Table
Rigid Construction
Supports Large Fixtures
Stable Setup
DOOSAN DNM 650 – TOOL TURRET
Tool Changer Type: Automatic
Tool Capacity: 30 / 40 Tools
Tool Change Time: ~1.3 sec (tool-to-tool)
Tool Taper: CAT 40
Twin-Arm ATC
High Productivity Tooling
DOOSAN DNM 650 – FEEDRATES
Rapid Traverse X/Y/Z: up to 36–48 m/min
Cutting Feed Rate: up to ~24,000 mm/min
Smooth Axis Motion
High-Speed Machining
Optimized for Production
Consistent Accuracy
DOOSAN DNM 650 – COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant Available
Flood Coolant System
Dual Chip Conveyors
Efficient Chip Removal
Large Coolant Tank (~380 L)
Clean Operation
DOOSAN DNM 650 – CONTROL SYSTEM
CNC Control: FANUC i-Series
User-Friendly Interface
Reliable Performance
Easy Programming
Widely Supported
Industry Standard
DOOSAN DNM 650 – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 200–240 VAC
Approx Power: ~50 kVA
Air Requirement: ~0.5–0.7 MPa
Efficient Power Usage
Suitable for Production Shops
DOOSAN DNM 650 – DIMENSIONS
Machine Length: ~2570–4345 mm
Machine Width: ~2720–3350 mm
Machine Height: ~2815 mm
Machine Weight: ~8500 kg
Large Footprint
Stable Installation
DOOSAN DNM 650 – GENERAL INFORMATION
Machine Type: Vertical Machining Center (VMC)
Large-Size Platform
Linear Guideway Construction
High Rigidity
Designed for Heavy-Duty Cutting
Reliable Production Machine
INDUSTRIES THAT USE DOOSAN DNM 650
Automotive
Aerospace
Tool & Die
Heavy Engineering
General Manufacturing
Precision Machining
TYPICAL PARTS DOOSAN DNM 650 CAN PRODUCE
Large Machine Components
Mold Bases
Structural Plates
Automotive Housings
Fixtures & Jigs
Steel & Aluminum Parts
WHY CHOOSE DOOSAN DNM 650
Large Work Envelope
High Load Capacity
Strong Spindle Performance
Production-Ready Design
Reliable FANUC Control
Excellent Used Market Value
WHY BUY USED DOOSAN DNM 650
Buying a used Doosan DNM 650 is an excellent option for shops needing a larger machining platform without the cost of a new machine.
One of the biggest advantages is its large work envelope and high load capacity. The machine allows manufacturers to handle bigger parts and multiple fixtures in a single setup, improving efficiency and reducing setup time.
Another key benefit is its strong spindle performance. With up to 12,000–15,000 RPM and solid torque output, the DNM 650 can handle both heavy material removal and high-speed finishing operations across a wide range of materials.
The machine is also highly productive. It features a 30-tool automatic tool changer with fast tool change times (~1.3 seconds tool-to-tool), along with rapid traverse rates up to 36–48 m/min, helping reduce cycle times in production environments.
Additionally, the DNM 650 is known for its reliability and ease of maintenance. With widely used FANUC controls and robust construction, it ensures long service life and strong support availability.
HOW MUCH DOES A USED DOOSAN DNM 650COST?
The cost of a used Doosan DNM 650 varies based on year, condition, and included options.
Typically, used machines range between $45,000 and $110,000. Older models (2010–2013) are generally on the lower end, while newer machines or those equipped with features such as through-spindle coolant, probing systems, and 4th-axis capability command higher prices.
Machines with high-speed spindles (12K–15K RPM), chip conveyors, and automation-ready configurations tend to have higher resale value due to increased productivity and flexibility.
Overall, the DNM 650 offers excellent value for shops looking for a large-capacity, production-ready VMC with strong performance.
